Eaton ServiceRanger - 3.0.5.0

ServiceRanger version 3 is the next generation of PC diagnostics software specifically designed for today and tomorrows Roadranger automated products. SR3 is not an update from ServiceRanger version 2.x, but rather a new software platform that is designed for today's advanced Roadranger automated products, including Hybrid Transmissions and the new VORAD VS-400 Collision Warning System.

ServiceRanger is a PC-based service bay tool used to diagnose, configure, and update most Roadranger automated products including:

* Fuller® AutoShift® and UltraShift® Transmissions
* Eaton VORAD® Collision Warning Systems
* Dana Spicer® TIMS® (Tire Inflation & Monitor System)
* Eaton Hybrid Electric Transmissions


Hardware Requirements
In order to successfully install and run ServiceRanger, your PC should meet the following minimum configuration:
• IBM® PC compatible computer- Pentium III or equivalent
• Microsoft Windows 2000, XP
• 128 Meg of RAM
• 800 x 600 screen resolution
• CD-ROM drive
• 100 megabyte of free hard disk space
• Internet Connection, 56K or higher (required for Internet Downloads and Updates)
• Internet Explorer 6.0 or greater (required for InfoRanger)
• RP-1210A Vehicle Communications Adapter
The following RP-1210A compliant communications adapter is recommended:
• Eaton MD-100 series Vehicle Link Adapter

Available code for program

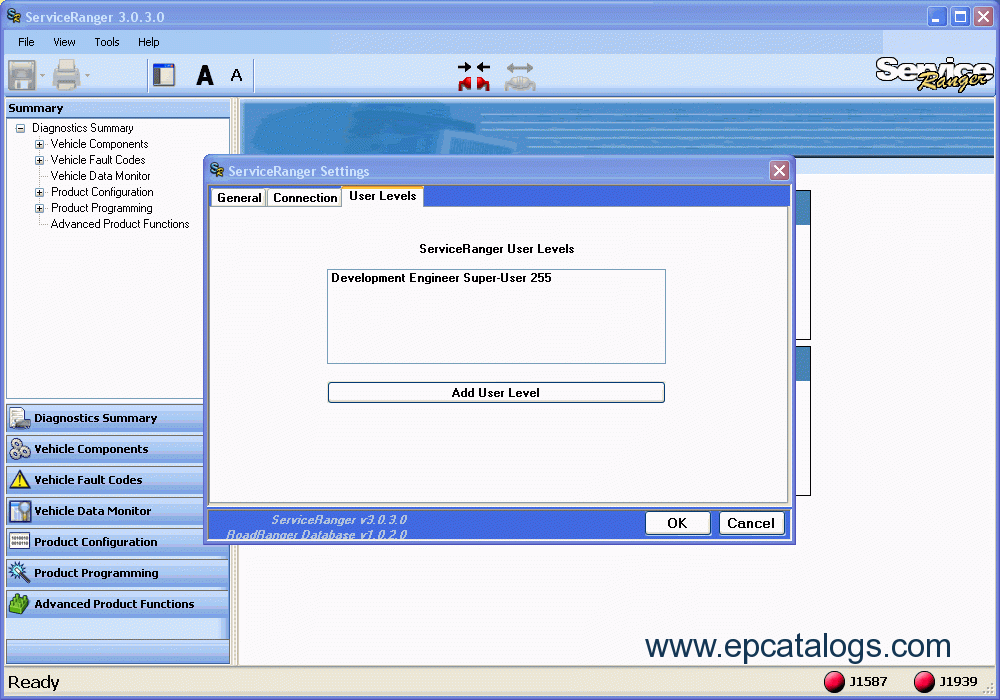

- 0 Light ServiceRanger User
- 1 Basic ServiceRanger User
- 2 Enhanced ServiceRanger User
- 3 RFM ServiceRanger User
- 4 Advanced ServiceRanger User
- 5 Select File User
- 6 Transmission Engineering User
- 7 Hybrid Engineering User
- 8 Vorad Engineering User
- 9 OEM Engineering User
- 10 Development Engineer Super-User
