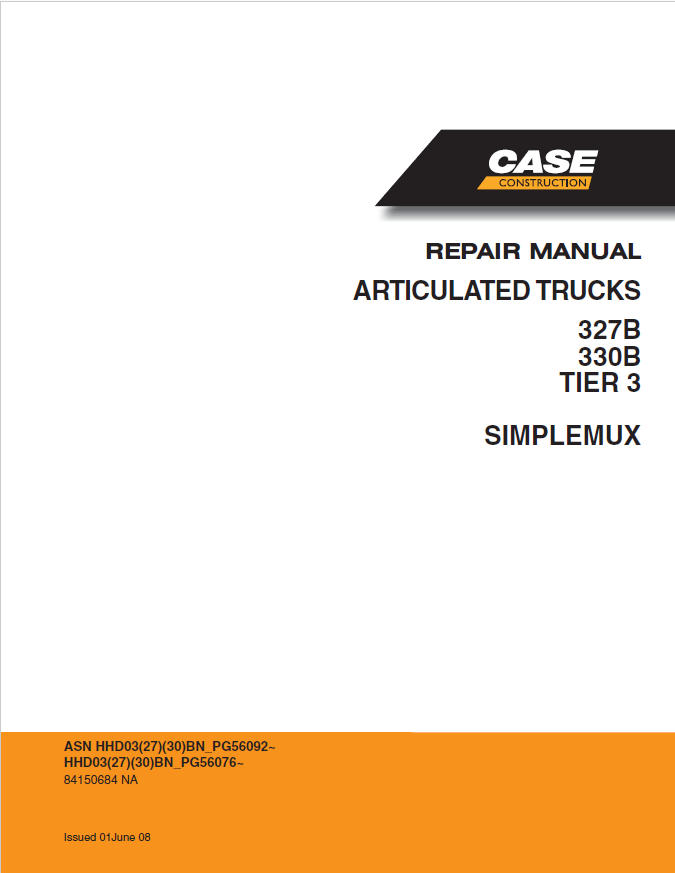

Case ARTICULATED TRUCKS 327B, 330B Tier 3 Simplemux Repair Manual PDF

This repair manual covers the Case 327B and 330B Tier 3 Simplemux articulated trucks. It provides technical information on the operation, maintenance, troubleshooting, and repair of the trucks and their major systems, including service specifications, adjustment procedures, component removal and installation, and overhaul instructions.

The procedures are intended for qualified service personnel. Follow the manufacturer's safety instructions, use the specified tools, and observe the recommended service specifications and tightening torques.

Service and Repair Coverage

The manual includes general technical data for both models, covering vehicle dimensions, weights, performance, capacities, tyre pressures, identification data, and standard tightening torques. It also provides fault code information for the multiplex and engine control systems, including diagnostic procedures and diagnostic connector pin assignments.

The engine section covers electronic control, fuel supply, air intake, variable geometry turbocharger operation, exhaust, engine braking, cooling, and lubrication. It includes technical specifications, troubleshooting by symptoms, maintenance procedures, engine removal and replacement, and component disassembly and reassembly.

The electrical section explains the Simplemux multiplex system, CAN communication lines, electronic control units, sensors, actuators, power supply, relays, fuses, and grounding points. Wiring layouts and component location diagrams support electrical diagnostics and fault tracing.

The steering and dumping section covers the hydraulic steering and body-lifting systems, including system operation, hydraulic diagrams, testing procedures, valve and pump servicing, and steering and dumping cylinder repairs. The power train section addresses the automatic transmission, front, intermediate, and rear axles, differentials, planetary reducers, hubs, driveline, and parking brake components, with maintenance, diagnostic, removal, replacement, and overhaul procedures.

The braking section describes the braking system, including brake pumps, hydraulic accumulators, control valves, and related components. Separate coverage is provided for wet-brake configurations, including brake cooling circuits, testing, maintenance, and component replacement.

Additional sections cover the hydraulic system and pressure test points, front and rear suspensions, the pneumatic system, automatic greasing equipment, and air conditioning. Technical diagrams, specifications, diagnostic information, and step-by-step service procedures support maintenance and repair work on the Case 327B and 330B Tier 3 Simplemux articulated trucks.

Table of Contents

GENERAL
CHAPTER 1
CONDITIONS OF USE AND SAFETY INSTRUCTIONS
TABLE OF CONTENTS
CONDITIONS OF USE
INFORMATION ON THIS HANDBOOK
SCHEDULED USE
WASTE DISPOSAL
WARRANTY AND LIABILITY OF THE MANUFACTURER
GENERAL OPERATION RULES
INTRODUCTION
ROLLOVER ACCIDENTS
CHAPTER 2
TECHNICAL DATA
TABLE OF CONTENTS
VEHICLE COMPOSITION (327B SIMPLEMUX)
DIMENSIONS (EMPTY VEHICLE)
DIMENSIONS WITH BODY RAISED
WEIGHTS
CENTER OF GRAVITY (HORIZONTAL POSITION)
PERFORMANCE
PERFORMANCE ALIGNMENT CHART
MAIN TECHNICAL SPECIFICATIONS
POSITION OF IDENTIFICATION DATA ON MAIN GROUPS
MAIN TECHNICAL SPECIFICATIONS
LIST OF BULBS
CAPACITIES
TYRE PRESSURE TABLE
ANTIFREEZE CONCENTRATION IN ENGINE COOLANT
ANTIFREEZE CONCENTRATION IN WINDSHIELD WASHER FLUID
BATTERY ELECTROLYTE DENSITY TABLE
TIGHTENING TORQUE
PLATES APPLIED TO THE VEHICLE
STANDARD TIGHTENING TORQUES
MEASURES (INTERNATIONAL SYSTEM)
VEHICLE COMPOSITION (330B SIMPLEMUX)
DIMENSIONS (EMPTY VEHICLE)
DIMENSIONS WITH BODY RAISED
WEIGHTS
CENTER OF GRAVITY (HORIZONTAL POSITION)
PERFORMANCE
PERFORMANCE ALIGNMENT CHART
MAIN TECHNICAL SPECIFICATIONS
POSITION OF IDENTIFICATION DATA ON MAIN GROUPS
POSITION OF IDENTIFICATION DATA ON MAIN GROUPS
MAIN TECHNICAL SPECIFICATIONS
LIST OF BULBS
CAPACITIES
TYRE PRESSURE TABLE
ANTIFREEZE CONCENTRATION IN ENGINE COOLANT
ANTIFREEZE CONCENTRATION IN WINDSHIELD WASHER FLUID
BATTERY ELECTROLYTE DENSITY TABLE
TIGHTENING TORQUE
PLATES APPLIED TO THE VEHICLE
STANDARD TIGHTENING TORQUES
MEASURES (INTERNATIONAL SYSTEM)
CHAPTER 3
FAULT CODES
TABLE OF CONTENTS
MULTIPLEX SYSTEM FAULT CODES
FAULT CHECK USING THE DISPLAY
MULTIPLEX SYSTEM FAULT CODES LIST - SOFTWARE VERSION 3.3.0.0
ENGINE FAULT CODES
ENGINE CONTROL FAULT CODES LIST
MULTIPLEX SYSTEM FAULT CODES
MULTIPLEX SYSTEM FAULT CODES LIST
DIAGNOSTIC CONNECTOR PIN-OUT

ENGINES
CHAPTER 1
CONDITIONS OF USE AND SAFETY INSTRUCTIONS
TABLE OF CONTENTS
WALK AROUND
ELECTRONIC SYSTEM CONTROL
FEEDING
FUEL SUPPLY DIAGRAM 2
ENGINE AIR INTAKE SYSTEM
VARIABLE GEOMETRY TURBINE (VGT)
ACTUATOR ADJUSTMENT
VGT CONTROL SOLENOID VALVE
ENGINE EXHAUST SYSTEM
ENGINE BRAKE
EARLY CLOSING SYSTEM FOR THE INTAKE VALVES (“MILLER” CYCLE)
COOLING
LUBRICATION
TECHNICAL SPECIFICATION
GENERAL CHARACTERISTICS
ASSEMBLY CLEARANCE DATA
TIGHTENING TORQUES
TIGHTENING ORDER OF GEARBOX TO ENGINE BLOCK FASTENING SCREWS
TOOLS
TROUBLESHOOTING BY SYMPTOMS
MAINTENANCE
ENGINE REMOVAL–REPLACEMENT
DETACHMENT-REATTACHMENT OF THE FLEXIBLE COUPLING JOINT
RADIATOR GROUP REMOVAL-REPLACEMENT
AUTOMATIC TRANSMISSION OIL–WATER HEAT EXCHANGER REMOVAL–REPLACEMENT
DISMANTLING THE ENGINE ON THE BENCH
CYLINDER HEAD
ROCKERS

ELECTRICAL
ELECTRICAL SYSTEM
TABLE OF CONTENTS
MULTIPLEX SYSTEM OVERVIEW
CAN LINE
MULTIPLEX SYSTEM GENERAL DIAGRAM
BULKHEAD CONNECTORS
DIAGNOSTIC CONNECTOR PIN-OUT
CAN OPEN LINE

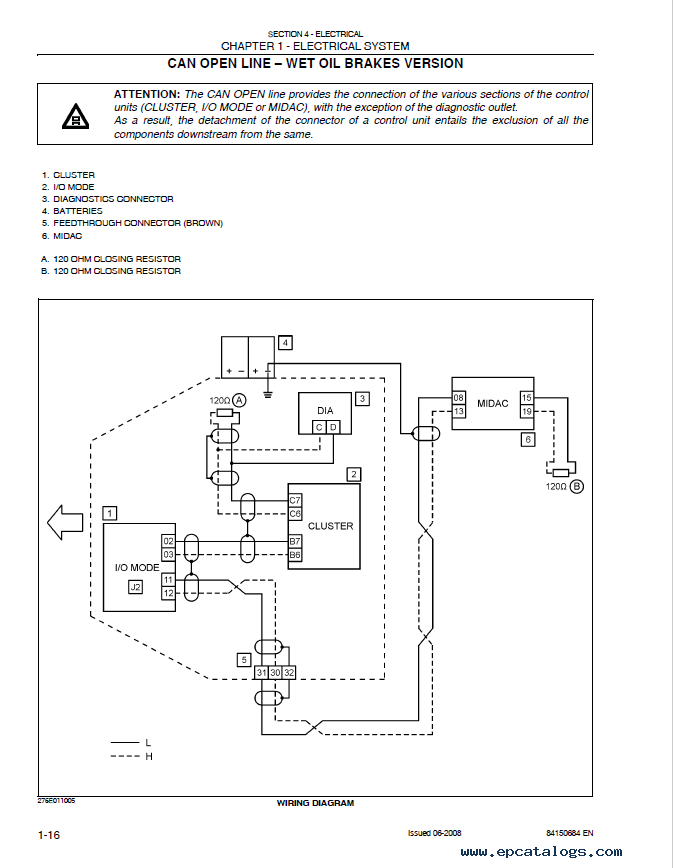

CAN OPEN LINE – DISC BRAKES VERSION
CAN OPEN LINE – WET OIL BRAKES VERSION
BODY COMPUTER SYSTEM COMPONENTS
I/O MODE
MIDAC
LOCATION OF SENSORS AND ACTUATORS
CAN J1939 LINE
EDC ENGINE CONTROL UNIT
TRANSMISSION CONTROL UNIT (TCU)
ELECTRICAL SUPPLY
GROUND POINTS
RELAYS AND FUSES INTERCONNECTION CONTROL UNIT
RELAYS AND FUSES
TOPOGRAPHIC DIAGRAMS
GENERAL
TOPOGRAPHIC DIAGRAM OF FRONT MAIN FRAME SERVICES CABLE WIRING -
(DISC BRAKES)
TOPOGRAPHIC DIAGRAM OF FRONT MAIN FRAME SERVICES CABLE WIRING -
(WET BRAKES)TOPOGRAPHIC DIAGRAM OF REAR MAIN FRAME SERVICES CABLE WIRING
TOPOGRAPHIC DIAGRAM OF CAB CABLE WIRING
TOPOGRAPHIC DIAGRAM OF ENGINE - MAIN FRAME WIRING
TOPOGRAPHIC DIAGRAM OF MAIN FRAME - AUTOMATIC TRANSMISSION WIRING
TOPOGRAPHIC DIAGRAM OF CAB - AUTOMATIC TRANSMISSION WIRING
WORK ON THE BATTERIES

ELECTRICAL SYSTEM

STEERING
CHAPTER 1
WHEELS AND TYRES
TABLE OF CONTENTS
WHEELS
SPECIFICATIONS AND DATA
TIGHTENING TORQUE
REPLACING A COMPLETE WHEEL
TYRE–RIM DISASSEMBLY–ASSEMBLY
CHAPTER 2
STEERING AND DUMPING SYSTEM
TABLE OF CONTENTS
STEERING AND DUMPING SYSTEM – DESCRIPTION
HYDRAULIC DIAGRAM
OPERATION
TOPOGRAPHICAL DIAGRAMS
TOPOGRAPHICAL DIAGRAMS
MAINTENANCE
MAIN SYSTEM
STEERING – DUMPING SYSTEM TEST PROCEDURES
DUMPING VALVE REMOVAL/REPLACEMENT
DUMPING CYLINDER REMOVAL – REPLACEMENT
STEERING VALVE REMOVAL – REPLACEMENT
MAIN PUMP REMOVAL–REPLACEMENT
STEERING CYLINDER REMOVAL – REPLACEMENT
DUMPING CYLINDER OVERHAUL
STEERING CYLINDER OVERHAUL
STEERING–DUMPING VALVE BLOCK OVERHAUL
CHAPTER 3
EMERGENCY STEERING SYSTEM
TABLE OF CONTENTS
EMERGENCY STEERING SYSTEM
INSPECTION PROCEDURES
EMERGENCY STEERING PUMP REMOVAL–REPLACEMENT

POWER TRAIN
AUTOMATIC TRANSMISSION
TABLE OF CONTENTS
DESCRIPTION

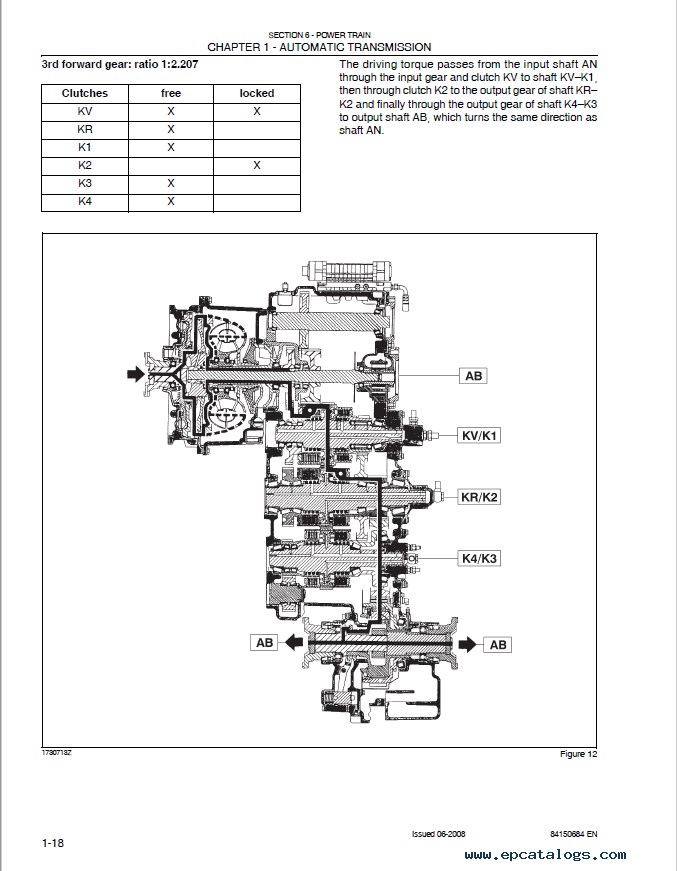

AUTOMATIC TRANSMISSION CROSS-SECTION VIEW
AUTOMATIC TRANSMISSION EXTERNAL PIPE ARRANGEMENT VIEW
TRANSMISSION SPEED SENSORS
FUNDAMENTAL COMPONENTS
OPERATION
FRONT DIFFERENTIAL FITTING
OIL CIRCULATION SYSTEM – VERSION WITH RETARDER
OIL CIRCULATION SYSTEM – VERSION WITHOUT RETARDER
AUTOMATIC TRANSMISSION CONTROL SYSTEM COMPONENTS
TECHNICAL DATA
TIGHTENING TORQUE
EQUIPMENT
MAINTENANCE
TRANSMISSION HYDRAULIC CONTROL DIAGRAM
REMOVAL – REPLACEMENT AUTOMATIC TRANSMISSION GEARBOX
REMOVAL – REPLACEMENT OF THE FRONT DIFFERENTIAL
INSPECTION
HYDRAULIC CONTROL UNIT
LOCK–UP CLUTCH VALVE (WK)
GEARBOX AND GEAR DISASSEMBLY
GENERAL ASSEMBLY STANDARDS
DISMANTLING AND REASSEMBLY OF MAIN UNITS
GEARBOX AND GEAR ASSEMBLY
CHAPTER 2
FRONT AXLE
TABLE OF CONTENTS
DESCRIPTION (FRONT DISC BRAKES)
SPECIFICATIONS AND DATA
TIGHTENING TORQUES
EQUIPMENT
DIAGNOSTICS
MAINTENANCE
FRONT DIFFERENTIAL
FRONT HUBS
FRONT HUB REMOVAL
BRAKE CALIPER DETACHMENT–REATTACHMENT
EPICYCLIC REDUCER OVERHAUL
FRONT DIFFERENTIAL OVERHAUL
BRAKE CALIPER OVERHAUL
BRAKE DISC OVERHAUL
SPECIFICATIONS AND DATA
TIGHTENING TORQUES
TOOLS
DIAGNOSTICS
MAINTENANCE
FRONT HUBS
FRONT HUB REMOVAL-REFIT
EPICYCLIC REDUCER OVERHAUL
FRONT DIFFERENTIAL OVERHAUL
CHAPTER 3
INTERMEDIATE AXLE
TABLE OF CONTENTS
DESCRIPTION (DRY DISC BRAKES)
SPECIFICATIONS AND DATA
TIGHTENING TORQUES
TOOLS

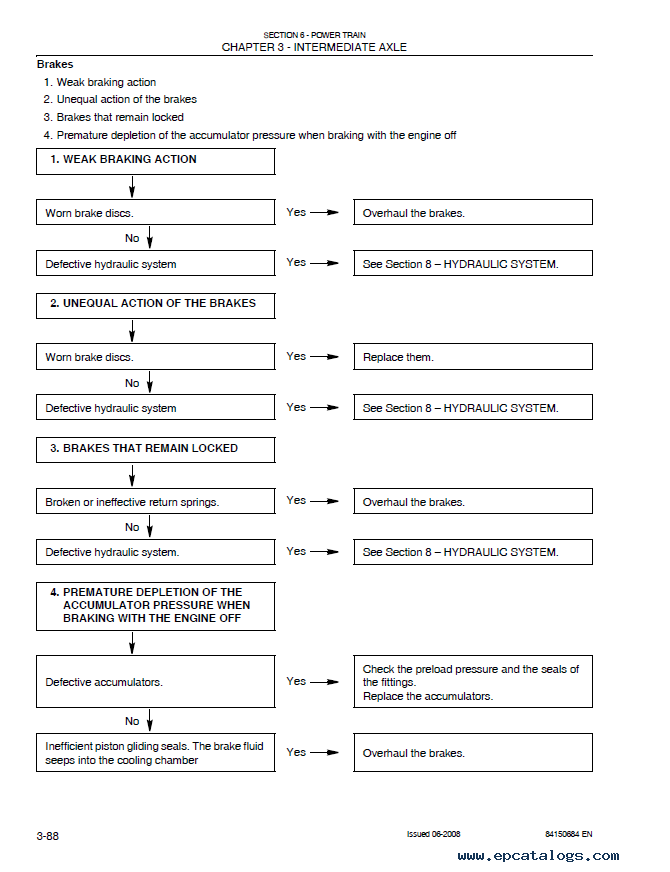

DIAGNOSTICS
MAINTENANCE
INTERMEDIATE AXLE REMOVAL-REFIT
BRAKE CALIPER DETACHMENT-REATTACHMENT
PLANETARY REDUCER OVERHAUL
TANDEM AXLE AND DIFFERENTIAL OVERHAUL
BRAKE CALIPER OVERHAUL
BRAKE DISC OVERHAUL
DESCRIPTION
SPECIFICATIONS AND DATA
TIGHTENING TORQUES
TOOLS
DIAGNOSTICS
MAINTENANCE
INTERMEDIATE AXLE REMOVAL-REFIT
PLANETARY REDUCER OVERHAUL
TANDEM AXLE AND DIFFERENTIAL OVERHAUL
CHAPTER 4
REAR AXLE
TABLE OF CONTENTS
DESCRIPTION (DISC BRAKES)
SPECIFICATIONS AND DATA
TIGHTENING TORQUES
TOOLS
DIAGNOSTICS
MAINTENANCE
REAR AXLE REMOVAL-REFIT
BRAKE CALIPER REMOVAL–INSTALLATION
PLANETARY REDUCER OVERHAUL
DIFFERENTIAL OVERHAUL
BRAKE CALIPER OVERHAUL
BRAKE DISC OVERHAUL
DESCRIPTION (WET BRAKES)
SPECIFICATIONS AND DATA
TIGHTENING TORQUES
TOOLS
DIAGNOSTICS
MAINTENANCE
REAR AXLE REMOVAL-REPLACE
PLANETARY REDUCER OVERHAUL
REAR DIFFERENTIAL OVERHAUL
CHAPTER 5
DRIVELINE
TABLE OF CONTENTS
DESCRIPTION
SPECIFICATIONS AND DATA
TIGHTENING TORQUES
TIGHTENING TORQUES
INSPECTION PROCEDURES
MAINTENANCE
REMOVAL–REPLACEMENT OF THE PARKING BRAKE DISC AND CALIPER
CENTRAL BEARING OVERHAUL

BRAKES
CHAPTER 1
BRAKING SYSTEM
TABLE OF CONTENTS
BRAKING SYSTEM
OPERATION
TOPOGRAPHICAL DIAGRAMS
A. BRAKE PUMP
C. ACCUMULATORS
D. FILTER AND LIMITATION VALVE
E. BRAKE COMMAND VALVE
F. REAR CHASSIS CONNECTOR PLATE
BRAKING SYSTEM TEST PROCEDURES
MAINTENANCE
BRAKE PUMP REMOVAL–REPLACEMENT
HYDRAULIC ACCUMULATOR REMOVAL–REPLACEMENT
RELAY VALVE REMOVAL–REPLACEMENT
CHAPTER 2
BRAKING SYSTEM - WET BRAKES VERSION
TABLE OF CONTENTS
BRAKING SYSTEM
OPERATION
TOPOGRAPHICAL DIAGRAMS
A. BRAKE PUMP
B. OIL TANK
C. FRONT ACCUMULATOR
D. FILTER AND RESTRICTOR VALVE
E. BRAKE CONTROL VALVE
F. BRAKE COOLING MOTOR/PUMP ASSEMBLY
G. FRONT AXLE BRAKE ACTUATION
H. REAR MAIN FRAME CONNECTION PLATE
I. RELAY VALVE
L. REAR ACCUMULATOR
M. INTERMEDIATE AXLE BRAKE ACTUATION
BRAKING SYSTEM TEST PROCEDURES
MAINTENANCE
BRAKE PUMP REMOVAL–REPLACEMENT
HYDRAULIC ACCUMULATOR DETACHMENT-REATTACHMENT
DISASSEMBLY-REASSEMBLY OF THE RELAY VALVE
BRAKE PEDAL VALVE DETACHMENT-REATTACHMENT
CHAPTER 3
BRAKE COOLING SYSTEM (WET BRAKES VERSION)
OPERATION
TOPOGRAPHICAL DIAGRAMS
A. OIL TANK
B. BRAKE COOLING MOTOR/PUMP ASSEMBLY
C. FRONT AXLE BRAKE COOLING ASSEMBLY
D. REAR CHASSIS CONNECTION PLATE
E. INTERMEDIATE AXLE BRAKE COOLING ASSEMBLY
BRAKE COOLING CIRCUIT PUMP-MOTOR REMOVAL-REPLACEMENT
BRAKE COOLING SYSTEM

HYDRAULICS
DESCRIPTION
HYDRAULIC SYSTEM PRESSURE TEST POINTS
HYDRAULIC SYSTEM PRESSURE TEST POINTS

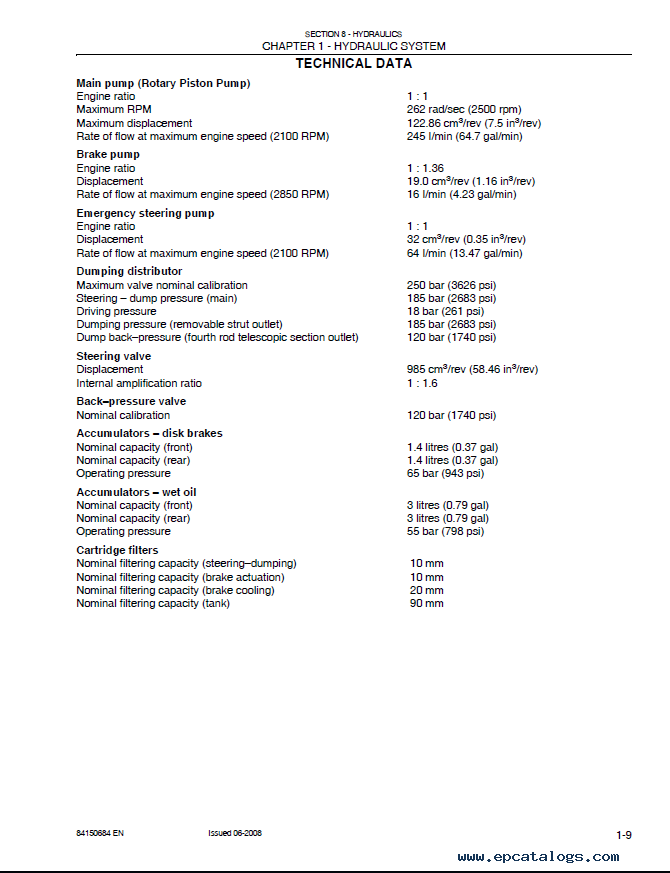

TECHNICAL DATA

MOUNTED EQUIPMENT
CHAPTER 1
SUSPENSIONS
TABLE OF CONTENTS
DESCRIPTION
TECHNICAL DATA
TIGHTENING TORQUES
TIGHTENING TORQUES
MAINTENANCE
DISASSEMBLY–REASSEMBLY OF THE AXLE SHAFT PROTECTIONS
FRONT SUSPENSION REMOVAL–REPLACEMENT
FRONT SUSPENSION CYLINDER REMOVAL–REPLACEMENT
REPLACEMENT OF THE FRONT SUSPENSION BALL JOINT
(TYPE II SUSPENSIONS ONLY)
REAR SUSPENSION REMOVAL–REPLACEMENT
DISASSEMBLY–REASSEMBLY OF THE REAR SUSPENSION CENTRAL BUSHINGS
REMOVAL–REPLACEMENT OF THE REAR SUSPENSION STABILIZER BARS
REMOVAL–REPLACEMENT OF THE REAR SUSPENSION BUSHINGS
SUSPENSION CYLINDER OVERHAUL
CHAPTER 2
PNEUMATIC SYSTEM
TABLE OF CONTENTS
DESCRIPTION
PNEUMATIC DIAGRAM
COMPONENTS LOCATION PNEUMATIC SYSTEM
DIAGNOSTIC
DRIER
MAIN COMPONENTS PNEUMATIC SYSTEM
CHAPTER 3
GREASE SYSTEM
TABLE OF CONTENTS
MANUAL GREASING
GREASING SYSTEM CALIBRATION
GREASING TIME ADJUSTMENT
DISTRIBUTION DIVIDER
CHAPTER 4
AIR CONDITIONING SYSTEM
TABLE OF CONTENTS
AIR–CONDITIONING SYSTEM
TECHNICAL DATA
DIAGNOSTICS MAINTENANCE
SYSTEM DRAINING AND RECHARGING PROCEDURES
R134A REFRIGERANT RECHARGING AND RECOVERY STATION (99305146)
