Case 60, 75, 90, 115, 160 Excavator Operator’s Manual PDF

This operator’s manual covers the Case 60, 75, 90, 115, and 160 excavators. It provides operating instructions, machine specifications, safety information, and maintenance procedures to help operators understand the machine’s controls, systems, and operating functions.

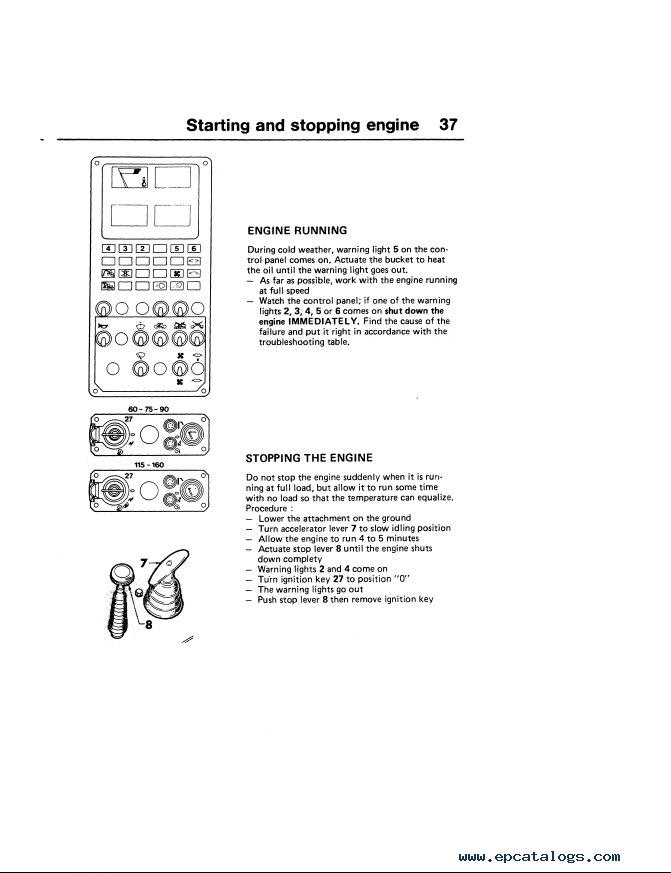

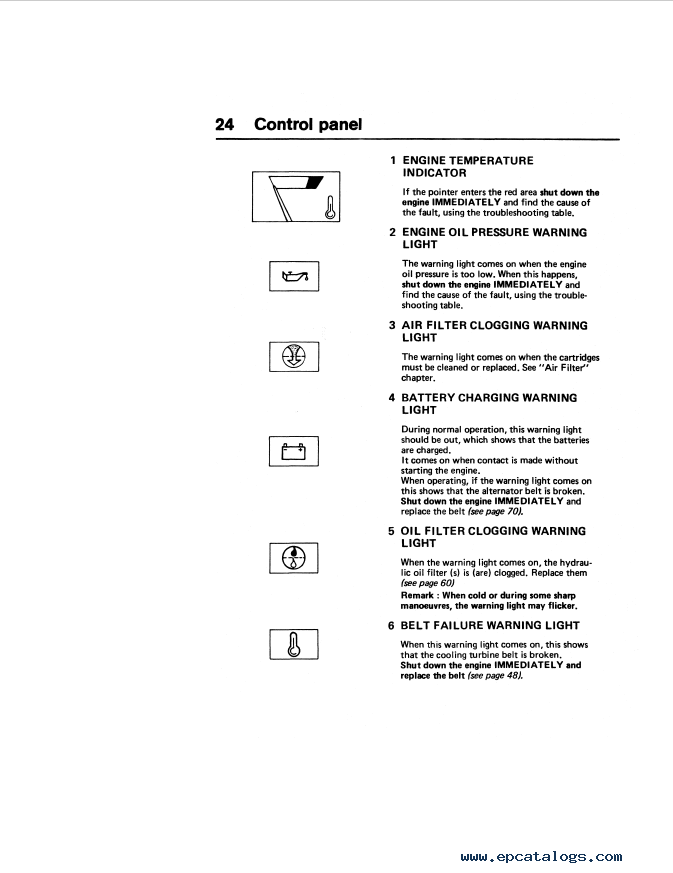

The manual includes detailed information on cab equipment, control panels, seat adjustments, engine starting and shutdown procedures, running-in instructions, and practical operating hints. It also explains the functions of the machine’s controls, warning lights, heating and ventilation systems, lighting and windshield wipers.

Operating and Maintenance Coverage

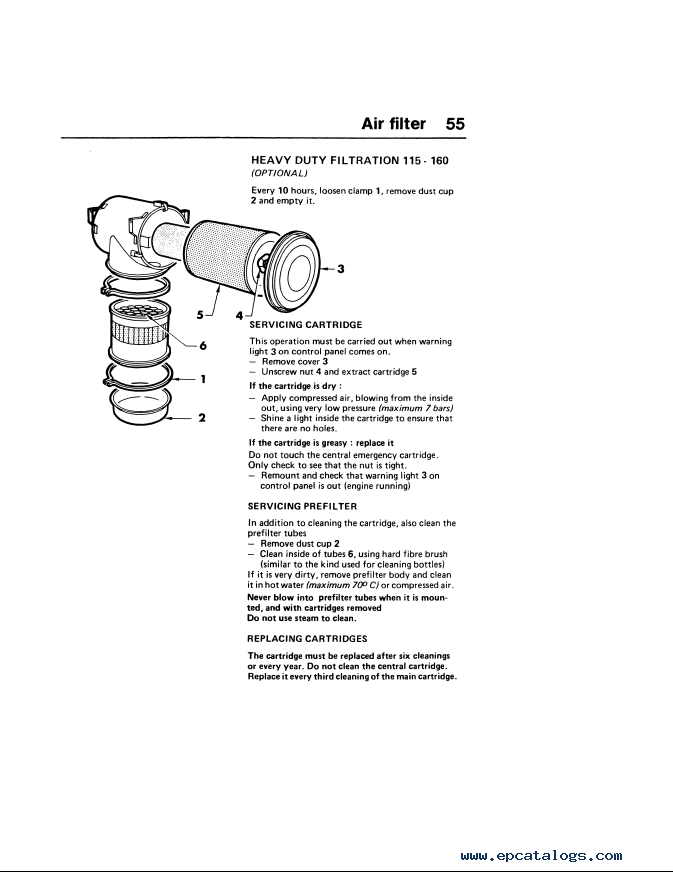

The manual covers routine maintenance requirements, recommended maintenance intervals, lubrication diagrams and maintenance tables. It provides servicing information for the engine, fuel supply system, air filtration, hydraulic components, electrical systems and mechanical assemblies.

The engine section includes information on fuel filters, oil filters, injectors, the injection pump, the starter system, engine temperature monitoring and troubleshooting procedures. Hydraulic system coverage includes the hydraulic tank, pump, cooler, accumulator, filters, hoses, and hydraulic control circuits.

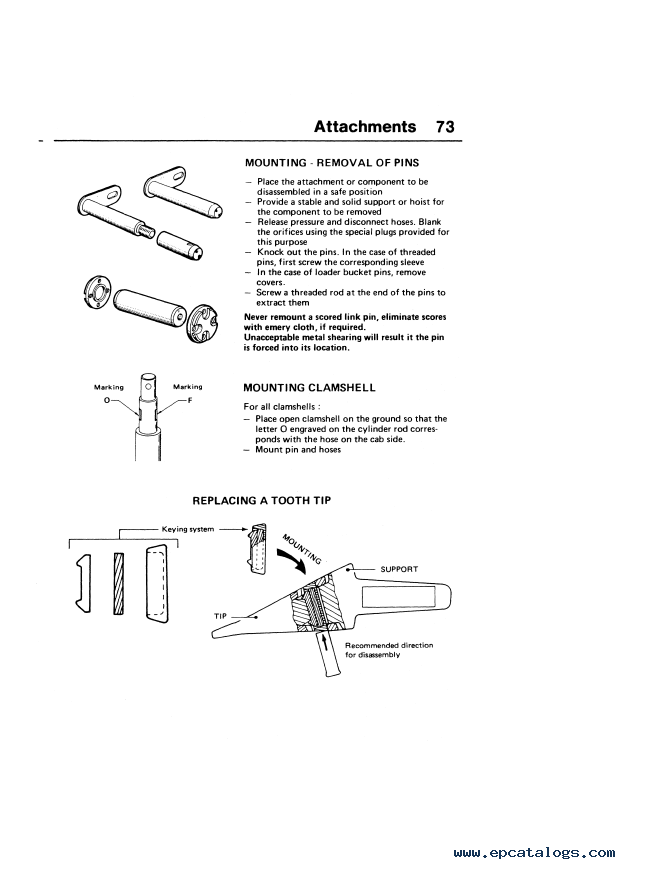

Mechanical maintenance procedures cover reduction gears, track drive systems, track tension adjustment, track replacement, mounting pins and related components. Electrical coverage includes batteries, the alternator, belts, fuses, warning indicators and lighting circuits.

Attachments and Working Ranges

The manual explains attachment operation and control functions, including boom and bucket controls, dipperstick and swing controls, clamshell mounting and operation, heavy-lift functions and attachment hose connections. It also provides working-range information for backhoe, clamshell and loader configurations.

Additional sections cover independent heating, winter operation, fuel-system bleeding and priming, upperstructure locking, emergency pump operation, tool sets and spare parts. Troubleshooting tables help identify potential engine and independent-heater problems.

This manual is a useful reference for excavator operators and maintenance personnel who need guidance on safe operation, routine servicing, machine controls and general maintenance procedures.
