Case 580N, 580SN, 580SN WT, 590SN Tractor Loader Backhoe Tier III Parts Catalog PDF

This parts catalog covers the Case 580N, 580SN, 580SN WT, and 590SN Tier III Tractor Loader Backhoes. It provides detailed parts information for the machine’s major assemblies and components, supported by pictorial indexes and illustrated parts breakdowns to help identify and locate replacement parts.

The catalog is organized by machine systems and model configurations. It helps parts personnel, mechanics, and equipment owners identify the correct components for maintenance, servicing, and repair.

Parts Catalog Coverage

The engine section includes detailed parts listings for the cylinder block, cylinder head, crankshaft, pistons, connecting rods, camshaft, fuel injection system, turbocharger, lubrication system, cooling system, radiator, and related components.

The transmission and drivetrain sections cover transmission assemblies, powershift systems, oil pumps, control valves, shafts, front and rear drive axles, differentials, ring and pinion assemblies, planetary drives, brakes, and related components.

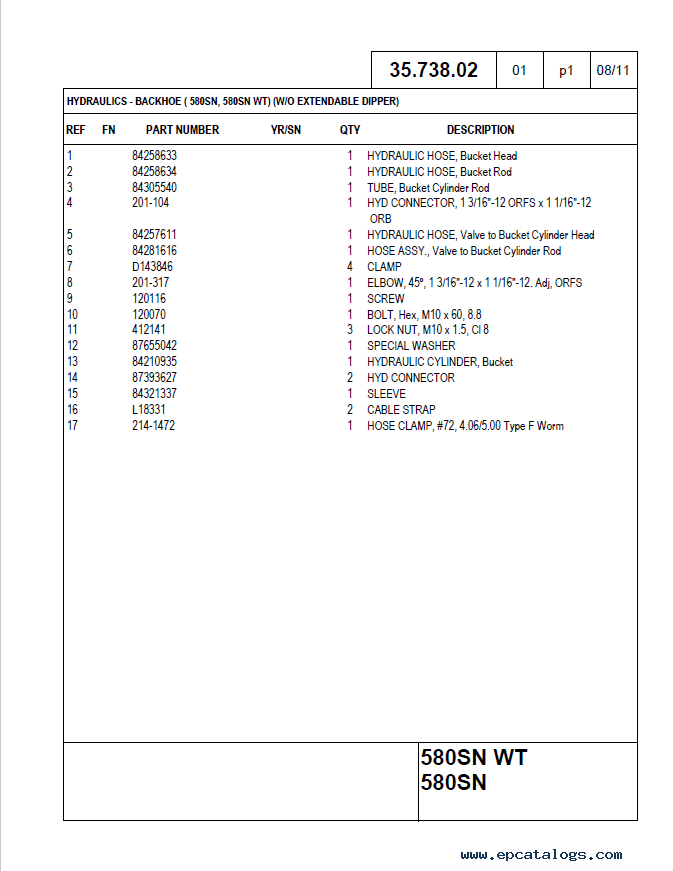

The hydraulic systems section includes loader and backhoe control valves, hydraulic pumps, pilot controls, joysticks, auxiliary hydraulic circuits, cylinders, stabilizers, swing systems, extendable dipper equipment, quick couplers, and heavy-lift components.

Additional sections provide parts information for steering, electrical systems, wiring harnesses, starting and charging components, cab climate control, front loader equipment, backhoe assemblies, buckets, chassis, frame components, cab, bodywork, wheels, tires, and accessories.

Pictorial indexes throughout the catalog make it easier to navigate the different machine systems and identify individual parts for the applicable model.

TABLE OF CONTENTS

PICTORIAL INDEX - MAINTENANCE
PICTORIAL INDEX - ENGINE
PICTORIAL INDEX - TRANSMISSION
PICTORIAL INDEX - FRONT MECHANICAL DRIVE
PICTORIAL INDEX - REAR DRIVE AXLE
PICTORIAL INDEX - BRAKE & CONTROLS
PICTORIAL INDEX - HYDRAULIC SYSTEMS
PICTORIAL INDEX - TOWING HOOKS & BALLISTING
PICTORIAL INDEX - FRAME COMPONENTS
PICTORIAL INDEX - STEERING
PICTORIAL INDEX - AXLE & WHEELS
PICTORIAL INDEX - CAB CLIMATE CONTROL
PICTORIAL INDEX - ELECTRICAL SYSTEM
PICTORIAL INDEX - FRONT LOADER
PICTORIAL INDEX - BACKHOE
PICTORIAL INDEX - PLATFORM, CAB, BODYWORK AND DECALS
BUCKET RETROFIT KIT
FILTERS AND CAPABILITIES
INITIAL STOCKING LIST "A" (ISL) - FOR NA ONLY
INITIAL STOCKING LIST "B" (ISL) - FOR NA ONLY
INITIAL STOCKING LIST "B" (ISL) - FOR NA ONLY
INITIAL STOCKING LIST "B" (ISL) - FOR NA ONLY
INITIAL STOCKING LIST "B" (ISL) - FOR NA ONLY
PICTORIAL INDEX - ENGINE
ENGINE
ENGINE (580N)
CYLINDER BLOCK (580SN, 580SN WT, 590SN)
CYLINDER BLOCK (580N)
CYLINDER BLOCK (580SN, 580SN WT, 590SN)
CYLINDER BLOCK (580N)
ENGINE - MOUNTING
ENGINE - MOUNTING (580N)
ENGINE - LIFT HOOK
CYLINDER HEAD (580SN, 580SN WT, 590SN)
CYLINDER HEAD (580N)
CYLINDER HEAD COVERS (580SN, 580SN WT, 590SN)
CYLINDER HEAD - COVERS (580N)
BREATHER - ENGINE (580SN, 580SN WT, 590SN)
BREATHER - ENGINE (580N)
OIL PUMP, PAN (580SN, 580SN WT, 590SN)
CRANKCASE COVERS (580SN, 580SN WT, 590SN)
CRANKCASE COVERS (580N)
CRANKCASE COVERS (580SN, 580SN WT, 590SN)
CRANKCASE COVERS (580N)
CYLINDER BLOCK - COVERS (580SN, 580SN WT, 590SN)
CYLINDER BLOCK - COVERS (580N)
ACCESSORY DRIVE COVER (580SN, 580SN WT, 590SN)
CRANKSHAFT (580SN, 580SN WT, 590SN)
CRANKSHAFT (580N)
FLYWHEEL - ENGINE (580SN, 580SN WT, 590SN)
FLYWHEEL - ENGINE (580N)
PULLEY - CRANKSHAFT (580SN, 580SN WT, 590SN)
PULLEY - CRANKSHAFT (580N)
PISTON - ENGINE (580SN, 580SN WT, 590SN)
PISTON - ENGINE (580N)
PISTONS - CONNECTING ROD (580SN, 580SN WT, 590SN)
CONNECTING ROD (580N)
ROCKER SHAFT (580SN, 580SN WT, 590SN)
ROCKER SHAFT (580N)
CAMSHAFT - TIMING CONTROL (580SN, 580SN WT, 590SN)
CAMSHAFT (580N)
DYNAMIC BALANCER, GEARS & SHAFTS (580SN, 580SN WT, 590SN)
DYNAMIC BALANCER, GEARS & SHAFTS (580N)
DYNAMIC BALANCER, HOUSING (580SN, 580SN WT, 590SN)
AIR CLEANER - AIR INTAKE PARTS
AIR CLEANER
FUEL FILTER (580N)
FUEL FILTER (580SN, 580SN WT, 590SN)
OIL FILTERS - ENGINE (580N)
OIL FILTERS - ENGINE (580SN, 580SN WT, 590SN)
FUEL PUMP (580N)
FUEL LINES, RESERVOIR (580N)
FUEL LINES, RESERVOIR (580SN, 580SN WT, 590SN)
LOCKABLE FUEL CAP
INJECTION EQUIPMENT - INJECTOR (580SN, 580SN WT, 590SN)
FUEL INJECTION SYSTEM - INJECTOR (580N)
PIPING - FUEL (580SN, 580SN WT, 590SN)
PIPING - FUEL (580N)
INJECTION EQUIPMENT - PIPING (580N)
INJECTION EQUIPMENT - PIPING (580SN, 580SN WT, 590SN)
INJECTION EQUIPMENT - PIPING (580SN, 580SN WT, 590SN)
FUEL INJECTION SYSTEM (580N)
CONTROLS - THROTTLE, FOOT
CONTROLS - THROTTLE, HAND
THROTTLE, HAND - THROTTLE, FOOT
INJECTION PUMP (580SN, 580SN WT, 590SN)
FUEL INJECTION PUMP (580N)
FUEL INJECTION SYSTEM (580N)
TURBOCHARGER (580SN, 580SN WT, 590SN)
TURBOCHARGER (580N)
TURBOCHARGER SYSTEM (580SN, 580SN WT, 590SN)
TURBOCHARGER SYSTEM (580N)
ENGINE - BLOCK HEATER (580SN, 580SN WT, 590SN)
ENGINE - BLOCK HEATER (580N)
MANIFOLD - INTAKE (580SN, 580SN WT, 590SN)
MANIFOLD - INTAKE (580N)
EXHAUST MANIFOLD (580SN, 580SN WT, 590SN)
EXHAUST MANIFOLD (580N)
MUFFLER - EXHAUST SYSTEM
COLD START / GRID HEATER (580SN, 580SN WT, 590SN)
OIL PUMP - ENGINE (580SN, 580SN WT, 590SN)
OIL PUMP, PAN (580N)
OIL PUMP - ENGINE (580N)
ENGINE OIL DIPSTICK (580SN, 580SN WT, 590SN)
ENGINE OIL DIPSTICK (580N)
COOLING SYSTEM - ENGINE (580SN, 580SN WT, 590SN)
COOLING SYSTEM - ENGINE (580N)
WATER PUMP (580SN, 580SN WT, 590SN)
WATER PUMP (580N)
WATER PUMP - CONTROL (580SN, 580SN WT, 590SN)
WATER PUMP - CONTROL (580N)
THERMOSTAT - ENGINE COOLING SYSTEM (580SN, 580SN WT, 590SN)
THERMOSTAT - ENGINE COOLING SYSTEM (580N)
DEAERATION SYSTEM - MOUNTING
RADIATOR - MOUNTING (580N)
RADIATOR - MOUNTING (580SN, 580SN WT, 590SN)
RADIATOR WRAPPER
PIPING - ENGINE COOLING SYSTEM (580SN, 580SN WT, 590SN)
OIL FILTER AND COOLER (580SN, 580SN WT, 590SN)
HEAT EXCHANGER - ENGINE (580N)
COOLER, CHARGE AIR AND HOSES (580SN, 580SN WT, 590SN)
ENGINE FAN - 9 BLADE (VISCOUS)
ENGINE FAN - 7 BLADE (NON VISCOUS)
FAN DRIVE (580SN, 580SN WT, 590SN)
FAN DRIVE (580N)

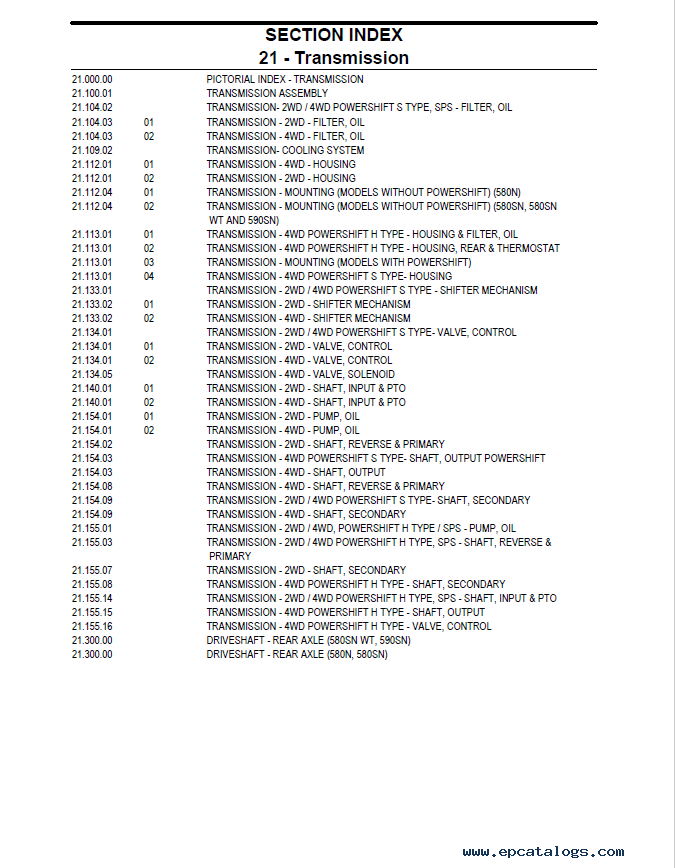

PICTORIAL INDEX - TRANSMISSION
TRANSMISSION ASSEMBLY
TRANSMISSION - 2WD / 4WD POWERSHIFT 5 TYPE, SPS - FILTER, OIL
TRANSMISSION - 2WD - FILTER, OIL
TRANSMISSION - 4WD - FILTER, OIL
TRANSMISSION - COOLING SYSTEM
TRANSMISSION - 4WD - HOUSING
TRANSMISSION - 2WD - HOUSING
TRANSMISSION - MOUNTING (MODELS WITHOUT POWERSHIFT) (580N)
TRANSMISSION - MOUNTING (MODELS WITHOUT POWERSHIFT) (580SN, 580SN WT, 590SN)
TRANSMISSION - 4WD POWERSHIFT H TYPE - HOUSING & FILTER, OIL
TRANSMISSION - 4WD POWERSHIFT H TYPE - HOUSING, REAR & THERMOSTAT
TRANSMISSION - MOUNTING (MODELS WITH POWERSHIFT)
TRANSMISSION - 4WD POWERSHIFT S TYPE - HOUSING
TRANSMISSION - 2WD / 4WD POWERSHIFT S TYPE - SHIFTER MECHANISM
TRANSMISSION - 2WD - SHIFTER MECHANISM
TRANSMISSION - 4WD - SHIFTER MECHANISM
TRANSMISSION - 2WD / 4WD POWERSHIFT S TYPE - VALVE, CONTROL
TRANSMISSION - 2WD - VALVE, CONTROL
TRANSMISSION - 4WD - VALVE, CONTROL
TRANSMISSION - 4WD - VALVE, SOLENOID
TRANSMISSION - 2WD - SHAFT, INPUT & PTO
TRANSMISSION - 4WD - SHAFT, INPUT & PTO
TRANSMISSION - 2WD - PUMP, OIL
TRANSMISSION - 4WD - PUMP, OIL
TRANSMISSION - 2WD - SHAFT, REVERSE & PRIMARY
TRANSMISSION - 4WD POWERSHIFT S TYPE - SHAFT, OUTPUT POWERSHIFT
TRANSMISSION - 4WD - SHAFT, OUTPUT
TRANSMISSION - 4WD - SHAFT, REVERSE & PRIMARY
TRANSMISSION - 2WD / 4WD POWERSHIFT S TYPE - SHAFT, SECONDARY
TRANSMISSION - 4WD - SHAFT, SECONDARY
TRANSMISSION - 2WD / 4WD, POWERSHIFT H TYPE / SPS - PUMP, OIL
TRANSMISSION - 2WD / 4WD POWERSHIFT H TYPE, SPS - SHAFT, REVERSE & PRIMARY
TRANSMISSION - 2WD - SHAFT, SECONDARY
TRANSMISSION - 4WD POWERSHIFT H TYPE - SHAFT, SECONDARY
TRANSMISSION - 2WD / 4WD POWERSHIFT H TYPE, SPS - SHAFT, INPUT & PTO
TRANSMISSION - 4WD POWERSHIFT H TYPE - SHAFT, OUTPUT
TRANSMISSION - 4WD POWERSHIFT H TYPE - VALVE, CONTROL
DRIVESHAFT - REAR AXLE (580SN WT, 590SN)
DRIVESHAFT - REAR AXLE (580N, 580SN)
PICTORIAL INDEX - FRONT MECHANICAL DRIVE
AXLE, FRONT DRIVE - MOUNTING (580N, 580SN)
AXLE, FRONT DRIVE - MOUNTING (580SN WT)
AXLE, FRONT DRIVE - MOUNTING (580N)
AXLE, FRONT DRIVE - HOUSING (580N, 580SN)
AXLE, FRONT DRIVE - HOUSING HD ACP (580SN WT, 590SN)
AXLE, FRONT DRIVE - SHAFT
AXLE, FRONT DRIVE - SHAFT HD ACP (580SN WT, 590SN)
AXLE, FRONT DRIVE - RING AND PINION (580N, 580SN)
AXLE, FRONT DRIVE - RING AND PINION HD ACP LS (580SN WT)
AXLE, FRONT DRIVE - RING AND PINION (590SN)
AXLE, FRONT DRIVE - DIFFERENTIAL
AXLE, FRONT DRIVE - DIFFERENTIAL HD ACP LS (580SN WT)
AXLE, FRONT DRIVE - DIFFERENTIAL HD ACP LS (580SN WT)
AXLE, FRONT DRIVE - HOUSING, SWIVEL (580N, 580SN)
AXLE, FRONT DRIVE - HOUSING, SWIVEL HD ACP (580SN WT, 590SN)
AXLE, FRONT DRIVE - SHAFTS, AXLE (580N, 580SN)
AXLE, FRONT DRIVE - SHAFTS, AXLE (580SN WT, 590SN)
AXLE, FRONT DRIVE - PLANETARY (580N, 580SN)
AXLE, FRONT DRIVE - PLANETARY HD ACP (580SN WT, 590SN)
AXLE, FRONT - HOUSING, SWIVEL (590SN)
PICTORIAL INDEX - REAR DRIVE AXLE
AXLE, REAR DRIVE - MOUNTING (580N)
AXLE, REAR DRIVE - MOUNTING (580SN WT)
AXLE, REAR DRIVE - MOUNTING (580N, 580SN)
AXLE, REAR DRIVE - HOUSING (580SN WT, 590SN)
AXLE, REAR DRIVE - HOUSING (580N, 580SN)
AXLE, REAR DRIVE - BRAKE, DIFFERENTIAL
AXLE, REAR DRIVE - DIFFERENTIAL (580N, 580SN)
AXLE, REAR DRIVE - DIFFERENTIAL (580SN WT, 590SN)
AXLE, REAR DRIVE - RING AND PINION (580N, 580SN)
AXLE, REAR DRIVE - RING AND PINION (580SN WT, 590SN)
AXLE, REAR DRIVE - DIFFERENTIAL LOCK
AXLE, REAR DRIVE - DIFFERENTIAL LOCK (580N, 580SN)
AXLE, REAR DRIVE - DIFFERENTIAL LOCK (580SN WT, 590SN)
AXLE, REAR DRIVE - PLANETARY (580N, 580SN)
AXLE, REAR DRIVE - PLANETARY (580SN WT, 590SN)
PICTORIAL INDEX - BRAKE & CONTROLS
TRANSMISSION - 2WD / 4WD - BRAKE, PARKING
TRANSMISSION - 4WD - BRAKE, PARKING
TRANSMISSION - 4WD POWERSHIFT H TYPE, SPS - BRAKE, PARKING
BRAKE - PEDALS
CYLINDER ASSY - BRAKE MASTER
BRAKE LINES TO TRANSMISSION - 2WD
BRAKE LINES TO TRANSMISSION - 4WD
BRAKE LINES TO TRANSMISSION - 4WD POWERSHIFT
HYDRAULICS - BRAKE MASTER CYLINDER
PICTORIAL INDEX - HYDRAULIC SYSTEMS
HYDRAULICS - PUMP INSTALL (580SN, 580SN WT, 590SN)
HYDRAULICS - PUMP INSTALL (590SN)
HYDRAULICS - PUMP, EQUIPMENT (590SN)
HYDRAULICS - PUMP INSTALL (580N)
PUMP, EQUIPMENT HYDRAULIC
HYDRAULICS - PUMP, EQUIPMENT (WITH POWER LIFT) (580SN, 580SN WT)
HYDRAULICS - PUMP, EQUIPMENT (WITHOUT POWER LIFT) (580SN)
VALVE - LOADER CONTROL, 3 SPOOL (PILOT CONTROLS) (580SN, 580SN WT, 590SN)
VALVE SECTION - BACKHOE, INLET (WITH PILOT CONTROLS) (580N)
VALVE SECTION - BACKHOE, INLET (WITH PILOT CONTROLS) (580SN, 580SN WT, 590SN)
VALVE SECTION - BACKHOE, BOOM (WITH PILOT CONTROLS)
VALVE SECTION - BACKHOE, BUCKET (WITH PILOT CONTROLS)
VALVE SECTION - BACKHOE, BI-DIRECTIONAL
VALVE SECTION - BACKHOE, OUTLET
VALVE SECTION - BACKHOE, SWING (WITH PILOT CONTROLS)
VALVE SECTION - BACKHOE, STABILIZER (WITH PILOT CONTROLS)
VALVE SECTION - BACKHOE, DIPPER (WITH PILOT CONTROLS)
VALVE SECTION - BACKHOE, EXTENDABLE BOOM (WITH PILOT CONTROLS)
HYDRAULICS - VALVE, PRESSURE REDUCING (2 SPOOL) (WITH PILOT CONTROLS)
HYDRAULICS - VALVE, PRESSURE REDUCING (3 SPOOL) (WITH PILOT CONTROLS)
HYDRAULICS - VALVE, PRESSURE REDUCING (4 SPOOL) (WITH PILOT CONTROLS)
HYDRAULICS - VALVE, JOYSTICK (PILOT CONTROLS) (LEFT-HAND) WITH HORN & BI-DIRECTIONAL BUTTONS
HYDRAULICS - VALVE, JOYSTICK (PILOT CONTROLS) (LEFT-HAND) WITH HORN & BI-DIRECTIONAL BUTTONS
HYDRAULICS - VALVE, JOYSTICK (PILOT CONTROLS) (LEFT-HAND) WITH HORN (PILOT CONTROLS) (RIGHT-HAND) WITHOUT EXTENDABLE DIPPER
HYDRAULICS - VALVE, JOYSTICK (PILOT CONTROLS) (RIGHT-HAND) WITHOUT EXTENDABLE DIPPER, 7 SPOOL
HYDRAULICS - VALVE, JOYSTICK (PILOT CONTROLS) (RIGHT-HAND) WITH EXTENDABLE DIPPER, 8 SPOOL
HYDRAULICS - RIDE CONTROL
HYDRAULICS - LOADER 4 IN 1
HYDRAULICS - LOADER 4 IN 1

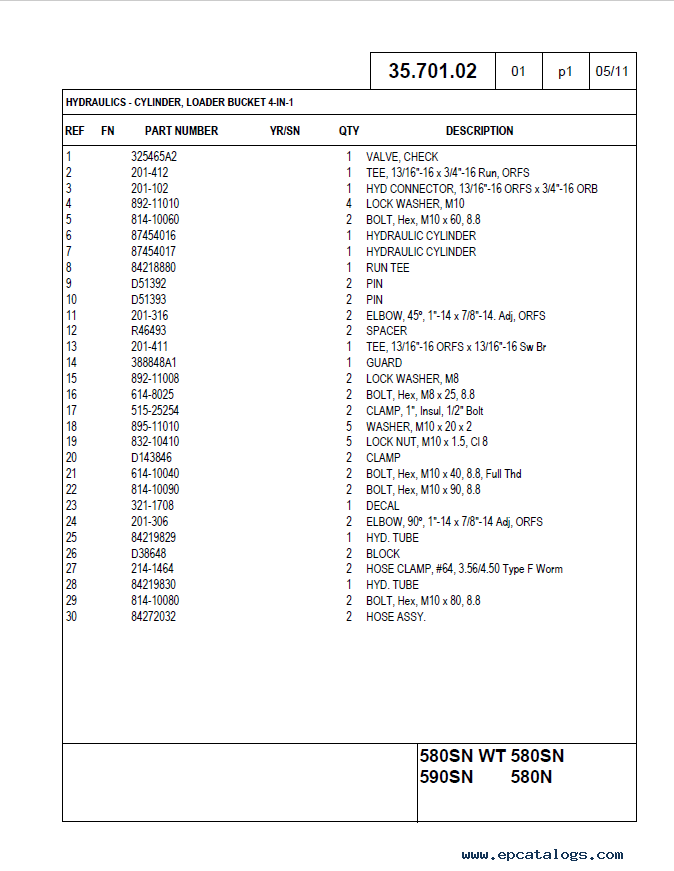

HYDRAULICS - CYLINDER, LOADER BUCKET 4-IN-1
HYDRAULICS - CYLINDER, LOADER BUCKET 4-IN-1
CYLINDER - LOADER 4-IN-1
HYDRAULICS - LOADER, 2 SPOOL (PILOT CONTROLS) (580SN, 580SN WT, 590SN)
HYDRAULICS - LOADER, 3 SPOOL (PILOT CONTROLS) (580SN, 580SN WT, 590SN)
HYDRAULICS - LOADER, 2 SPOOL (580N WITH PILOT CONTROLS) (580SN, 580SN WT, 590SN WITHOUT PILOT CONTROLS)
HYDRAULICS - LOADER, 3 SPOOL (580N WITH PILOT CONTROLS) (580SN, 580SN WT, 590SN WITHOUT PILOT CONTROLS)
HYDRAULICS - VALVE, LOADER CONTROL (2 SPOOL) (580SN, 580SN WT, 590SN)
HYDRAULICS - VALVE, LOADER CONTROL (3 SPOOL, MECHANICAL CONTROLS) (580SN, 580SN WT, 590SN)
HYDRAULICS - VALVE, LOADER CONTROL (3 SPOOL, PILOT CONTROLS) (580SN, 580SN WT, 590SN)
HYDRAULICS - VALVE, LOADER CONTROL (3 SPOOL, PILOT CONTROLS) (580SN, 580SN WT, 590SN)
HYDRAULICS - LOADER LIFT CYLINDER (580SN)
HYDRAULICS - LOADER LIFT CYLINDER (580SN WT, 590SN)
HYDRAULICS - LOADER LIFTER (580SN, 580SN WT, 590SN)
HYDRAULICS - LOADER
HYDRAULICS - COUPLER, LOADER TOOL QUICK
CONTROLS - LOADER LIFT AND BUCKET
HANDLE, LOADER CONTROL - TRANSMISSION ASSY, 2WD, 4WD
HANDLE, LOADER CONTROL - POWER SHIFT TRANSMISSION
CONTROLS - LOADER CLAM
CONTROLS - LOADER LIFT AND BUCKET
CONTROL - LOADER LIFT AND BUCKET
VALVE - LOADER CONTROL, GUARD
VALVE - LOADER CONTROL, TWO SPOOL (580SN, 580SN WT, 590SN)
VALVE - LOADER CONTROL, TWO SPOOL (580N)
SEAL KIT - LOADER CONTROL VALVE
VALVE - LOADER CONTROL, THREE SPOOL (580N)
VALVE - LOADER CONTROL, THREE SPOOL (MANUAL CONTROLS) (580SN, 580SN WT, 590SN)
VALVE - LOADER CONTROL, THREE SPOOL (PILOT CONTROLS) (580SN, 580SN WT, 590SN)
VALVE SECTION - INLET, LOADER (PILOT CONTROLS) (580SN, 580SN WT, 590SN)
VALVE SECTION - LIFT, LOADER (PILOT CONTROLS) (580N, 580SN WT, 590SN)
VALVE SECTION - 4 IN 1, LOADER (PILOT CONTROLS) (580SN, 580SN WT, 590SN)
VALVE SECTION - BUCKET, LOADER (PILOT CONTROLS) (580SN, 580SN WT, 590SN)
VALVE - PILOT CONTROL AND JOYSTICKS (6 SPOOL, W/O EXT DIPPER, W/AUX HYDS)
VALVE - PILOT CONTROL AND JOYSTICKS (6 SPOOL, W/O EXT DIPPER, W/O AUX HYDS)
VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/ EXT DIPPER, W/ AUX HYDS) (580N)
VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/ EXT DIPPER, W/O AUX HYDS) (580N)
VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/O EXT DIPPER, W/ AUX HYDS)
VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/O EXT DIPPER, W/O AUX HYDS)
VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/O EXT DIPPER W/ AUX HYDS) (580N)
VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/O EXT DIPPER W/ AUX HYDS) (580SN, 580SN WT, 590SN)
VALVE - PILOT CONTROL AND JOYSTICKS (8 SPOOL, W/ EHOE, W/ AUX HYDS)
HYDRAULICS - PILOT CONTROLS
HYDRAULICS - PILOT CONTROLS
HYDRAULICS - PILOT CONTROLS, DUAL AUX. (7 SPOOL)
HYDRAULICS - PILOT CONTROLS, DUAL AUX. (8 SPOOL)
CONTROL, TOWER STRUCTURE
CONTROL, TOWER STRUCTURE
CONTROL, TOWER STRUCTURE
HYDRAULICS - PILOT CONTROL JOYSTICKS
VALVE ASSY - AUXILIARY UNI-DIRECTIONAL (WITH PILOT CONTROLS)
HYDRAULICS - BACKHOE AUXILIARY
HYDRAULICS - BACKHOE AUXILIARY, EXTENDABLE DIPPER (580N, 580SN, 580SN WT)
HYDRAULICS - BACKHOE AUXILIARY (590SN)
HYDRAULICS - BACKHOE AUXILIARY, EXTENDABLE DIPPER (590SN)
VALVE, SINGLE COUPLER - LOADER TOOL OR BACKHOE
HYDRAULICS - COUPLER VALVE TO BULKHEAD
VALVE INSTALL - SINGLE COUPLER
VALVE, DUAL COUPLER - LOADER TOOL AND BACKHOE (580SN, 580SN WT, 590SN)
VALVE INSTALL - DUAL COUPLER (580SN, 580SN WT, 590SN)
HYDRAULICS - COUPLER, BACKHOE BUCKET (STANDARD DIPPER)
HYDRAULICS - COUPLER, BACKHOE BUCKET (EXTENDABLE DIPPER)
HYDRAULICS - COUPLER, BACKHOE BUCKET (EXTENDABLE DIPPER)(590SN)
CYLINDER - COUPLER, BACKHOE BUCKET
VALVE - BACKHOE CONTROL, 6 SPOOL (W/O EXT DIPPER, W/O AUX HYDS, W/O PILOT CONTROLS)
VALVE - BACKHOE CONTROL, 6 SPOOL (W/O EXT DIPPER, W/O AUX HYDS, W/ PILOT CONTROLS)
VALVE - BACKHOE CONTROL, 7 SPOOL (W/O EXT DIPPER, W/ AUX HYDS, W/O PILOT CONTROLS)
VALVE - BACKHOE CONTROL, 7 SPOOL (W/O EXT DIPPER, W/O AUX HYDS, W/O PILOT CONTROLS)
VALVE - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/O AUX, W/O PILOT CONTROLS)
VALVE - BACKHOE CONTROL, 7 SPOOL (W/O EXT DIPPER, W/ AUX HYDS, W/ PILOT CONTROLS)
VALVE - BACKHOE CONTROL, 7 SPOOL (W/O EXT DIPPER, W/O AUX, W/ PILOT CONTROLS)
VALVE - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/O AUX, W/ PILOT CONTROLS)
VALVE - BACKHOE CONTROL, 8 SPOOL (W/O EXT DIPPER, W/O AUX HYDS, W/O PILOT CONTROLS)
VALVE - BACKHOE CONTROL, 8 SPOOL (W/O EXT DIPPER, W/O AUX HYDS, W/ PILOT CONTROLS)
VALVE INSTALL - BACKHOE CONTROL, 8 SPOOL (FOOT SWING)
VALVE INSTALL - BACKHOE CONTROL, 8 SPOOL (HAND SWING)
VALVE INSTALL - BACKHOE CONTROL, 7 SPOOL (FOOT SWING)
VALVE INSTALL - BACKHOE CONTROL, 7 SPOOL (HAND SWING)
VALVE INSTALL - BACKHOE CONTROL, UNI AUX PILOT, GEAR PUMP ONLY (580N)
VALVE INSTALL - BACKHOE CONTROL, SINGLE AUX (MECHANICAL CONTROLS)
VALVE INSTALL - BACKHOE CONTROL, SINGLE AUX (PILOT CONTROLS)
VARIABLE VALVE PUMP (580SN, 580SN WT, 590SN)
BRACKET - VARIABLE VALVE PUMP PRESSURE HOSES (580SN)
BRACKET - VARIABLE VALVE PUMP PRESSURE HOSES (580SN WT, 590SN)
VALVE INSTALL - BACKHOE CONTROL, BI-AUXILIARY (MECHANICAL CONTROLS)
VALVE INSTALL - HAMMER (PILOT CONTROLS) (580SN, 580SN WT, 590SN)
VALVE INSTALL - BACKHOE CONTROL, DUAL AUXILIARY (PILOT CONTROLS)
VARIABLE VALVE PUMP (580SN, 580SN WT, 590SN)
VALVE INSTALL - BACKHOE CONTROL, DUAL AUXILIARY (MECHANICAL CONTROLS)
VALVE INSTALL - BACKHOE CONTROL, DUAL AUX (PILOT CONTROLS) GEAR PUMP ONLY (580N)
VALVE - BACKHOE CONTROL - SEAL KIT
HYDRAULICS - HEAVY LIFT (PILOT CONTROL) (580SN, 580SN WT, 590SN)
VALVE - HEAVY LIFT (CONTROL) (580SN, 580SN WT, 590SN)
HYDRAULICS - HEAVY LIFT (MECHANICAL CONTROL) (580SN, 580SN WT, 590SN)
HEAVY LIFT (MECHANICAL CONTROL) (580SN, 580SN WT, 590SN)
CONTROL - BACKHOE, WITH FOOT SWING (WITH EXTENDABLE DIPPER)
CONTROL - BACKHOE, WITH FOOT SWING (WITH EXTENDABLE DIPPER)
CONTROL - BACKHOE, 2 LEVER
VALVE INSTALL - SWING CUSHION (DAMPENING)
VALVE - SWING CUSHION (DAMPENING)
CONTROL - BACKHOE, AUXILIARY FOOT SWITCH
CONTROL - BACKHOE, WITH FOOT SWING (WITHOUT EXTENDABLE DIPPER)
CONTROL - BACKHOE, WITH FOOT SWING (WITHOUT EXTENDABLE DIPPER)
VALVE ASSY - HAMMER AUXILIARY (WITH MECHANICAL CONTROLS)
VALVE INSTALL - HAMMER (WITH MECHANICAL CONTROLS)
CYLINDER - BACKHOE DIPPER (580N)
CYLINDER - BACKHOE DIPPER (580SN, 580SN WT)
CYLINDER - BACKHOE DIPPER (590SN)
CYLINDER - BACKHOE BOOM (580N)
CYLINDER - BACKHOE BOOM (580SN, 580SN WT)
CYLINDER - BACKHOE BOOM (590SN)
BACKHOE - SWING TOWER AND SWING CYLINDERS (580N)
BACKHOE - SWING TOWER AND SWING CYLINDERS (580SN AND 580SN WT)
BACKHOE - SWING TOWER AND SWING CYLINDERS (590SN)
CYLINDER - BACKHOE STABILIZER (580N)
HYDRAULICS - CHECK VALVE INSTALL, STABILIZER (580N)
HYDRAULICS - CHECK VALVE INSTALL, STABILIZER CYLINDERS (580SN, 580SN WT, 590SN)
HYDRAULICS - BACKHOE STABILIZER
STABILIZER PADS
CYLINDER - BACKHOE STABILIZER (580SN)
CYLINDER - BACKHOE STABILIZER (580SN WT, 590SN)
CYLINDER - LOADER LIFT (580N)
CYLINDER - LOADER LIFT (580SN)
CYLINDER - LOADER LIFT (580SN WT, 590SN)
HYDRAULICS - BOOM INSTALL (580N)
HYDRAULICS - BOOM INSTALL (580SN, 580SN WT)
HYDRAULICS - BOOM INSTALL (590SN)
CYLINDER - LOADER BUCKET (580N)
CYLINDER - LOADER BUCKET (580SN, 580SN WT)
CYLINDER - LOADER BUCKET (590SN)
HYDRAULICS - BACKHOE (580SN, 580SN WT) (W/O EXTENDABLE DIPPER)
HYDRAULICS - BACKHOE (580SN, 580SN WT) (W/ EXTENDABLE DIPPER)
HYDRAULICS - BACKHOE (580N) (W/O EXTENDABLE DIPPER)
HYDRAULICS - BACKHOE (580N) (W/ EXTENDABLE DIPPER)
CYLINDER - BACKHOE BUCKET (580SN, 580SN WT)
CYLINDER - BACKHOE BUCKET (590SN)
CYLINDER - BACKHOE SWING (580N)
CYLINDER - BACKHOE SWING (580SN, 580SN WT, 590SN)
HYDRAULICS - CYLINDER BACKHOE SWING / STABILIZER (580SN, 580SN WT, 590SN)
HYDRAULICS - CYLINDER BACKHOE SWING / STABILIZER (580N)
HYDRAULICS - BACKHOE EXTENDABLE DIPPER (580SN, 580SN WT)
CYLINDER - BACKHOE EXTENDABLE DIPPER (580SN, 580SN WT)
HYDRAULICS - BACKHOE EXTENDABLE DIPPER (590SN)
HYDRAULICS - BACKHOE STANDARD DIPPER (590SN)
HYDRAULICS - TANK
HYDRAULICS - TANK, TOOL BOX
HYDRAULICS - FILTER
HYDRAULICS - EXTENDABLE DIPPER COUPLER (590SN)
PICTORIAL INDEX - TOWING HOOKS & BALLASTING
COUNTERWEIGHT, FRONT
PICTORIAL INDEX - FRAME COMPONENTS
CHASSIS - FRAME BUSHINGS (580N, 580SN, 580SN WT)
CHASSIS - FRAME BUSHINGS (590SN)
CHASSIS - CAB MOUNTS, BARRIER CURTAIN, AND AIR INTAKE SCREEN
BACKHOE - SWING TOWER (580N)
BACKHOE - BOOM AND SWING TOWER (580N)
BACKHOE - BOOM AND SWING TOWER, 14' HEAVY (580SN, 580SN WT)
BACKHOE - BOOM AND SWING TOWER (590SN)
BACKHOE - DIPPER, EXTENDABLE (OUTER) (580N, 580SN, 580SN WT)
BACKHOE - DIPPER, EXTENDABLE (INNER) (580N, 580SN, 580SN WT)
BACKHOE - DIPPER, EXTENDABLE (OUTER) (590SN)
BACKHOE - DIPPER, EXTENDABLE (INNER) (590SN)
BACKHOE - COUPLER AND BUCKET PINS (580N, 580SN, 580SN WT)
BACKHOE - COUPLER AND BUCKET PINS (590SN)
BACKHOE - LINK, STRAIGHT (580N, 580SN, 580SN WT)
BACKHOE - HYDRAULIC COUPLER (580SN, 580SN WT, 590SN)
BACKHOE - HYDRAULIC COUPLER LINK AND BUCKET PIN (580SN, 580SN WT, 590SN)
BACKHOE - DIPPER, STANDARD (580SN, 580SN WT)
BACKHOE - DIPPER, STANDARD CYLINDER PIN
BACKHOE - DIPPER, STANDARD WITH HYDRAULIC COUPLER (590SN)
BACKHOE - DIPPER, STANDARD (590SN)
BACKHOE - DIPPER, STANDARD (580N)
FRAME - LOADER LIFT
FRAME - LOADER LINKAGE
COUPLER, TOOL QUICK
PICTORIAL INDEX - STEERING
STEERING - COMFORT STEER (580N)
STEERING - COMFORT STEER (580SN, 580SN WT, 590SN)
HYDRAULICS - STEERING (580N)
HYDRAULICS - STEERING (580SN, 580SN WT, 590SN)
HYDRAULICS - STEERING
STEERING - COLUMN, TILT (580N)
STEERING - COLUMN (580N)
AXLE, FRONT - CYLINDER, STEERING (580SN, 580SN WT)
AXLE, FRONT - CYLINDER, STEERING HD ACP (580SN WT, 590SN)
AXLE, FRONT - DRIVE CYLINDER, STEERING STD ACP (580N, 580SN)
PICTORIAL INDEX - AXLE & WHEELS
AXLE, FRONT - MOUNTING (580N, 580SN)
AXLE, FRONT - MOUNTING (590SN)
AXLE, FRONT - HOUSING (580N, 580SN)
AXLE, FRONT - HOUSING (580SN WT, 590SN)
AXLE, FRONT - HOUSING, SWIVEL (580N, 580SN)
AXLE, FRONT - HUB AND BEARINGS (580N, 580SN)
AXLE, FRONT - HUB AND BEARINGS (590SN)
WHEELS, FRONT - TIRES
WHEELS, REAR - TIRES
PICTORIAL INDEX - CAB CLIMATE CONTROL
CAB - HEATER
CAB - AIR CONDITIONING, COMPRESSOR (580N)
CAB - AIR CONDITIONING, COMPRESSOR (580SN, 580SN WT, 590SN)
CAB - AIR CONDITIONING, CONDENSER AND RECEIVER DRYER (580N)
CAB - AIR CONDITIONING, CONDENSER AND RECEIVER DRYER (580SN, 580SN WT, 590SN)
CAB - AIR CONDITIONING LINES, EVAPORATOR CORE
CAB - FILTER, AIR
CAB - BLOWER HOUSING, VENTILATION DUCTS, DRAIN LINES
PICTORIAL INDEX - ELECTRICAL SYSTEM
HARNESS, INSTALL - CHASSIS
HARNESS, INSTALL - TRANSMISSION
HARNESS - STANDARD TRANSMISSION (580N)
HARNESS - CHASSIS
HARNESS, INSTALL - ENGINE (580SN, 580SN WT, 590SN)
HARNESS, TRANSMISSION 2WD / 4WD POWERSHIFT - CONTROL VALVE
ELECTRICAL - TRANSMISSION, POWERSHIFT (580SN, 580SN WT, 590SN)
ELECTRICAL - TRANSMISSION, POWERSHIFT S TYPE (580SN, 580SN WT, 590SN)
STARTER
STARTER / ALTERNATOR MOUNTING
ALTERNATOR
BATTERY, DUAL - COLD START
BATTERY, SINGLE
ELECTRICAL - LAMPS, ROPS CANOPY
ELECTRICAL - LAMPS, ROPS CANOPY
BEACON, ROTATING (CAB OR CANOPY MODELS)
HORN - ALARM, BACKUP
FUEL INJECTION SYSTEM - MODULE, ENGINE CONTROL (580SN, 580SN WT, 590SN)
RADIO
HARNESS INSTALL - FRONT CONSOLE, S AND H TYPE TRANSMISSION (580SN, 580SN WT, 590SN)
HARNESS - FRONT CONSOLE, SWITCHES
HARNESS - FRONT CONSOLE, MOUNTING
HARNESS - FRONT CONSOLE
HARNESS, INSTALL - FRONT CONSOLE, STANDARD TRANSMISSION
HARNESS - FRONT CONSOLE, STANDARD TRANSMISSION
ELECTRICAL - SIDE CONSOLE, S AND H TYPE TRANSMISSION (580SN, 580SN WT, 590SN)
HARNESS INSTALL - SIDE CONSOLE, STANDARD TRANSMISSION
ELECTRICAL - SIDE CONSOLE, STANDARD TRANSMISSION (580N)
ELECTRICAL - SIDE CONSOLE, S-TYPE TRANSMISSION (580N)
HARNESS INSTALL - SIDE CONSOLE, S AND H TYPE TRANSMISSION
HARNESS - SIDE CONSOLE, S AND H TYPE TRANSMISSION (580SN, 580SN WT, 590SN)
HARNESS - BACKHOE DUAL AUXILIARY HYDRAULIC WITH MECHANICAL CONTROLS
HARNESS - BACKHOE SINGLE AUXILIARY HYDRAULIC, WITH PILOT CONTROLS
HARNESS - BACKHOE DUAL AUXILIARY HYDRAULIC, WITH PILOT CONTROLS
HARNESS - BACKHOE, WITH PILOT CONTROLS
LAMPS - ROPS CAB
CAB - WIPERS
CANOPY, ROPS - WIPER, FRONT AND WINDSHIELD WASHER
BACKHOE HYDRAULIC COUPLER CONTROL SWITCHES
PICTORIAL INDEX - FRONT LOADER
BUCKET, LOADER LONG LIP (93 IN)
BUCKET, LOADER LONG LIP (96 IN)

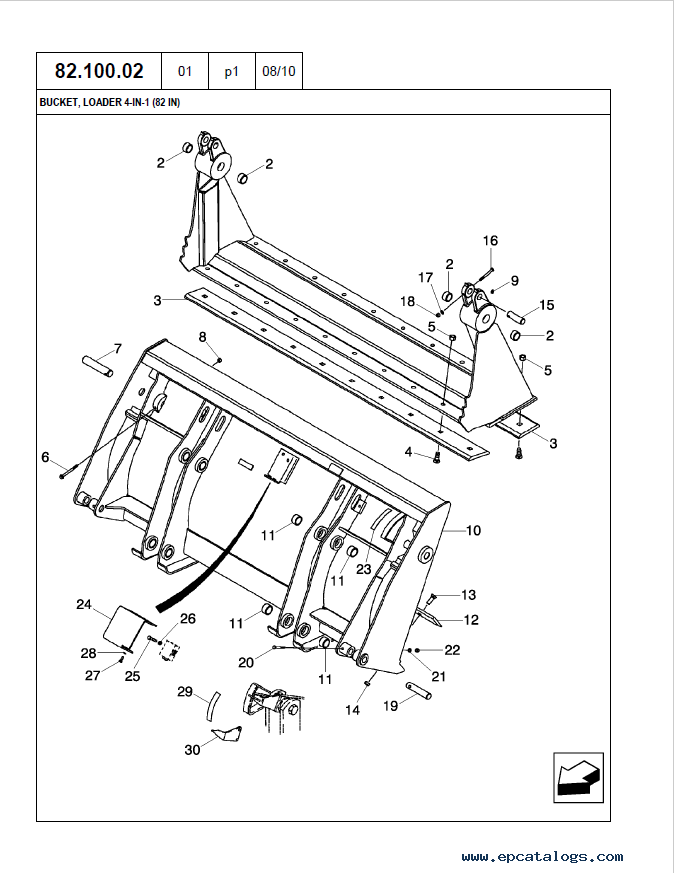

BUCKET, LOADER 4-IN-1 (82 IN)
PICTORIAL INDEX - BACKHOE
BUCKET, BACKHOE (305 MM (12 INCH) WIDE)
BUCKET, BACKHOE (457 MM (18 INCH) WIDE)
BUCKET, BACKHOE (610 MM (24 INCH) WIDE) / 762 MM (30 INCH) WIDE)
BUCKET, BACKHOE - HIGH CAPACITY (610 MM (24 INCH) WIDE) / 762 MM (30 INCH) WIDE)
BUCKET, BACKHOE (914 MM (36 INCH) WIDE)
BOOM LATCH
DIA - BOOM LATCH
PICTORIAL INDEX - PLATFORM, CAB, BODYWORK AND DECALS
HOOD - PANELS, SIDE
HOOD - GRILL
INSTRUMENT PANEL, FRONT - COVERS
INSTRUMENT PANEL, SIDE - COVERS (RIGHT-HAND SIDE)
DECALS
DECALS - ENGLISH
DECALS - ENGLISH
SLOW MOVING VEHICLE EMBLEM
FENDER EXTENSIONS
MIRROR, REAR VIEW - MOUNTING, CAB MODELS
SEAT - MOUNTING (MECHANICAL SUSPENSION)
SEAT - ADJUSTABLE HEIGHT PEDESTAL
SEAT - MOUNTING (AIR SUSPENSION)
TOOL BOX - RETRO FIT KIT (MECHANICAL COUPLER)
TOOL BOX - RETRO FIT KIT (HYDRAULIC COUPLER)
CAB - FLOOR MATS AND PLATES 580N AND 580SN
CAB - FLOOR MATS AND PLATES 580SN WT AND 590SN
CAB - FRAME
CAB - TRIM AND COVERS
CAB ROOF LIGHT PODS
CANOPY, ROPS - FRAME, COVERS, MIRROR, VISOR
CANOPY, ROPS - DELUXE
REAR ACCESS PANEL (WITH MECHANICAL CONTROLS)
CAB - DOORS
CAB - DOOR MOUNTING
CANOPY, ROPS - GLASS
CAB - WINDOW, REAR
CAB - WINDOW, RIGHT HAND, FOR SINGLE DOOR CAB FRAMES
CAB - GLASS, MIRROR AND HUD OPEN
CAB - STANDARD INTERIOR TRIM
CAB - DELUXE INTERIOR TRIM (580N, 580SN)
CAB - DELUXE INTERIOR TRIM (580SN WT, 590SN)
CAB - DELUXE POST COVERS
HEADLINER

Delivery (Instant Download)

After payment, the PDF manual is sent to the email address provided with your order, usually within 1–10 minutes. Please check that your email address is correct at checkout.

Printing and Support

All pages of the PDF are printable. You can print the procedures you need for a particular job and keep them beside you in the workshop.

For questions about the manual or help with your order, contact our support team. After-sales support is available.
