Toyota 8FGU15-32, 8FDU15-32, 8FGCU15-32 Service and Repair Manual PDF

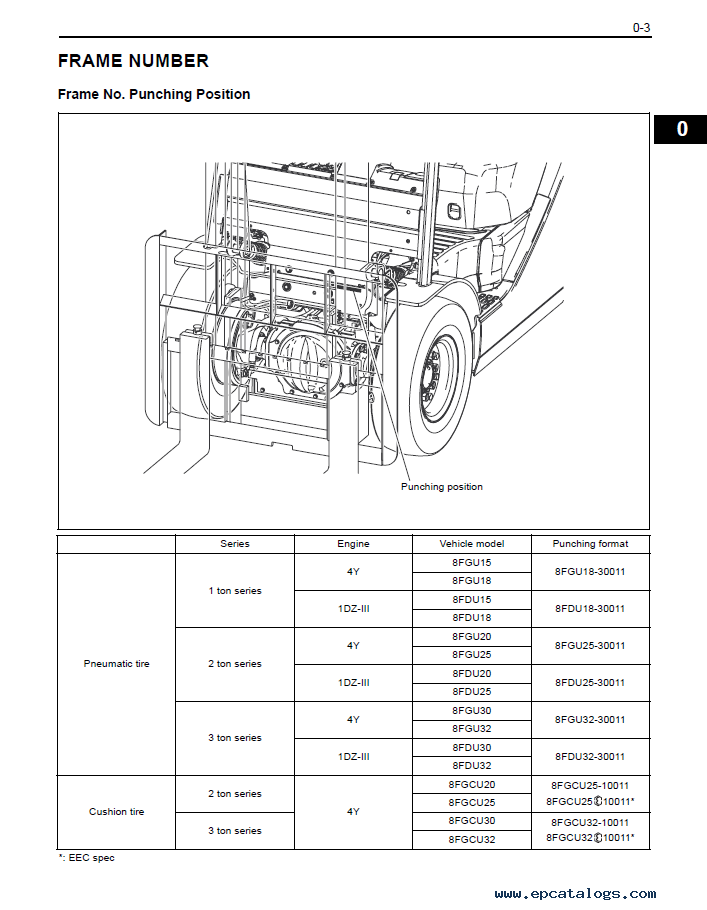

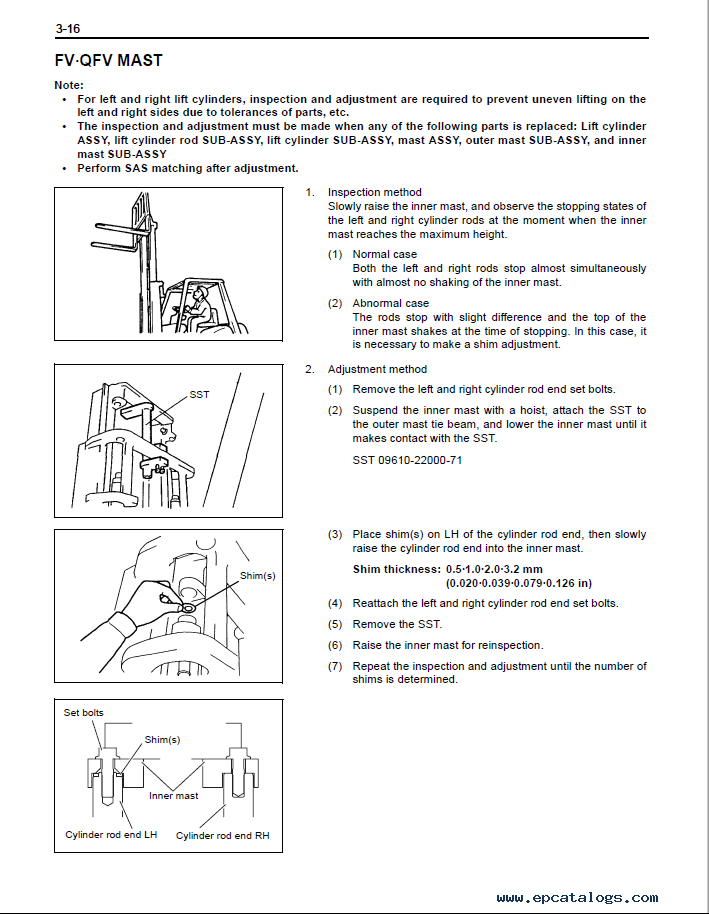

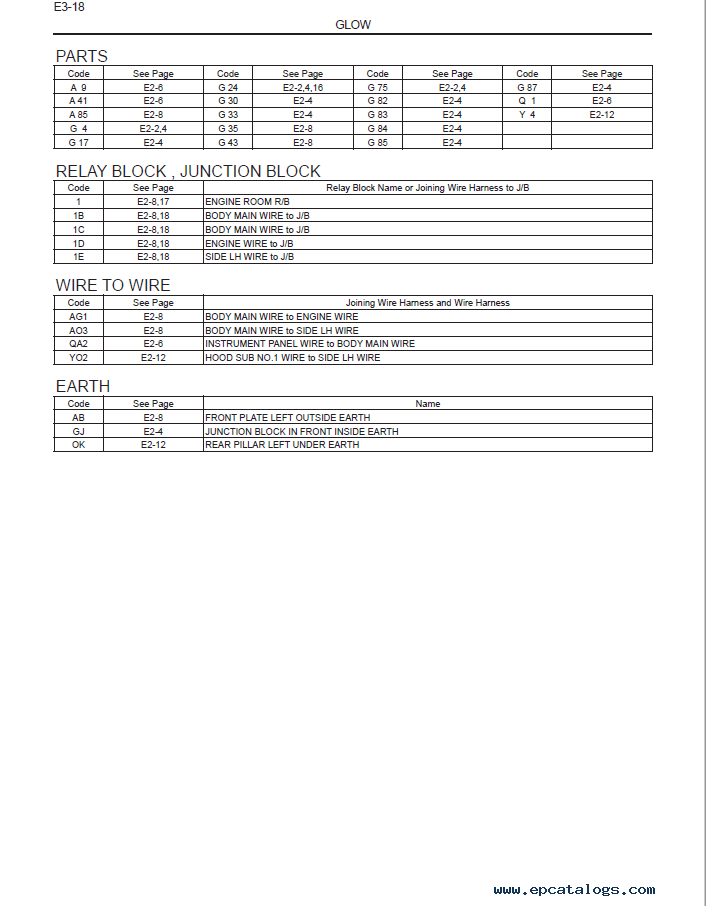

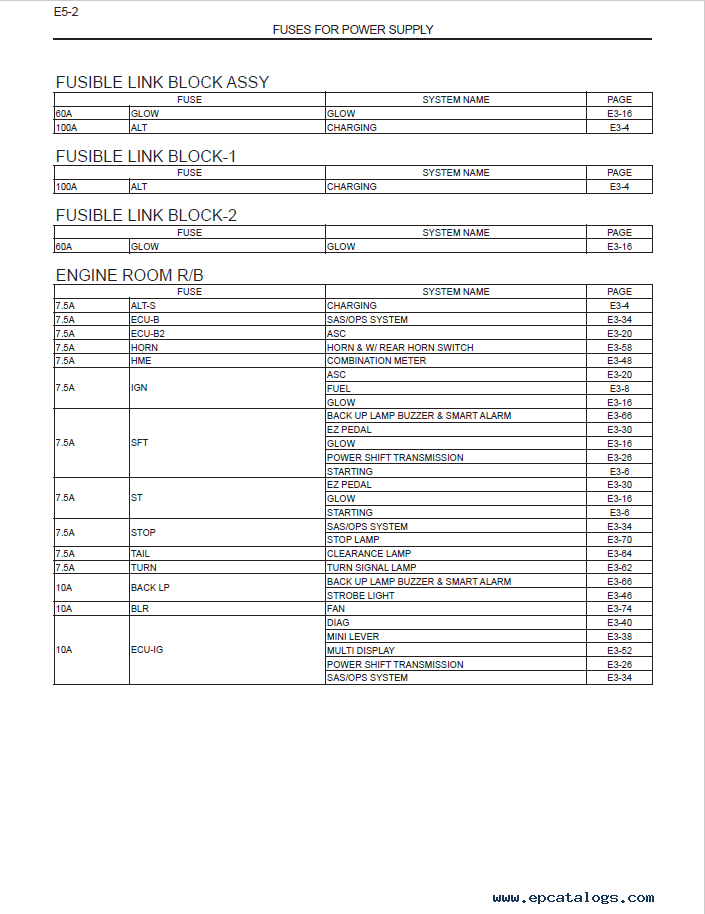

This PDF Service and Repair Manual have all the important information and helpful instruction for the correct use and maintenance of Toyota Forklift 8FGU15-32, 8FDU15-32, 8FGCU15-32. Factory file includes all the necessary data for technical maintenance, step-by-step instructions for correct repair, and a section about troubleshooting, specification, engine material, many illustrations, wiring diagrams, and schemes.

All schemes, diagrams, and illustrations will help to adjust the equipment performance and prevent breakages. Please observe strictly the safety regulations in this tutorial to avoid any breakdowns or injuries. For convenience, we recommend using Adobe PDF Reader to ensure the correct display of all graphics. Feel free to contact us if you have any problems with installation or maintenance. We will be glad to assist you and answer all your questions.

Table of Contents:

GENERAL
ENGINE
FRONT AXLE
MAST
CYLINDER
OTHER MODIFICATIONS
SST LIST·SERVICE STANDARDS LIST
WIRING DIAGRAM
GENERAL
ENGINE - CHASSIS
4Y-E REPAIR
1DZ-II REPAIR
4Y-E LPG DEVICE REPAIR
TRANSMISSION (Pn1•2•3 / Cu2•3)
TRANSMISSION (Cu1 Ton Series)
PROPELLER SHAFT
DIFFERENTIAL
FRONT AXLE
REAR AXLE
STEERING
BRAKE
BODY
MATERIAL HANDLING SYSTEM
MAST
CYLINDER
OIL PUMP
OIL CONTROL VALVE
MINI LEVER - JOYSTICK
SAS / OPS
SSTLIST - SERVICE STANDARDS LIST
MULTIFUNCTION DISPLAY DX (OPTIONAL)
ELECTRICAL SYSTEM TROUBLESHOOTING [except Cu1]
ELECTRICAL SYSTEM TROUBLESHOOTING [Cu1 ton series]
WIRING DIAGRAM
SERVICE INFORMATION BULLETINS
