New Holland Hino Diesel Engine E385C Service Manuals PDF

This Service Manual set covers the New Holland E385C excavator equipped with Hino diesel engines J08E-UV, J08E-TM, and J08E-UN. The set includes engine service supplements with detailed technical information for inspection, maintenance, troubleshooting, disassembly, assembly, and repair of the engine and its related systems. The manuals are intended to assist qualified technicians with servicing the Hino diesel engine and provide specifications, repair procedures, diagnostic information, tightening requirements, component information, and service instructions.

General Service Information

The manual provides general service instructions covering safety warnings, how to use the manual, work precautions, tightening specifications for engine bolts, nuts, flare nuts and hoses, thread sealants, piping connections, gaskets, and liquid gasket handling. It also includes engine and chassis identification information and procedures for diagnosing engine problems, including the use and connection of Hino-DX diagnostic equipment.

Standard Values and Service Specifications

The standard-value section provides specifications for the engine mounting and removal, fuel system, electrical system, intake system, engine mechanical components, exhaust, cooling, lubrication, starting and charging systems, and turbocharger.

Engine Assembly and Disassembly

The engine section includes inspection procedures before service and detailed information for servicing the engine body. It provides procedures for engine assembly and disassembly and information on the components and parts required for service work.

Fuel System

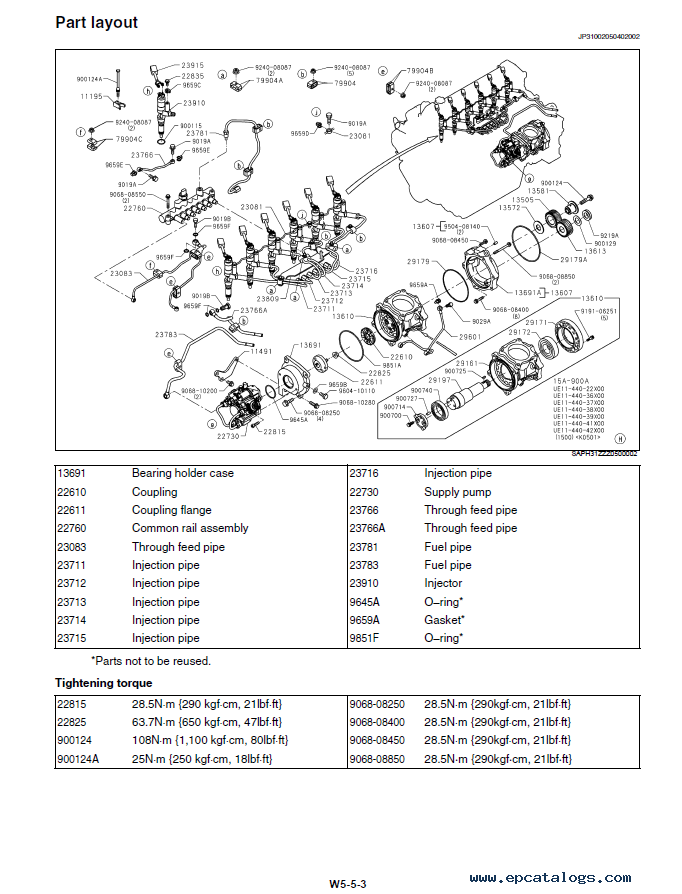

The fuel-system section covers the machine-side and engine-side fuel filters, supply pump, injectors, and common rail system. It provides service information and procedures for inspection, removal, installation, and troubleshooting of the fuel-system components.

Emission Control and Intake System

The emission-control section covers the EGR system and ventilator. The intake section includes the intake manifold and intake throttle valve, with service procedures for inspection and repair.

Engine Mechanical System

The engine mechanical section provides detailed service information for the cylinder head, cylinder block, timing gear cover, flywheel housing, main moving parts, camshaft, idle gear, and valve system.

Exhaust and Cooling Systems

The exhaust section covers the exhaust manifold and DPR cleaner. The cooling section provides service information for the engine cooling system and related components.

Lubrication, Starting and Charging

The lubrication section covers the oil cooler, oil filter, oil pump, and oil pan. The starting and charging section includes service procedures for the starter and the 60A alternator, together with related inspection and repair information.

Failure Diagnosis and Engine Diagnostic Codes

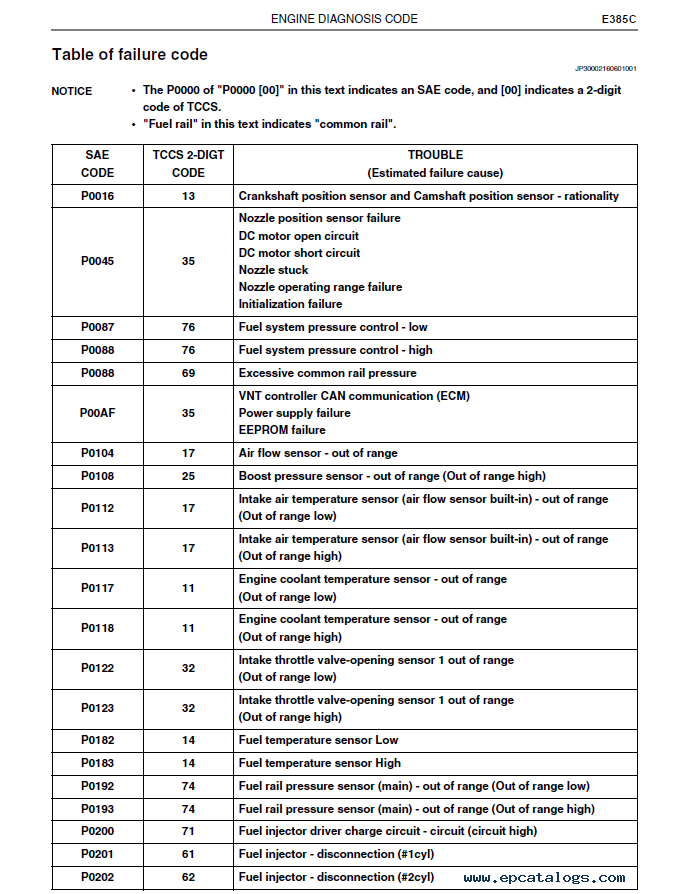

The diagnostic sections provide troubleshooting information for different engine conditions and cover engine mechanical problems, alternator and starter faults, turbocharger issues, and DPR filter problems. The manual also includes engine diagnosis code information and procedures related to the engine ECU.

This Service Manual set is a useful reference for technicians working on the New Holland E385C with Hino J08E diesel engines and provides the technical information needed for accurate engine servicing, troubleshooting, maintenance, and repair.

Models:
E385C

Set includes:

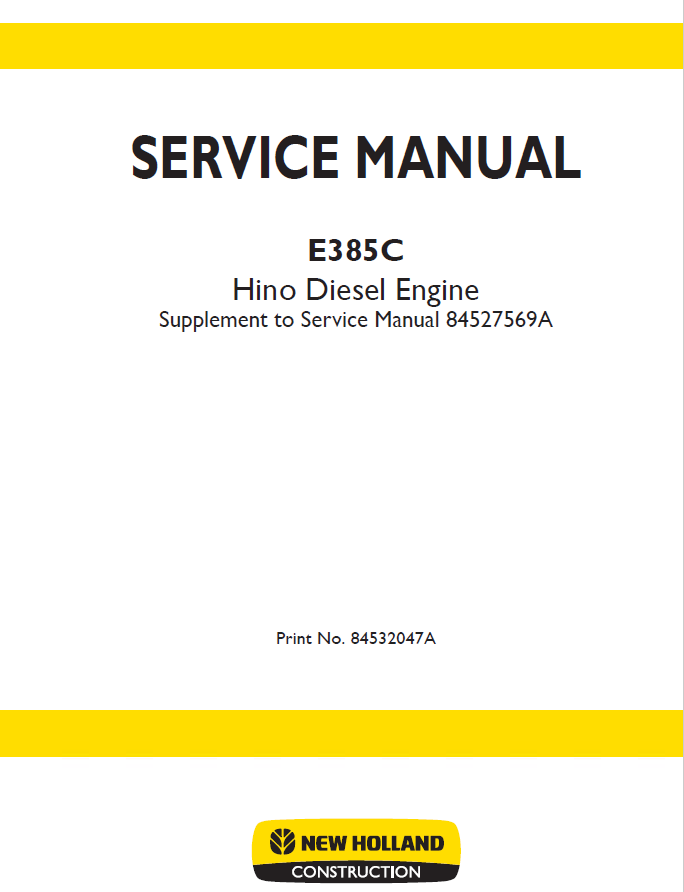

1. New Holland E385C Hino Diesel Engine J08E-UV (supplement to service manual 84527569A).

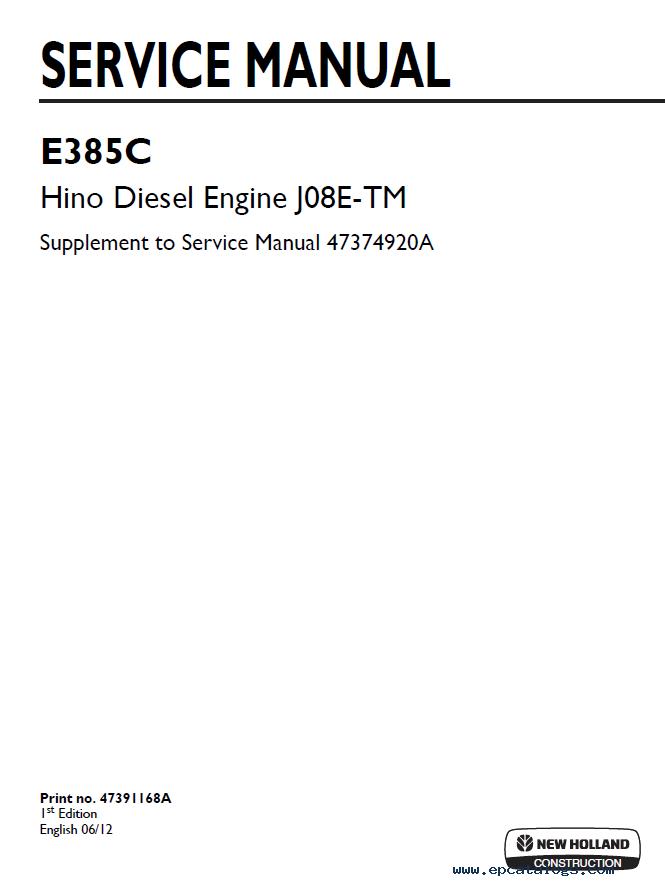

2. New Holland E385C Hino Diesel Engine J08E-TM (supplement to service manual 47374920A).
