Case 680L Loader Backhoe Operator’s Manual PDF

This operator’s manual covers the Case 680L Loader Backhoe. It provides essential information on machine operation, controls and instruments, safety procedures, technical specifications, lubrication and preventive maintenance. The manual includes detailed operating instructions to help operators understand the machine’s functions and use its loader and backhoe systems correctly.

The manual is intended for machine operators and service personnel. Follow the manufacturer’s instructions and safety recommendations when operating or maintaining the equipment.

Operating and Technical Coverage

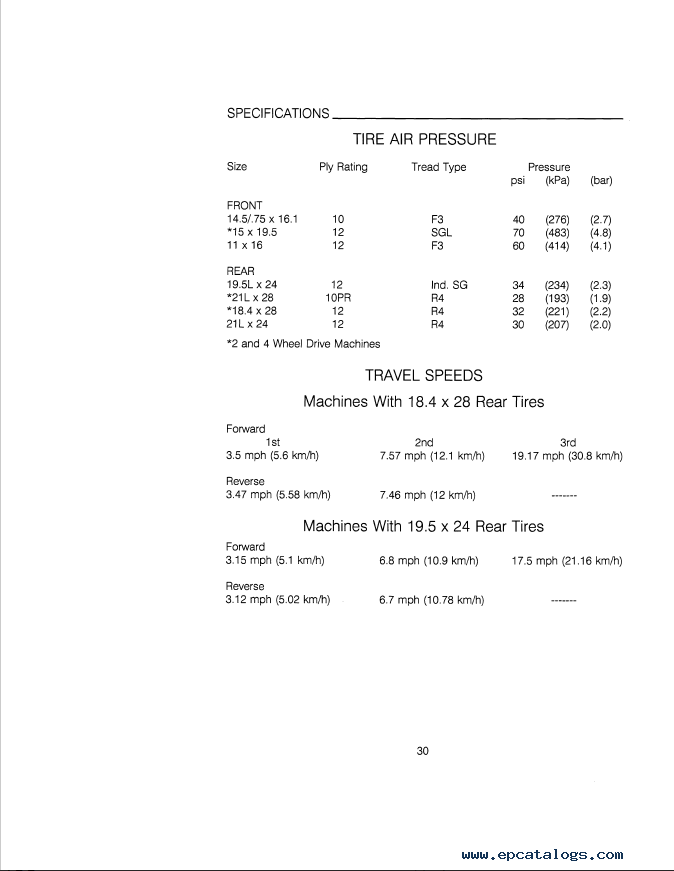

The manual covers the machine’s identification, serial numbers, safety rules, operating precautions and technical specifications. It provides information on engine specifications, electrical systems, tire pressures, travel speeds, operating weights, loader and backhoe buckets, machine dimensions and lifting capacities, including standard backhoe and Extendahoe configurations.

The controls and instruments section explains the instrument cluster, machine controls, loader lift arm and bucket operation, 4-IN-1 bucket clamp, backhoe controls, Extendahoe controls, operator’s seat, seat belt and cab features.

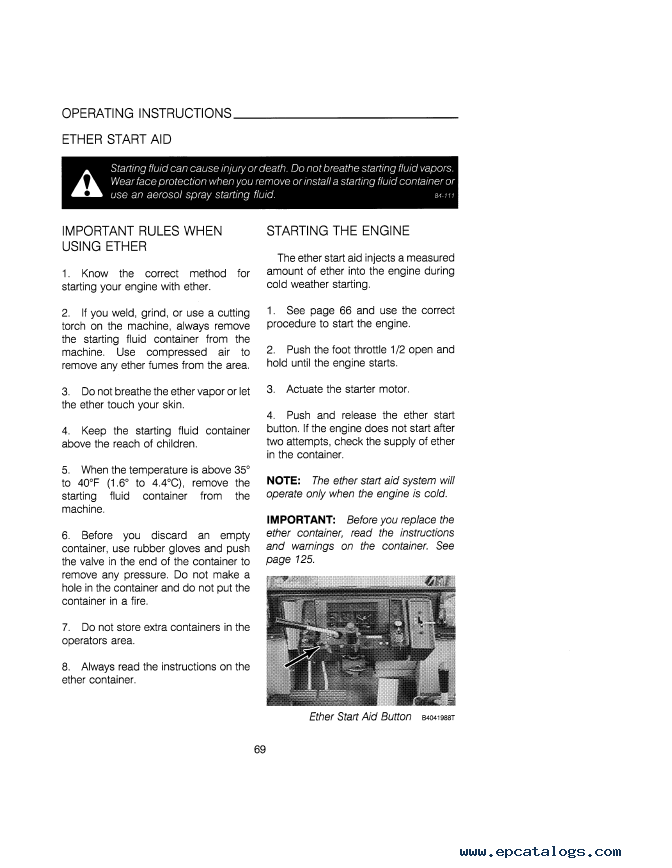

The operating instructions cover engine starting and stopping, walk-around inspections, cold-weather starting, four-wheel drive, gear selection, hill operation, differential lock and machine transportation. Separate sections explain loader and backhoe operation, including bucket positioning, digging procedures, stabilizer pads, return-to-dig function, moving the machine during excavation and lifting with the backhoe.

Lubrication and Preventive Maintenance

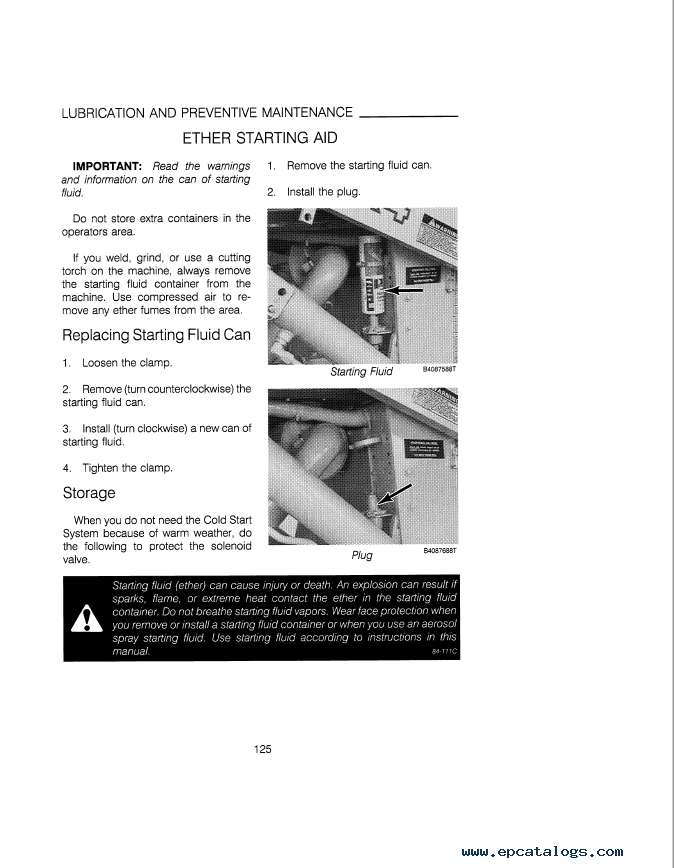

The maintenance section provides information on service safety, loader lift arm support, fluids and lubricants, engine oil recommendations, diesel fuel specifications and the run-in period. It includes a maintenance schedule and procedures covering the engine lubrication, air cleaning, cooling and fuel systems, equipment and transmission hydraulics, drive axles and electrical system.

Additional topics include cab servicing, air conditioning, belt replacement and adjustment, loader return-to-dig adjustment, wheels and tires, spark arrester muffler, ROPS mounting bolts, seat belts and machine storage.

The manual also includes torque specifications, maintenance recommendations and information about Case technical manuals, helping operators maintain the Case 680L Loader Backhoe and keep it in proper working condition.
