Case 650H Crawler Operators Manual PDF

This Operator’s Manual covers the Case 650H Crawler model. It provides detailed information on machine operation, safety procedures, controls, routine maintenance, lubrication, adjustments, troubleshooting, storage, and technical specifications. The manual includes operating instructions, instrument and control descriptions, engine systems, hydraulics, transmission, final drives, electrical systems, dozer blade operation, ripper functions, and track systems.

The instructions are intended to help operators use the machine safely and maintain its performance. Follow the manufacturer’s recommendations and safety precautions when operating or servicing the crawler.

Operating and Maintenance Coverage

The manual explains machine controls, starting and stopping procedures, crawler operation, towing, transportation, and dozer and ripper techniques. It also covers safety rules, hazard prevention, warning decals, hand signals, and precautions for working in hot or cold weather.

The maintenance sections include lubrication schedules, fluids and lubricants, grease fittings, engine servicing, air filtration, cooling, diesel fuel, hydraulic systems, transmission, and final drives. Additional procedures cover adjustments, brake wear checks, battery service, fuses, work lamps, and electrical components.

The manual also provides instructions for machine storage and return to service, engine specifications, travel speeds, hydraulic and track system data, operating dimensions, and machine weights for different crawler configurations.

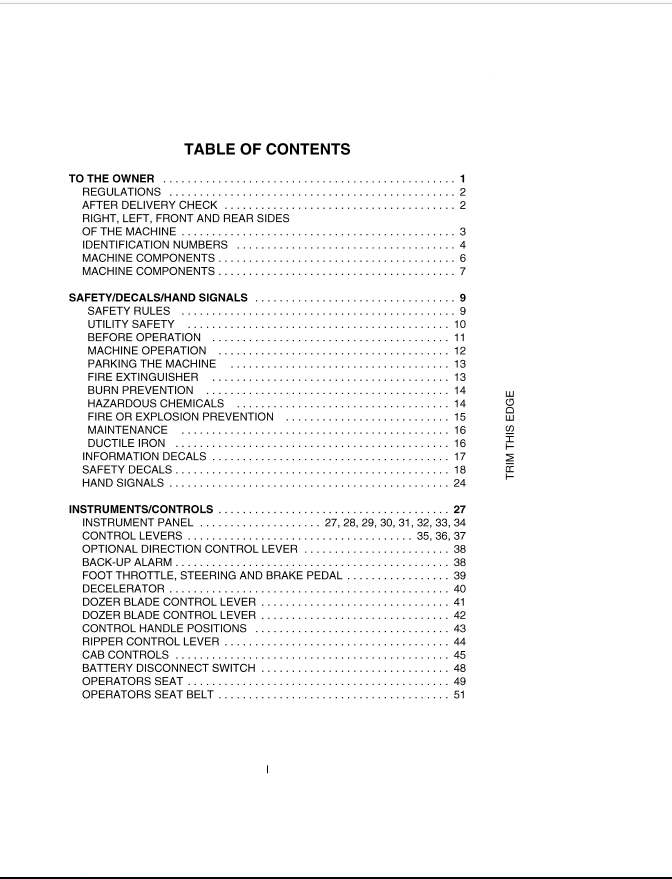

TABLE OF CONTENTS
