Case 1150E, 1155E Crawler Service Manual PDF

This workshop service manual covers the Case 1150E and 1155E crawler tractors. It provides detailed technical information for servicing, troubleshooting, maintaining, adjusting, and repairing the machine, including the engine, fuel system, electrical system, tracks, power train, brakes, hydraulics, and mounted equipment.

The manual is intended for qualified service personnel and includes service specifications, troubleshooting procedures, repair instructions, system diagrams, and component removal and installation procedures. Follow the manufacturer’s instructions and use the specified tools where required.

Service and Repair Coverage

The manual includes general service information such as safety rules, torque specifications, engine specifications for the 1150E and 1155E, maintenance and lubrication information, and a Loctite product chart.

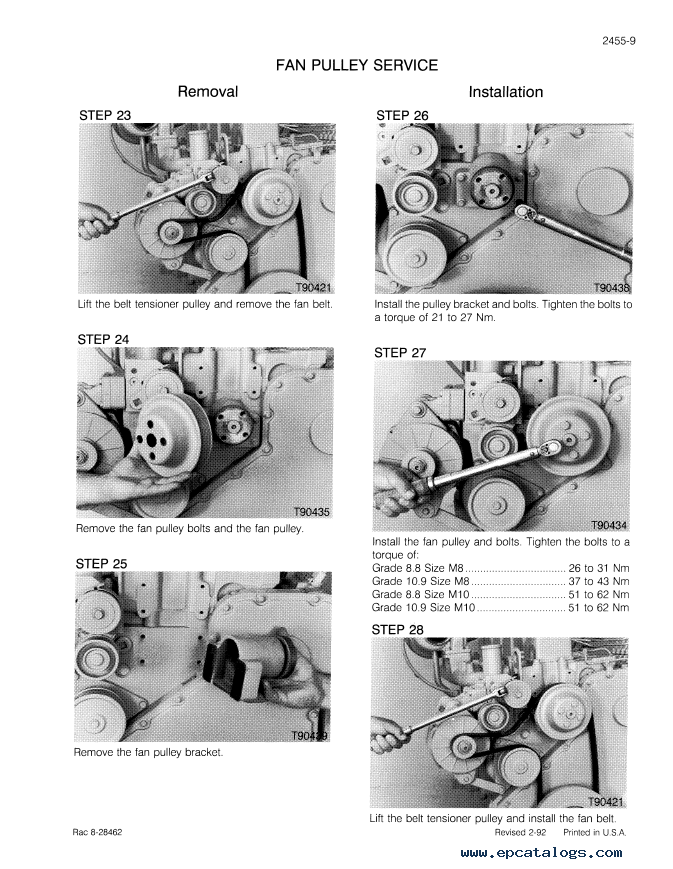

The engine section covers engine and radiator removal and installation, engine accessories, stall tests, cylinder head and valve train, cylinder block, crankshaft, pistons, connecting rods, camshaft, lubrication and cooling systems, turbochargers, and turbocharger failure analysis.

The fuel system section covers fuel lines, fuel tank and engine controls, fuel filters, injection pumps, timing components, fuel shut-off solenoids, Bosch fuel injection systems, and fuel injectors for both models.

The electrical section includes electrical component removal and installation, system specifications and troubleshooting, wiring schematics, indicators and gauges, batteries, 24-volt starters and solenoids, and the Bosch alternator.

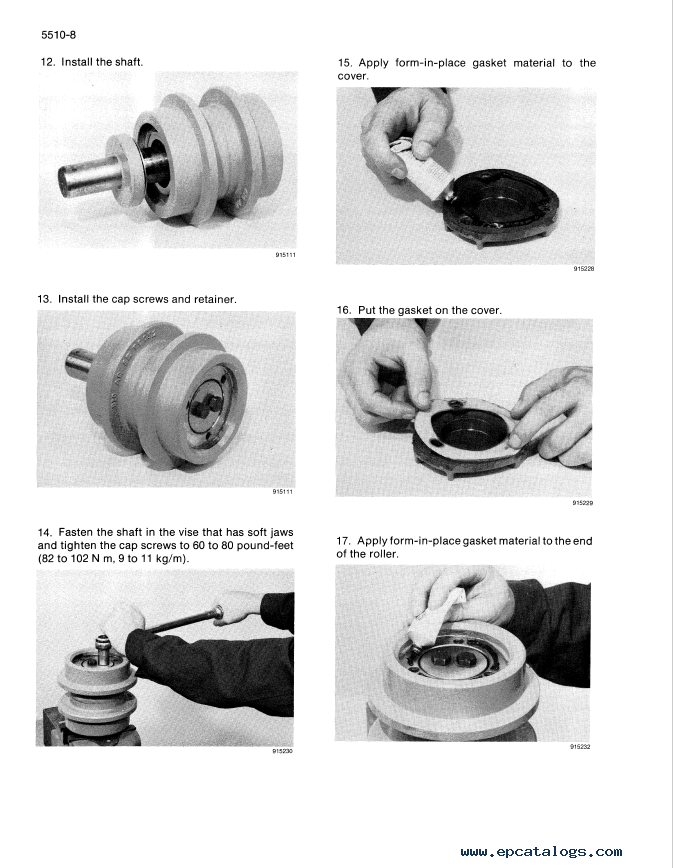

The track and power train sections cover track components, track adjustment, suspension, idlers, sprockets, rollers, transmission maintenance and troubleshooting, torque converter, final drive, transmission controls, and drive shaft.

The manual also provides brake service information and detailed hydraulic coverage, including hydraulic specifications, diagrams, maintenance, troubleshooting, pressure checks, pumps, control valves, selector valves, and cylinders.

The mounted equipment section covers air conditioning, loader, dozer blade, ripper, ROPS cab and canopy, operator’s seat and seat belts, suspension seat, and winch.

This PDF workshop service manual is a useful reference for technicians, mechanics, and owners performing maintenance, troubleshooting, adjustment, inspection, and repair work on Case 1150E and 1155E crawler machines.
