ZF-Ecomat 2 HP 502 / HP 552 / HP 592 / HP 602 Repair Manual PDF

[09/2000]


Type of catalogue:	repair manual
Make:	ZF
Region:	WorldWide
Inclusive languages:	English
Amount of disks:	1 CD, PDF file, 334 pages
Availibility	Instant Download
OS:	Windows XP 32 bit, Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit
Price, USD:	40

This repair manual is intended for skilled personnel who have been trained by ZF Friedrichshafen AG to carry out maintenance and repair work on ZF products.
Repair manual includes detailed repair and technical service information, special instructions for repair and maintenance and any additional information that is presented specifically for ZF Ecomat 2 HP 502, HP 552, HP 592, HP 602.

Contents:

Preface
Work Safety
Repair Instructions
Tightening Torques
Expendable Material
Cross-section
Adjustment Data
Spring Table
Special Tools
1 Assembly Stand - Insert and Remove Transmission
- 1.1 Assembly Stand - Insert Transmission
- 1.2 Assembly Stand - Remove Transmission
2 Retarder Accumulator - Remove and Install, Dismantle and Assemble
- 2.1 Retarder Accumulator - Remove
- 2.2 Retarder Accumulator - Install
- 2.3 Retarder Accumulator - Dismantle
- 2.4 Retarder Accumulator - Assemble
3 Heat Exchanger - Remove and Install
- 3.1 Heat Exchanger - Remove
- 3.2 Heat Exchanger - Install
4 Converter - Remove and Install, Dismantle and Assemble
- 4.1 Converter - Remove
- 4.2 Converter - Install
- 4.3 Converter - Dismantle
- 4.4 Converter - Assemble
- 4.5 Converter Leak-Tightness - Check (ZFW 380-30 and ZFW 360-10)
5 Cover Plate - Remove and Install
- 5.1 Cover Plate - Remove
- 5.2 Cover Plate - Install
6 Oil Pan - Remove and Install
- 6.1 Oil Pan - Remove
- 6.2 Oil Pan - Install
7 Inductive Pickup - Remove and Install
- 7.1 Inductive Pickup - Remove
- 7.2 Inductive Pickup - Install
8 Hydraulic Control Unit - Remove and Install, Dismantle and Assemble
- 8.1 Hydraulic Control Unit - Remove
- 8.2 Hydraulic Control Unit - Install
- 8.3 Oil Level Indicator - Remove and Install
- 8.4 Hydraulic Control Unit - Dismantle
- 8.5 Hydraulic Control Unit - Assemble
9 Retarder Valve - Remove and Install
- 9.1 Retarder Valve - Remove
- 9.2 Retarder Valve - Install
10 Output Cover - Remove and Install, Dismantle and Assemble
- 10.1 Output Cover/Inductive Pickup - Remove
- 10.2 Output Cover - Install
- 10.3 Output Cover - Dismantle
- 10.4 Output Cover - Assemble
11 Mechanical Transmission Section - Remove and Install
- 11.1 Mechanical Transmission Section - Remove
- 11.2 Mechanical Transmission Section - Dismantle; Version HP 592 / 602
- 11.3 Mechanical Transmission Section - Install
12 Control Unit - Remove and Install, Dismantle and Assemble
- 12.1 Control Unit - Remove
- 12.2 Control Unit - Install
- 12.3 Control Unit - Dismantle
- 12.4 Control Unit - Assemble
13 D Brake - Remove and Install
- 13.1 D Brake - Remove
- 13.2 D-Brake - Install

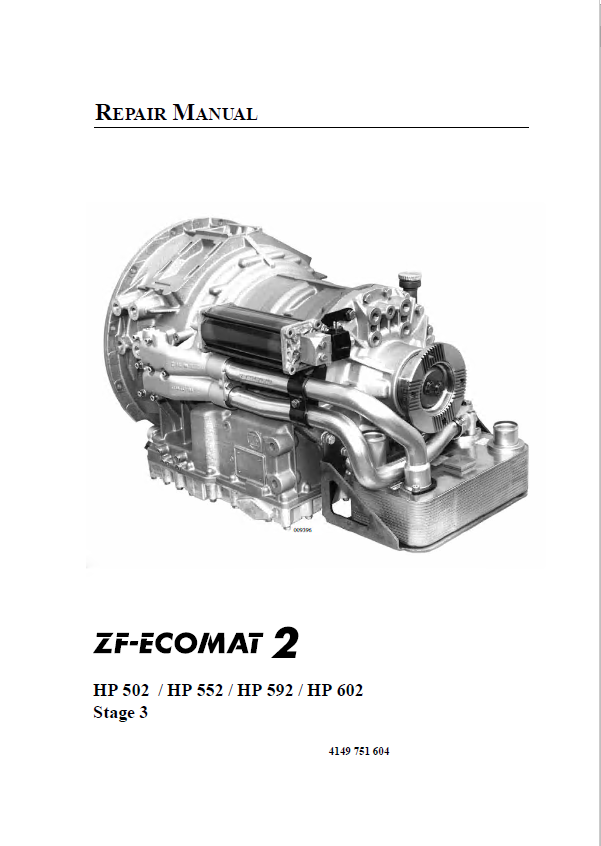

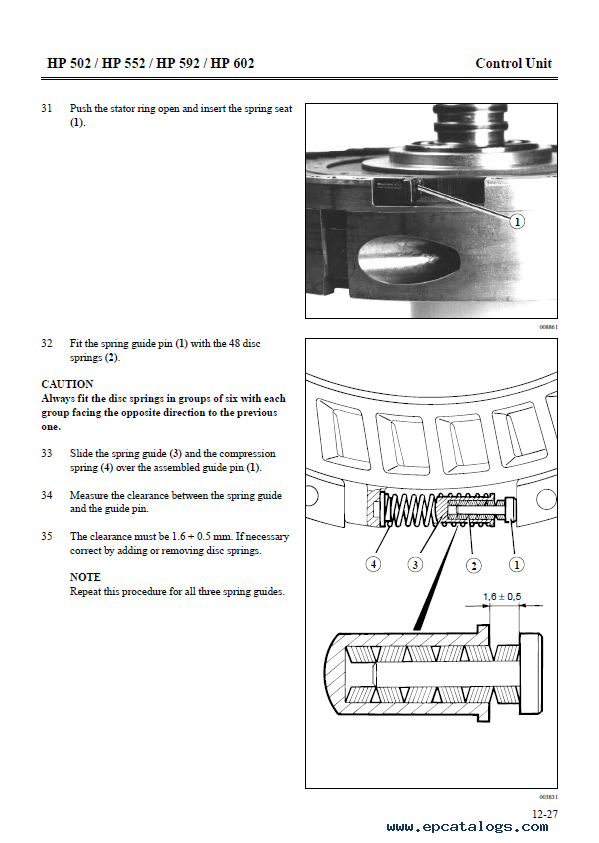

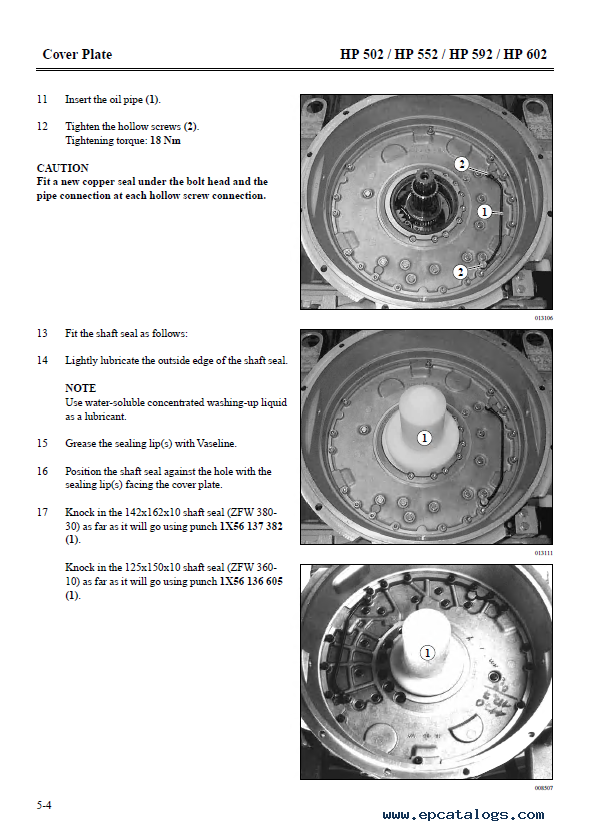

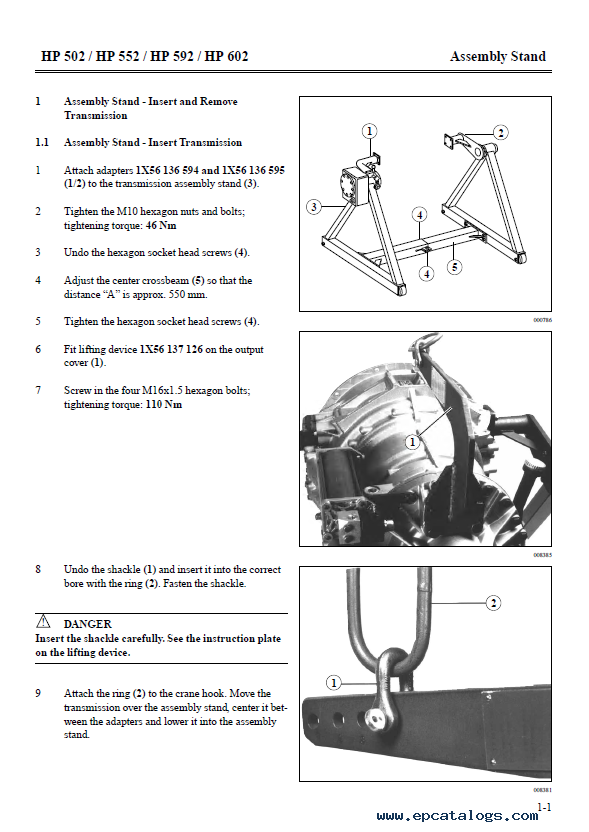

Screenshots for ZF-Ecomat 2 HP 502 / HP 552 / HP 592 / HP 602 Repair Manual PDF:

enlarge

enlarge

enlarge

enlarge

enlarge

enlarge
