Yanmar Industrial Engines TNV Series John Deere Service Manual PDF

Maintenance manual is a complete documentation of repair, designed for repair and maintenance of industrial engines Yanmar.
This service manual contains installation instructions, electrical and hydraulic diagrams, technical specifications for industrial engines Yanmar TNV series.
By way of illustration, represented in the manual, you can carry out step by step operations on repair, maintenance, operation and troubleshooting of equipment Yanmar.
To work with the program you need to must install the application Adobe PDF Reader. This Electronic Manual is in PDF.
Service manual contains all the service and repair information necessary for industria; engines Yanmar following models:
3TNV82A
3TNV82A-B
3TNV84
3TNV84T
3TNV84T-B
3TNV88
3TNV88-B
3TNV88-U
4TNV84
4TNV84T
4TNV84T-Z
4TNV88
4TNV88-B
4TNV88-U
4TNV94L
4TNV98
4TNV98-Z
4TNV98-E
4TNV98T
4TNV98T-Z
4TNV106
4TNV106T

P/N: 0BTNV-G00101

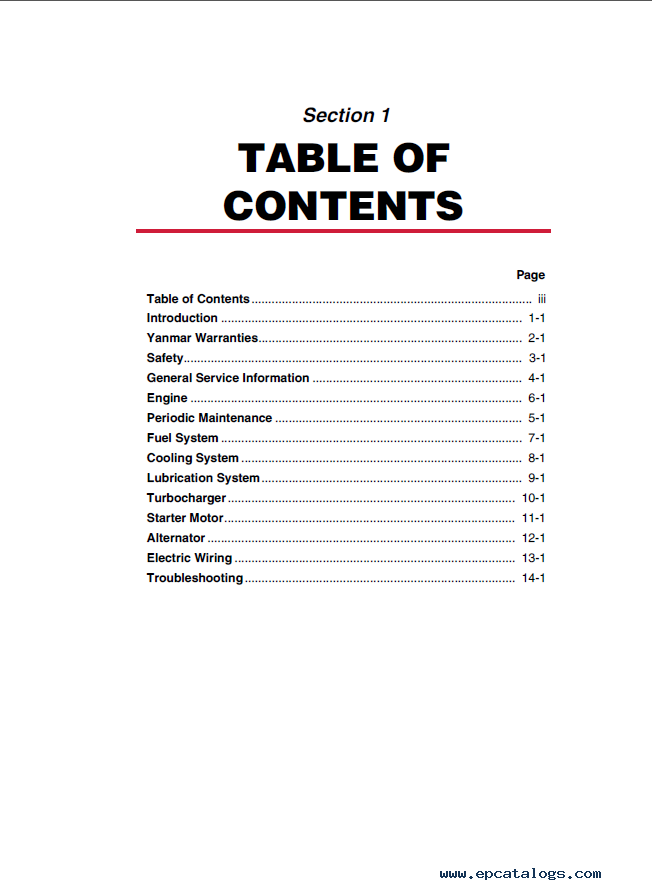

Contents:

• Introduction
• Yanmar Warranties
  • Yanmar Limited Warranty
  • Emission System Warranty
  • Yanmar Co., Ltd. Limited Emission Control System Warranty - USA Only
• Safety
  • Safety Statements
  • Safety Precautions
• General Service Information
  • Component Identification
  • Location of Labels
  • Emission Control Regulations
  • Emission Control Labels
  • The 97/68/EC Directive Certified Engines
  • Engine Family
  • Function of Major Engine Components
  • Main Electronic Control Components and Features
  • Diesel Fuel
  • Engine Oil
  • Engine Coolant
  • Specifications
• Periodic Maintenance
  • Before You Begin Servicing
  • Introduction
  • Periodic Maintenance Schedule
  • Periodic Maintenance Procedures
• Engine
  • Before You Begin Servicing
  • Introduction
  • Cylinder Head Specifications
  • Camshaft and Timing Gear Train Specifications
  • Crankshaft and Pistons Specifications
  • Cylinder Block Specifications
  • Special Torque Chart
  • Special Service Tools
  • Measuring Instruments

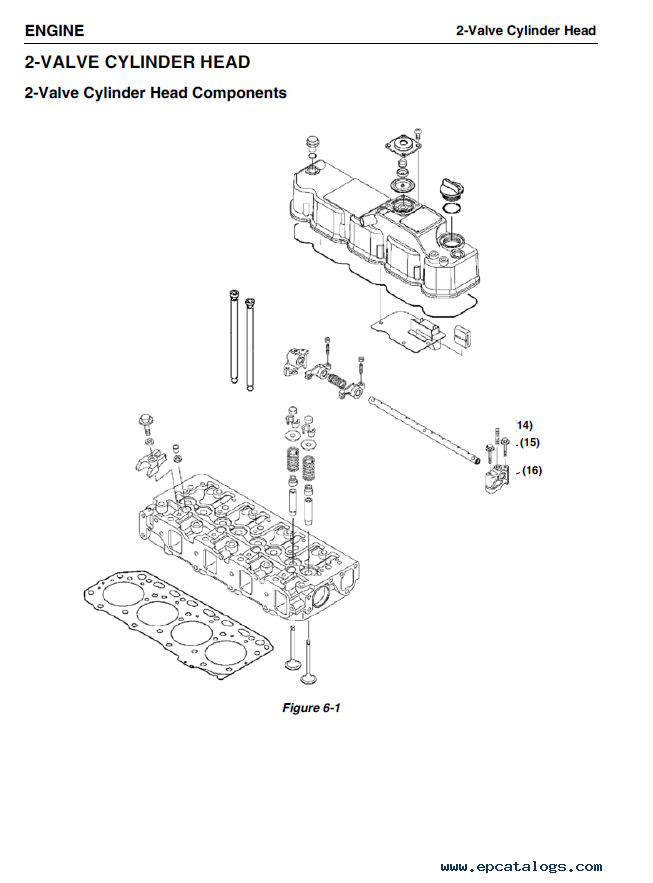

  • 2-Valve Cylinder Head
  • 4-Valve Cylinder Head
  • Measuring and Adjusting Valve Clearence
  • Crankshaft and Camshaft Components
  • EGR System
• Fuel System
  • Before You Begin Servicing
  • Introduction
  • Fuel System Specifications
  • Special Service Tools
  • Measuring Instruments

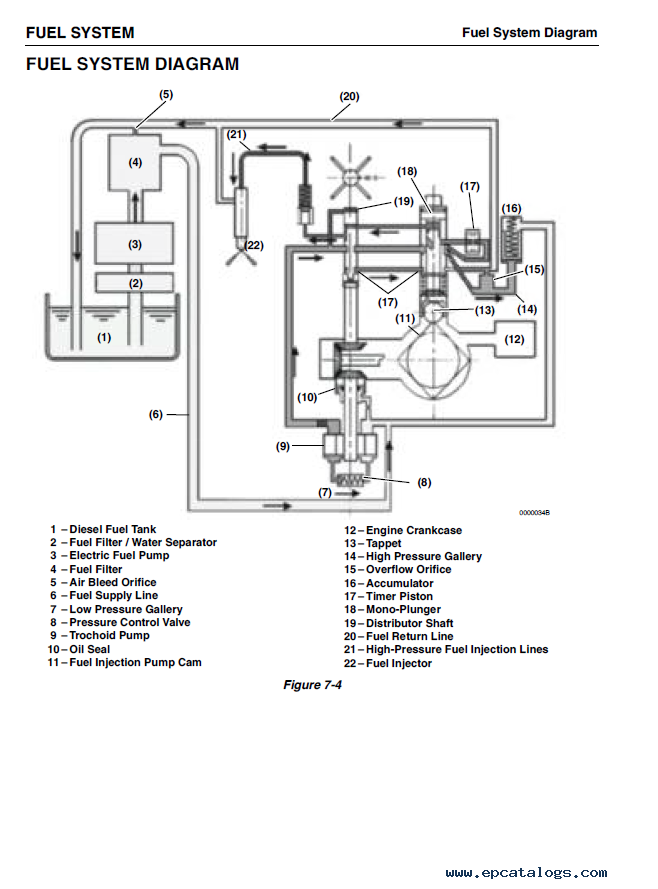

  • Fuel System Diagram
  • Fuel System Components
  • Fuel Injection Pump
  • Checking and Adusting Fuel Injection Timing
  • Fuel Injectors
• Cooling System
  • Before You Begin Servicing
  • Introduction
  • Cooling System Diagram
  • Engine Coolant Pump Components
  • Engine Coolant System Check
  • Engine Coolant Pump
• Lubrication System
  • Before You Begin Servicing
  • Introduction
  • Oil Pump Service Information
  • Lubrication System Diagram
  • Checking Engine Oil Pressure
  • Trochoid Oil Pump 3TNV82A to 4TNV88 Oil Pump Components
  • Trochoid Oil Pump 3TNV82A-B, 3TNV88-B, 3TNV88-U, 4TNV88-B4TNV88-U, 3TNV84T-Z, 4TNV84T-Z Oil Pump Components
  • Trochoid Oil Pump 4TNV94L/98/106 Oil Pump Components
• Turbocharger
  • Before You Begin Servicing
  • Introduction
  • Specifications
  • Troubleshooting
  • Turbocharger Components
  • Turbocharger Component Functions
  • Washing Procedure
  • Periodic Inspection
• Starter Motor
  • Before You Begin Servicing
  • Introduction
  • Starter Motor Information
  • Starter Motor Specifications
  • Starter Motor Troubleshooting
  • Starter Motor Components
  • Starter Motor
• Alternator
  • Before You Begin Servicing
  • Introduction
  • Dynamo and Alternator Information
  • Alternator Specifications
  • Dynamo Specifications
  • Alternator Troubleshooting
  • Alternator Components
  • Alternator Wiring Diagram
  • Alternator Standard Output
  • Alternator
  • Dynamo Component Location
  • Dynamo Wiring Diagram
  • Operation of Dynamo
  • Dynamo Standard Output
  • Testing of Dynamo
  • Dynamo
• Electronic Control System
  • Engines Available with the Electronic Control System
  • Before You Begin Servicing
  • Introduction
  • Electronic Control System

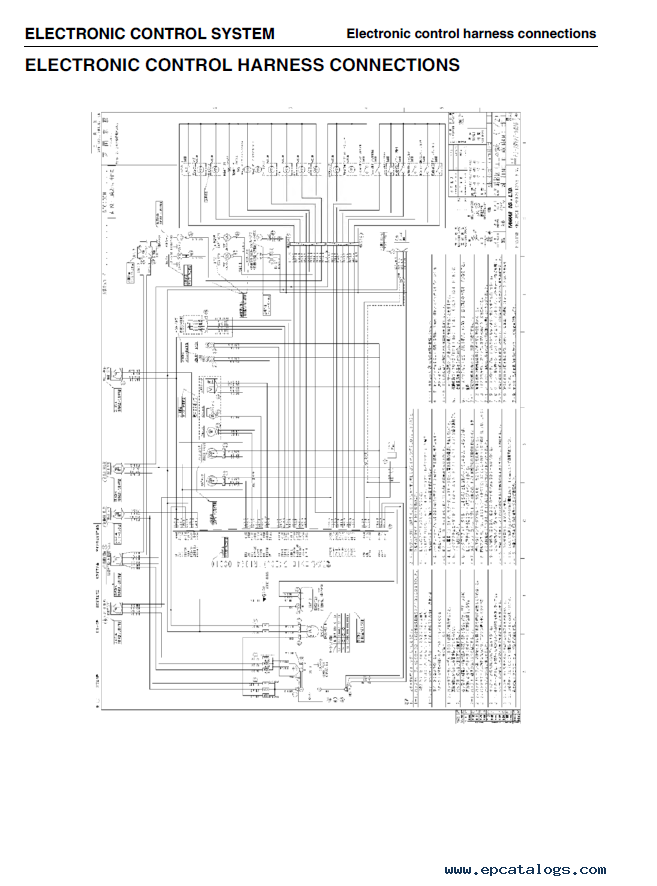

  • Electronic Control Harness Connections
• Electric Wiring
  • Electric Wiring Precautions
  • Electric Wire Resistance
  • Battery Cable Resistance
  • Electrical Wire Sizes - Voltage Drop
  • Conversion of AWG to European Standards
• Failure Diagnosis
  • DTCs (Diagnostic Trouble Codes) General Description
  • Method and Procedure of Failure Diagnosis
  • Using the Failure Indicator for Failure Diagnosis
  • Factor Analysis
  • Special Service Tools
  • Troubleshooting By Measuring Compression Pressure
  • Quick Reference Table For Troubleshooting
