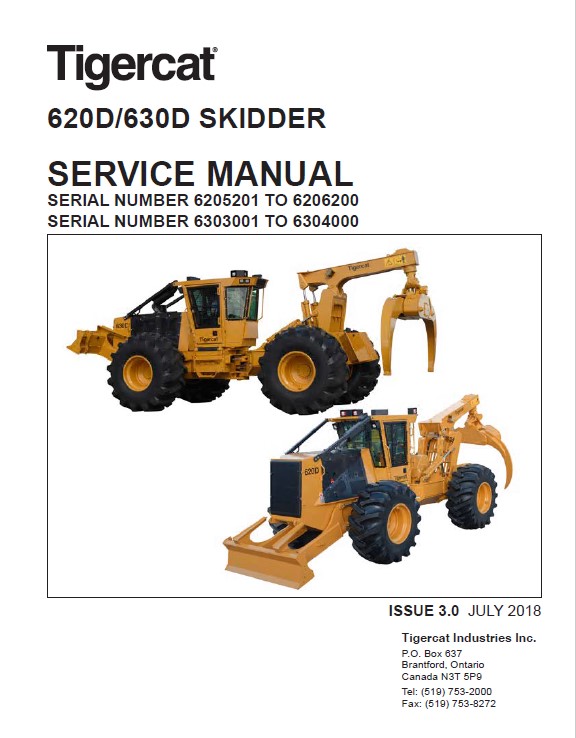

Tigercat Skidder 620D/630D Service Manual PDF

For complete service information also see:
Operator's Manual
Operator’s & Service Manuals

This PDF Service Manual explains correct maintenance and repair procedures to ensure optimal performance and maximum service life for the Tigercat Skidders 620D and 630D Models.

The pdf guide includes many sections that complete each other such information as safety rules, technical maintenance, the section about the engine, hydraulic and electrical systems, and information about the brakes, steering, power train, etc.

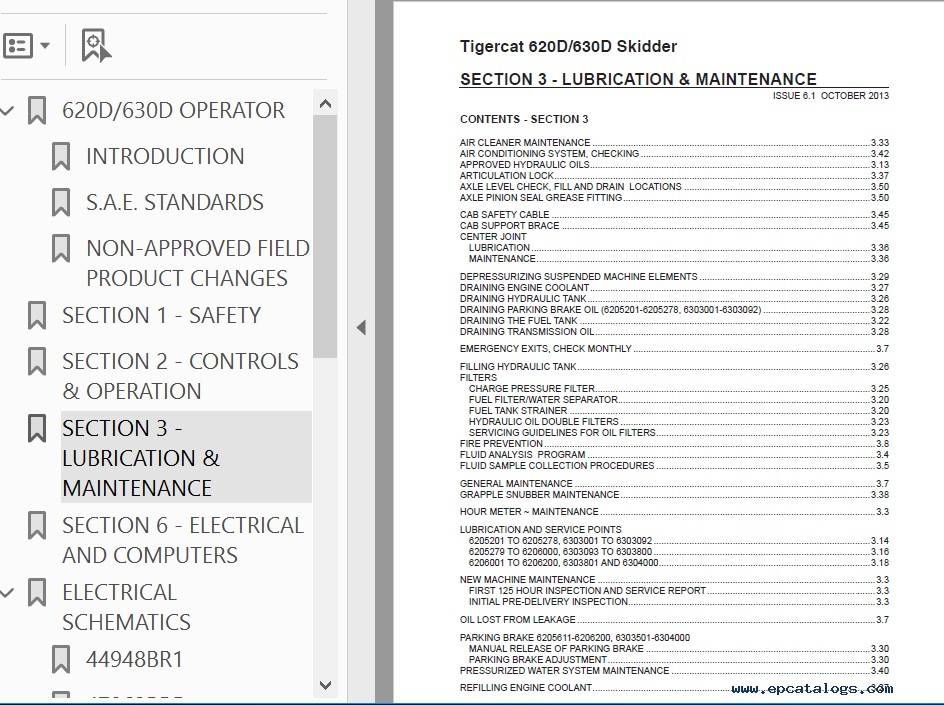

Contact us to obtain additional information or assistance with the manual. This manual is presented in PDF format, so you can find the information you need and print all the text or individual pages. For convenience, we recommend using Adobe Acrobat Reader to ensure the correct display of all graphics.

If you decide to purchase this guide on our website, then within 5-7 minutes you will receive an email with a link to download and further recommendations. If you have questions - write to us and we will answer them.

Models covered:
620D,
630D.

Serial Numbers:
620D 6205201 to 6206200
630D 6303001 to 6304000

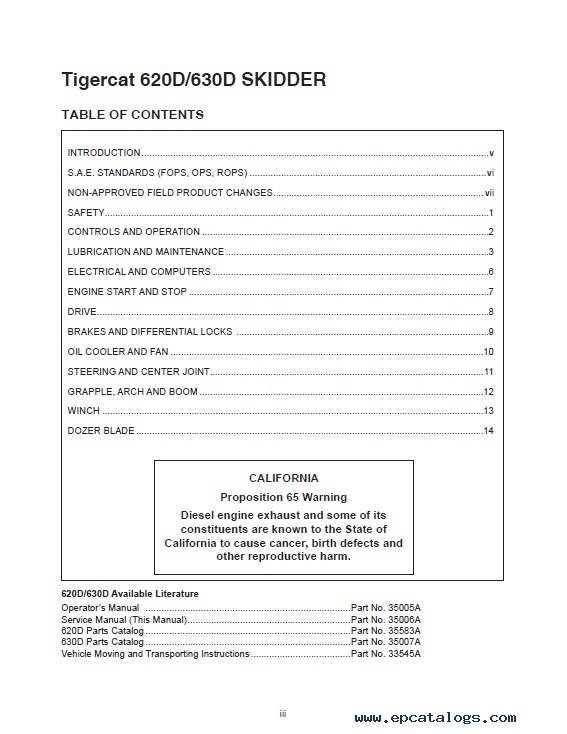

CONTENTS:
INTRODUCTION
S.A.E. STANDARDS (FOPS, OPS, ROPS)
NON-APPROVED FIELD PRODUCT CHANGES
SAFETY
CONTROLS AND OPERATION

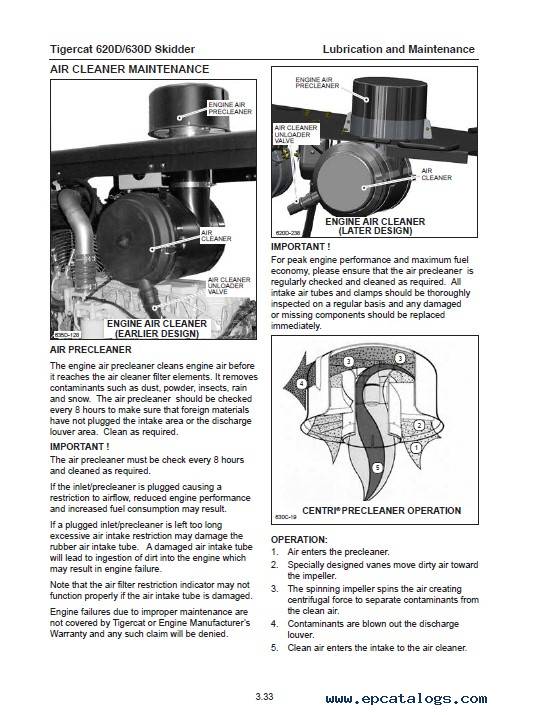

LUBRICATION AND MAINTENANCE
ELECTRICAL AND COMPUTERS
ENGINE START AND STOP
DRIVE
BRAKES AND DIFFERENTIAL LOCKS
OIL COOLER AND FAN
STEERING AND CENTER JOINT
GRAPPLE, ARCH, AND BOOM

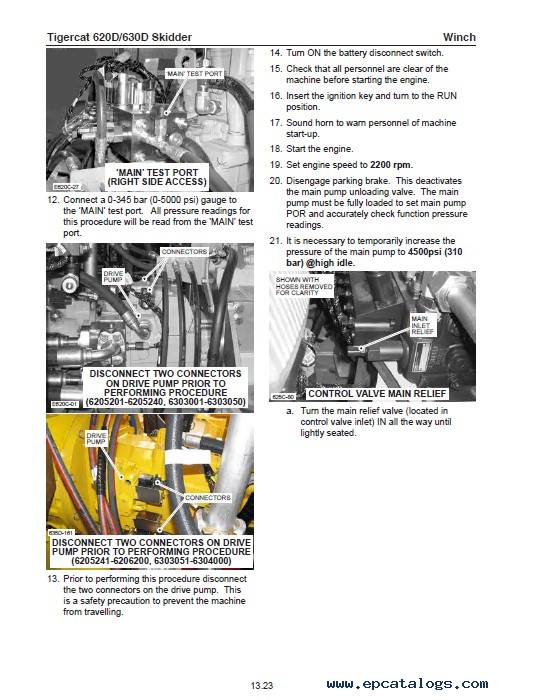

WINCH
DOZER BLADE
