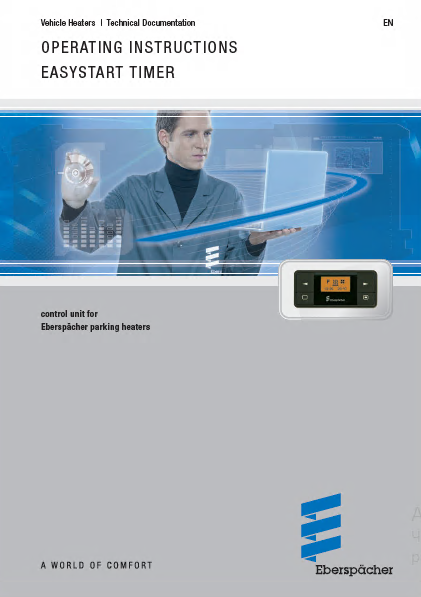

Tigercat ESPAR Coolant Heater Manual - Easystart quick start guide PDF

This PDF Manual contains repair and maintenance information, special instructions, troubleshooting for the Tigercat ESPAR Coolant Heater. This electronic guide includes technical data, service description, safety, operation, settings, many illustrations, diagrams and schemes.

Read the respective sections of this tutorial carefully and familiarize yourself with all rules and notes to avoid any problems (breakdown, injuries, or damage). An online text comes in PDF format with 32 pages in the English language for reading. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

Table of Contents

1 Introduction
1.1 Please read first
1.2 Safety information
1.3 Range of uses
1.4 General information
1.5 EU Declaration of conformity
2 Overview
2.1 EasyStart Timer
2.2 Button functions
3 Operation and setting/adjustment
3.1 Notes on operation and setting

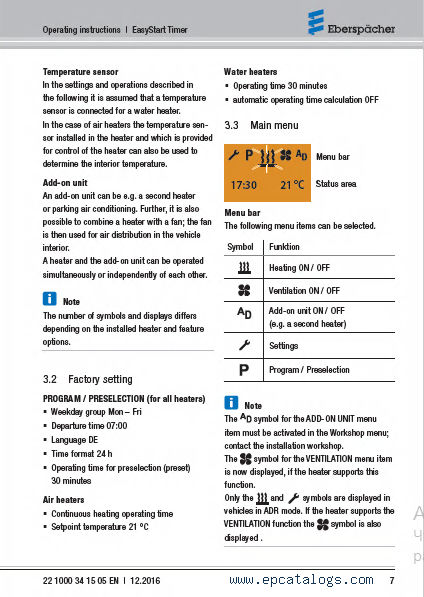

3.2 Factory setting
3.3 Main menu
3.4 Start display after switching on
3.5 Displays for activated menu items
3.6 HEATING IMMEDIATELY with Longpress (
without settings)
3.7 HEATING OFF mit Longpress
3.8 HEATING ON with Shortpress and with settings
3.9 HEATING OFF with Shortpress

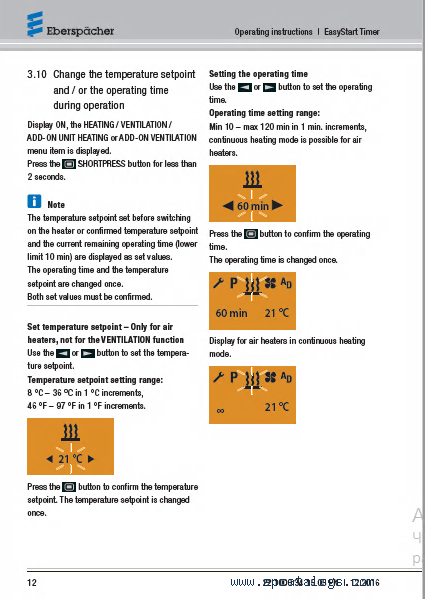

3.10 Change the temperature setpoint and / or the operating time during
operation
3.11 Set VENTILATION ON with Shortpress and if applicable set the operating
time
3.12 VENTILATION OFF with Longpress
3.13 VENTILATION OFF with Shortpress
3.14 ADD-ON UNIT ON – e.g. activate the HEATING function for a 2nd heater
3.15 ADD-ON UNIT ON – e.g. activate the VENTILATION
function for a 2nd
heater
3.16 ADD-ON UNIT OFF with Longpress
3.17 ADD-ON UNIT OFF with Shortpress
3.18 General information on programming the preset time
3.19 Program preset times
3.20 EasyStart Timer settings
3.21 Settings
4 What to do if …?
4.1 Bei einer Störung sind folgende Anzeigen möglich
5 Service
5.1 Technical Support
