Tigercat 630 Skidder LOW POWER COMPLAINT CHECKLIST PDF

This PDF Manual contains repair and maintenance information, special instructions, troubleshooting for the Tigercat 630 Skidder model. This electronic guide includes technical data, service description, engine section, and safety, operation, other material.

The factory file also includes detailed screenshots, different diagrams, schematics, that help you to get a detailed description of all systems of Tigercat equipment. This online text comes in PDF format with 40 pages in the English language. For work with the manual, you need to install the application Adobe PDF Reader.

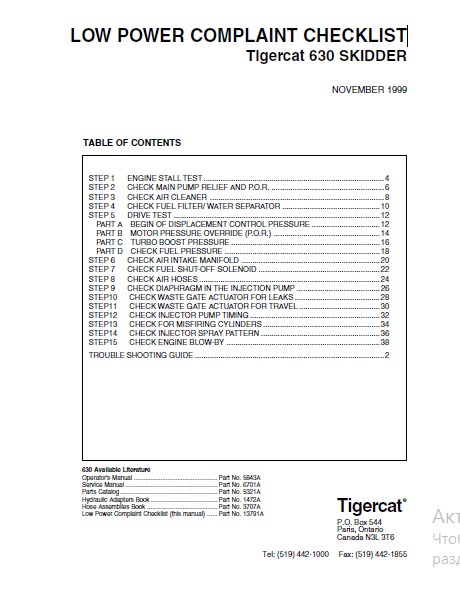

Table  of Contents

STEP 1 ENGINE STALL TEST

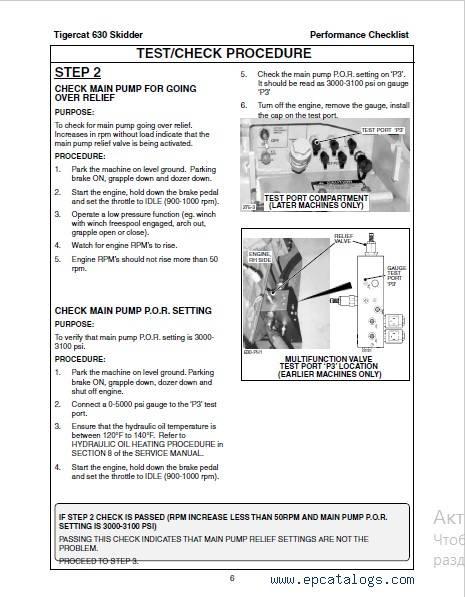

STEP 2 CHECK MAIN PUMP RELIEF AND P.O.R.
STEP 3 CHECK AIR CLEANER
STEP 4 CHECK FUEL FILTER/ WATER SEPARATOR
STEP 5 DRIVE TEST

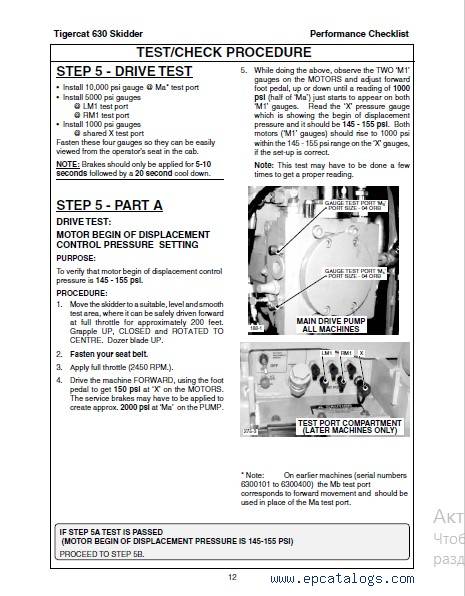

PART A BEGIN OF DISPLACEMENT CONTROL PRESSURE
PART B MOTOR PRESSURE OVERRIDE (P.O.R.)
PART C TURBO BOOST PRESSURE

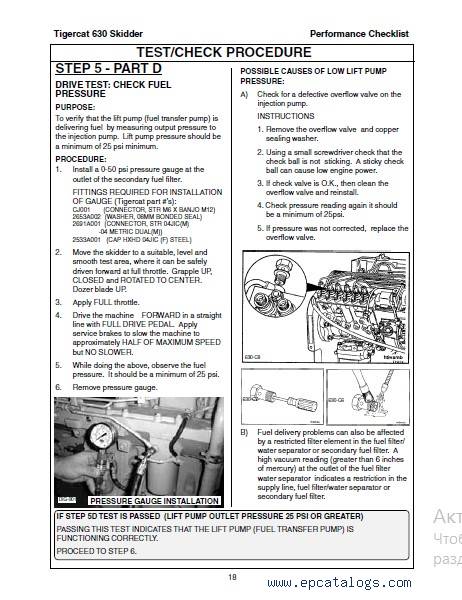

PART D CHECK FUEL PRESSURE
STEP 6 CHECK AIR INTAKE MANIFOLD

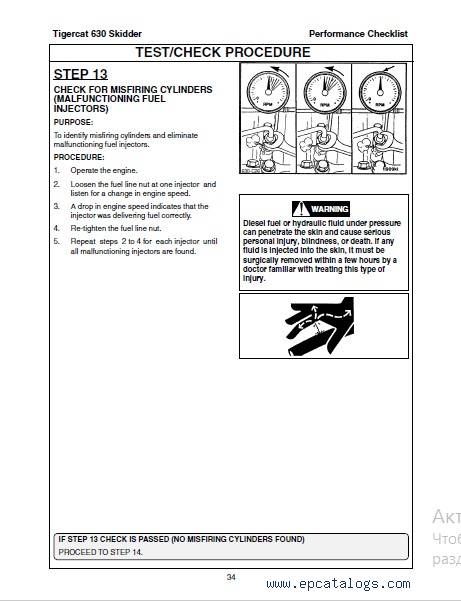

STEP 7 CHECK FUEL SHUT-OFF SOLENOID
STEP 8 CHECK AIR HOSES
STEP 9 CHECK DIAPHRAGM IN THE INJECTION PUMP
STEP10 CHECK WASTE GATE ACTUATOR FOR LEAKS
STEP11 CHECK WASTE GATE ACTUATOR FOR TRAVEL
STEP12 CHECK INJECTOR PUMP TIMING
STEP13 CHECK FOR MISFIRING CYLINDERS
STEP14 CHECK INJECTOR SPRAY PATTERN
STEP15 CHECK ENGINE BLOW-BY
