Terex TXС 300LC-2 Heavy Hydraulic Excavator Parts Manual PDF

Parts manual is a detailed parts list for heavy hydraulic excavator Terex TXС 300LC-2.
This manual includes correct parts information: Model of Machine, Machine Serial No, Engine Serial No, Part No, Description, Q'ty, etc.

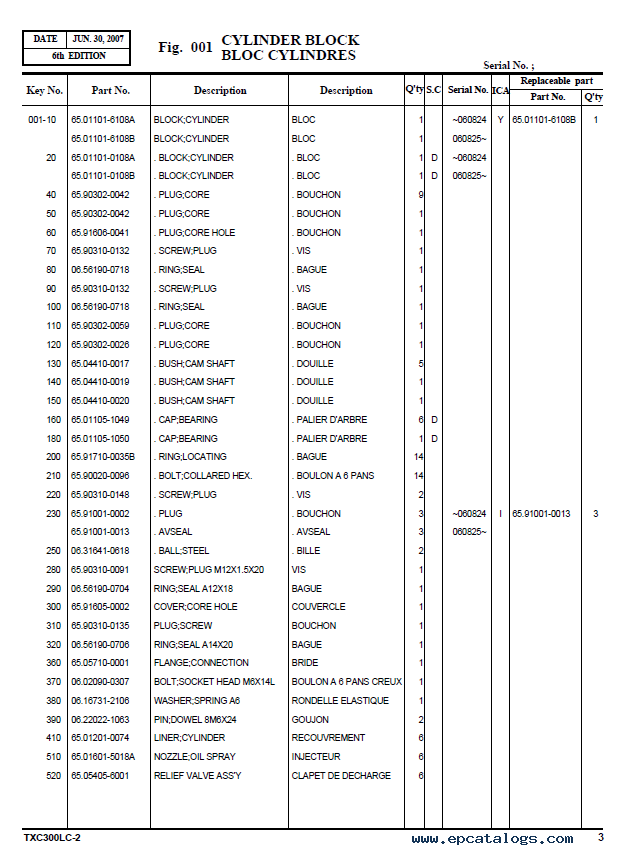

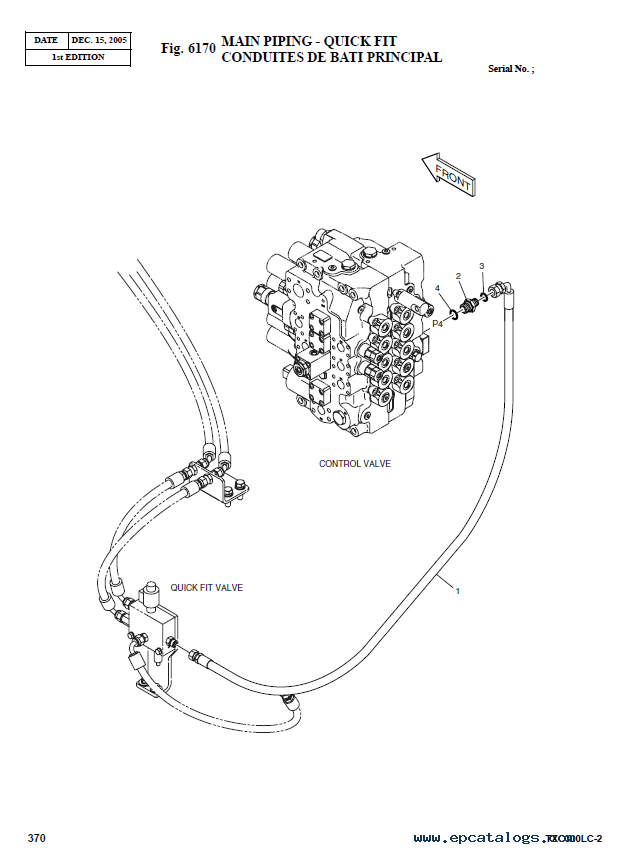

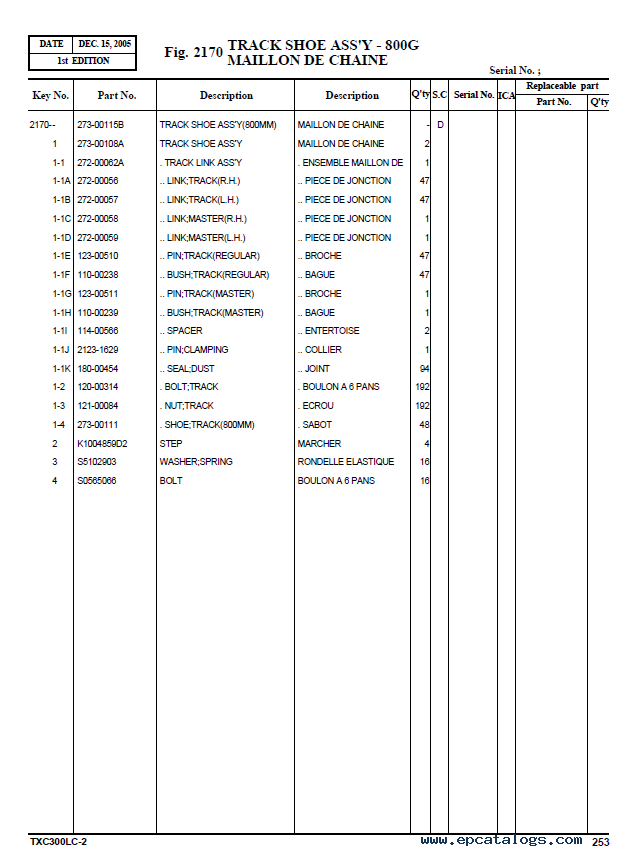

This manual comes in PDF, includes 559 pages, which are printable and readable. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

CONTENTS:

• ● ENGINE PARTS
  • CYLINDER BLOCK
  • TIMING GEAR CASE
  • FLYWHEEL HOUSING
  • OIL SEAL
  • BREATHER PIPE
  • DRIVING SYSTEM
  • CYLINDER HEAD
  • CYLINDER HEAD COVER
  • TIMING SYSTEM
  • OIL PUMP
  • OIL FILTER & OIL COOLER
  • OIL PAN
  • COOLING WATER PIPE & THERMOSTAT
  • WATER PUMP
  • COOLING FAN
  • EXHAUST MANIFOLD
  • INTAKE MANIFOLD
  • TURBO CHARGER
  • INTAKE STAKE
  • INJECTOR
  • FUEL INJECTION PIPE
  • INJECTION PUMP
  • INJECTION PUMP DRIVE
  • ENGINE CONTROL
  • FUEL SYSTEM
  • ALTERNATOR & ALTERNATOR
  • LIFTING HOOK
  • STARTER
  • AIR HEATER
  • SENSOR
  • WIRE HARNESS
  • ENGINE MOUNTING
  • POWER STEERING PUMP
  • AIR COMPRESSOR
  • OVER HAUL GASKET KIT - ALL
  • OVER HAUL GASKET KIT - TOP
• ● UPPER STRUCTURE
  • MAIN FRAME
  • COUNTER WEIGHT
  • ENGINE MOUNTING
  • RADIATOR MOUNTING
  • RADIATOR
  • MUFFLER
  • CAC PIPING
  • AIR CLEANER
  • PUMP MOUNTING
  • SWING MOTOR
  • FUEL TANK
  • FUEL PIPING
  • OIL TANK
  • OIL COOLER PIPING(1)
  • OIL COOLER PIPING(2)
  • OIL COOLER PIPING(3)
  • MAIN PIPING(1) - PUMP
  • MAIN PIPING(2) - BOOM
  • MAIN PIPING(3) - ARM & BUCKET
  • MAIN PIPING(4) - SWING
  • MAIN PIPING(5) - TRAVEL
  • PILOT PIPING(1)
  • PILOT PIPING(2)
  • PILOT PIPING(3)
  • PILOT PIPING(4)
  • PILOT PIPING(5)
  • PILOT PIPING(6)
  • PILOT PIPING(7)
  • PILOT PIPING(8)
  • CONTROL STAND - L.H.
  • CONTROL STAND - R.H.
  • SEAT SLIDING PLATE
  • SEAT PLATE
  • SEAT MOUNTING
  • SEAT
  • DUCT COVER
  • HEATER COVER
  • CABIN MOUNTING
  • CABIN(1)
  • CABIN(2)
  • CABIN(3)
  • CABIN(4)
  • FLOOR MAT
  • FLOOR PLATE
  • HANDLE ASS'Y
  • ROOF COVER
  • FOOT REST - L.H.
  • FOOT REST - R.H.
  • SUPPORT
  • BAFFLE
  • SIDE DOOR - L.H
  • SIDE DOOR - R.H
  • BATTERY COVER
  • COVER
  • ENGINE COVER
  • HANDRAIL
  • ACOUSTIC FOAM
  • UNDER COVER
  • LUBRICATION PIPING
  • ELECTRIC BOX ASS'Y
  • ELECTRIC PARTS - CABIN
  • ELECTRIC PARTS - CONTROL STAND
  • ELECTRIC PARTS - RELATED
  • ELECTRIC PARTS - ENGINE
  • ALTERNATOR MOUNTING
  • ELECTRIC PARTS - WORKING LAMP
  • ELECTRIC WIRING
  • AIRCONDITIONER(1)
  • AIRCON UNIT
  • AIRCONDITIONER(2)
• ● UNDER CARRIAGE
  • TRACK FRAME
  • TRACK GUARD
  • TRAVEL DEVICE
  • IDLER
  • TRACK SPRING
  • UPPER ROLLER
  • LOWER ROLLER
  • CENTER JOINT
  • TRACK SHOE ASS'Y - 800G
  • TRAVEL PIPING
• ● FRONT ATTACHMENTS
  • BOOM - 6.245m
  • ARM - 3.1m
  • BOOM PIPING
  • LUBRICATION PIPING - BOOM
  • ARM PIPING - ARM 3.1m
  • LUBRICATION PIPING - ARM 3.1m
• ● HYDRAULIC COMPONENTS
  • MAIN PUMP
  • REGULATOR
  • GEAR PUMP
  • SWING MOTOR
  • SWING REDUCTION GEAR
  • TRAVEL MOTOR
  • TRAVEL REDUCTION GEAR
  • CONTROL VALVE(1)
  • CONTROL VALVE(2)
  • CONTROL VALVE(3)
  • REMOTE CONTROL VALVE
  • PEDAL VALVE
  • SOLENOID VALVE
  • BOOM CYLINDER - L.H
  • BOOM CYLINDER - R.H
  • ARM CYLINDER
  • BUCKET CYLINDER
  • BUCKET CYLINDER - ARM 2.5m
  • PEDAL VALVE-TWO WAY & ROTATING
  • BUCKET CYLINDER - ARM 7m
  • GEAR PUMP-ROTATION
• ● OTHER PARTS
  • TOOLS
  • SPARE PART
  • NAME PLATE - CABIN
  • NAME PLATE
• ● OPTION PARTS
  • FUEL FILLER PUMP
  • SUN ROOF COVER
  • MAIN PIPING - ONE WAY
  • PILOT PIPING - ONE & TWO WAY
  • MAIN PIPING - TWO WAY
  • PILOT PIPING - TWO WAY(1)
  • PILOT PIPING - TWO WAY(2)
  • MAIN PIPING - QUICK FIT
  • PILOT PIPING - QUICK FIT
  • BOOM PIPING - ONE & TWO WAY
  • BOOM PIPING - QUICK CLAMP
  • ARM PIPING - ONE & TWO WAY
  • ARM PIPING - QUICK FIT
  • FLOOR MAT - TWO WAY
  • FLOOR MAT - ROTATING
  • FLOOR MAT - TWO WAY & ROTATING
  • RAIN SHIELD
  • RAIN SHIELD & LAMP MOUNTING
  • CABIN LOWER GUARD
  • WINDOW GUARD
  • FOGS GUARD ASS'Y
  • TRACK SHOE ASS'Y - 700G
  • TRACK SHOE ASS'Y - 850G
  • BOOM - HEAVY DUTY
  • ARM - 3.1m(HEAVY DUTY)
  • UNDER COVER - HEAVY DUTY
  • TRACK FRAME - HEAVY DUTY
  • ARM - 2.5m
  • ARM PIPING - ARM 2.5m
  • LUBRICATION PIPING - ARM 2.5m
  • ARM PIPING - ONE & TWO WAY(ARM 2.5m)
  • ARM PIPING - QUICK FIT(ARM 2.5m)
  • ARM - 3.75m
  • ARM PIPING - ARM 3.75m
  • LUBRICATION PIPING - ARM 3.75m
  • PIPING - ONE & TWO WAY(ARM 3.75m)
  • ARM PIPING - QUICK FIT(ARM 3.75m)
  • COUNTER WEIGHT - 5.9TON
  • BOOM - 10m
  • ARM - 7m
  • BOOM PIPING - BOOM 10m
  • LUBRICATION PIPING - BOOM 10m
  • ARM PIPING - ARM 7m
  • LUBRICATION PIPING - ARM 7m
  • SWING ALARM
  • MAIN PIPING-ROTATION
  • PILOT PIPING(1)-ROTATING
  • PILOT PIPING(2)-ROTATING
  • BOOM PIPING-ROTATION
  • ARM PIPING-ROTATION(ARM-3.1m)
  • ARM PIPING-ROTATION(ARM-2.5m)
  • ARM PIPING-ROTATION(ARM-3.75m)
  • FUEL HEATER
  • TRAVEL ALARM
  • WORKING LAMP(2-LAMP)
  • WORKING LAMP(4-LAMP)
  • WORKING LAMP-REAR
  • ROTATING BEACON
  • ROTATING BEACON MOUNTING
  • ROTATING BEACON(TELESCOPIC)
  • ROTATING BEACON(TELESCOPIC)
  • OVERLOAD WARNING
  • ELECTRIC PARTS-QUICK CLAMP
  • CD PLAYER
  • WORKING LAMP(2-LAMP)
  • WORKING LAMP(4-LAMP)
  • ROTATING BEACON-WITH FOGS
  • PATTERN CHANGE PIPING(1)
  • PATTERN CHANGE PIPING(2)
  • ENGINE PARTS - TROPICAL
