Terex TXL 300-2 Large Wheel Loader Shop Manual PDF

Shop manual contains detailed service and repair information, special instructions, troubleshoot information for large wheel loader Terex TXL 300-2.
Shop manual contains illustrations, pictures, circuits, which show the location of the necessary details of loaders and can carry out installation or removal of any parts of wheel loaders Terex.
Shop manual allows to detect and resolve problems arising and uncertainties.

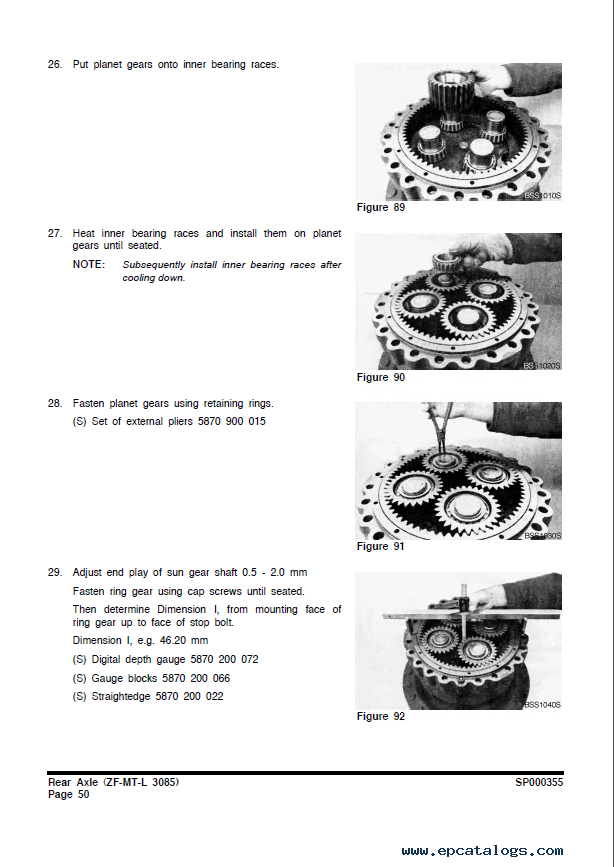

Shop manual is a file PDF, which contains 808 pages, any one of which we can be printed easily. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

Shop Manual - K1018072E

Serial Numbers:
40001 and Up

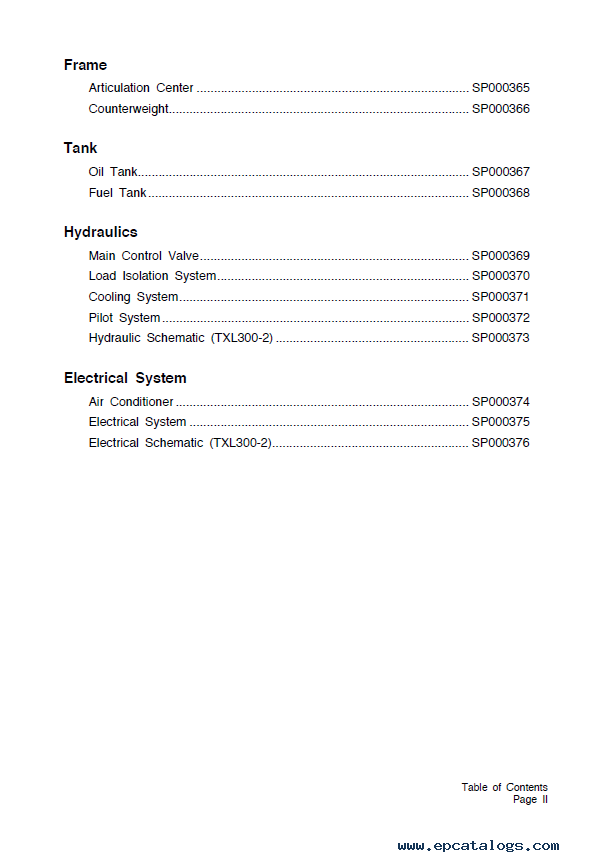

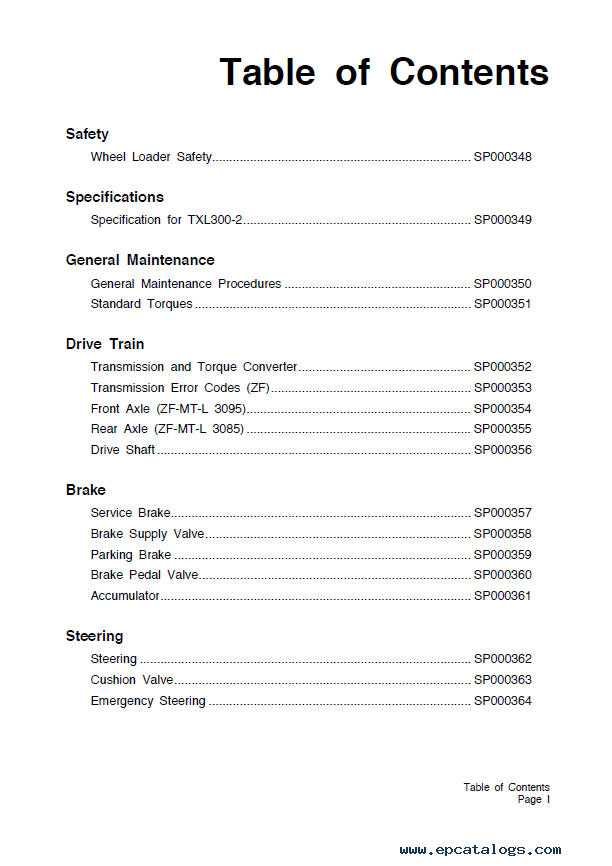

Contents:

• Safety
  • Wheel Loader Safety
• Specifications
  • Specification for TXL300-2
• General Maintenance
  • General Maintenance Procedures
  • Standard Torques
• Drive Train
  • Transmission and Torque Converter
  • Transmission Error Codes (ZF)
  • Front Axle (ZF-MT-L 3095)
  • Rear Axle (ZF-MT-L 3085)
  • Drive Shaft
• Brake
  • Service Brake
  • Brake Supply Valve
  • Parking Brake
  • Brake Pedal Valve
  • Accumulator
• Steering
  • Steering
  • Cushion Valve
  • Emergency Steering
• Frame
  • Articulation Center
  • Counterweight
• Tank
  • Oil Tank
  • Fuel Tank
• Hydraulics
  • Main Control Valve
  • Load Isolation System
  • Cooling System
  • Pilot System
  • Hydraulic Schematic (TXL300-2)
• Electrical System
  • Air Conditioner
  • Electrical System
  • Electrical Schematic (TXL300-2)
