Terex TXL 160-1 Wheel Loader Shop Manual PDF

This Shop manual provides material about detailed instructions, service and repair procedures, troubleshooting, helpful illustrations, and different diagrams for maintaining and repairing the Terex TXL 160-1 Wheel Loader.

Shop Manual - 023-00091E

Serial Numbers:
30001 and Up

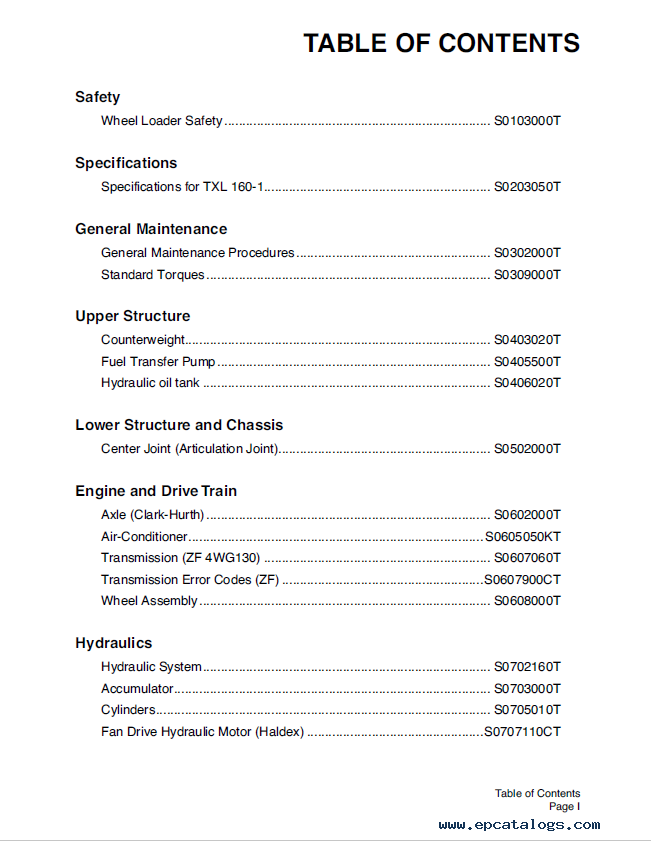

CONTENTS:

• Safety
  • Wheel Loader Safety
• Specifications
  • Specifications for TXL 160-1
• General Maintenance
  • General Maintenance Procedures
  • Standard Torques
• Upper Structure
  • Counterweight
  • Fuel Transfer Pump
  • Hydraulic oil tank
• Lower Structure and Chassis
  • Center Joint (Articulation Joint)
• Engine and Drive Train
  • Axle (Clark-Hurth)
  • Air-Conditioner
  • Transmission (ZF 4WG130)
  • Transmission Error Codes (ZF)
  • Wheel Assembly
• Hydraulics
  • Hydraulic System
  • Accumulator
  • Cylinders
  • Fan Drive Hydraulic Motor (Haldex)
  • Pilot Pump (John S. Barnes)
  • Main Pump (Haldex G20 and G30 Series)
  • Main Control Valve (Husco)
  • Brake, Pilot and Fan Supply Valve
  • Pilot Control Valve Lever
  • Option Solenoid Valve
  • Priority Valve
  • Power Steering Unit
  • Hydraulic Schematic (TXL 160-1)
• Electrical System
  • Electrical System
  • Electrical Schematic (TXL 160-1)
• Attachments
  • Loader Arm Assembly

Electronic guide helps to quickly and easily troubleshoot and solve any problems that arise, to find information about equipment Terex. This guide help beginners and experienced professionals in the use and maintenance of this equipment.

Features of the Manual
Format: PDF
Language: English
Pages: 605
Compatible with all versions of Windows, Mac, Linux, iPhone, iPad, and Android
This Shop manual contains technical maintenance, operation, specifications, hydraulics, electrical system, safety rules, many screenshots, and schemes for wheel loader Terex TXL 160-1.
