Terex TXC 340LC-2 Heavy Hydraulic Excavator Shop Manual PDF

Shop manual provides detailed service information, special instructions, troubleshoot and any additional information for heavy hydraulic excavator Terex TXC 340LC-2.
Shop manual is a manuals of care in service and maintenance, which allows you to identify and resolve problems and inaccuracies.
This shop manual comes in PDF format, includes 862 pages. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

Shop Manual - K1016796E

Serial Numbers:
TXC 340LC-2 40001 and Up

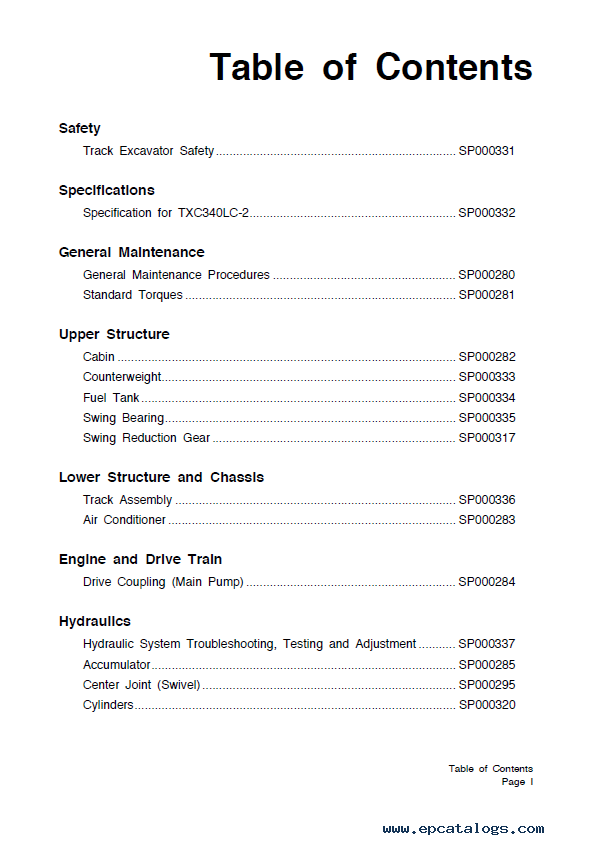

CONTENTS:

• Safety
  • Track Excavator Safety
• Specifications
  • Specifications for TXC340LC-2
• General Maintenance
  • General Maintenance Procedures
  • Standard Torques
• Upper Structure
  • Cabin
  • Counterweight
  • Fuel Tank
  • Swing Bearing

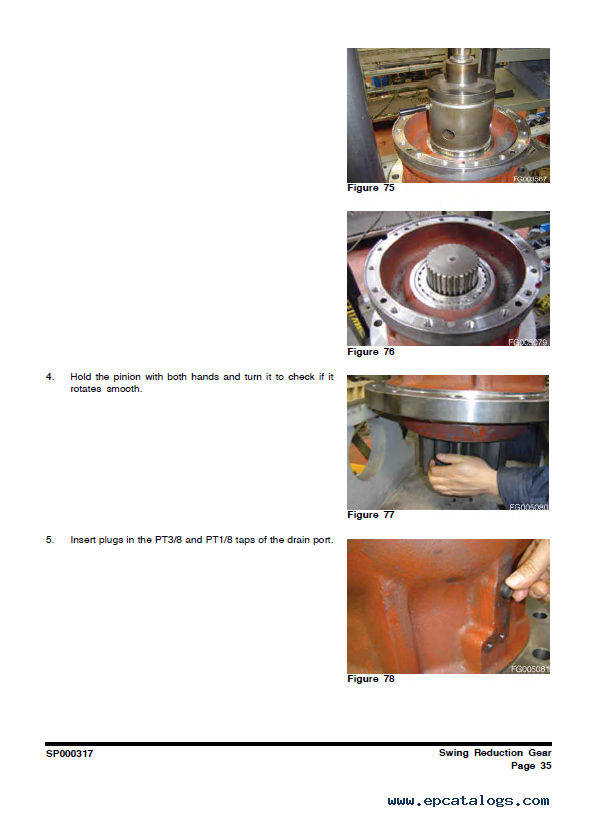

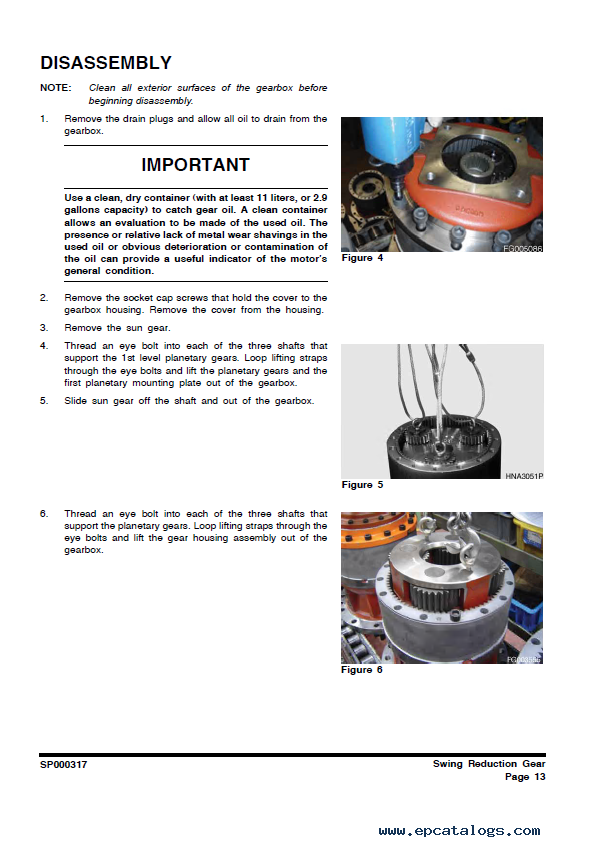

  • Swing Reduction Gearbox
• Lower Structure and Chassis
  • Track Assembly
  • Air Conditioner
• Engine and Drive Train
  • Drive Coupling (Main Pump)
• Hydraulics
  • Hydraulic System Troubleshooting, Testing and Adjustment
  • Accumulator
  • Center Joint (Swivel)
  • Cylinders
  • Swing Motor
  • Travel Motor
  • Main Pump
  • Gear Pump

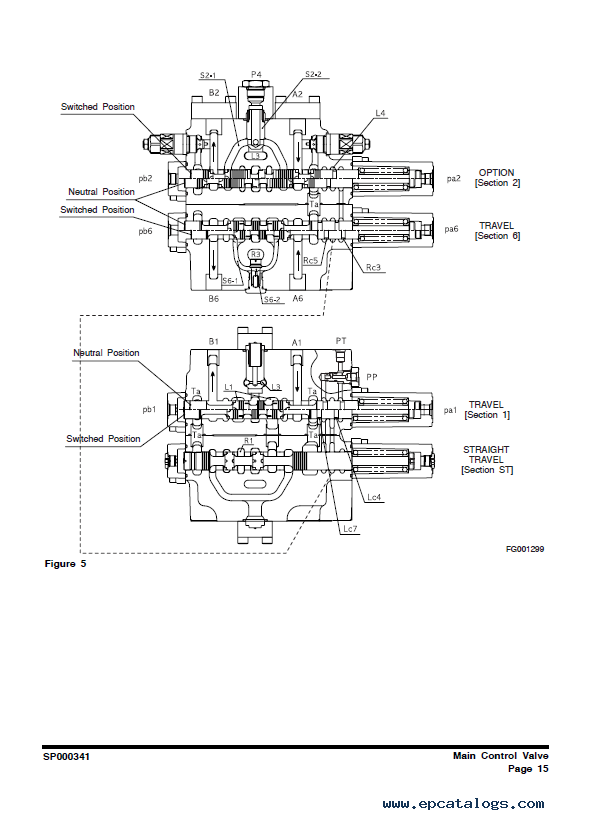

  • Main Control Valve
  • Remote Control Valve (Work Lever / Joystick)
  • Travel Control Valve (With Damper)
  • Solenoid Valve Assembly
  • Breaker EPPR Valve (Opt)
  • Hydraulic Schematic (TXC340LC-2)

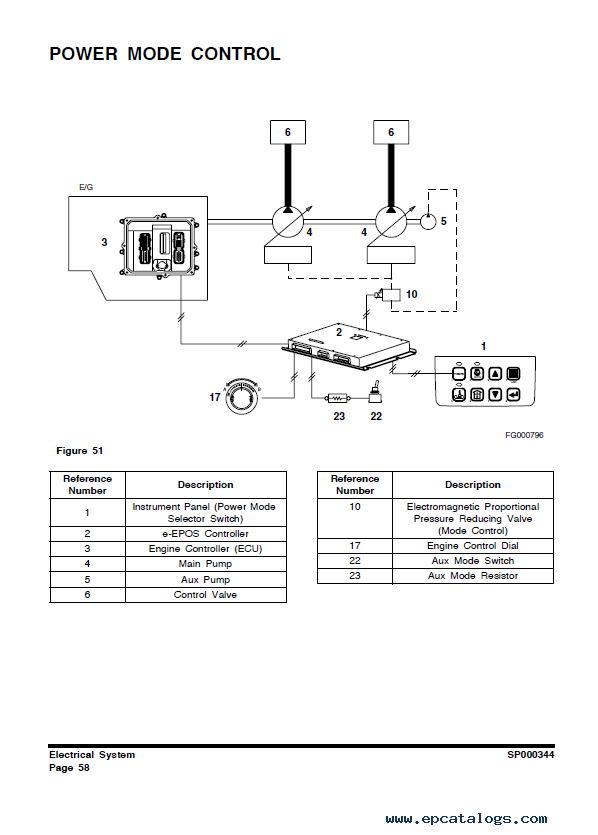

• Electrical System
  • Electrical System
  • Electrical Schematic (TXC300LC-2 /340LC-2)
• Attachments
  • Boom and Arm
  • Bucket
