Terex TXC 140LC-2 Heavy Hydraulic Excavator Shop Manual PDF

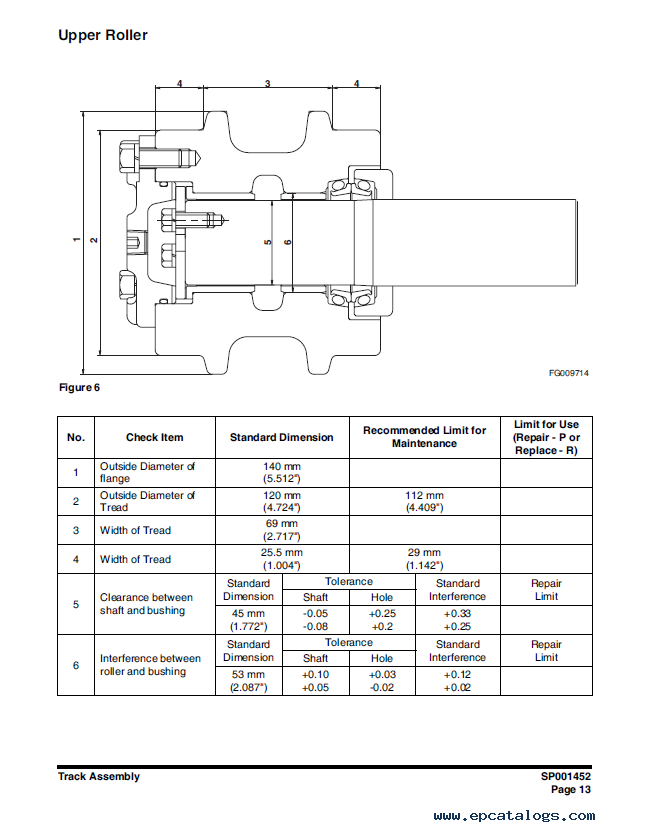

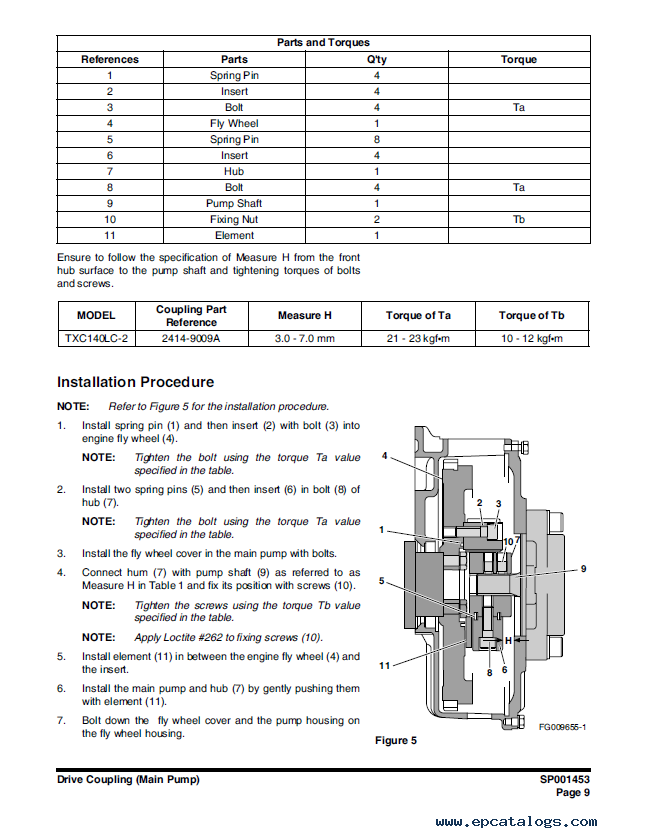

The shop manual contains detailed repair and service information, special instructions for repair and maintenance, illustrations, pictures, charts, service, and any additional information for the heavy hydraulic excavator Terex TXC 140LC-2.

This manual is primarily intended for the owner of the excavator Terex, it contains information on the use, configuration, maintenance, and maintenance of the special equipment Terex.

This shop manual is designed to work on a personal computer with Windows & Mac. This manual is a PDF file, which contains 778 pages, any one of which can be printed easily. We recommend using Adobe PDF Reader to be sure all images/graphics will display correctly.

Shop Manual - K1040542E

Serial Numbers:
TXC 140LC-2 40001 and Up

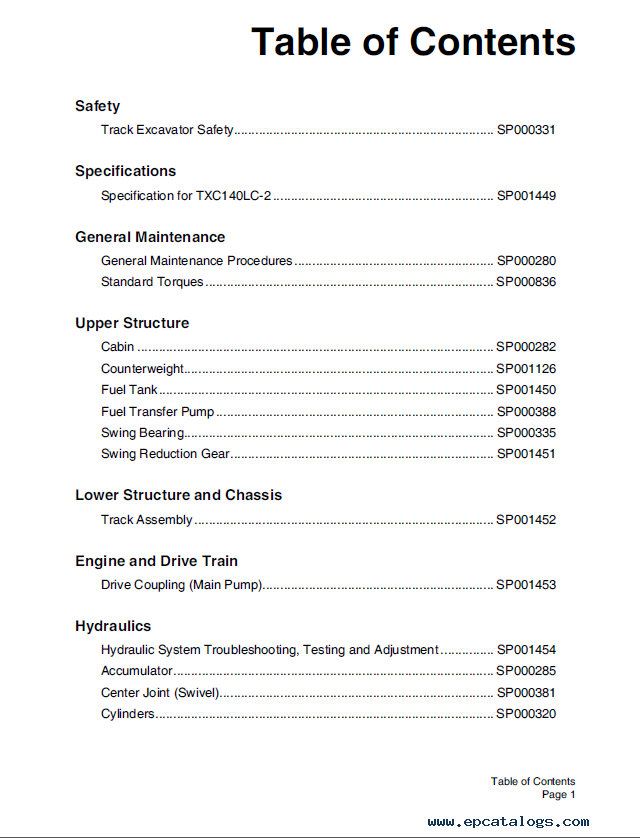

CONTENTS:

• Safety
  • Track Excavator Safety
• Specifications
  • Specifications for TXC140LC-2
• General Maintenance
  • General Maintenance Procedures
  • Standard Torques
• Upper Structure
  • Cabin
  • Counterweight
  • Fuel Tank
  • Fuel Transfer Pump
  • Swing Bearing
  • Swing Reduction Gear
• Lower Structure and Chassis
  • Track Assembly
• Engine and Drive Train
  • Drive Coupling (Main Pump)
• Hydraulics
  • Hydraulic System Troubleshooting, Testing and Adjustment
  • Accumulator
  • Center Joint (Swivel)
  • Cylinders
  • Swing Motor
  • Travel Motor
  • Main Pump
  • Main Control Valve
  • Remote Control Valve (Work Lever / Joystick)
  • Travel Control Valve (With Damper)
  • Solenoid Valve Assembly
  • Breaker EPPR Valve (Opt)
  • Hydraulic Schematic (TXC140LC-2)
• Electrical System
  • Electrical System
  • Electrical Schematic (TXC140LC-2)
• Attachments
  • Boom and Arm
  • Bucket
