Terex SKL 501 series A Wheel Loader Parts Catalog PDF

To your attention is presented the parts catalog for Terex wheel loader SKL 501 series A. This catalog contents special information for disassembling and assemble and choose parts, instructions for maintenance, diagrams, step by step instructions for technical service and other necessary information for wheel loader Terex this model.

Based on the experience of specialists, only original and correct parts will help maintain your equipment and prolong the quality work. All needed information, including names parts and serial number, you find in this catalog. Make sure you understand the contents of this information and use it to full effect at every opportunity. If you will have any questions - please write to us, we will help to install and understand with this parts catalog. This catalog which will prevent errors when ordering and accordingly you will get exactly what you need.

Terex parts catalog is a document scan in PDF format and works with Adobe PDF Reader. Thanks to the PDF format, it is possible to print the entire parts catalog or the individual diagrams and schemes and take with your garage. If you have questions, please write to on our email - we will provide you after-sales service support.

Model:
SKL 501 series A

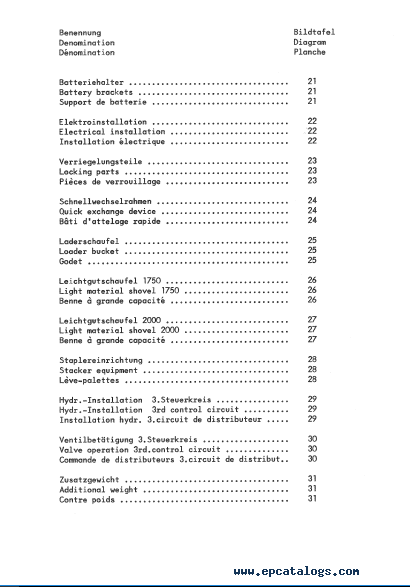

CONTENTS:

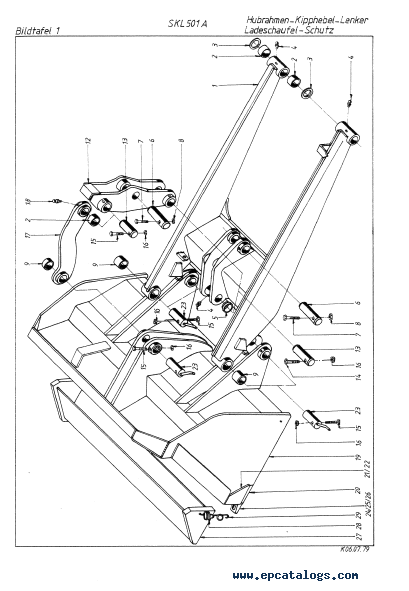

Lift frame, tipp lever, guidance, shovel, protection
Front chassis
Rear carriage hydr.oil-tank, diesel tank
Axle-universal joint shaft, tires
Engine assembly
Seat assembly
Dashboard and steering unit
Accelerator  pedal - steering support bracket
Service brake

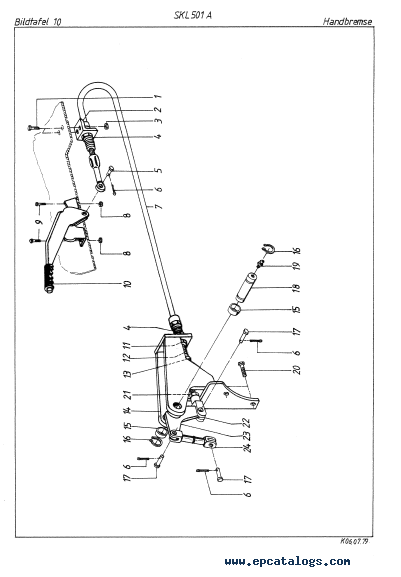

Parking brake
Heater
Operation of valves
Controller
Loader hydraulic
Steering hydraulic
Drive hydraulic
Tip cylinder
Lift cylinder
Steering cylinder
Battery brackets
Electro installation
Locking parts
Quick exchange device
Forklift equipment
Hydr.installation 3rd circuit
Operation of valves - 3rd control circuit
Cabin
Counterweight
Light material shovel 1750
Light material shovel 2000
Mounting parts for the sweeping machine
Differential lock
Connecting parts for HT6
Working light
Lock of the axle

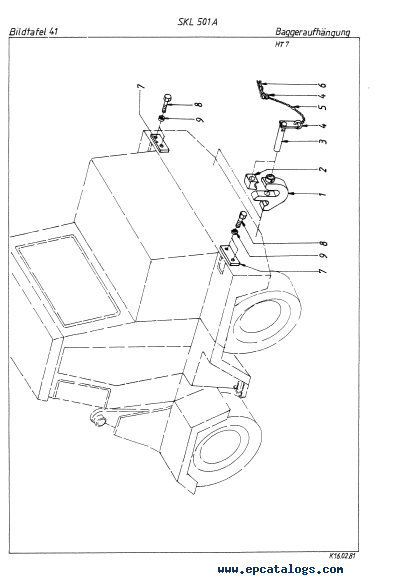

Hydraulic-installation - rear connection HT7
Mounting parts
Remote control - hard throttle
Front ripper
