Sumitomo Hydrauric Excavator Diesel Engine 6UZ1 Tier 3 Type XYSS01 Parts Catalog PDF

[]


Type of catalogue:	spare parts catalog
Make:	Sumitomo
Region:	WorldWide
Inclusive languages:	English
Amount of disks:	1 CD, 1 PDF, 149 pages
Availibility	Instant Download
OS:	Windows XP 32 bit, Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit, Windows 11 Pro 64 bit
Price, USD:	35

This PDF parts catalog shows the material for detailed parts information with illustrations and descriptions for the Sumitomo Hydraulic Excavator Diesel Engine 6UZ1 Tier 3 model. This parts book helps service technicians and users to know more about their technic and its parts, and to make the right choice when ordering parts for the Sumitomo Hydraulic Excavator Diesel Engine 6UZ1 Tier 3 model.

Model:

6UZ1 Tier3

Type:

XYSS01 [SH460-5 ENGINE ]
[SH480HD-5 ENGINE ]

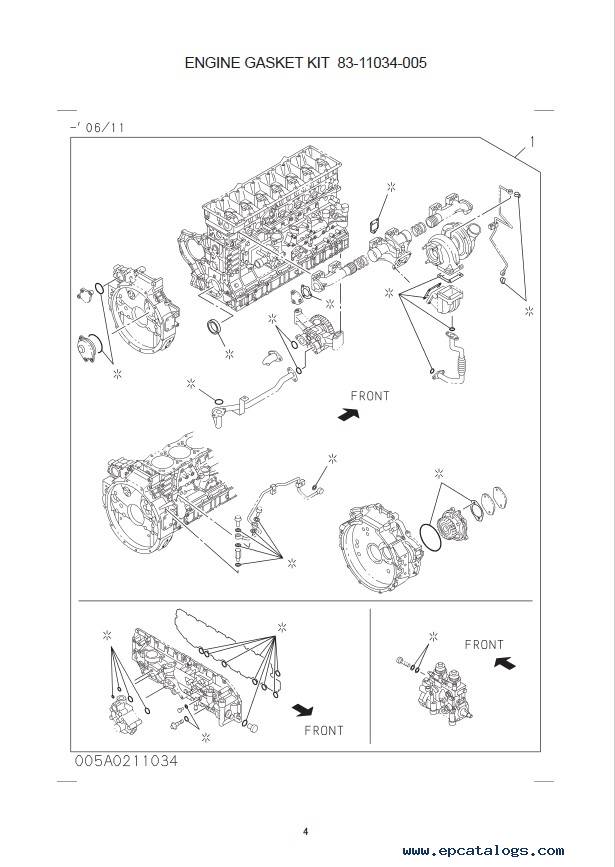

ENGINE GASKET KIT 83-11034-005

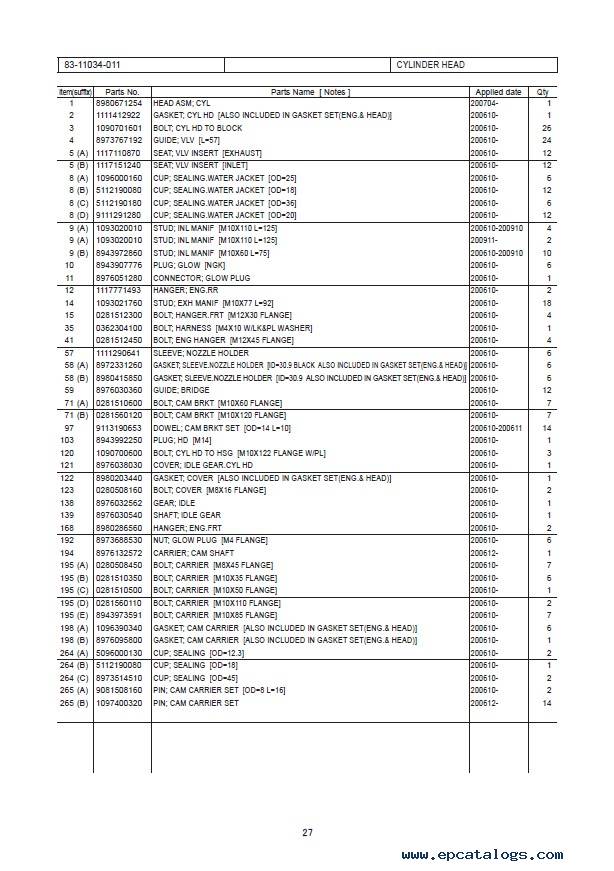

CYLINDER HEAD COVER 83-11034-010
CYLINDER HEAD 83-11034-011
CYLINDER BLOCK 83-11034-012
OIL PAN AND LEVEL GAUGE 83-11034-013
CAMSHAFT AND VALVE 83-11034-014
CRANKSHAFT.PISTON AND FLYWHEEL 83-11034-015
TIMING GEAR CASE AND FLYWHEEL HOUSING 83-11034-020
ENGINE MOUNTING 83-11034-022
INLET MANIFOLD 83-11034-025
EXHAUST MANIFOLD 83-11034-027
VENTILATION SYSTEM 83-11034-028

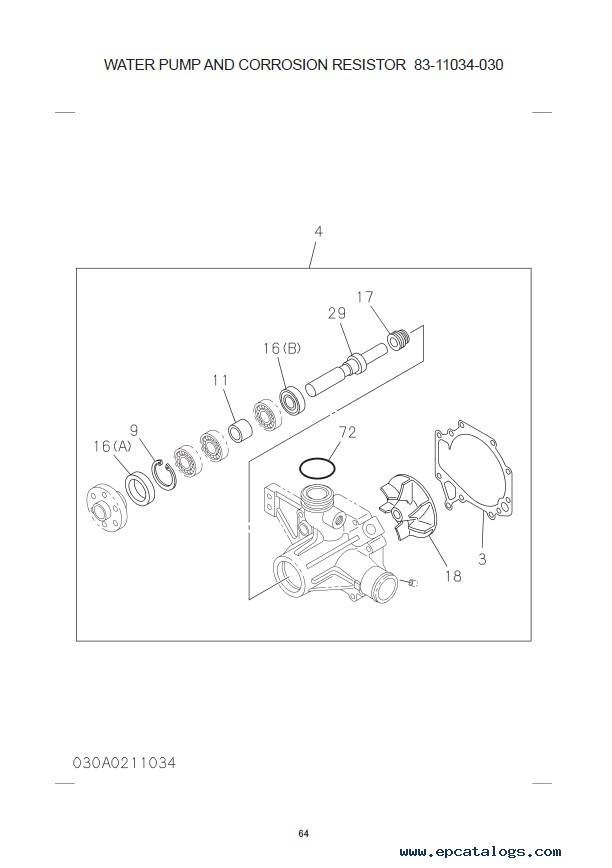

WATER PUMP AND CORROSION RESISTOR 83-11034-030
THERMOSTAT AND HOUSING 83-11034-031
WATER PIPING; ENGINE 83-11034-032
FAN AND FAN BELT 83-11034-033
TURBOCHARGER SYSTEM 83-11034-036
TURBOCHARGER 83-11034-037

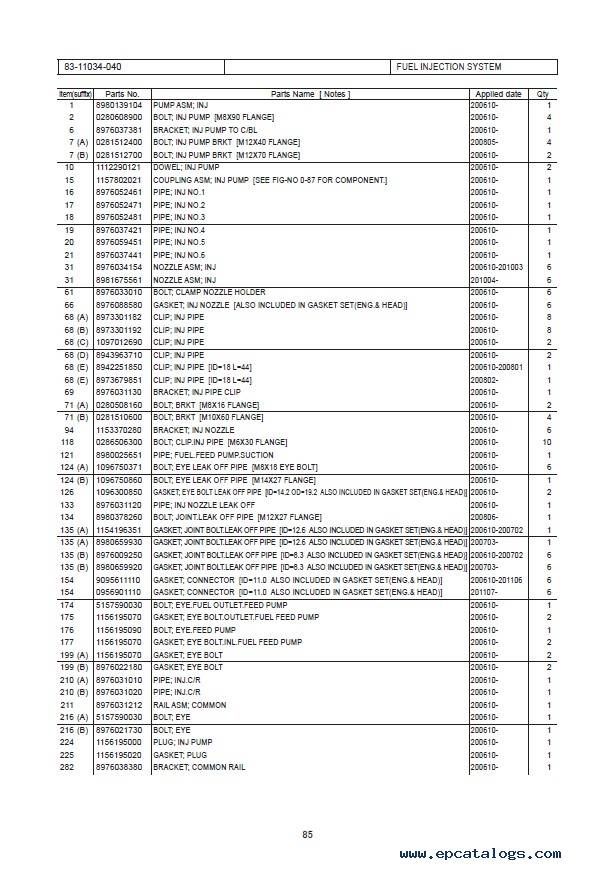

FUEL INJECTION SYSTEM 83-11034-040
FUEL FILTER AND BRACKET 83-11034-041
FUEL PUMP AND PIPE 83-11034-042
OIL COOLER AND OIL FILTER 83-11034-050
OIL PUMP AND OIL STRAINER 83-11034-051
OIL AND VACUUM PIPING; ENGINE 83-11034-052
EMISSION PIPING 83-11034-057
ENGINE ELECTRICAL CONTROL PARTS 83-11034-060
BATTERY AND ENGINE ELECTRICAL PARTS 83-11034-061
STARTER 83-11034-065
GENERATOR 83-11034-066
COUPLING; INJECTION PUMP 83-11034-087
POWER TAKE OFF; FLYWHEEL 83-11034-090
EXHAUST PIPE AND SILENCER 83-11034-150
WIRING HARNESS AND FUSE 83-11034-810
FIXING PARTS; WIRING HARNESS 83-11034-815
TOOLS 83-11034-901
