Still RX20-15-20, RX60-16-20 Electric Forklift Truck Workshop Literature PDF

This manual includes detailed repair instructions, installation instructions, workshop and troubleshooting information for electric forklifts Still:
RX20-15,
RX20-20,
RX60-16,
RX20-20.

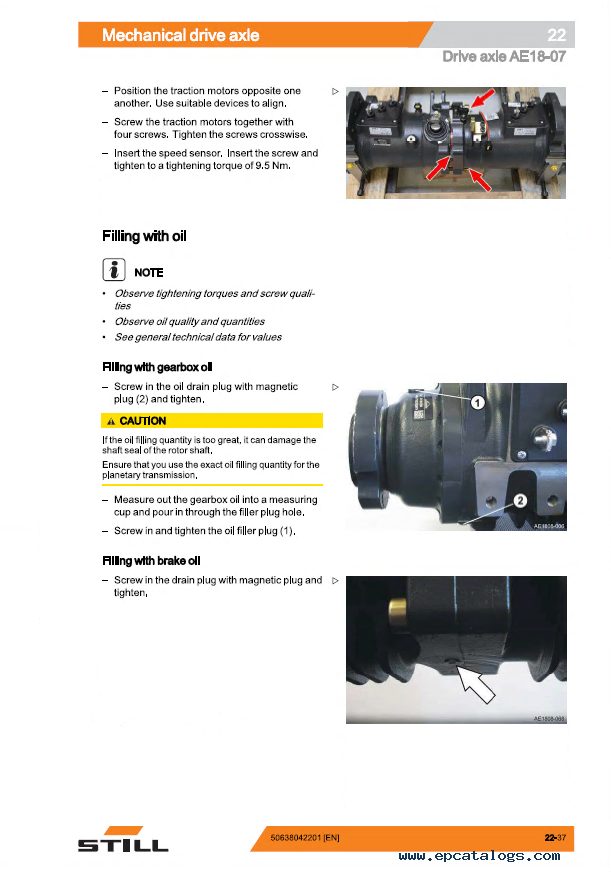

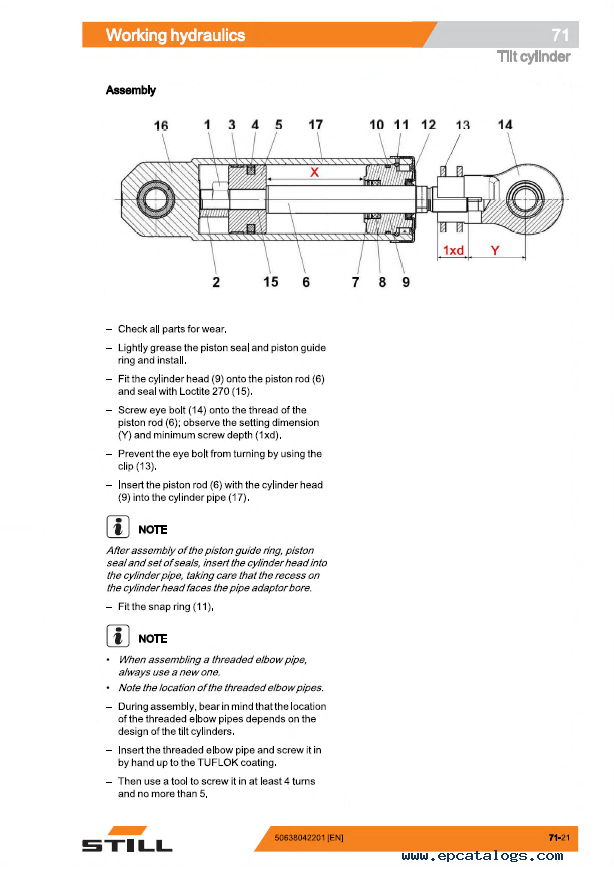

Workshop manual includes detailed drawings, wiring electrical circuits and diagrams, which help to get a detailed description of all systems of machinery Still, using which a user can remove arising damage.
This manual comes in PDF format. To view the information you need to install Adobe Reader (or any analog).
E-manual helps you quickly and easily calibrate forklifts Still, troubleshoot it and to solve problems, resolve any problems that arise, to find information about the equipment.

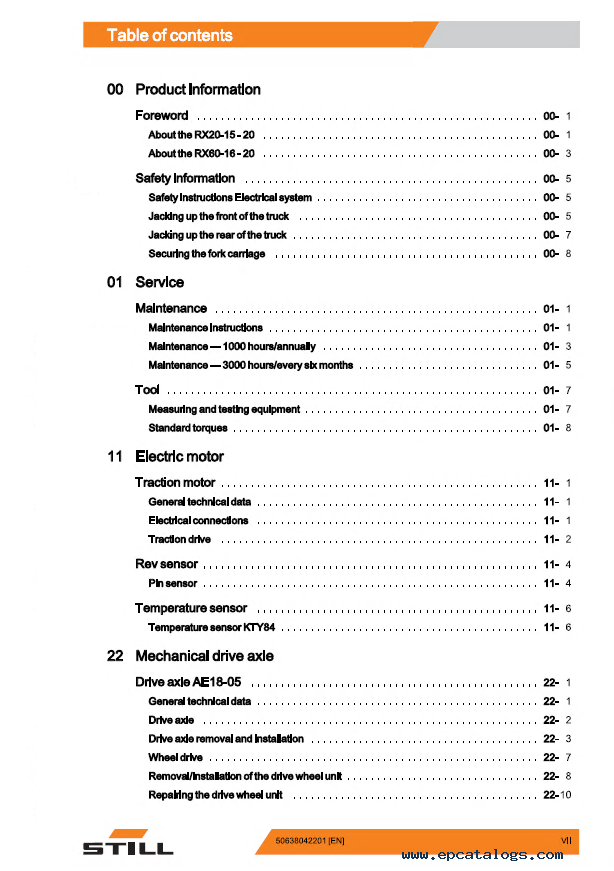

Contents:
00 Product Information
Foreword
Safety Information
01 Service
Maintenance
Tool
11 Electric Motor
Traction Motor
Rev sensor
Temperature Sensor
22 Mechanical Drive Axle
Drive Axle AE18-05
Drive Axle AE18-07
31 Chassis
Chassis
Counterweight
34 Driver's Compartment
Overhead guard
42 Steering System
Hydraulic Steering
Steering Wheel with Steering Column
Steering Axle
49 Brake System
Mechanical Service Brake
Handbrake
Electric Parking Brake
50 Operating Devices
Brake Pedal
Single Pedal
Dual Pedal
Operating Devices
56 Display Elements
Operating Console
Display
60 Electrics / Electronics
General
Wiring
Electrical System
Sensor System
Additional Electrical Installations
64 Electronic Controls
Traction and Working Hydraulics Control
Converter
69 Batteries and Accessories
Traction Battery
70 Hydraulics
General
Basic Hydraulics
71 Working Hydraulics
Pump Unit
Tilt Cylinder
Auxiliary Hydraulics
76 Valves
Hand Lever
Directional Control Valve With Blocking Function (Buchholz)
Directional Control Valve Without Blocking Function (Hawe)
Servo Hydraulics
81 Lift Mast
Lift Mast
Load Chains
End Position Damping
Line Break Safety Device
Lift Cylinder
Rollers / Support Rollers
84 Load Castors
Fork Carriage
