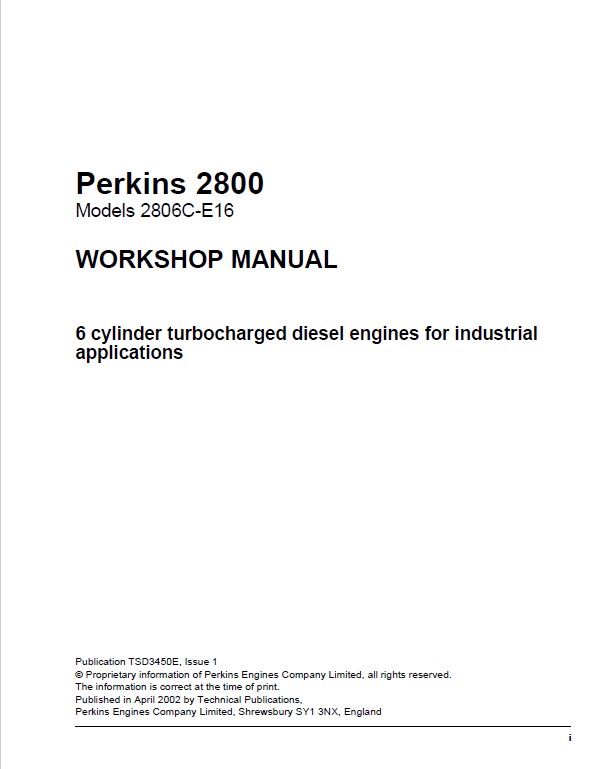

Perkins 2806C-E16 Diesel Engines 2800 Series Workshop Manual PDF

This workshop manual has been designed to provide assistance in service and overhaul of Perkins 2800 Series Engines.
Workshop manual provides detailed descriptions of typical faults, methods of their elimination, details of repair and adjustment mechanisms, electrical systems, information on diagnosis and adjustment.
This workshop manual comes in PDF format, includes 158 pages. All pages are printable and readable. If necessary, you can print the entire document or selected partitions. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

Models covered:
2806C-E16 - 6 cylinder turbocharged diesel engines for industrial applications

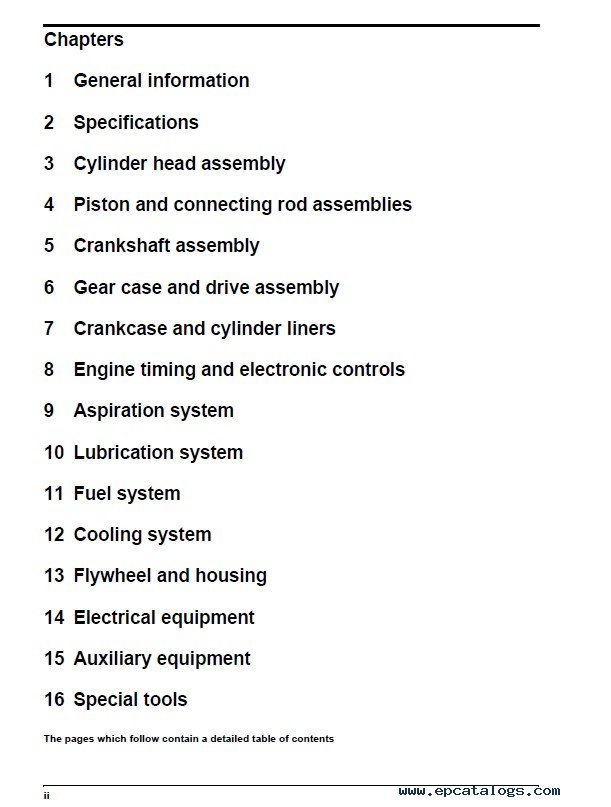

Chapters:

• 1 General information
  •     Introduction
  •     Safety precautions
  •     Viton seals
  •     Environmental protection

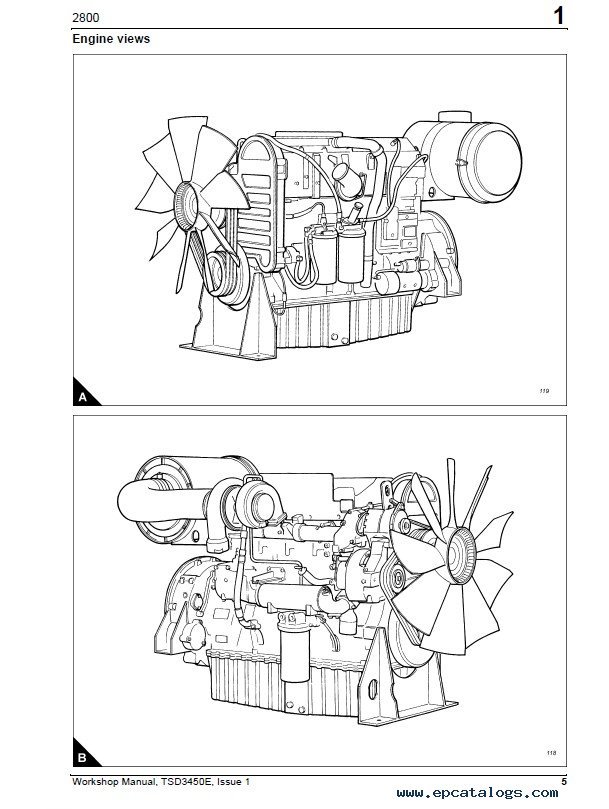

  •     Engine views
  •     Engine identification
  •     Engine lift equipment
• 2 Specifications
  •     Basic engine data
  •     Rocker assemblies
  •     Valves
  •     Valve guides
  •     Valve springs
  •     Valve seat inserts
  •     Cylinder head
  •     Camshaft and bearings
  •     Pistons and connecting rods
  •     Crankshaft, main bearings and flywheel
  •     Crankshaft damper
  •     Crankcase and cylinder liners
  •     Lubricating oil pump
  •     Coolant pump
  •     Recommended torque figures
• 3 Cylinder head assembly
  •     General information

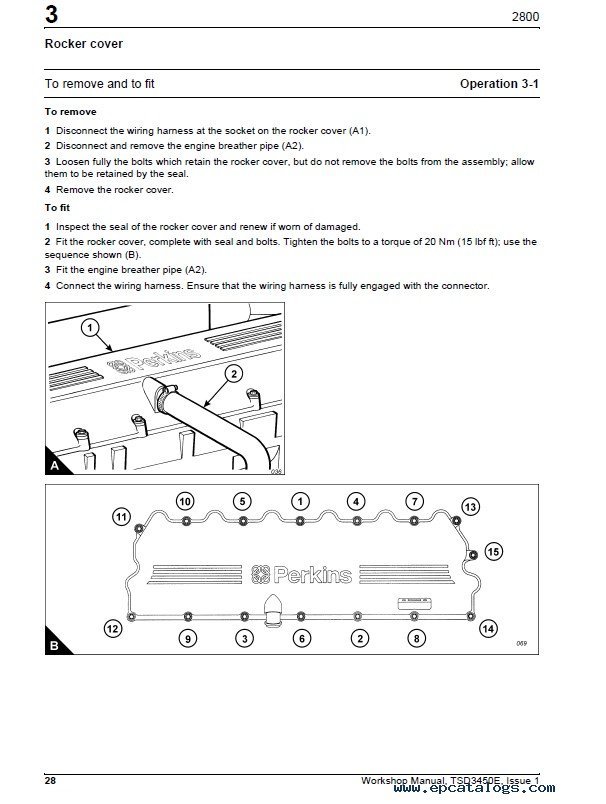

  •     Rocker cover
  •     Rocker lever and rocker shaft assemblies
  •     Cylinder head assembly
  •     Valve springs
  •     Valves
  •     Valve seals
  •     Valve guides
  •     Camshaft
  •     Electronic injector units
  •     Injector sleeves
• 4 Piston and connecting rod assembly
  •     General information
  •     Pistons and connecting rod assemblies
  •     Piston cooling jets
• 5 Crankshaft assembly
  •     General information
  •     Crankshaft
  •     Crankshaft front seal and wear sleeve
  •     Crankshaft rear seal and wear sleeve
  •     Crankshaft vibration damper
• 6 Gear case and drive assembly
  •     General information
  •     Gear case cover

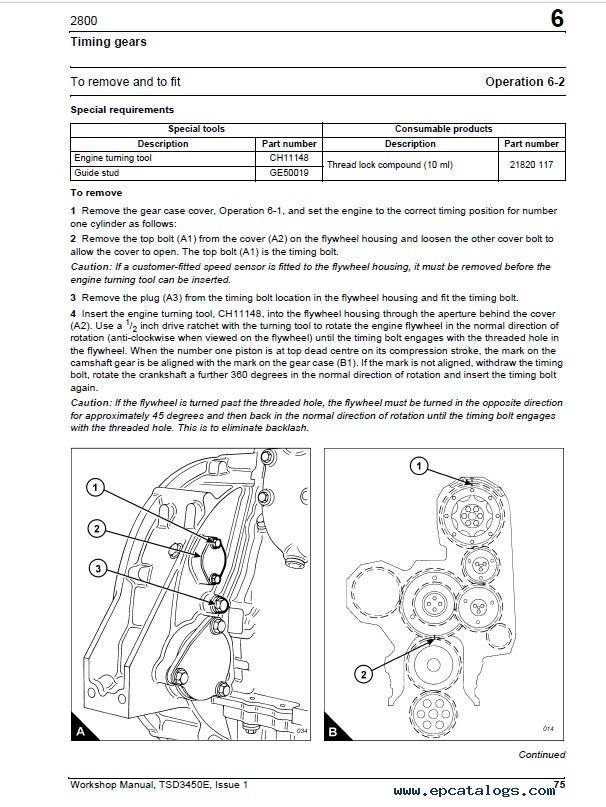

  •     Timing gears
  •     Gear case
• 7 Crankcase and cylinder liners
  •     General information
  •     Front engine support
  •     Cylinder liners
• 8 Engine timing and electronic controls
  •     General information
  •     Electronic control module
  •     Engine timing
• 9 Aspiration system
  •     General information
  •     Exhaust manifold
  •     Turbocharger
• 10 Lubrication system
  •     General information
  •     Oil filter and oil filter header
  •     Oil filter header
  •     Sump
  •     Oil pump
• 11 Fuel system
  •     General information
  •     Fuel priming pump
  •     Fuel transfer pump
  •     Drive for the fuel transfer pump
  •     Fuel filter header
  •     Low pressure fuel system
• 12 Cooling system
  •     General information
  •     Cooling system
  •     Coolant filter cap
  •     Radiator
  •     Fan
  •     Fan drive assembly
  •     Fan drive belts
  •     Engine oil cooler
  •     Thermostats and thermostat housing
  •     Coolant temperature sensor
  •     Coolant pump
• 13 Flywheel and housing
  •     General information
  •     Flywheel
  •     Flywheel housing
• 14 Electrical equipment
  •     General information
  •     Starter motor
  •     Alternator
• 15 Auxiliary equipment
  •     General information

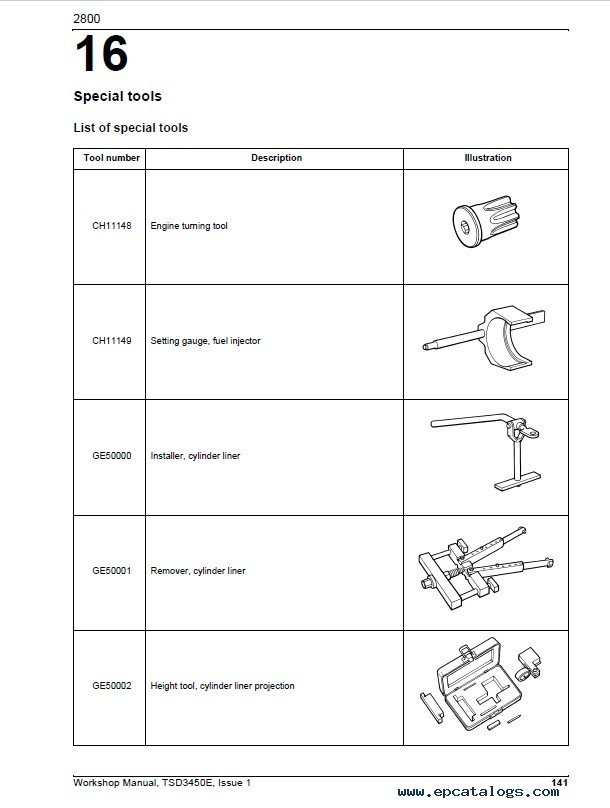

• 16 Special tools
  •     List of psecial tools
