OM Pimespo Lift Truck CTR 250, CPF 200 Spare Parts Manual PDF

We want to present the Spare Parts Manual for OM Pimespo Lift Truck CTR 250, CPF 200 models. The electronic guide includes detailed information about technical maintenance, electrical controls, step-by-step instruction, safety rules, setting instruction, transmission, many illustrations, different tables, and much more information. Screenshots, diagrams, and schemes are used to understand the meaning of the text and visual inspection of this device.

Before using to read and follow all safety instructions, notes, and recommendations in order to protect the device from unforeseen breakdowns and technical failures also heavy injuries. An online text comes in PDF format with 6 files which were written in English, German, French, Italian, Spanish languages. You can work with this material after installing Adobe PDF Reader.

INDEX:

Register 01: TRACTION UNIT

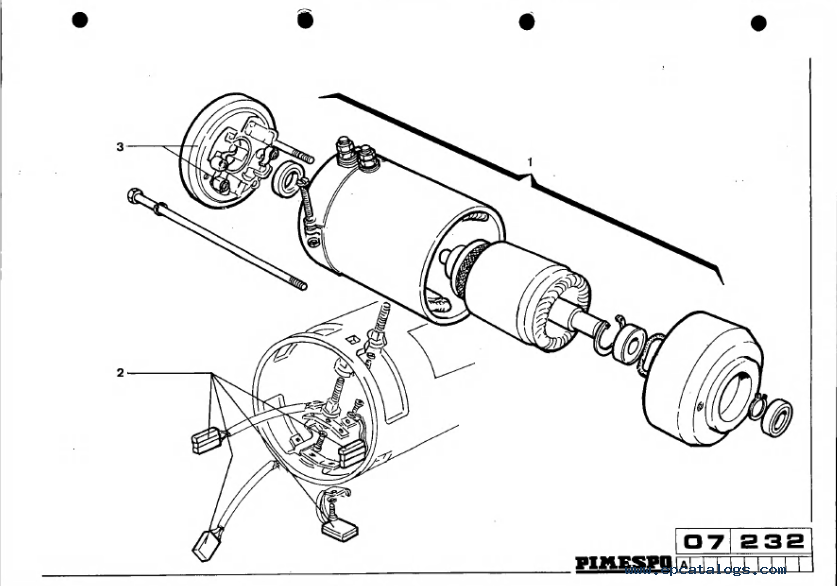

100 TRACTION MOTOR
Register 02: TRANSMISSION/AXLE
040 DRIVE AXLE
041 DRIVE AXLE 2 (FROM N00404-5Kw/407-20Kw)
130 REAR SUSPENSION
Register 03: CHASSIS UNIT
110 CHASSIS PARTS(CTR250)
111 CHASSIS PARTS(CPF200)
220 COWLINGS & COVERS (CTR250)
221 COWLINGS & COVERS (CPF200)
321 SEAT
322 SUSPENSION SEAT
400 DRIVER'S CABIN (TO N00052)
401 DRIVER'S CABIN(WITHOUT ROOF)
401 DRIVER'S CABIN(WITHOUT ROOF)(TO N00052)
402 CABIN DOORS
403 DRIVER'S CABIN (FROM N00053)
404 CABIN PART'S
405 DRIVER'S CABIN (SLIDING DOORS)(TO N00052)
406 CABIN DOORS(SLIDING)
407 DRIVER'S CABIN(FLEXIBLE DOORS)(TO N00052)
408 DRIVER'S CABIN (INTERIM AE016LBA02)
409 DRIVER'S CABIN (SLIDING DOORS)(FROM N00053)
415 DRIVER'S CABIN(FLEXIBLE DOORS)(FROM N00053)
416 DRIVER'S CABIN(WITHOUT ROOF)(FROM N00053)
430 CABIN HEATING
431 DIESEL HEATING 1
432 DIESEL HEATING 2
610 TOWING ATTACHMENT
910 LABELS & LIVERY
Register 04: STEERING/WHEELS & TYRES
120 STEERING WHEEL & COLUMN
500 STEERING AXLE
501 CYLINDER ASSY. STEERING
800 WHEEL & TYRE, DRIVE
810 WHEEL & TYRE, STEER
Register 05: CONTROLS
230 ACCELERATOR PEDAL
330 HANDBRAKE & CABLE
350 FOOTBRAKE
390 BRAKE PIPES & FITTINGS
391 BRAKE PIPES & FITTINGS 2(FROM N00404-5Kw/407-20Kw)
Register 06: ELECTRICAL CONTROL
110 INSTRUMENTS & KEYSWITCH
120 DATA LOGGER
200 ELECTRIC CABLES
210 WIRING LOOMS & CONNECTORS
211 WIRING LOOMS & CONNECTORS (2)
300 LIGHTING 1
301 LIGHTING 2
302 WIRING LOOMS & CONNECTORS(LIGHTING)
400 TRACTION CONTROL UNIT(CTR250)
401 TRACTION CONTROL UNIT(CPF200)
Register 07: HYDRAULICS(HOIST CONTROL)

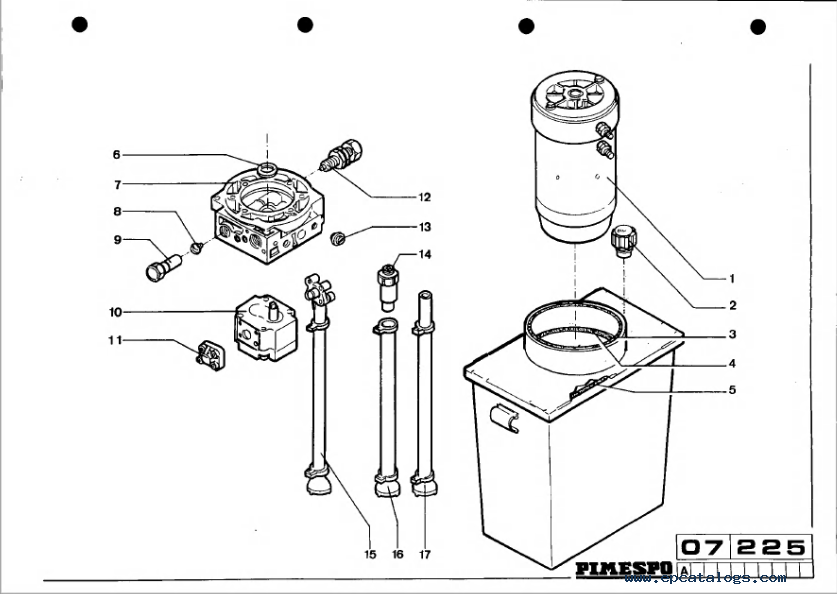

310 HYDRAULIC UNIT/TANK
420 POWER STEER PUMP & MOTOR
