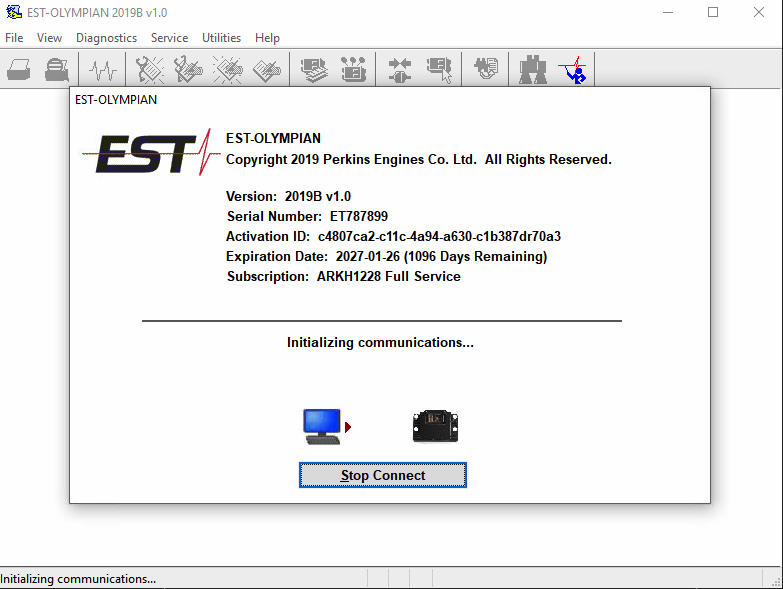

Olympian EST 2019B Electronic Service Tool Diagnostic Software

Perkins EST Olympian 2019B Main Futures

• View active and logged diagnostics
• View events where irregularities occurred and were logged by the ECM
• View the status of a group of parameters (temperatures, pressures, etc.) simultaneously
• Record and log performance data
• Graph a group of status parameters
• View the current configuration of an ECM
• Change ECM configurations
• View the current configuration of an ECM
• Change ECM configurations
• Perform diagnostic tests
• Perform calibrations
• Print reports and diagnostic results

What's New - 2019B

• Conflicting Software
• Error When Launching Service Tool

Conflicting Software

There are reports that some antivirus, threat protection, and/or firewall software may interfere with the operation of the service tool. An adequately licensed service tool may show licensing errors or fail to connect to ECMs. The problem is being investigated. The only known workaround is to add an exception for each executable service tool file to the conflicting software.

Error When Launching Service Tool

There is a Microsoft issue with upgrading libraries during an installation involving certain versions of the C++ redistributable. After a successful service tool installation, when trying to run the service tool for the first time, one of the following errors may occasionally appear: “The entry point could not be located in api-ms-win-crt-runtime” or “The program can't start because mfc140u.dll is missing from your computer.” If either of these messages is displayed, follow the procedure below. This procedure requires administrator rights.

• 1. Open the Start Menu
• 2. Click the Control Panel
• 3. Click the "Programs and Features" icon. If there is only a "Programs" icon, click the "Uninstall a Program" link next to the icon.
• 4. Find the program entry for either "Microsoft Visual C++ 2015 Redistributable (x86) - 14.0.24215" or "Microsoft Visual C++ 2015 Redistributable (x86) - 14.0.242151"
• 5. If the specified program entry is not found, proceed directly to step 8
• 6. If the specified program entry is found:
• a) Right-click the specified program entry
• b) Click the Change menu item
• c) Click the Repair button in the dialog that appears
• d) Verify that the service tool runs properly
• 7. If the service tool still displays an error after the Repair operation:
• a) Right-click the specified program entry
• b) Click the Uninstall menu item
• 8. Click the link below to download an x86 version of the runtime package from Microsoft.
• https://download.microsoft.com/download/6/A/A/6AA4EDFF-645B-48C5-81CC-ED5963AEAD48/vc_redist.x86.exe
• 9. Install the downloaded package
• 10. Verify that the service tool runs properly
• 11. If the service tool still displays an error, please send an email to the support department.

What's New - 2019A

ECM Naming Changes

Naming

Certain ECMs connect to the service tool over two data links simultaneously. The service tool shows a message popup when the ECM is only detected on one link. When the connection is incomplete, the service tool has been changed to add the text **INCOMPLETE** in the ECM name. Service tool features that display a connection icon also use a new icon for an incomplete connection.

What's New - 2018C

No significant new features or feature enhancements
