New Holland Tractors T9.390/450/505/560/615/670 PDF Manual

About the New Holland Tractors T9.390/450/505/560/615/670 PDF Manual

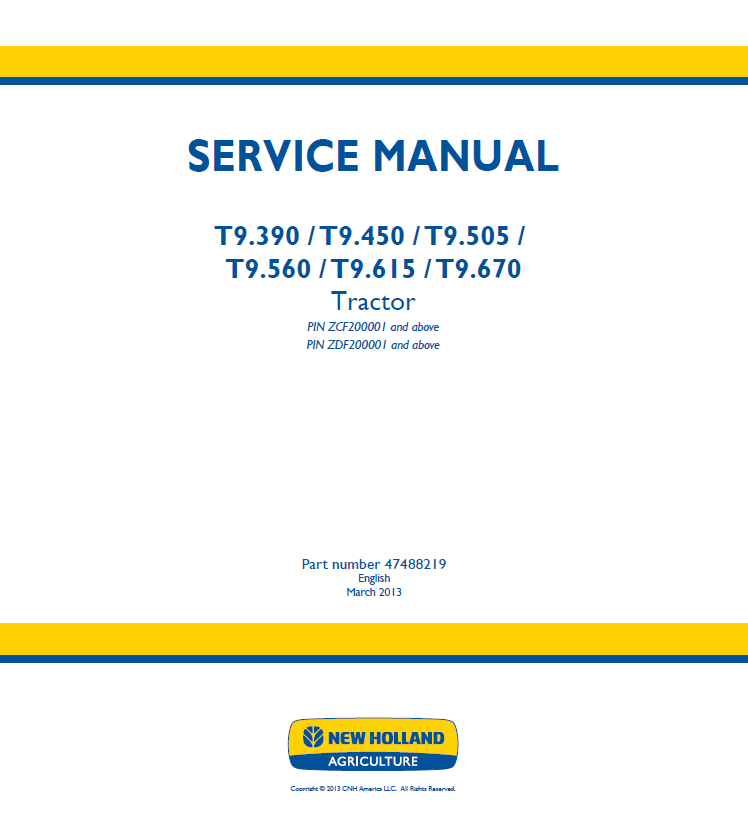

This service manual was prepared by specialists from the New Holland company and is an exact copy of the manual that comes with the tractors. In this factory manual, you will find all the technical data and instructions for repair and maintenance the tractors New Holland, next models:

T9.390
T9.450
T9.505
T9.560
T9.615
T9.670

Contents:

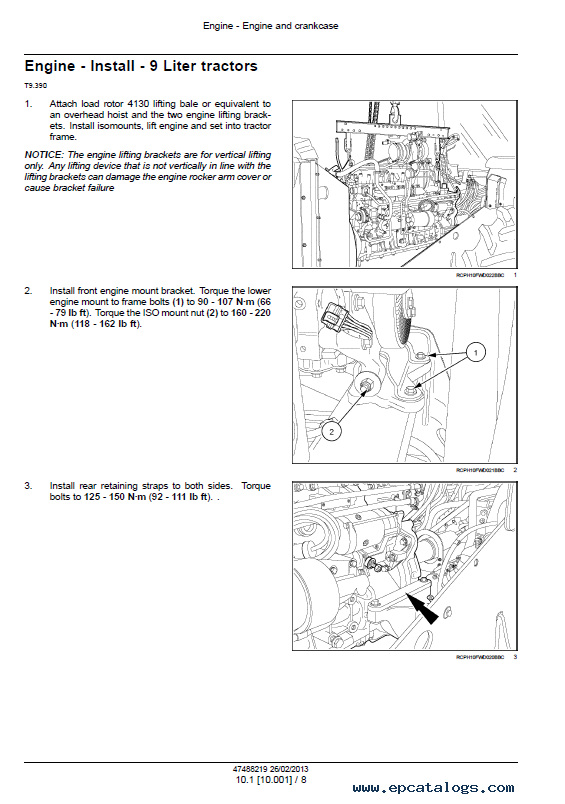

• 1. Engine
  • Engine and crankcase
  • Air cleaners and lines
  • Engine cooling system
  • Fan and drive
  • Selective Catalytic Reduction (SCR) exhaust treatment
• 2. Transmission
  • Powershift transmission
  • Powershift transmission external controls
  • Gearbox internal components
  • Powershift transmission internal components
• 3. Front axle system
  • Powered front axle
  • Front bevel gear set and differential
  • Final drives
• 4. Rear-axle system
  • Powered rear axle
  • Rear bevel gear set and differential
  • Planetary and final drives
• 5. Power Take-Off (PTO)
  • Rear electro-hydraulic control
  • One-speed rear Power Take-Off (PTO)
  • Gearbox
• 6. Brakes and controls
  • Parking brake or parking lock
  • Hydraulic service brakes
• 7. Hydraulic systems
  • Hydraulic systems
  • Pump control valves
  • Charge pump
  • Variable displacement pump
  • Remote control valves
  • Auxiliary hydraulic pump and lines
  • Reservoir, cooler, and filters
  • Combination of pump units
  • High flow hydraulics
• 8. Hitches, drawbars, and implement couplings
  • Drawbars and towing hitches
• 9. Frames and ballasting
  • Frame
  • Drawbar and hitch assembly
• 10. Steering
  • Steering control
  • Hydraulic control components
  • Pump
  • Auxiliary steering
• 11. Wheels
  • Front wheels
  • Rear wheels
• 10. Cab climate control
  • Ventilation
  • Air conditioning
  • Cab pressurizing system
• 12. Electrical systems
  • Fuel injection system
  • Engine intake and exhaust system
  • Transmission control system
  • Remote control valve electric control
  • The front axle control system
  • Rear-axle control system
  • Rear Power Take-Off (PTO) control system
  • Heating, Ventilation, and Air-Conditioning (HVAC) control system
  • Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls

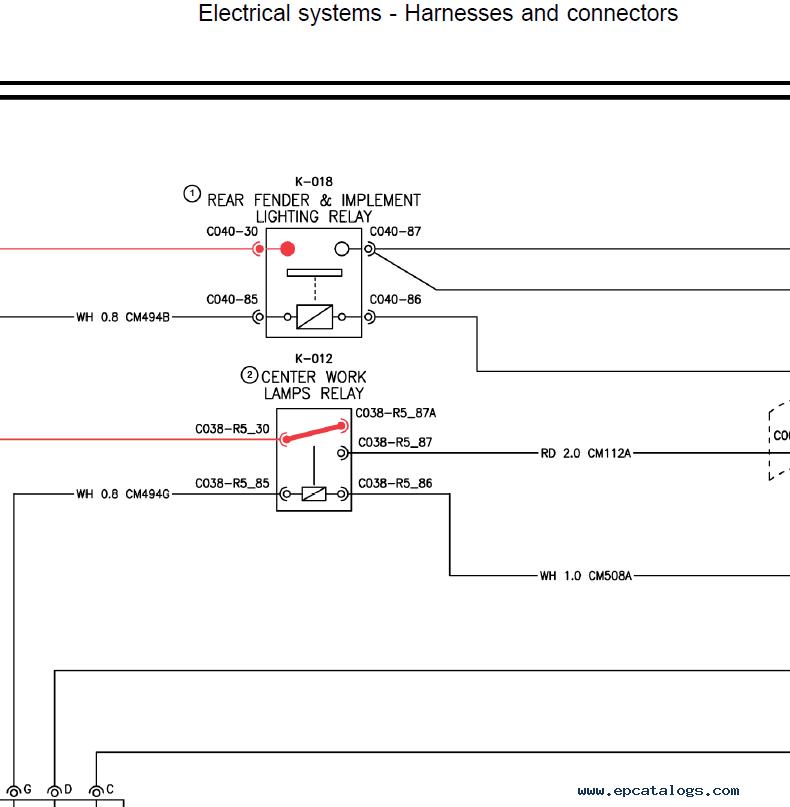

  • Harnesses and connectors
  • Rear three-point hitch electronic control system
  • Alternator
  • Battery
  • External lighting
  • Cab Power Take-Off (PTO) controls
  • Electronic modules
  • Selective Catalytic Reduction (SCR) electrical system

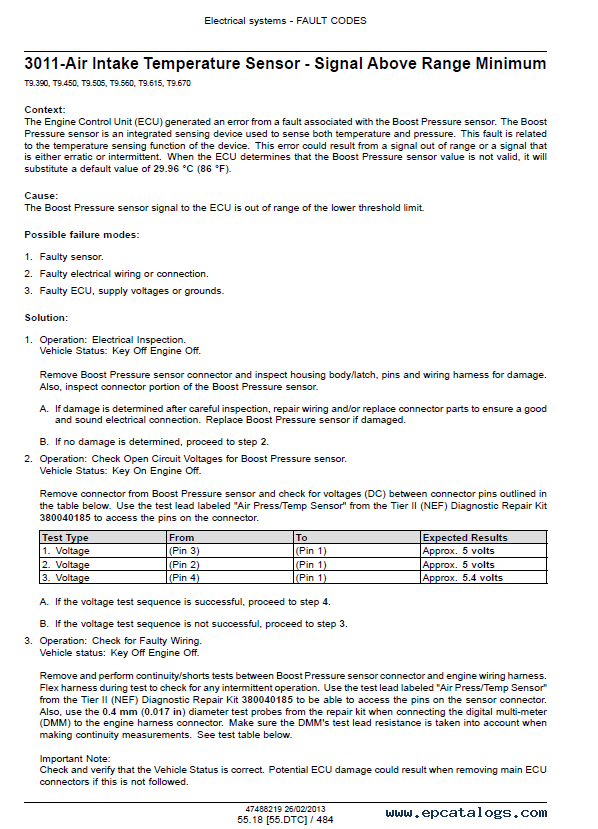

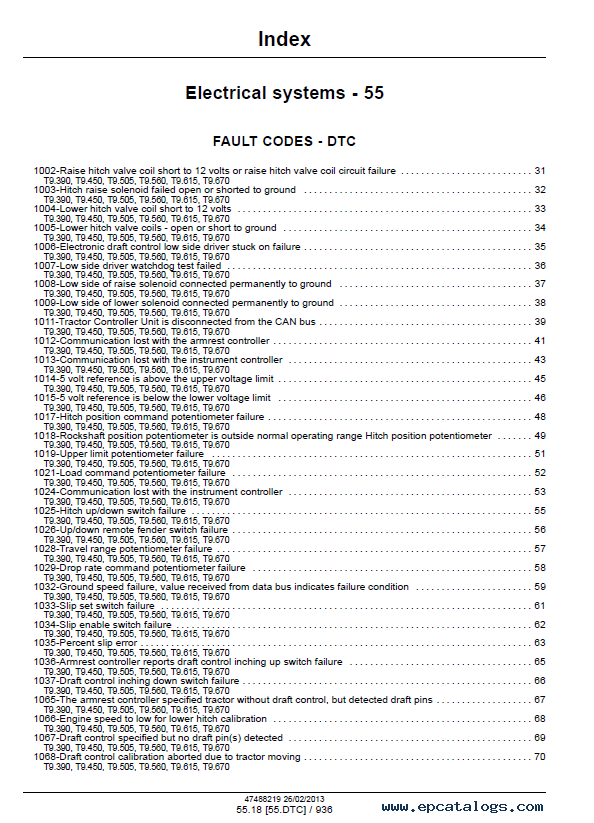

  • FAULT CODES

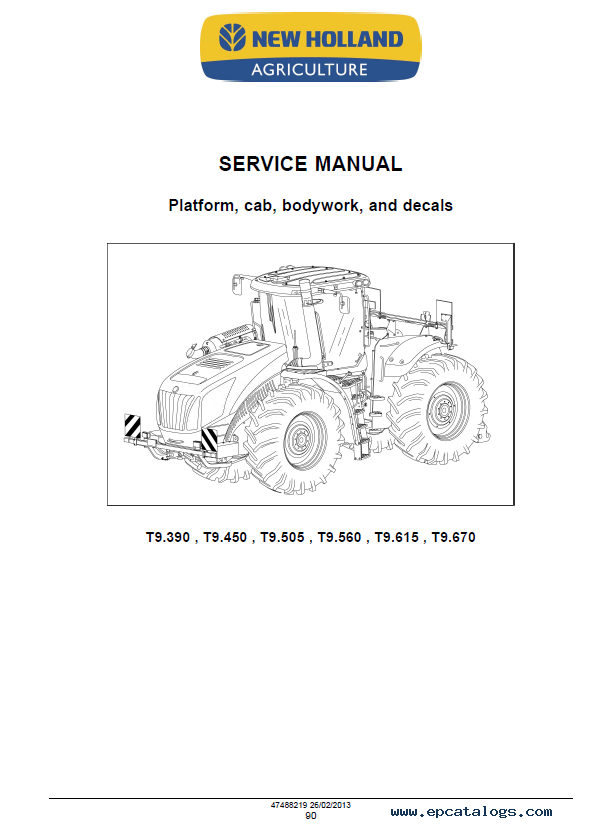

• 13. Platform, cab, bodywork, and decals
  • Engine hood and panels
  • Engine shields, hood latches, and trims
  • Pneumatically-adjusted operator seat
  • Cab
  • Cab interior

We advise you to follow these instructions and recommendations to avoid unexpected breaks from the tractors and injuries to the operator. The information in this manual is in English and is intended for both an experienced master and an ordinary user of this technique. Trust the professionals in your field, be prepared for unexpected things - after all, this is a technique and it tends to fail.

Features of the Manual
Format: PDF
Language: English
Pages: 4015
Compatible with all versions of Windows, Mac, Linux, iPhone, iPad, and Android

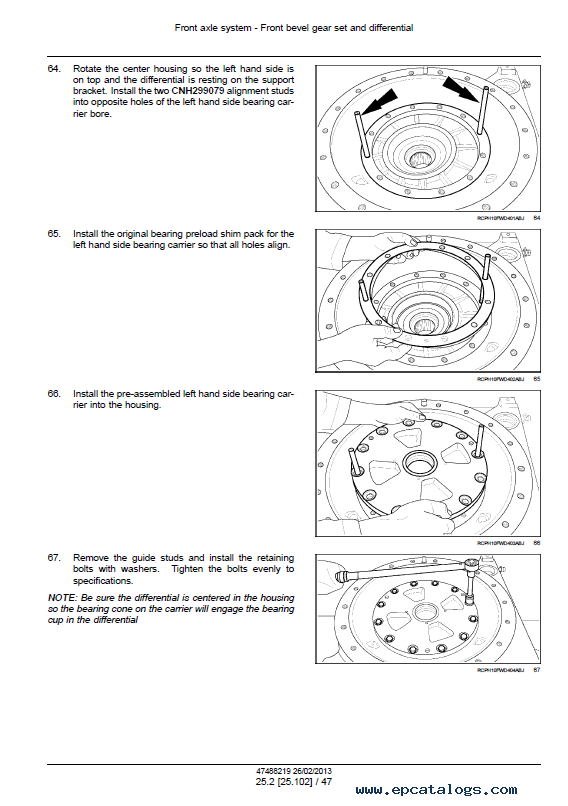

The manual provides information for the tractors New Holland as well as circuits for electrical and hydraulic systems. This is indexed files in PDF format, with the help of them you can find necessary information and data and independently provide your equipment with repairs and maintenance, as well as view diagrams of parts and systems. It contains diagrams, pictures with a detailed description and step-by-step instructions in PDF format.

FAQs
How do I download the manual?
After completing the purchase, you will receive a download link via email. Please check your spam/junk folder if you don't see it in your inbox.

Is the manual printable?
Yes, all pages are printable.

Still have questions?
If you still have questions - write to us, we will answer all your questions.
