New Holland TC29 TC29D Tractor Workshop Manual PDF

This workshop manual describes the engine overhaul and repair procedures of the Models 1530, 1630, 1725, 1925, TC25, TC29, TC33, TC25D, TC29D, and TC33D tractors. Repair procedures are essentially the same for all models except as noted in the repair procedures.
This manual contains full technical information, installation instructions, diagrams and schematics that will help to quickly and easily eliminate all the interferences of New Holland tractors TC29, TC29D.
This workshop manual is presented in PDF format, includes 660 pages. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.
This manual allows you to find the necessary workshop information, as well as to print out individual pages or the entire text as a whole.

CONTENTS:

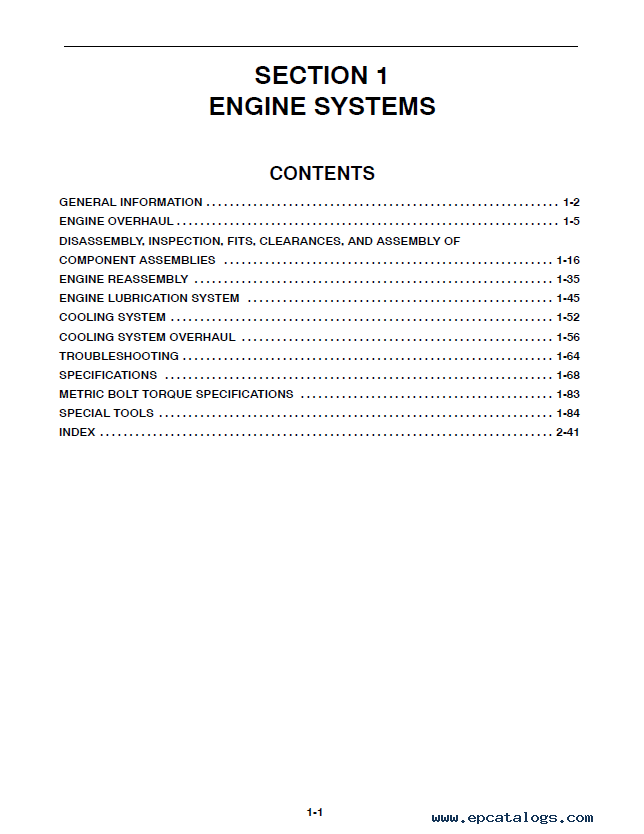

• SECTION 1 - ENGINE SYSTEMS
  • GENERAL INFORMATION
  • ENGINE OVERHAUL
  • DISASSEMBLY, INSPECTION, FITS, CLEARANCES, AND ASSEMBLY OF
  • COMPONENT ASSEMBLIES
  • ENGINE REASSEMBLY
  • ENGINE LUBRICATION SYSTEM
  • COOLING SYSTEM
  • COOLING SYSTEM OVERHAUL
  • TROUBLESHOOTING
  • SPECIFICATIONS
  • METRIC BOLT TORQUE SPECIFICATIONS
  • SPECIAL TOOLS

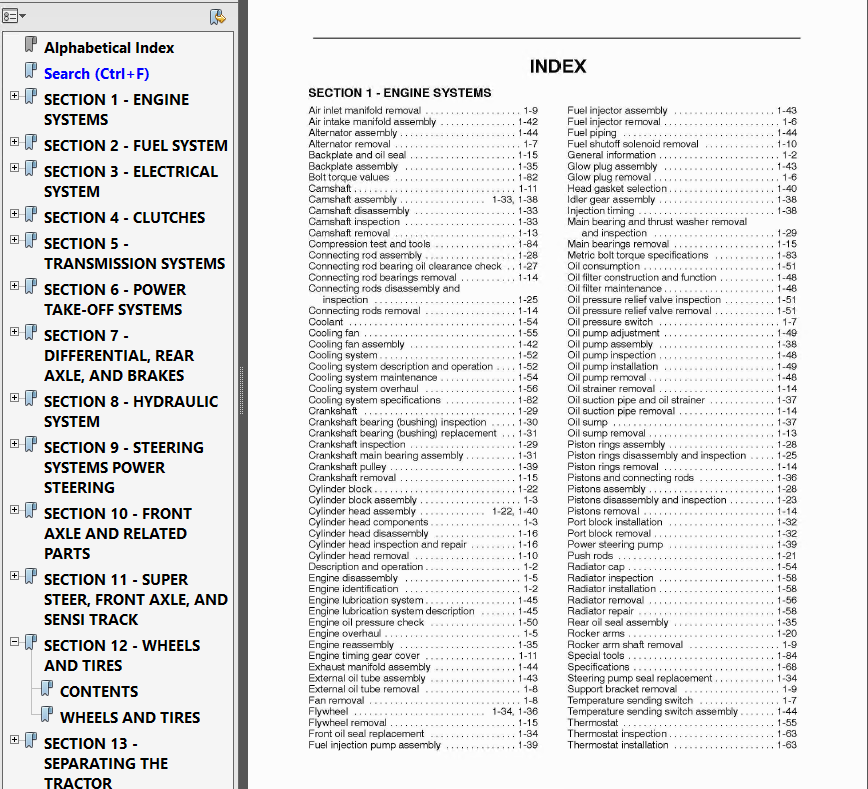

  • INDEX
• SECTION 2 - FUEL SYSTEM
  • INJECTION PUMP
  • TIMING AND GOVERNOR ADJUSTMENT
  • GOVERNOR
  • TROUBLESHOOTING - GOVERNOR SYSTEM
  • INJECTORS
  • TROUBLESHOOTING - GENERAL
  • TROUBLESHOOTING - FUEL INJECTORS
  • SPECIFICATIONS
  • FUEL INJECTION PUMP SPECIFICATIONS
  • SPECIAL TOOLS
  • INDEX

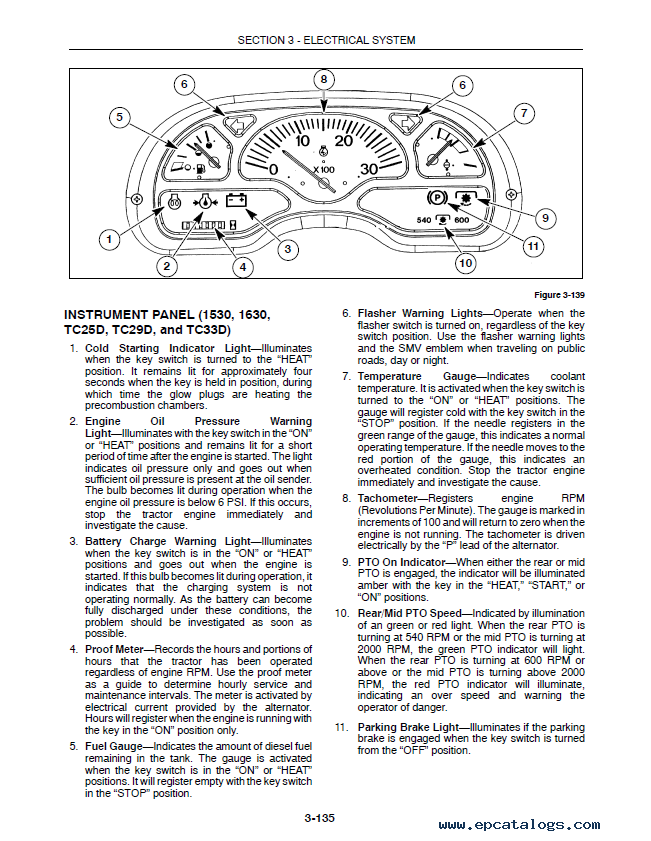

• SECTION 3 - ELECTRICAL SYSTEM
  • INTRODUCTION
  • BATTERY AND FUSES
  • ELECTRICAL SYSTEM COMPONENTS—DESCRIPTION AND TESTING
  • INDIVIDUAL CIRCUIT SCHEMATICS
  • INDIVIDUAL ELECTRICAL CIRCUITS
  • INSTRUMENT PANEL—COMPONENT OPERATION AND SERVICING
  • CHARGING SYSTEM
  • ALTERNATOR SPECIFICATIONS
  • ALTERNATOR TROUBLESHOOTING
  • STARTING SYSTEM
  • STARTER MOTOR SPECIFICATIONS
  • STARTER MOTOR TROUBLESHOOTING
  • INDEX
• SECTION 4 - CLUTCHES
  • SINGLE CLUTCH
  • SINGLE CLUTCH ADJUSTMENT
  • SINGLE CLUTCH OVERHAUL
  • DOUBLE CLUTCH
  • DOUBLE CLUTCH ADJUSTMENT
  • DOUBLE CLUTCH OVERHAUL
  • SERVICING CLUTCH-RELATED COMPONENTS
  • TROUBLESHOOTING
  • SPECIFICATIONS
  • SPECIAL TOOLS
  • INDEX

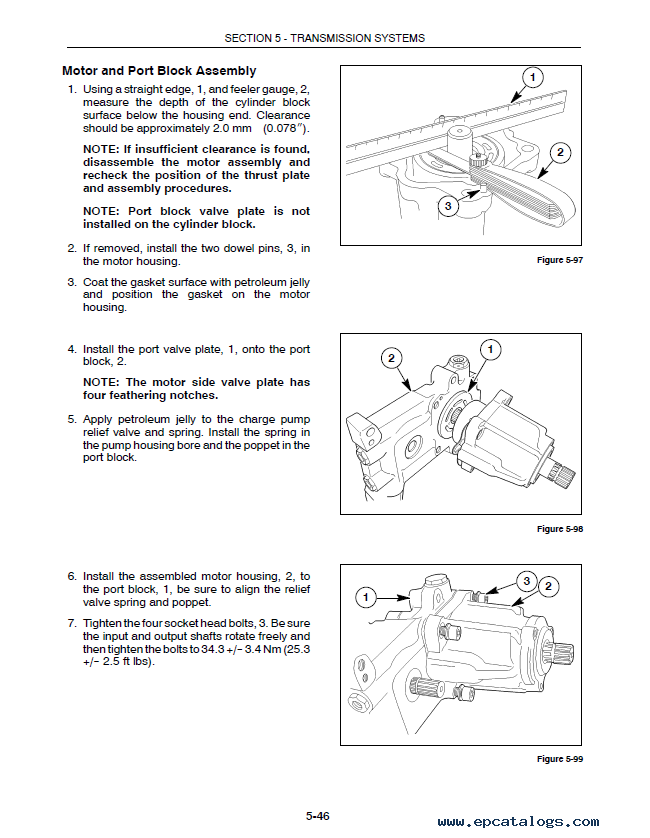

• SECTION 5 - TRANSMISSION SYSTEMS
  • 9 X 3 GEAR TRANSMISSION
  • HYDROSTATIC TRANSMISSION
  • PRESSURE TESTS
  • HYDROSTATIC TRANSMISSION GEARBOX
  • TROUBLESHOOTING
  • SPECIFICATIONS
  • BOLT TORQUE SPECIFICATIONS
  • SPECIAL TOOLS
  • INDEX
• SECTION 6 - POWER TAKE-OFF SYSTEMS
  • DESCRIPTION AND OPERATION
  • POWER TAKE-OFF OVERHAUL
  • MID-MOUNT POWER TAKE-OFF
  • SPECIFICATIONS
  • INDEX
• SECTION 7 - DIFFERENTIAL, REAR AXLE, AND BRAKES
  • INTRODUCTION
  • DIFFERENTIAL OVERHAUL
  • REAR AXLE OVERHAUL
  • BRAKES AND FINAL PINION OVERHAUL
  • SPECIFICATIONS
  • BOLT TORQUE SPECIFICATIONS
  • INDEX
• SECTION 8 - HYDRAULIC SYSTEM
  • INTRODUCTION
  • OVERHAUL
  • ADJUSTMENTS
  • HYDRAULIC PUMP AND FILTER
  • REMOTE VALVES
  • OVERHAUL
  • TROUBLESHOOTING
  • PRESSURE TESTING
  • SPECIFICATIONS
  • BOLT TORQUE SPECIFICATIONS
  • SPECIAL TOOLS
  • INDEX
• SECTION 9 - STEERING SYSTEMS POWER STEERING
  • POWER STEERING SYSTEM
  • POWER STEERING SYSTEM OVERHAUL
  • POWER STEERING SYSTEM TROUBLESHOOTING
  • PRESSURE TESTING
  • SPECIFICATIONS
  • SPECIAL TOOLS
  • INDEX
• SECTION10 - FRONT AXLE AND RELATED PARTS
  • TWO-WHEEL DRIVE
  • TWO-WHEEL DRIVE OVERHAUL
  • FRONT WHEEL DRIVE
  • FRONT WHEEL DRIVE OVERHAUL
  • TROUBLESHOOTING
  • SPECIFICATIONS
  • BOLT TORQUE SPECIFICATIONS
  • SPECIAL TOOLS
  • INDEX
• SECTION 11 - SUPERSTEER™, FRONT AXLE, AND SENSITRACK™
  • GENERAL INFORMATION
  • OVERHAUL
  • SUPERSTEER, FRONT AXLE, AND SENSITRACK
  • OVERHAUL
  • TROUBLESHOOTING
  • PRESSURE TESTS
  • SPECIFICATIONS
  • SPECIAL TOOLS
  • INDEX
• SECTION 12 - WHEELS AND TIRES
  • WHEELS AND TIRES
  • INDEX
• SECTION 13 - SEPARATING THE TRACTOR
  • SEPARATING THE TRACTOR BETWEEN THE FRONT AXLE AND AXLE SUPPORT
  • SEPARATING THE TRACTOR BETWEEN THE FRONT AXLE SUPPORT AND ENGINE
  • SEPARATING THE TRACTOR BETWEEN THE ENGINE AND CLUTCH HOUSING
  • SEPARATING THE TRACTOR BETWEEN THE CLUTCH HOUSING, FRONT 9 × 3 GEAR TRANSMISSION HOUSING, AND THE REAR AXLE CENTER HOUSING
  • SEPARATING THE TRACTOR BETWEEN THE CLUTCH HOUSING, HYDROSTATIC TRANSMISSION, AND THE REAR AXLE CENTER HOUSING
  • SEPARATING THE TRACTOR BETWEEN THE REAR AXLE AND CENTER HOUSING
  • INDEX
