New Holland L-781/784/785 Skid Steer Loaders Service Manual PDF

This manual provides the technical information needed to properly service and maintain the L-780series skid-steer loaders. Use this manual in conjunction with the operator's manual which is supplied with the loader. Keep both manuals available for ready reference.

The L-780 series skid-steer loaders have been designed with an emphasis on safety for operator protection. However, the careless and negligent operation can still result in serious injury to persons or property. Be sure to read and follow all safety instructions in this manual. The easiest and least time-consuming removal, disassembly, and reassembly procedures are detailed in this manual.

New Holland manual allows you to work not only on the PC but also to print the required sections, that is, use the guide in all circumstances, even on the road. Manual comes in PDF. For work with the manual, we recommend using with the Adobe PDF Reader application. With this application will give you all the information, including texts and diagrams, in the form in which the manufacturer New Holland wanted to convey to the user and allows you to print all the pages. If you still have any questions that concern this manual - contact us, we provide the after-sale support.

Models:
L-781
L-784
L-785

Contents:
SAFETY
OPERATION
STEERING ADJUSTMENTS
HYDROSTATIC TRANSMISSION REMOVAL
TRANSMISSION PUMP REPAIR

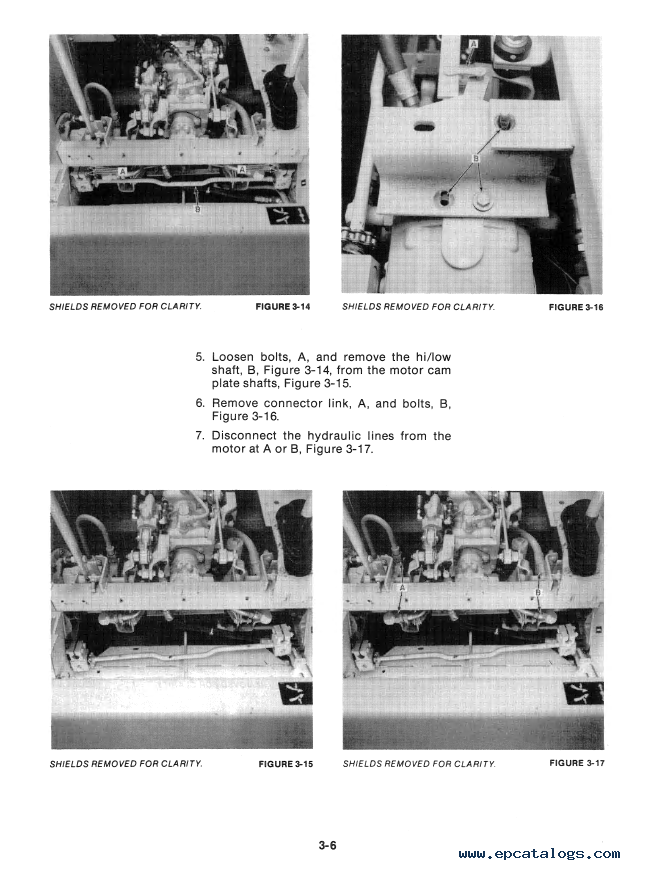

HYDROSTATIC TRANSMISSION MOTORS
GEAR PUMP
BUCKET AND BOOM CYLINDERS
CONTROL VALVE

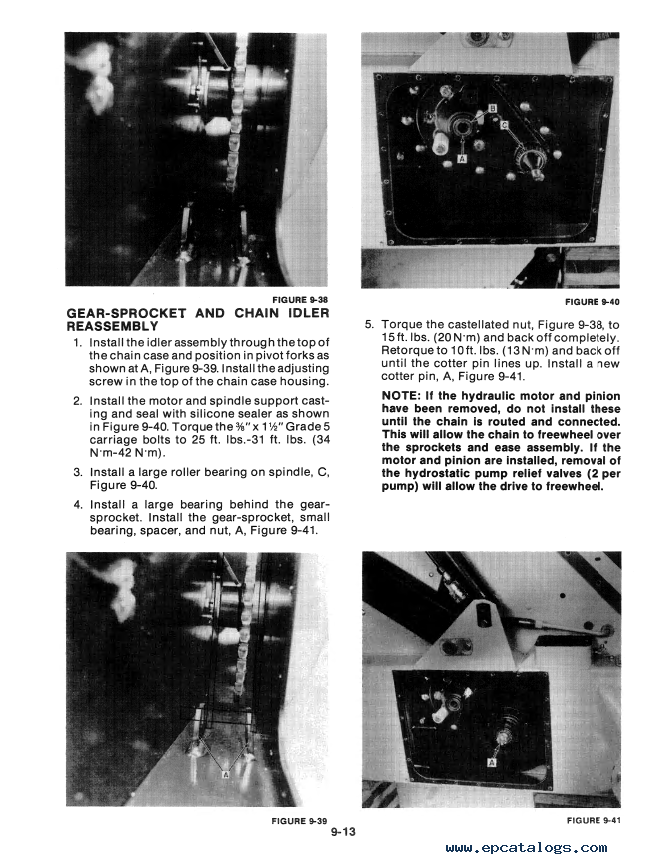

FINAL DRIVE
ELECTRICAL SYSTEM
SEAT ACTIVATED BOOM LOCKOUT

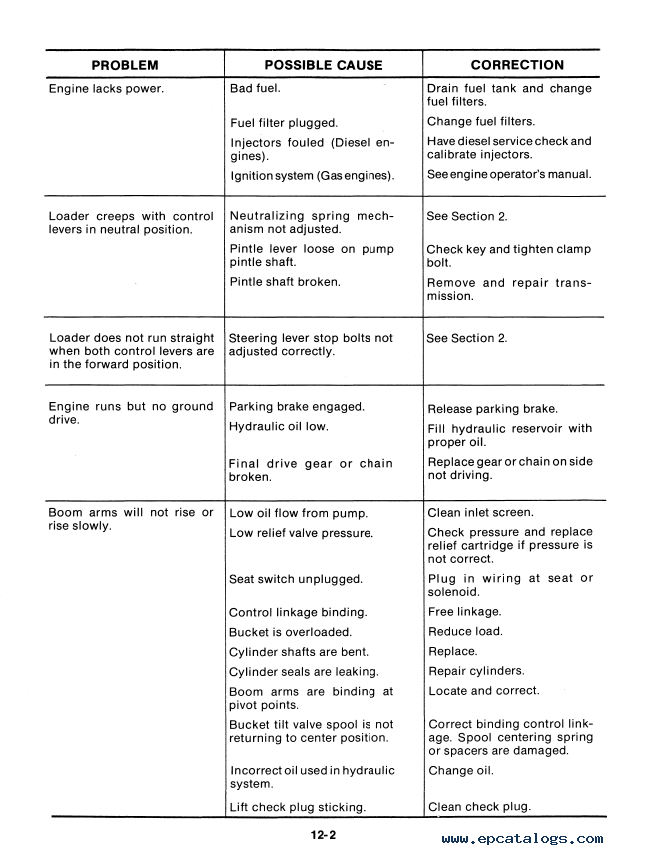

TROUBLESHOOTING

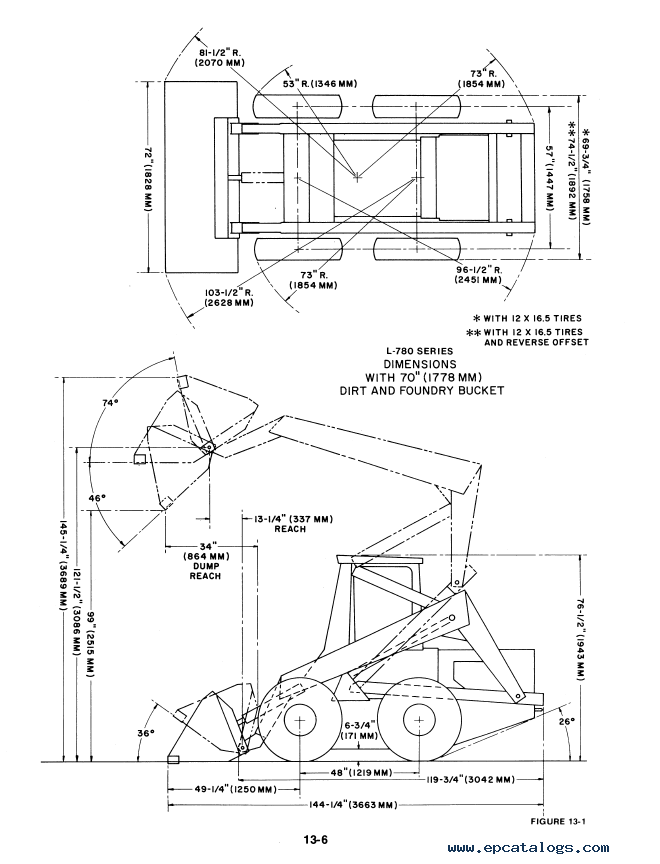

SPECIFICATIONS
INDEX
