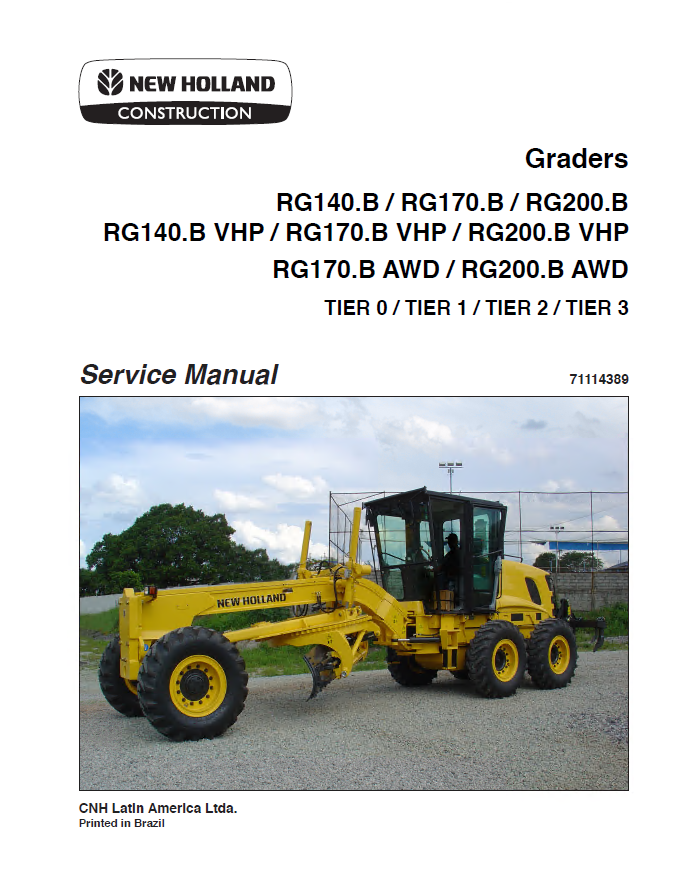

New Holland Graders RG140/170/200.B VHP/AWD Service Manuals PDF

New Holland manual provides owners and service specialist with unsurpassed comfort and feeling safe, as well as exceptional ease of maintenance and search the information with help step by step recommendations and schemes. For comfort costumer, the company New Holland has prepared is a service manual for graders:

RG140.B
RG170.B
RG200.B
RG140.B VHP
RG170.B VHP
RG200.B VHP
RG170.B AWD
RG200.B AWD
TIER 0 / TIER 1 / TIER 2 / TIER 3

The service manual provides all information for disassembling and assembling parts, troubleshooting tables, safety instructions (see below Contents). Following these instructions will ensure the safe and efficient use, timely the service or repair the New Holland graders RG 140/170/200 B/VHP/AWD. In a word - in this manual, you will find everything you need that will help you comfortably use and get maximum performance.

A service manual New Holland is very simple and easy to use. This is the factory high-quality manual on English in PDF format. This is indexed files with the search function. You can work with this manual after installing Adobe PDF Reader. You can easily print the desired text or image that will help your work. Therefore, follow all the information you read in this manual and use your equipment and do not worry about repairs or maintenance.

CONTENTS:

• 1. Section Index - General
  • Standard Torque Specifications
  • Fluids and Lubricants
  • Metric Conversion Chart

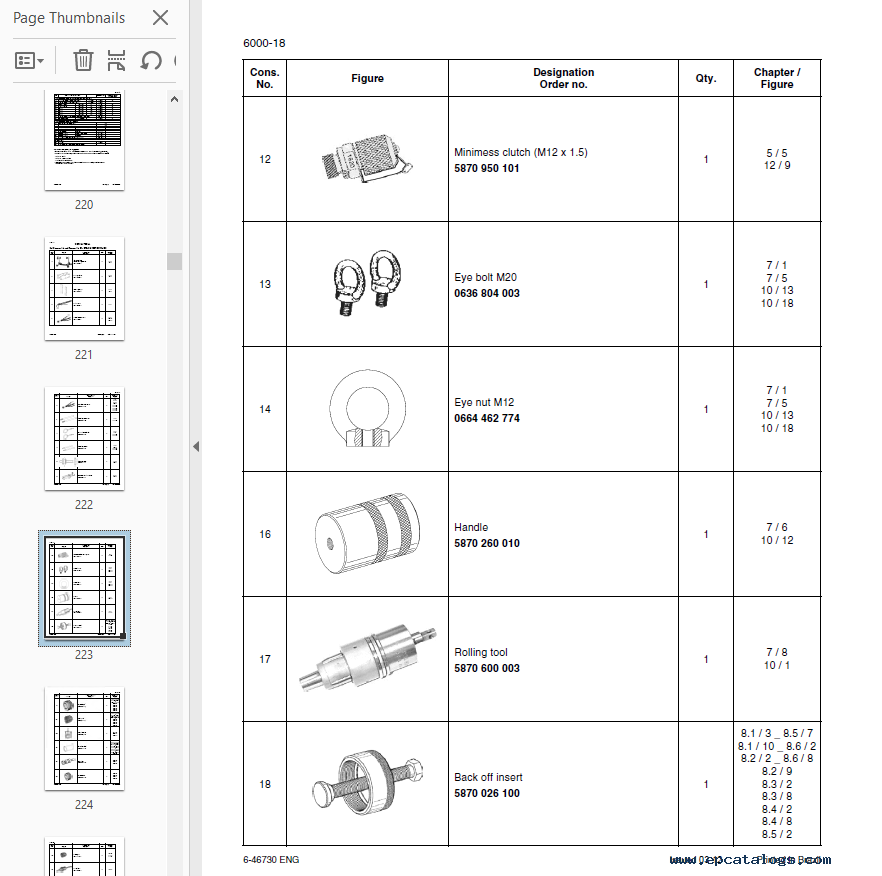

  • Service Tools
• 2. Section Index – Engines
  • Engine

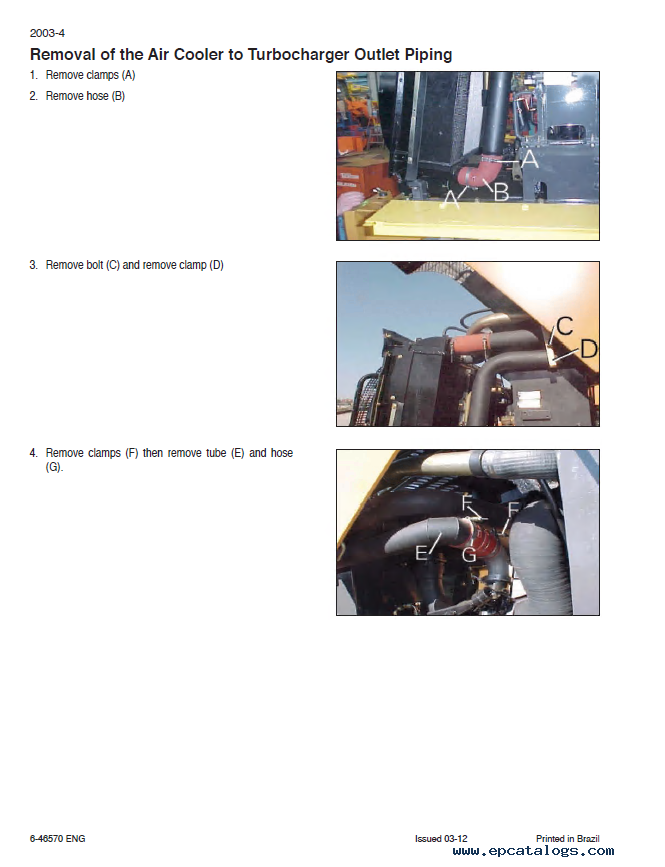

  • Charge Air Cooler System
• 3. Section Index - Fuel System
• 4. Section Index - Electrical

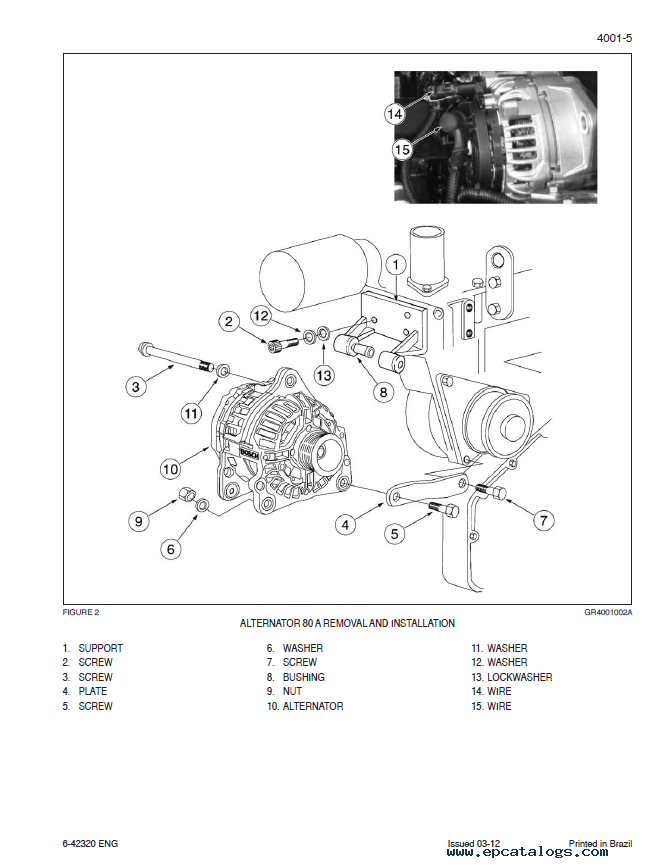

  • Removal and Installation of Starter and Alternator

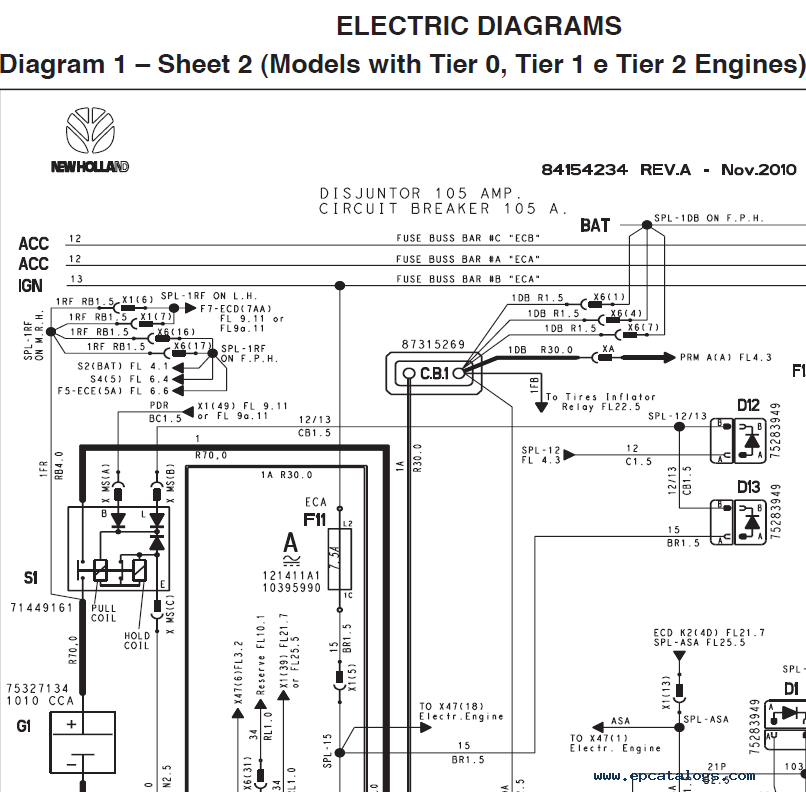

  • Electrical Diagram – Models Without All-Wheel Drive System
  • Electrical Diagram – Models With All-Wheel Drive System
  • Battery
  • Alternator – 80 Ampere
• 5. Section Index - Steering
  • Front Wheel, Axle, and Wheel Lean
  • Steering Control Valve – RG140.B VHP / RG170.B VHP / RG200.B VHP / RG170.B AWD / RG200.B AWD
  • Models
  • Steering Priority Valve – RG140.B VHP / RG170.B VHP / RG200.B VHP / RG170.B AWD / RG200.B AWD
  • Models
• 6. Section Index - Power Train
  • ZF Transmission – Ergopower 5/6 WG-160 – RG140.B / RG170.B / RG140.B VHP / RG170.B VHP Models

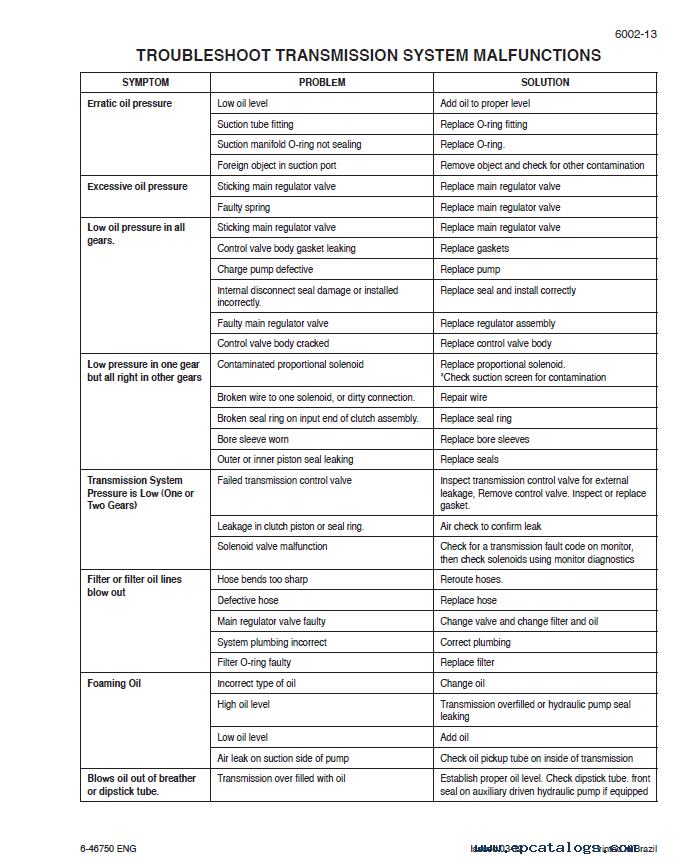

  • FUNK Transmission – Specifications, Pressure Checks, Troubleshooting – RG140.B VHP / RG170.B VHP Models
  • FUNK Transmission – RG140.B VHP / RG170.B VHP / RG170.B AWD Models
  • FUNK Transmission – RG200.B / RG200.B VHP / RG200.B AWD Models
  • Front Axle – RG140.B / RG170.B / RG200.B / RG140.B VHP / RG170.B VHP / RG200.B VHP Models
  • Front Drive Axle – RG170.B AWD / RG200.B AWD Models
  • Transmission Gear Box (Wheel Reductor) For Front Drive Axle – RG170.B AWD / RG200.B AWD Models

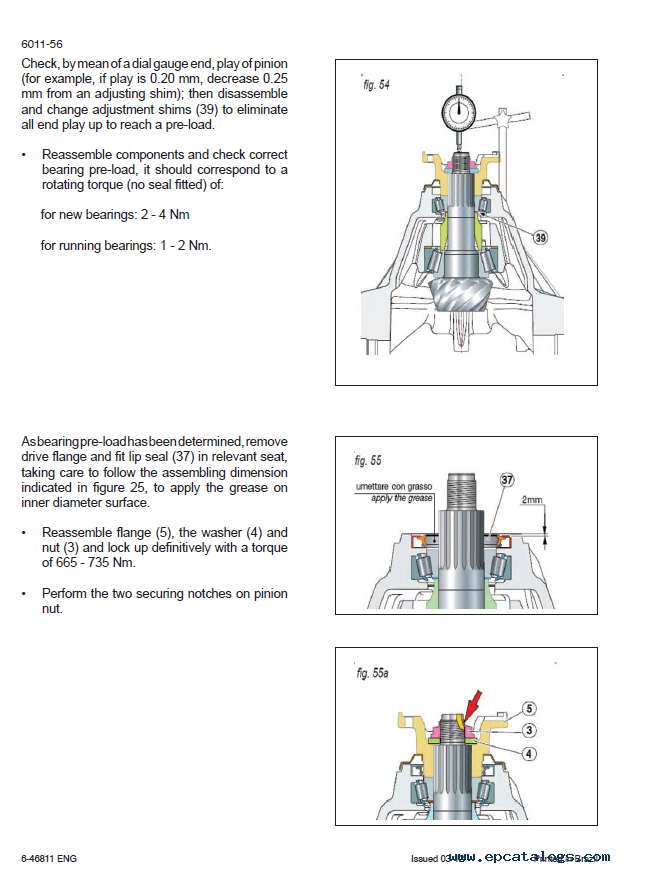

  • Rear Axle Assembly (Graziano) – RG140.B / RG140.B VHP Models
  • Rear Axle Assembly (Graziano) – RG170.B / RG170.B VHP / RG170.B AWD / RG200.B / RG200.B VHP /
  • RG200.B AWD Models
  • Tandem for Rear Axle Assembly (Graziano)
  • Tandem Flange Adjustments (Graziano)
• 7. Sect ion Index – Brakes
  • Hydraulic Brake Troubleshooting
  • Brake Pedal Valve and System
• 8. Section Index - Hydraulics
  • Removal and Installation of Hydraulic Components
  • Front-Wheel Drive Hydraulic Pump and Motor – RG170.B AWD / RG200.B AWD Models
  • Hydraulic Schematics – RG170.B AWD / RG200.B AWD Models
• 9. Section Index - Mounted Equipment
  • Air Conditioning Troubleshooting and System Checks for Systems With HFC-134A Refrigerant
  • Air Conditioner System Service
  • Removal and Installation of Air Conditioning Components for Systems With HFC-134A Refrigerant
  • Rear Ripper
  • Frame, Articulation Joint Circle, and Scarifier
  • Front Blade and Counterweight
  • ROPS Cab
  • Cab Glass Installation
