New Holland Forage Harvester FR480/550/650/780/850 PDF Manuals

New Holland manual is important and indispensable source information for service workshop that is engaged in the repair and service of equipment this brand and also for people who wanted more understand this equipment and maximum use this equipment. This manual is systematics information and which contains all the necessary data and recommendation.

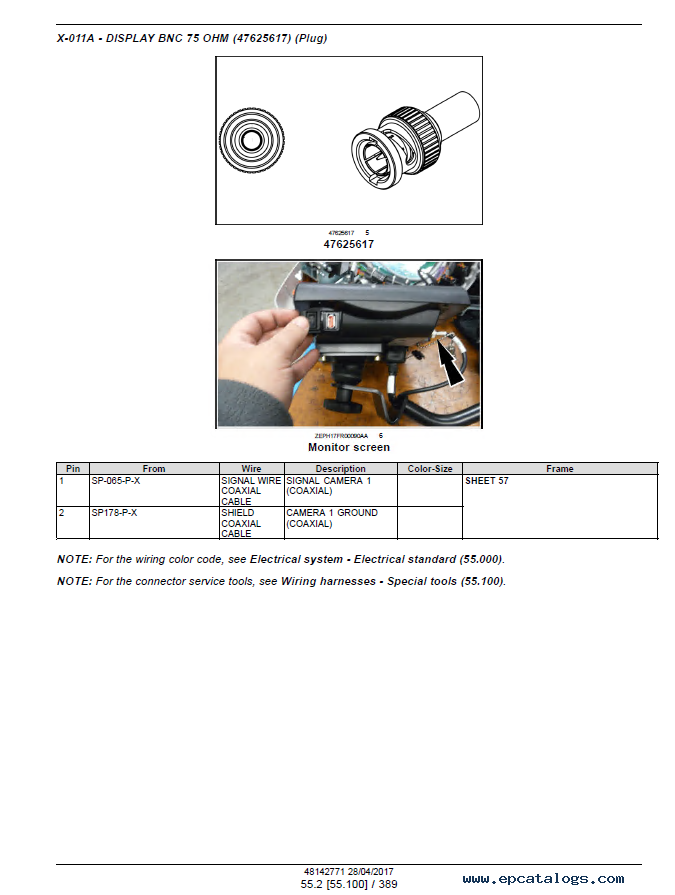

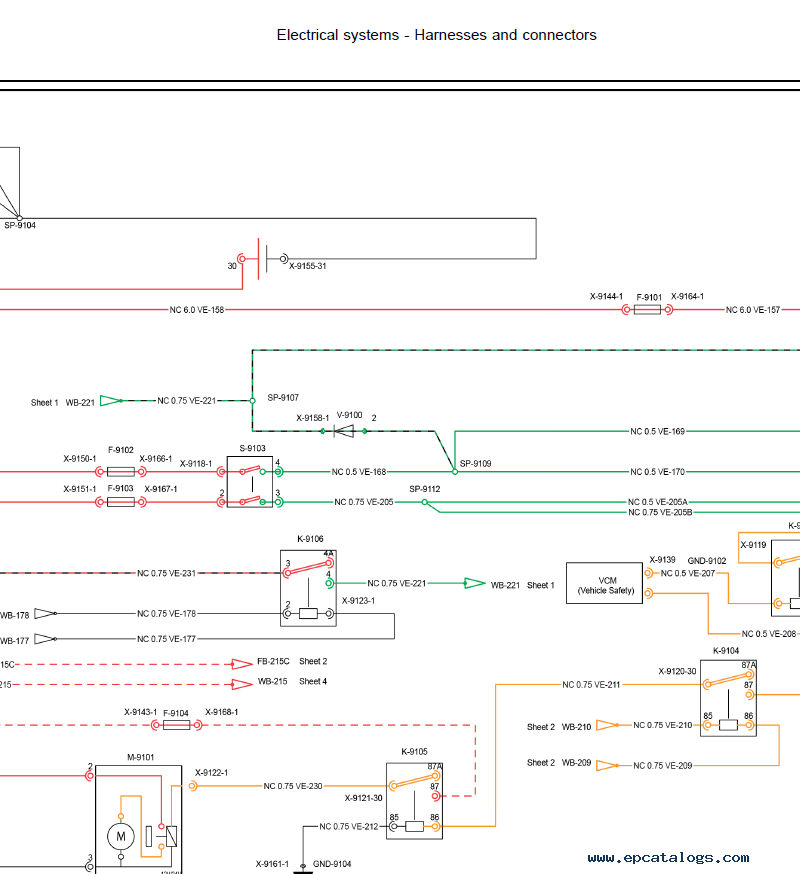

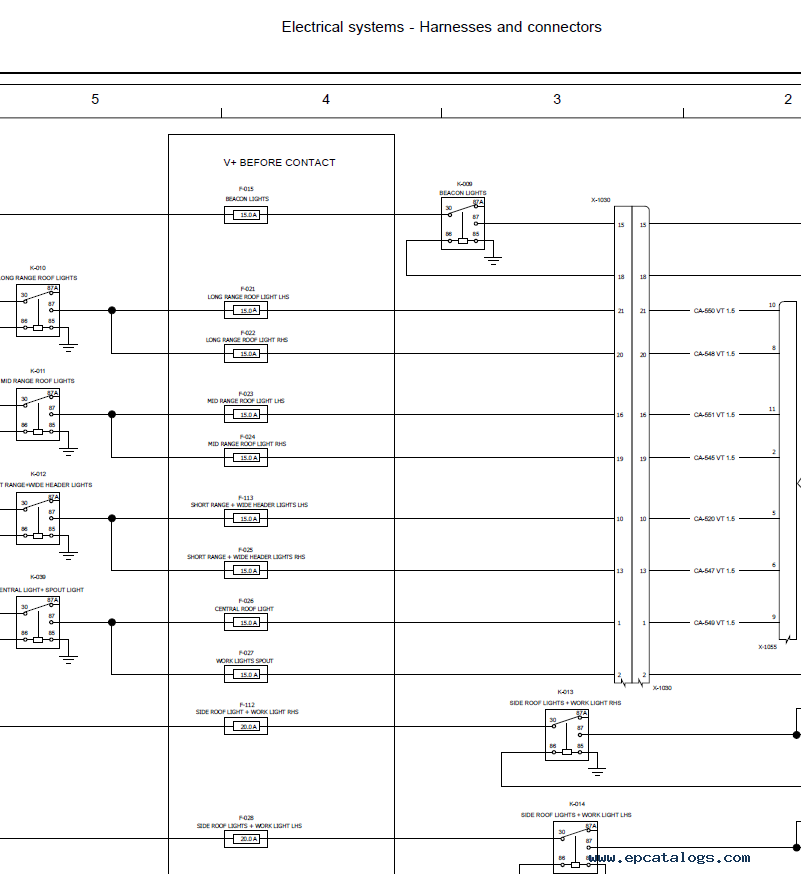

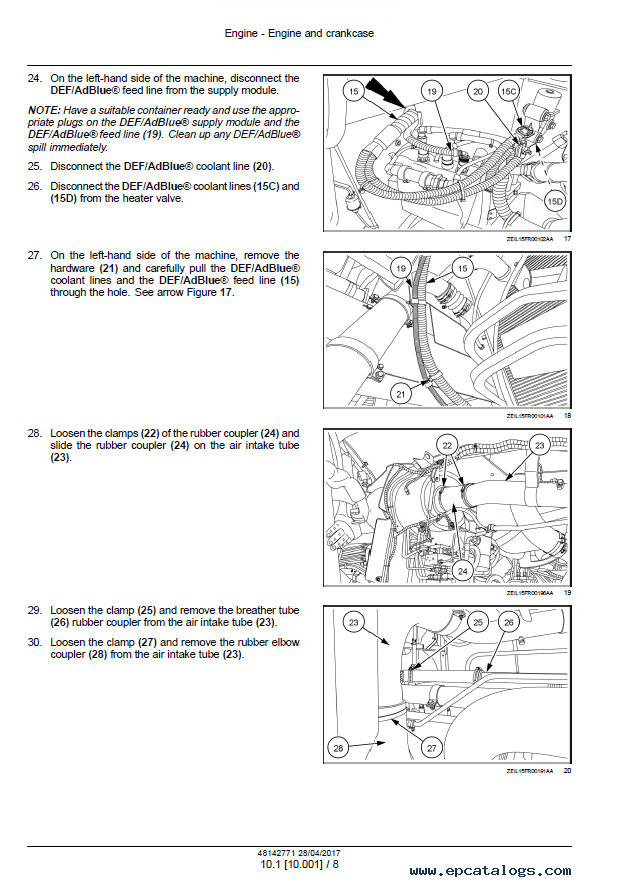

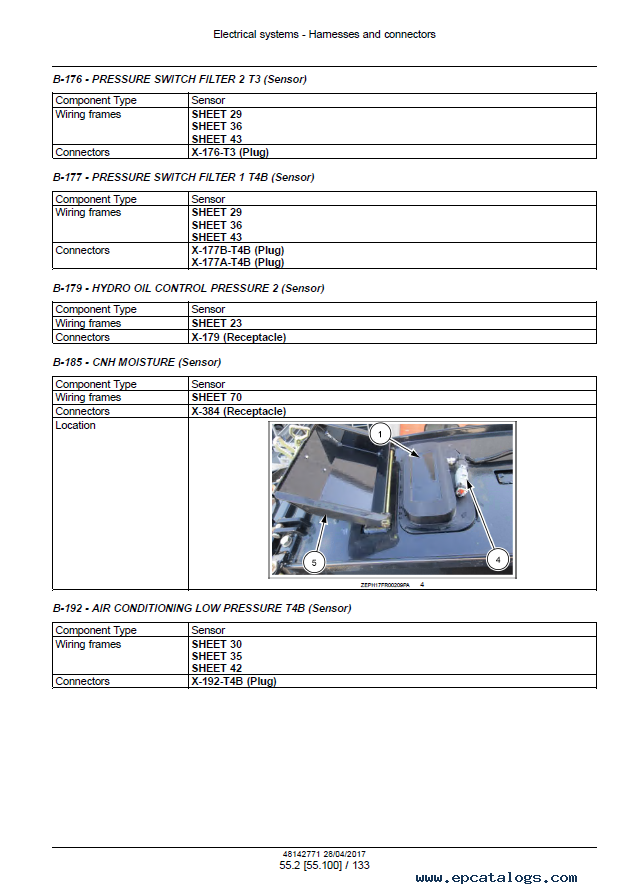

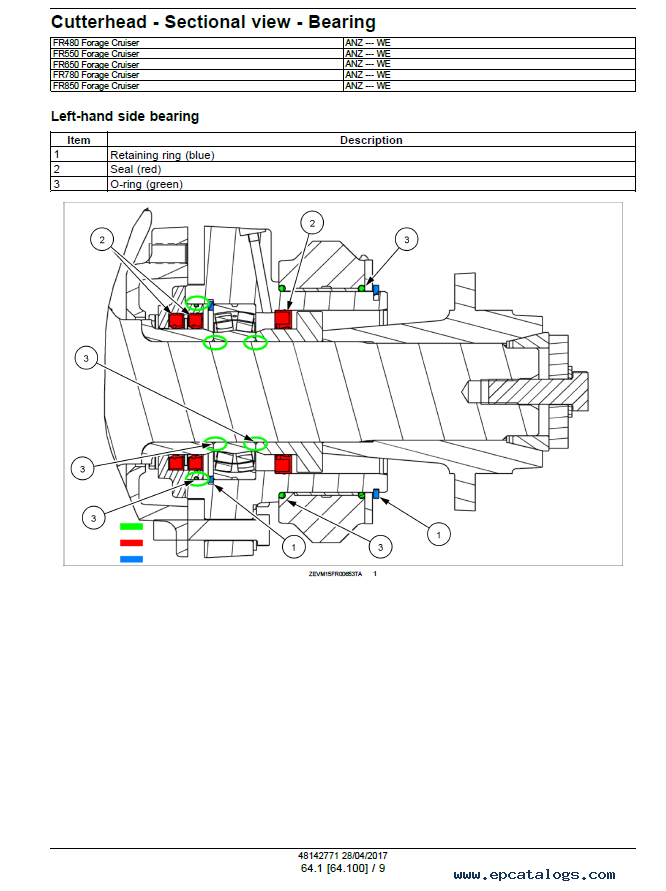

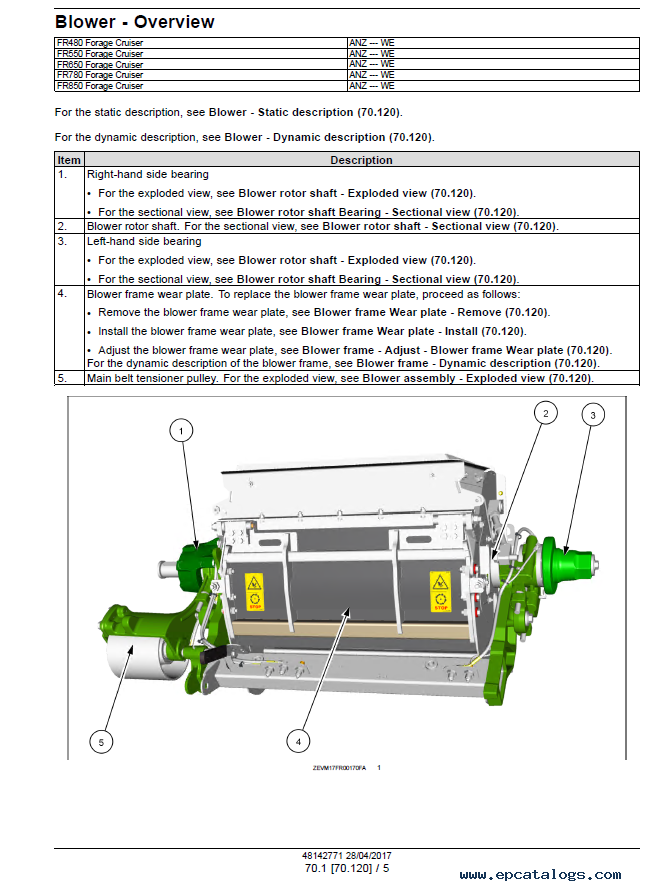

The information on the manual is grouped with several parts. Each part contains thematic chapters such information as general operating principles, detailed inspection and repair procedures, and specifics regarding troubleshooting, specifications, and special tools. Also, the special tools are illustrated performing specific operations with pictures and description. You can see more detailed information in the content (see below) and screenshots.

This New Holland manual contains step by step recommendation, service, and technical information, schemes, troubleshooting data,  instructions and illustrations that will help prevent breakages forage harvesters, next models:

FR480
FR550
FR650
FR780
FR850

You can purchase this manual on our website in the easiest way - by clicking on the Buy now. Within a few minutes, you will receive an email with all the information on installation and use. If you have any questions then write us an email, we will be happy to answer them.

The manual is a factory file in PDF format, which contains scanning pages on English, any one of which we can be printed easily. We recommend using Adobe PDF Reader, to be sure all images/graphics will display correctly.

CONTENTS:

• 1. Introduction
  • Basic instructions - How to use and navigate through this Manual
  • Foreword - Important notice regarding equipment servicing
  • Note to the Owner
  • Safety rules
  • Safety rules - Ecology and the environment
  • Personal safety
  • Basic instructions - Shop and assembly
  • Torque
  • Torque - Standard torque data for hydraulic connections
  • Basic instructions - Chain Wear Tables - Roller Chains
  • Conversion factors
  • Operating alarms
  • General specification - System protection data
  • Product identification
  • Machine orientation - Machine orientation
• 2. Engine
  • Engine and crankcase
  • Fuel tanks
  • Fuel injection system
  • Engine cooling system
  • Fan and drive
  • Rotary screen
  • Engine lubrication system
  • Selective Catalytic Reduction (SCR) exhaust treatment
• 3. Main gearbox and drive
  • Main gearbox and drive
• 4. Transmission
  • Mechanical transmission
  • Gearbox
  • Mechanical transmission external controls
  • Mechanical transmission lubrication system
  • Gearbox internal components
  • Differential
• 5. Four-Wheel Drive (4WD) system
  • Mechanical control
  • Four-Wheel Drive (4WD) gearbox
• 6. Front axle system
  • Powered front axle
  • Front bevel gear set and differential
  • Final drives
• 7. Rear axle system
  • Rear-powered steerable axle
  • Non-powered rear axle
• 8. Hydrostatic drive
  • Pump and motor components
  • Hydrostatic transmission
• 9. Brakes and controls
  • Hydraulic service brakes
  • Parking brake or parking lock
• 10. Hydraulic systems
  • Hydraulic systems
  • Spout
  • Pump control valves
  • Variable displacement pump
  • Remote control valves
  • Reservoir, cooler, and filters
  • Main control valve
  • Safety and main relief valves
  • High flow hydraulics
  • Header or attachment height system
  • Header or attachment leveling system
  • Upper feed roll gearbox system
  • Sharpening system
  • Spout rotation circuit
  • Spout raising system
  • Spout deflector system
  • Main gearbox lubrication
• 11. Steering
  • Steering control
  • Pump
  • Cylinders
  • Autoguidance steering
• 12. Wheels
  • Front wheels
  • Rear wheels
• 13. Cab climate control
  • Heating
  • Air conditioning
• 14. Electrical systems
  • Electrical system
  • Harnesses and connectors
  • Engine control system
  • Fuel injection system
  • Engine intake and exhaust system
  • Selective Catalytic Reduction (SCR) electrical system
  • Engine cooling system
  • Engine oil system
  • Alternator
  • Harvest material flow control system
  • Cab controls
  • Electronic modules
  • Ground speed control
  • Hydrostatic drive control system
  • Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls
  • Heating, Ventilation, and Air-Conditioning (HVAC) control system
  • Feeding control system
  • Chopping and cutting control systems
  • Rotary screen drive and cleaning
  • Autopilot/Autoguidance
  • Ejecting control system
  • Warning indicators, alarms, and instruments
  • Silage additives system control
  • FAULT CODES
• 15. Attachments/Headers
  • Attachment/Header frame
  • Belt feeding
• 16. Product feeding
  • Feed roll
  • Length-of-cut gearbox
  • Lower feed rolls
  • Upper feed rolls
• 17. Chemical applicators
  • Silage additives system
• 18. Chopping
  • Cutterhead
  • Drum
  • Drum gearbox
  • Sharpening system
  • Shearbar
  • Crop processor
  • Transition channel/concave and lever
• 19. Ejection
  • Blower
  • Spout
• 20. Lubrication system
  • Grease lubrication system
• 21. Platform, cab, bodywork, and decals
  • Machine shields and guards
  • Cab
  • Cab interior
