New Holland flexi coil 5000HD Air Drill Repair Manual PDF 87545763

This PDF repair manual contains detailed repair and technical service information, and installation instructions, detailed descriptions, many illustrations, and diagrams for maintaining and repairing the New Holland flexi coil 5000HD Air Drill. It covers:

1 - GENERAL INFORMATION
General Service Information
Important Information
Service Tools
Safety
Units of Measure
Bolt Torque Information
Machine Specifications
Paint Touch-up Procedure

2 - ADJUSTMENTS
Air Drill Leveling
Floating Hoe/Shank Adjustments
Sweep Pitch Adjustments
Trip Torque Specifications
Setting the Depth Gauge
Wing Lead Adjustment

3 - MECHANICAL SERVICE
Troubleshooting Tables
Servicing Safety Precautions
General Operating Information
Grease Locations
Maintenance
Tires
Caster Wheels
Caster Hub and Spindle Maintenance
Walking Beam Replacement
Caster Transport Lock Installation
Pin Guides
Depth Control Service
Walking Beam Carrier Spool Replacement
Auxiliary Tow Hitch

4 - HYDRAULICS
Hydraulics
Replace Seals in Cylinders
Hydraulic Cylinders
Depth Control
Wing Lift Hydraulics

5 - ELECTRICAL
Connector Service Kit
Remote Switch Installation

6 - TRIPS, OPENERS, AND PRESS WHEEL
SERVICE
Service of Openers
Press Wheels and Shanks
Ground Openers and Seed Boots
Troubleshooting Tables
Trip Compressor Tool Kit
Tension Link Kit - 550 Pound Trip
Adjustment of Trip Assemblies
Trip/Shank Shim Installation
Heavy Duty Bearing Kits
Press Wheel Removal
Packer Wheel Rest Assembly
Shank Spacing and Trip Release Pressure
Sweep Pitch Adjustment
Trip Torque Specifications

7 - AIR SYSTEM
Troubleshooting Tables
Hoses
Theory of Operation - Air System
Determining Adequate Carrying Velocities
Header Assemblies
Hose Holder Brackets and Distribution Clamps

8 - ENDMARKER SERVICE
Endmarkers
Endmarker Replacement
Endmarker Hydraulics
Endmarker Operation and Ajdustment

Models: 5000HD Air Drill
Part number 87545763

Important to know each chapter in this repair manual, familiarize with sections and read the safety rules and notes, to avoid various technical breakdowns, malfunction, and protect yourself from injury. This electronic guide helps beginners and experienced professionals.

Features of the Manual
Format: PDF
Language: English
Pages: 205
Compatible with all versions of Windows, Mac, Linux, iPhone, iPad, and Android

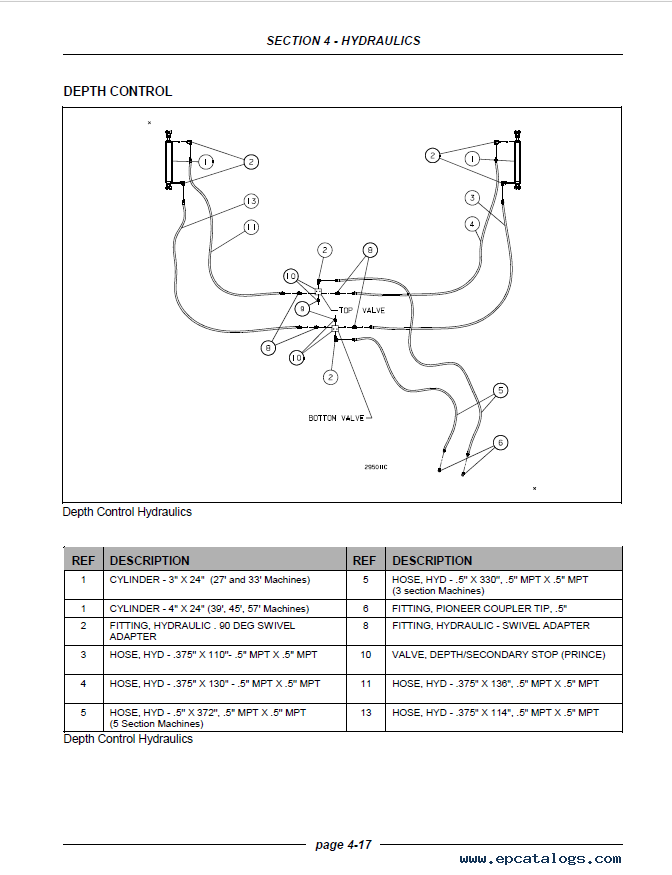

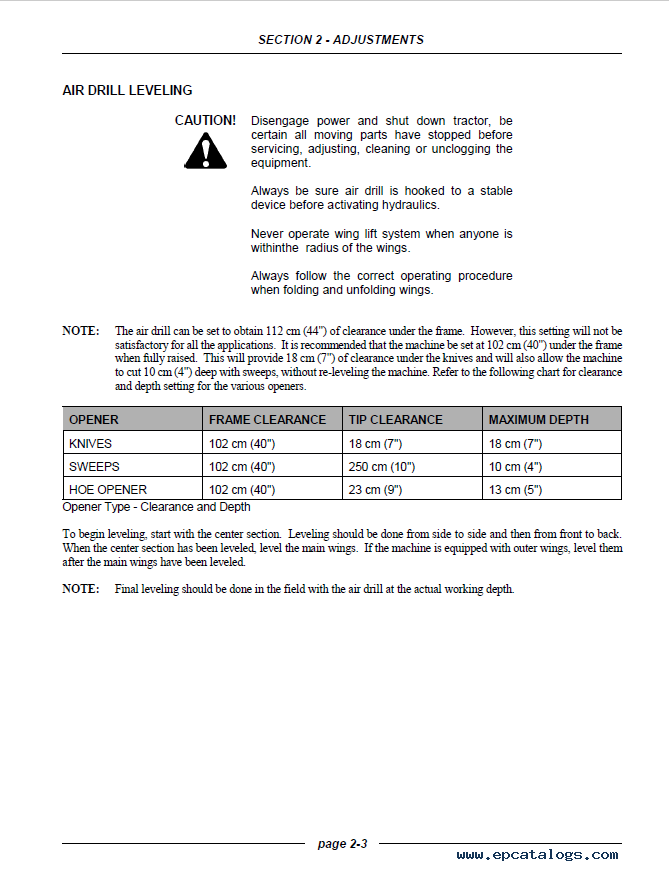

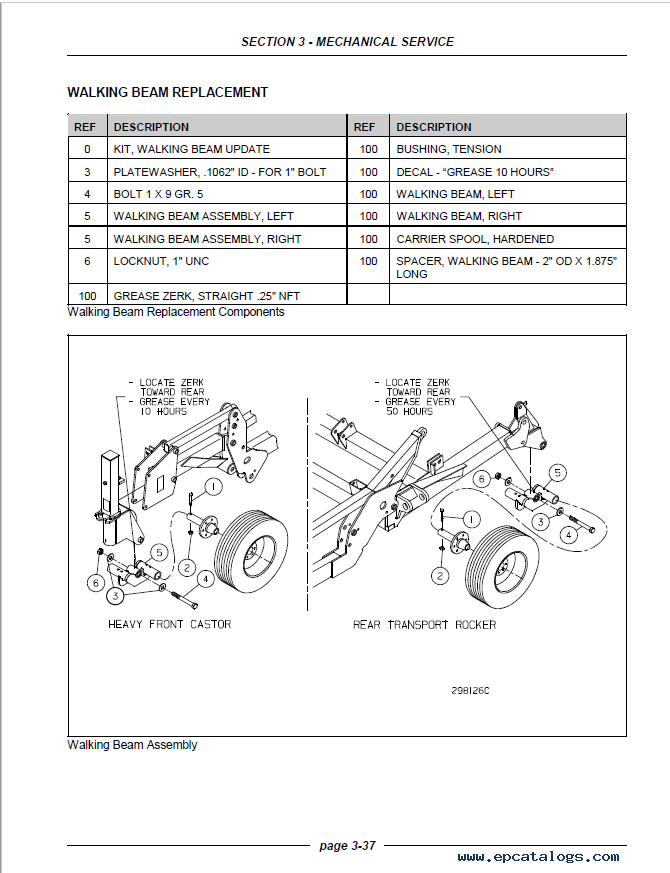

The factory file includes sections about service tools, safety, specifications, settings, trpubleshooting, hydraulics, electrical, technical data, etc. All illustrations, and schemes will help you to recognize all problems and fix them yourself.
