New Holland CX Series Combines Repair Manual PDF

About the New Holland CX Series Combines Repair Manual
This repair manual provides guidance on service and maintenance of combines New Holland CX series, following models:
CX720,
CX740,
CX760,
CX780,
CX820,
CX840,
CX860,
CX880.

CONTENTS:

• SECTION 00 - GENERAL INFORMATION
  • Introduction
  • Important information
  • General instructions
  • Spare parts
  • Safety regulations
  • Explanation of machine serial numbers
  • Units of measure -- Conversion chart
  • Minimum hardware tightening torques
  • Drives
• SECTION 10 - ENGINE
  • Chapter 1 - 7.5L New Holland Engine
  • Chapter 2 - Cooling System
  • Chapter 3 - Remove and Replace, 7.5L NH Engine
  • Chapter 4 - Fuel System
  • Chapter 5 - Iveco, Description of Operation
  • Chapter 6 - Remove and Replace, Iveco Engine
  • Chapter 7 - IVECO Engine
• SECTION 14 - LIVE PTO
  • Chapter 1 - Engine Gearbox, Clutch Pack Removal/Installation
  • Chapter 2 - Engine Gearbox, Clutch Pack Rebuild
  • Chapter 3 - Engine Gearbox Removal/Installation
  • Chapter 4 - Engine Gearbox Rebuild
• SECTION 21 - TRANSMISSION
  • Chapter 1 - Transmission
• SECTION 25 - FRONT MECHANICAL DRIVE
  • Chapter 1 - Planetary Final Drives
  • Chapter 2 - Standard Final Drives
• SECTION 29 - HYDROSTATIC SYSTEM
  • Chapter 1 - Hydrostatic Drive System Introduction
  • Chapter 2 - Hydrostatic System Operation
  • Chapter 3 - Filling the Hydrostatic System and Start-up Procedure
  • Chapter 4 - Powered Rear Axle
  • Chapter 5 - Pressure Testing and Troubleshooting
  • Chapter 6 - Hydrostatic Pump and Motor Repair
• SECTION 33 - BRAKES AND CONTROL
  • Chapter 1 - Brakes and Control
• SECTION 35 - HYDRAULIC SYSTEMS
  • Chapter 1 - Introduction
  • Chapter 2 - Closed Centre Load Sensing (CCLS) Variable Displacement Pump
  • Chapter 3 - Pressure Testing and Fault Finding The High and Low Pressure Hydraulic Systems
  • Chapter 4 - Hydraulic Pump
  • Chapter 5 - Stack Valves Overhaul
• SECTION 41 - STEERING AXLE
  • Chapter 1 - Axle, General
  • Chapter 2 - Wheel Bearings (HDASA)
  • Chapter 3 - Steering Pivot (HDASA)
  • Chapter 4 - Center Section
  • Chapter 5 - Powered Rear Steering Axle
• SECTION 50 - CLIMATE CONTROL
  • Chapter 1 - A/C System
  • Chapter 2 - Air Filters
  • Chapter 3 - Blower Fans
  • Chapter 4 - Compressor
  • Chapter 5 - Condenser
  • Chapter 6 - Cool Box
  • Chapter 7 - Evaporator
  • Chapter 8 - Heater Core
  • Chapter 9 - High/Low Pressure Cutout Switch
  • Chapter 10 - Receiver/Dryer
  • Chapter 11 - Thermal Expansion Valve
• SECTION 55 - ELECTRICAL SYSTEMS
  • Chapter 1 - Description of Operation, Instrumentation and Controls
  • Chapter 2 - Connector and Component Locations
  • Chapter 3 - Electrical Connectors
  • Chapter 4 - Electrical Troubleshooting, How To
  • Chapter 5 - Unit Configuration and Calibrations
  • Chapter 6 - CAN Data Bus Network Overview
  • Chapter 7 - Electrical Systems, Schematics, and Diagnostics
  • Chapter 8 - Electrical Schematics
  • Chapter 9 - Infoviewt Monitor Diagnostics
  • Chapter 10 - Logic Diagrams
  • Chapter 11 - CCM1 Error Codes
  • Chapter 12 - CCM2 Error Codes
  • Chapter 13 - CCM3 Error Codes
  • Chapter 14 - Engine Fault Codes
  • Chapter 15 - HHC Diagnostic Codes
  • Chapter 16 - RHM Fault Codes
• SECTION 60 - PRODUCT FEEDING
  • Chapter 1 - Straw Elevator
  • Chapter 2 - Straw Elevator Clutch
• SECTION 66 - THRESHING
  • Chapter 1 - Drum and Concave
  • Chapter 2 - Drum Variator
• SECTION 72 - SEPARATION
  • Chapter 1 - Beater Shaft and Bearings
  • Chapter 2 - Rotary Separator Shaft and Bearings
  • Chapter 3 - Straw Flow Beater Shaft and Bearings
  • Chapter 4 - Straw Walkers, Shafts and Bearings
• SECTION 74 - CLEANING SYSTEMS
  • Chapter 1 - Cleaning Shoe Frame
  • Chapter 2 - Cleaning Shoe Drive
  • Chapter 3 - Cleaning Fan and Drives
  • Chapter 4 - Returns System
• SECTION 80 - GRAIN STORAGE
  • Chapter 1 - Clean Grain Transport
  • Chapter 2 - Unloading System
• SECTION 88 - ACCESSORIES
  • Chapter 1 - Straw Chopper
  • Chapter 2 - Chaff Blower
  • Chapter 3 - Blow-off System
• SECTION 90 - PLATFORM AND CAB
  • Chapter 1 - Cab
  • Chapter 2 - Shielding

Before using this New Holland CX Series Combines, we advice you to carefully read all rules and note to avoid any problems. This comprehensive manual is suitable for professional technicians and novice mechanics alike.

Features of the Manual
Format: PDF
Language: English
Pages: 3810
Compatible with all versions of Windows, Mac, Linux, iPhone, iPad, and Android

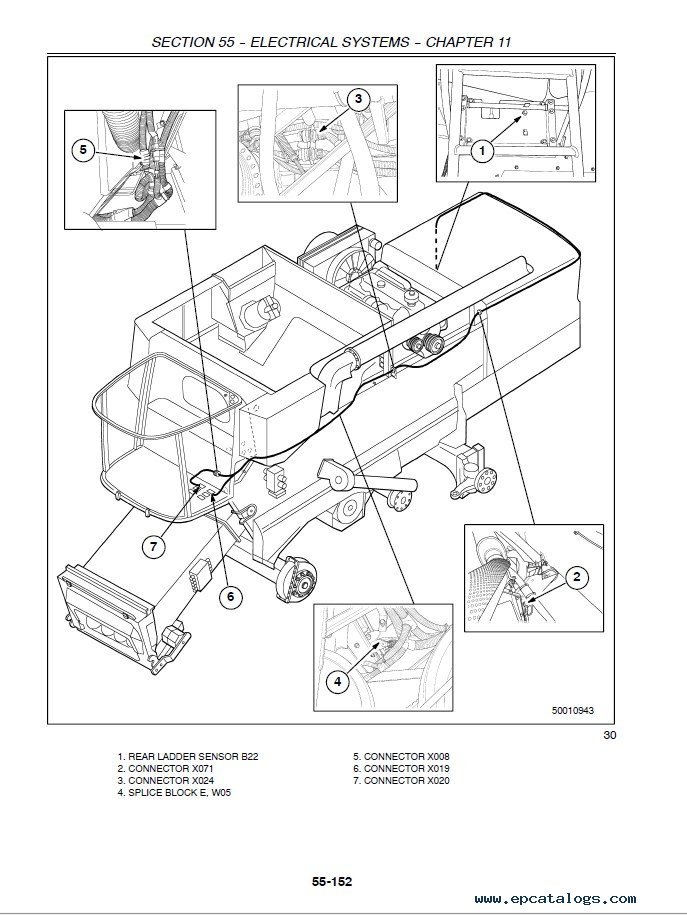

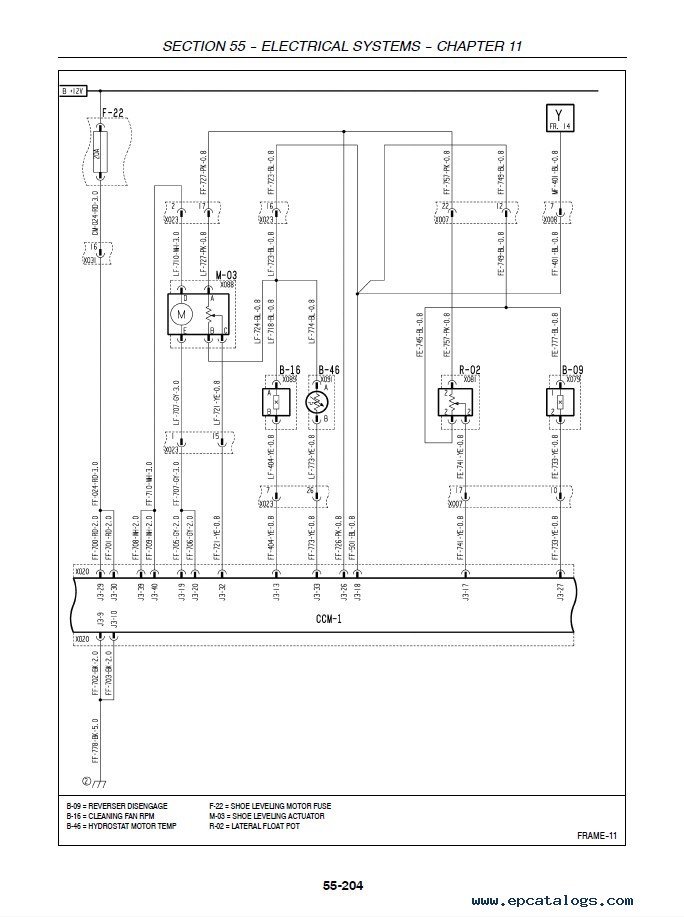

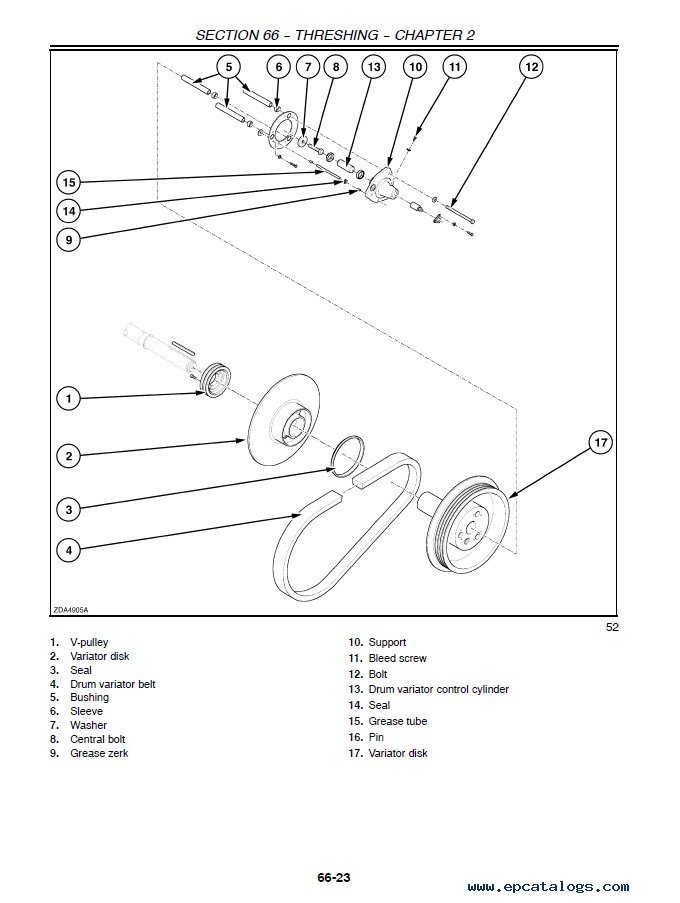

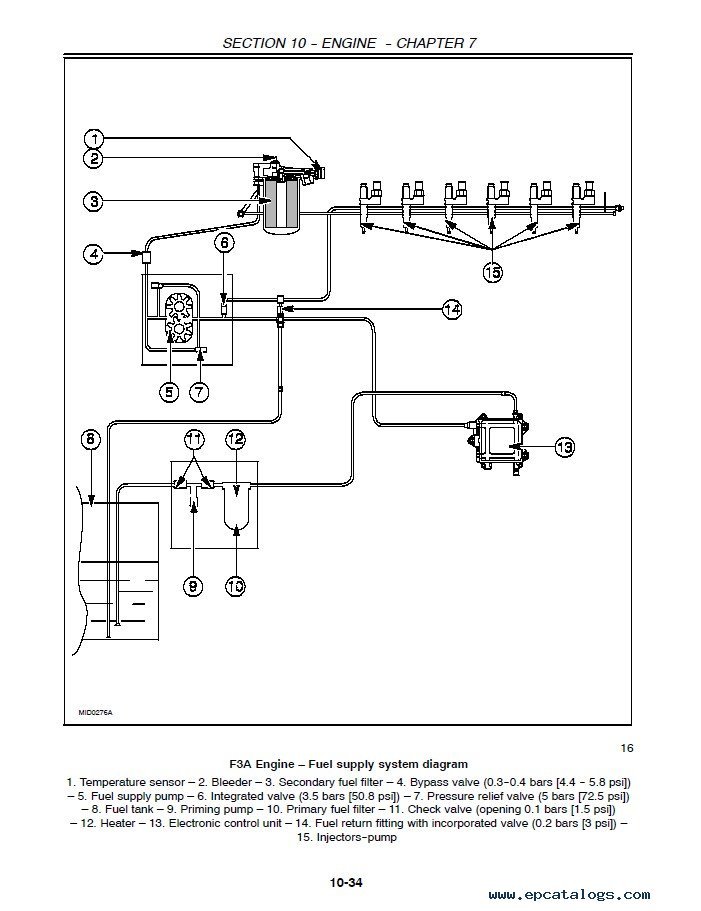

Repair manual contains guidance on repair and maintenance, installation instructions, operating instructions, which will help you to provide timely and quality care in the installation, dismantling, operation, calibration, repair combines New Holland. The manual includes step-by-step guides and high-quality illustrations to help you perform routine and preventive maintenance effectively.
