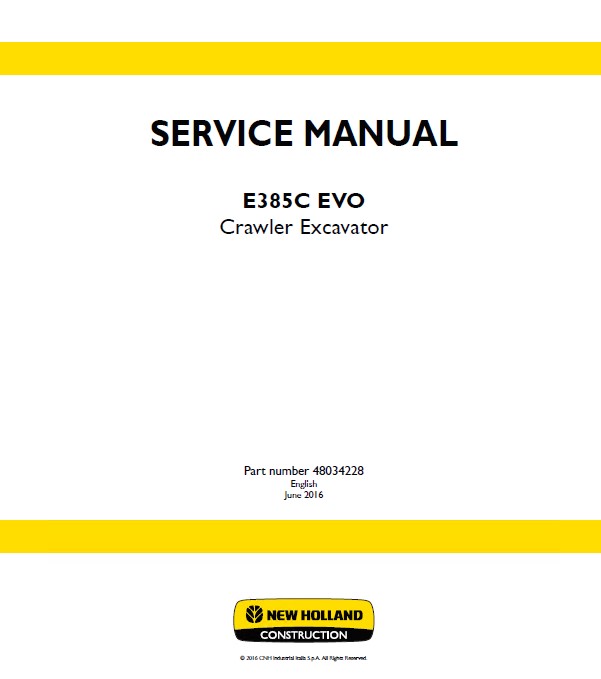

New Holland Crawler Excavator E385C EVO Service Manual PDF

This PDF Service Manual describes the disassembly and reassembly as well as the elimination of failures for New Holland Crawler Excavator E385C EVO. This manual will save you a lot of time. It contains all the information you need to repair this New Holland Crawler Excavator E385C EVO.

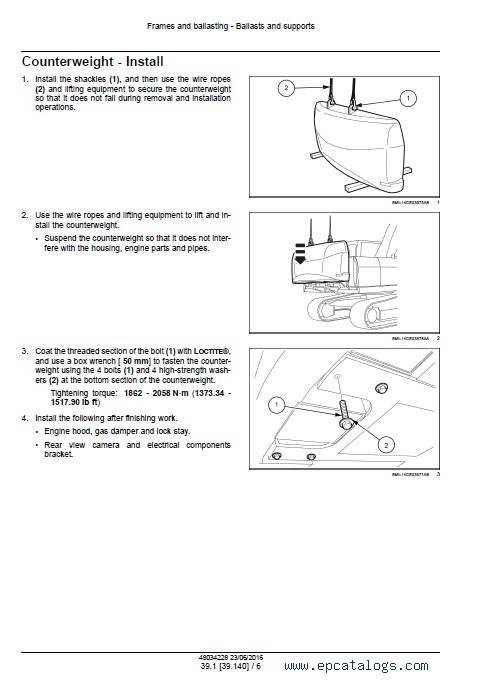

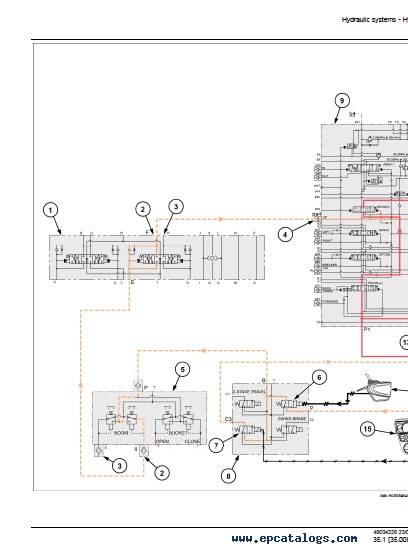

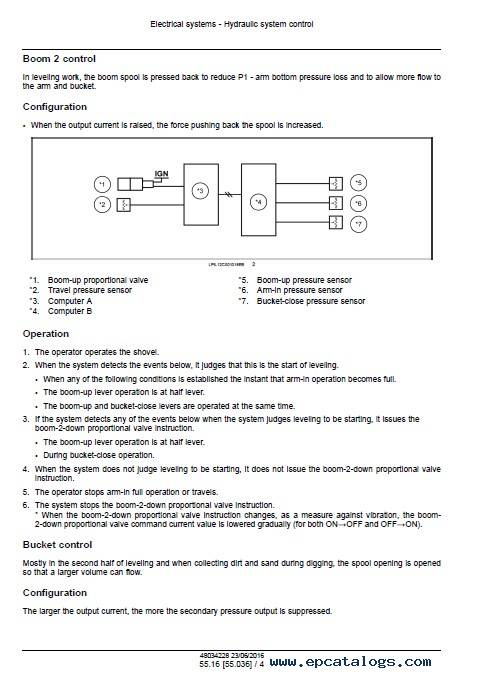

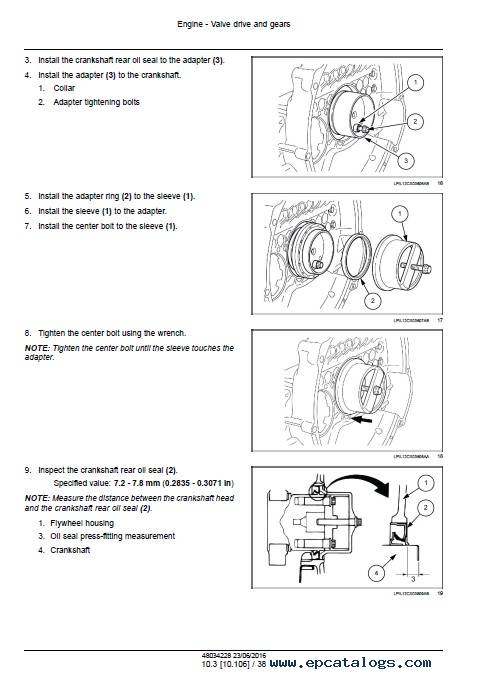

The factory manual includes a detailed list of information which is divided into chapters about specifications, care and safety rules, check operation instruction, also, maintenance, troubleshooting, many pictures, different schemes, and diagrams for your technic. All screenshots will help you better and quickly understand the text and visually examine parts of New Holland Crawler Excavators.

For your convenience, we present you with a link 'New Holland pdf manual instant preview' on the top of this page. This link will help you to preview this PDF manual and understand that this manual contains needed for your service information or not.

This service manual comes in PDF format. So, it doesn't require any installation (Instant Download). We recommend you to use the application Adobe PDF Reader for working with PDF instruction. Also, we recommend you print this manual and use it as a handbook when it will be necessary.

Part number 48034228

Models covered:
E385C EVO Crawler excavators LC version (TIER 3)

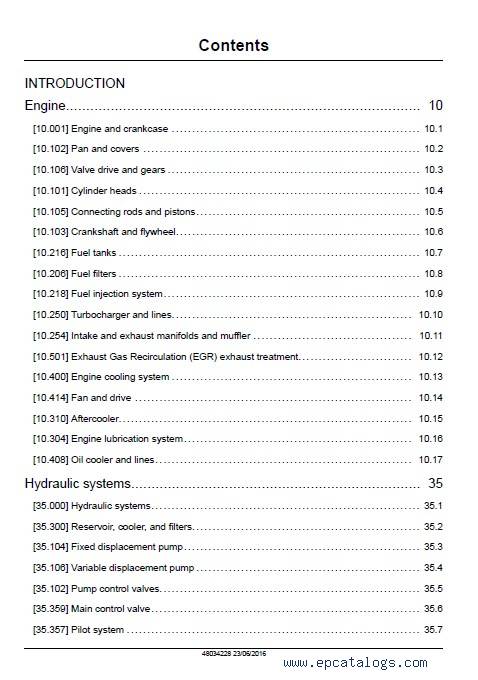

CONTENTS:

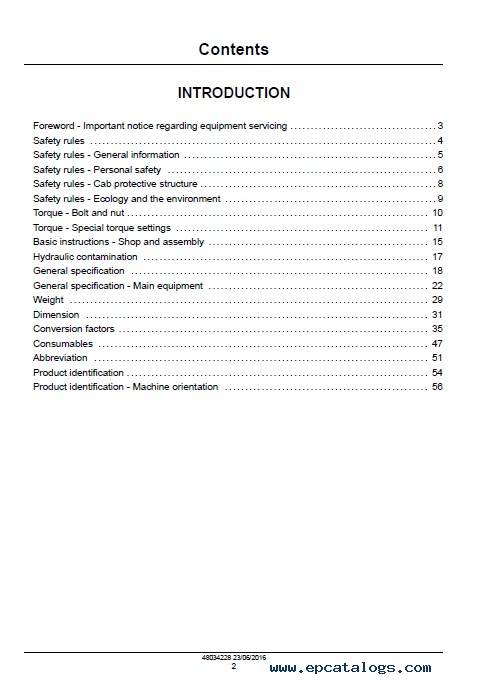

• INTRODUCTION
• Engine
  • [10.001] Engine and crankcase
  • [10.102] Pan and covers
  • [10.106] Valve drive and gears
  • [10.101] Cylinder heads
  • [10.105] Connecting rods and pistons
  • [10.103] Crankshaft and flywheel
  • [10.216] Fuel tanks
  • [10.206] Fuel filters
  • [10.218] Fuel injection system
  • [10.250] Turbocharger and lines
  • [10.254] Intake and exhaust manifolds and muffler
  • [10.501] Exhaust Gas Recirculation (EGR) exhaust treatment
  • [10.400] Engine cooling system
  • [10.414] Fan and drive
  • [10.310] Aftercooler
  • [10.304] Engine lubrication system
  • [10.408] Oil cooler and lines
• Hydraulic systems
  • [35.000] Hydraulic systems
  • [35.300] Reservoir, cooler, and filters
  • [35.104] Fixed displacement pump
  • [35.106] Variable displacement pump
  • [35.102] Pump control valves
  • [35.359] Main control valve
  • [35.357] Pilot system
  • [35.355] Hydraulic hand control
  • [35.356] Hydraulic foot control
  • [35.352] Hydraulic swing system
  • [35.353] Hydraulic travel system
  • [35.354] Hydraulic central joint
  • [35.736] Boom hydraulic system
  • [35.737] Dipper hydraulic system
  • [35.738] Excavator and backhoe bucket hydraulic system
  • [35.360] Hammer and rotating bucket hydraulic system
• Frames and ballasting
  • [39.140] Ballasts and supports
• Tracks and track suspension
  • [48.130] Track frame and driving wheels
  • [48.100] Tracks
  • [48.134] Track tension units
  • [48.138] Track rollers
• Cab climate control
  • [50.100] Heating
  • [50.200] Air conditioning
• Electrical systems
  • [55.000] Electrical system
  • [55.100] Harnesses and connectors
  • [55.525] Cab engine controls
  • [55.015] Engine control system
  • [55.201] Engine starting system
  • [55.301] Alternator
  • [55.302] Battery
  • [55.202] Cold start aid
  • [55.010] Fuel injection system
  • [55.014] Engine intake and exhaust system
  • [55.989] Exhaust Gas Recirculation (EGR) electrical system
  • [55.012] Engine cooling system
  • [55.013] Engine oil system
  • [55.640] Electronic modules
  • [55.512] Cab controls
  • [55.036] Hydraulic system control
  • [55.051] Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls
  • [55.050] Heating, Ventilation, and Air-Conditioning (HVAC) control system
  • [55.416] Swing control system
  • [55.417] Travel control system
  • [55.530] Camera
  • [55.518] Wiper and washer system
  • [55.404] External lighting
  • [55.514] Cab lighting
  • [55.408] Warning indicators, alarms, and instruments
  • [55.992] Anti-theft system
  • [55.DTC] FAULT CODES
• Booms, dippers, and buckets
  • [84.910] Boom
  • [84.912] Dipper arm
  • [84.100] Bucket
• Platform, cab, bodywork, and decals
  • [90.150] Cab
  • [90.156] Cab windshield and windows
  • [90.120] Mechanically-adjusted operator seat
  • [90.100] Engine hood and panels
