New Holland B100C/CLR/CTC, B110C/CTC, B115C Loaders Manual

Loader backhoes B100C - B100CLR - B100CTC - B110C - B110CTC - B115C have been designed to perform most earth-moving operations. With proper maintenance, repair, and operation, they will serve you long and high-quality.

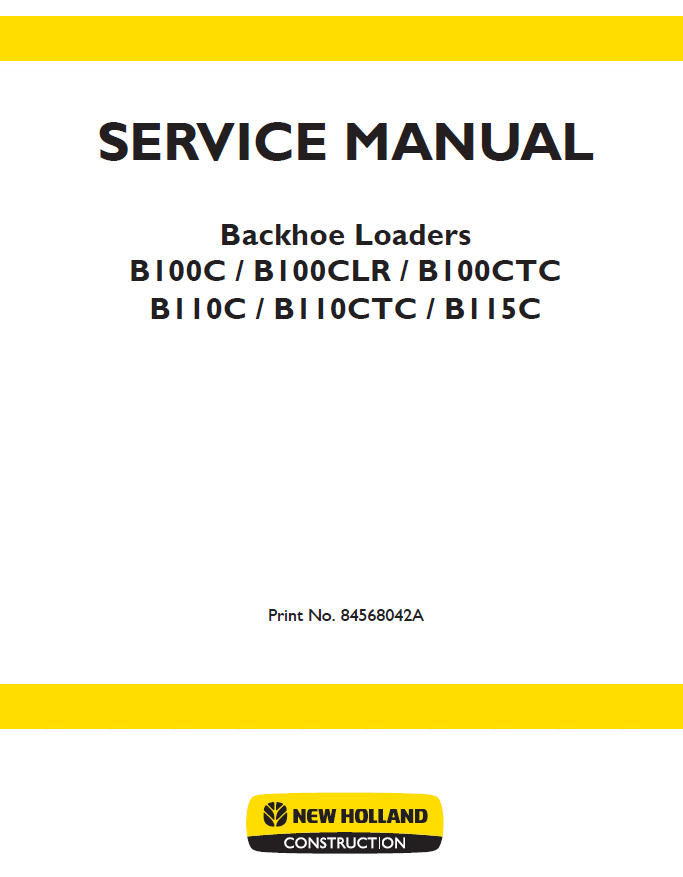

Service manual - this is a collection necessary information that is indispensable for the use, maintenance, and repair this New Holland Loader Backhoes:

B100C
B100CLR
B100CTC
B110C
B110CTC
B115C

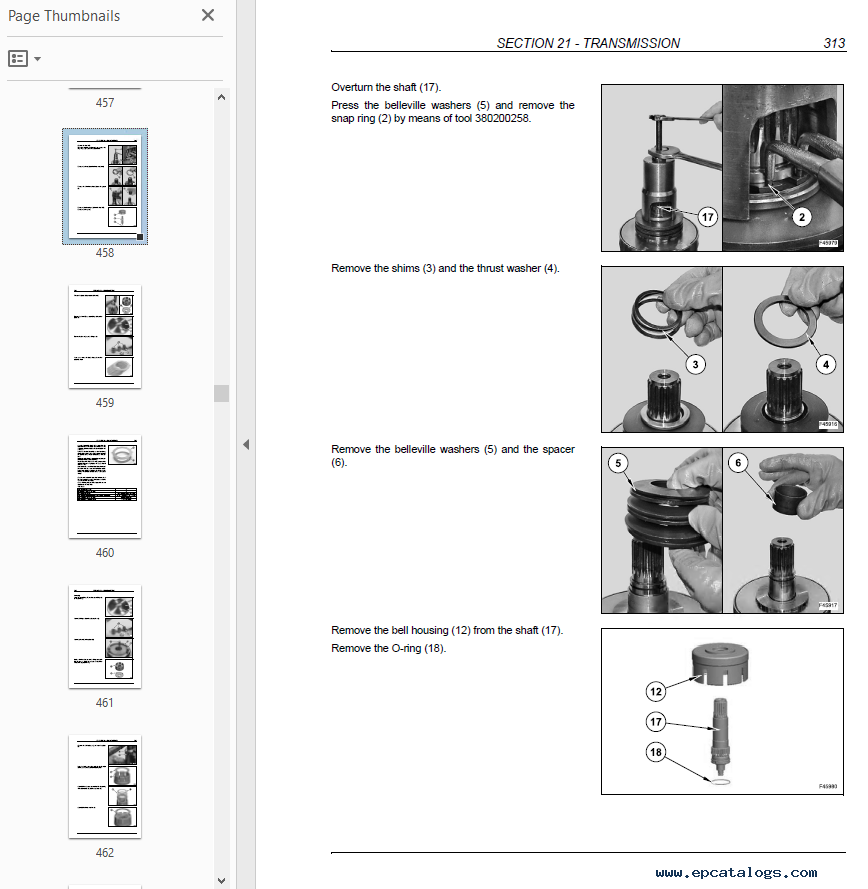

New Holland service manual is a replica of the manual published by the factory to provide information on diagnosis, service procedures, adjustments, and specs. Also, loaded with diagrams and illustrations to help disassemble, repair and reassemble various components of this equipment.

This repair manual contains complete maintenance information, technical instructions, information about spare parts and accessories, information about transmission, brake system, hydraulic system, electrical system and much other necessary information for loaders New Holand that will help to identify the breakdown and easily arrange it. In this manual, you can find wiring electrical diagrams, intended for the loader backhoe company New Holland (see below the general contents).

New Holland manual is a very reliable source of high-quality information that will make you all necessary data about this equipment.

If you want to know quick and more about your vehicle and how to prevent future problems from happening - ask us (write the letter and our managers answer you on any questions).

The service manual comes in PDF format and contents 1229 pages on English. You can work with this manual after installing Adobe PDF Reader. If necessary, you can print pages, pictures, charts, or the entire manual completely.

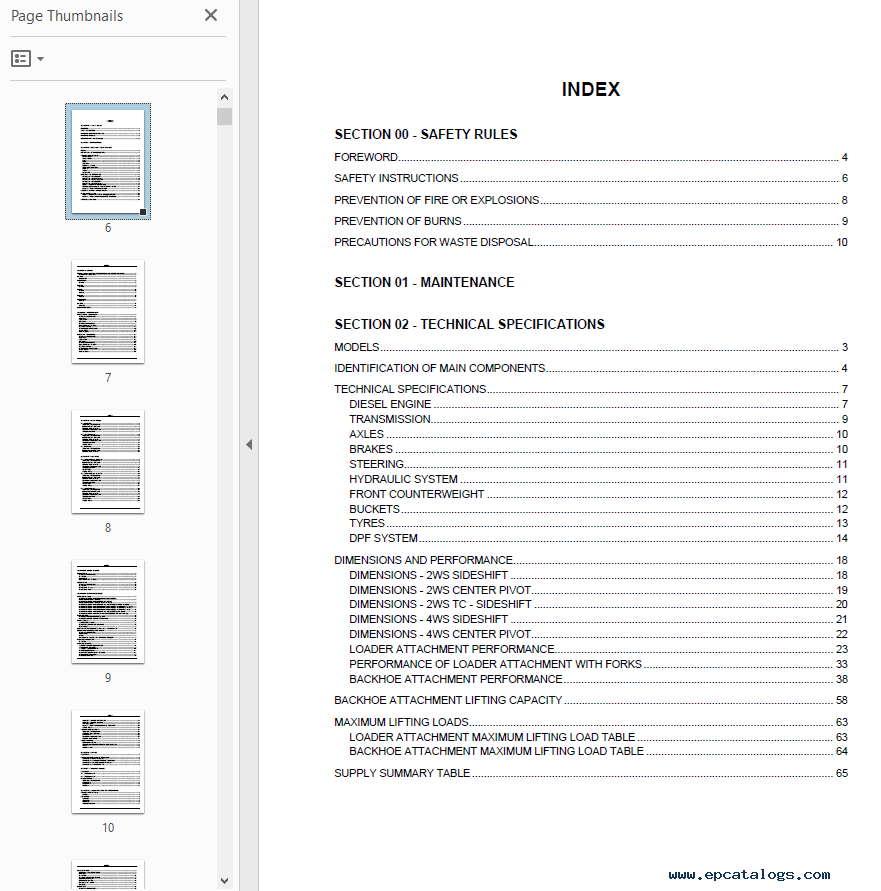

Contents:

• SECTION 00 - SAFETY RULES
  • FOREWORD
  • SAFETY INSTRUCTIONS
  • PREVENTION OF FIRE OR EXPLOSIONS
  • PREVENTION OF BURNS
  • PRECAUTIONS FOR WASTE DISPOSAL
• SECTION 01 - MAINTENANCE
• SECTION 02 - TECHNICAL SPECIFICATIONS MODELS

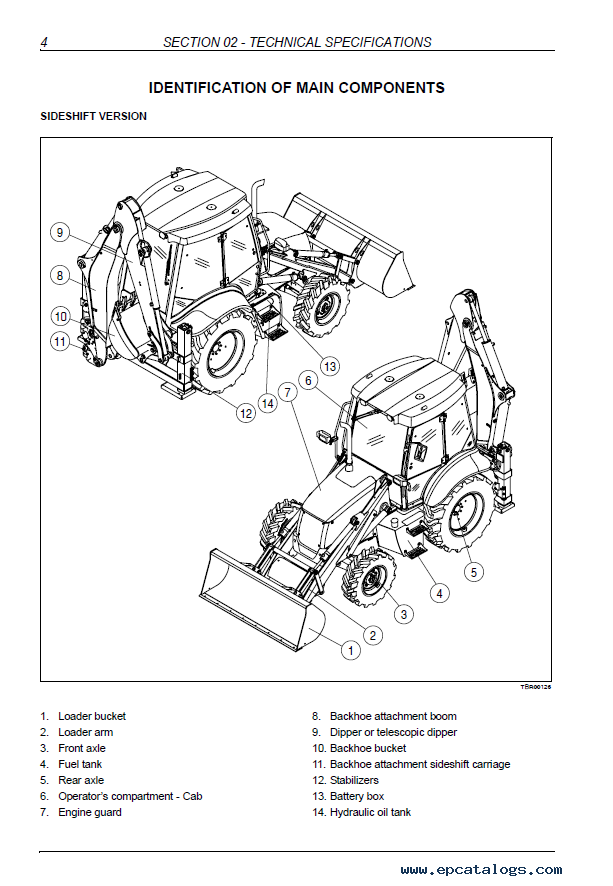

  • IDENTIFICATION OF MAIN COMPONENTS
  • TECHNICAL SPECIFICATIONS
  • DIMENSIONS AND PERFORMANCE
  • BACKHOE ATTACHMENT LIFTING CAPACITY
  • MAXIMUM LIFTING LOADS
  • SUPPLY SUMMARY TABLE
• SECTION 10 - ENGINE
  • REMOVAL AND INSTALLATION THE ENGINE HOOD, THE RADIATOR AND ENGINE
  • BATTERY
  • ENGINE HOOD
  • RADIATOR
  • ENGINE ERROR CODES
• SECTION 21 - TRANSMISSION
  • POWERSHUTTLE TRANSMISSION
  • POWERSHIFT TRANSMISSION
  • SECTION 25 - FRONT AXLES
  • 2WS FRONT AXLE
  • 4WD - 2WS FRONT AXLE
  • 4WS FRONT AXLE
• SECTION 27 - REAR AXLE
  • 2WS REAR AXLE (B100C - B100CTC)
  • 4WS REAR AXLE (B115C)
  • SECTION 33 - BRAKE SYSTEM
  • PARKING BRAKE
  • SERVICE BRAKE
• SECTION 35 - HYDRAULIC SYSTEM
  • HYDRAULIC DIAGRAMS
  • HYDRAULIC PUMP
  • CONTROL VALVES
  • BACKHOE ATTACHMENT CONTROL VALVE PILOT SOLENOID VALVE
  • ACCUMULATOR “AUTO GLIDE RIDE” PARKER
  • HYDRAULIC SWING SYSTEM
  • HYDRAULIC CYLINDERS
  • HYDRAULIC CONTROL LEVERS

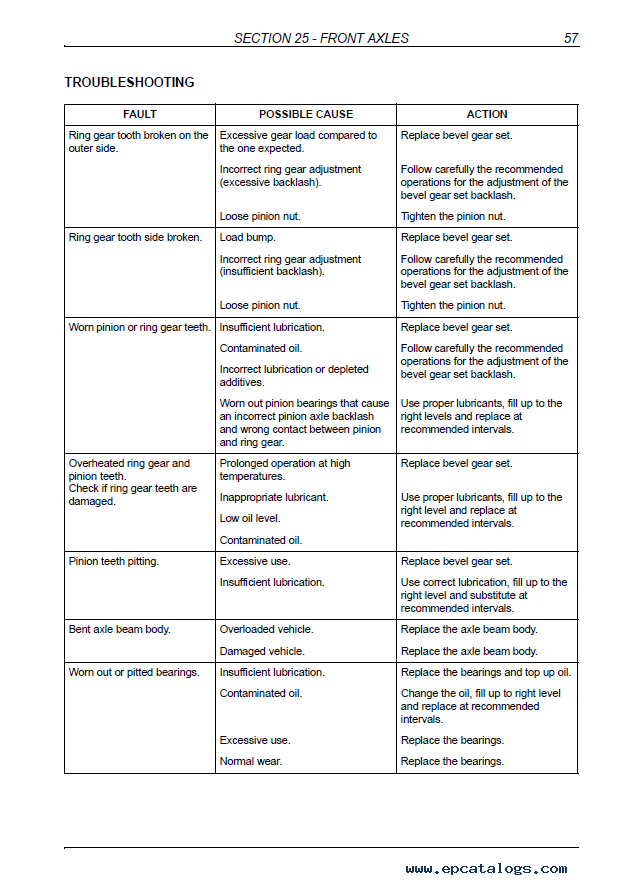

  • TROUBLESHOOTING
• SECTION 39 - CHASSIS
  • DESCRIPTION
  • REMOVAL AND INSTALLATION OF COMPONENTS
• SECTION 41 - STEERING SYSTEM
  • DESCRIPTION
  • 2WS STEERING SYSTEM
  • 4WS STEERING SYSTEM
  • POWER STEERING
• SECTION 50 - CAB HEATING AND AIR CONDITIONING
  • TECHNICAL SPECIFICATIONS
  • CAB HEATING
  • AIR CONDITIONING
  • COMPRESSOR
• SECTION 55 - ELECTRIC SYSTEM
  • ELECTRIC DIAGRAMS
  • CONTROLS AND INSTRUMENTS
  • DIAGNOSTIC DISPLAY (B100C - B100CTC - B110C - B110CTC - B115C)
  • STARTING SYSTEM
  • ALTERNATOR
  • BATTERY
  • TROUBLESHOOTING
• SECTION 82 - LOADER
  • LOADER ATTACHMENT CONTROLS
  • LOADER BUCKET SELF-LEVELLING
  • LOADER ATTACHMENT SAFETY STRUT
  • REMOVAL AND INSTALLATION OF LOADER BUCKET
  • LOADER REMOVAL
• SECTION 84 - BACKHOE
  • DESCRIPTION AND OPERATION
  • BACKHOE ATTACHMENT CONTROLS
  • BACKHOE ATTACHMENT DISASSEMBLY
  • TELESCOPIC DIPPER REVISION
  • BACKHOE ATTACHMENT HYDRAULIC HANDLING
