New Holland 216 Repair Manual 87049456

This repair manual was written in PDF format and covers descriptions, general information, safety rules, troubleshooting, and of course this manual includes many and helpful illustrations, diagrams, and schemes for the New Holland 216 model. It covers:

SECTION 00 - GENERAL INFORMATION
Chapter 1 - General Information
Section Description Page
Foreword
Precautionary Statements
Personal Safety
Machine Safety
Hardware Torque Values
Installation of Adjustable Fittings In Straight Thread O Ring Bosses
Standard Torque Data for Hydraulic Tubes and Fittings
Pipe Thread Fitting Torque
Installation of ORFS (O Ring Flat Faced) Fittings
Ecology and the Environment
International Symbols
General Features
Tractor Hydraulic Requirements
Trailing Lights
Attaching to the Tractor
Rake Controls

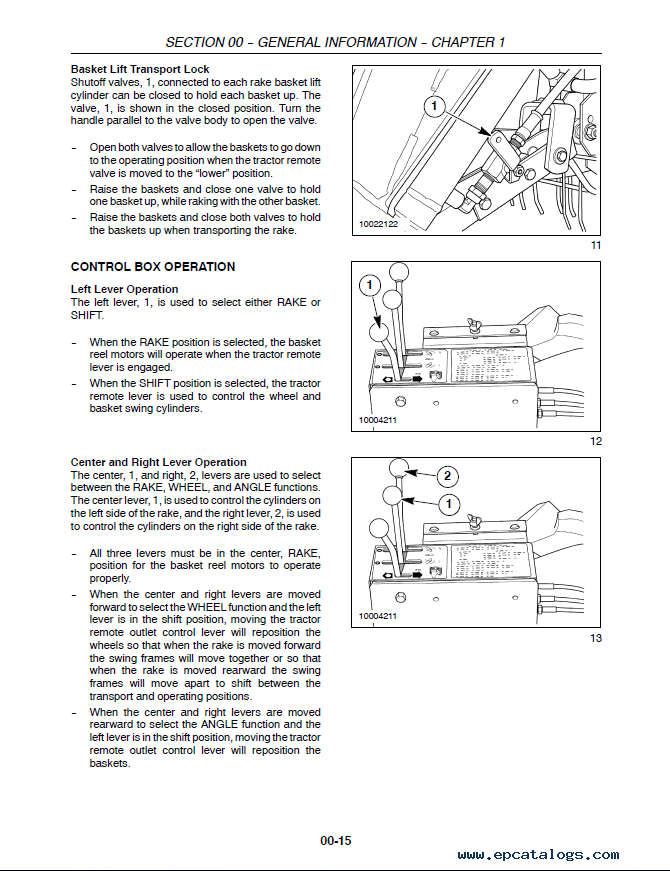

Control Box Operation

SECTION 35 - HYDRAULIC SYSTEMS
Chapter 1 - Hydraulic Systems
Section Description Page
Swing Cylinder
Lift Cylinder
Steering Cylinder

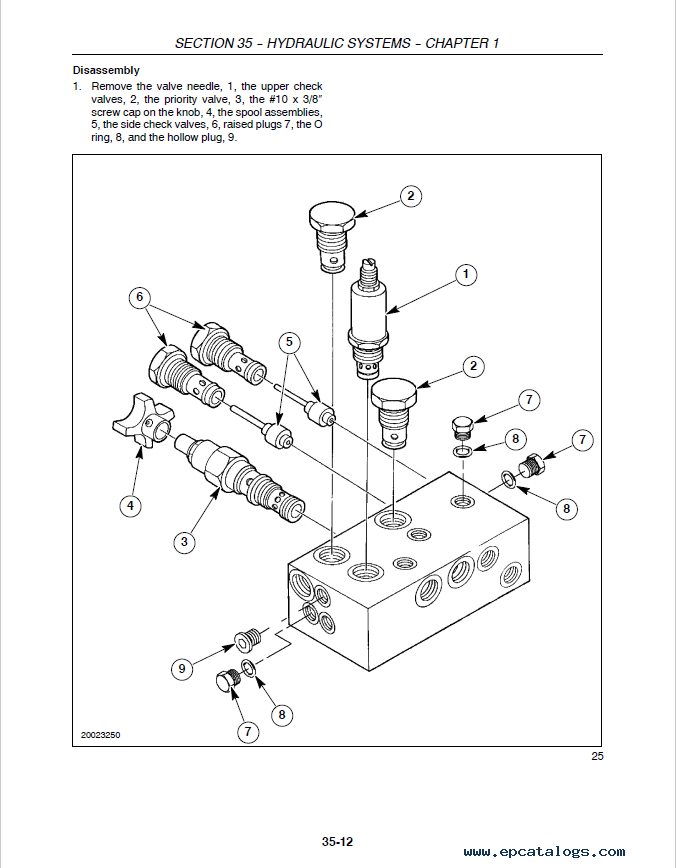

Manifold Valve
Rotary Diverter Valve
Valve Selector
Dual Pilot Check Valve
Basket Reel Motor

SECTION 39 - FRAMES
Chapter 1 - Frames
Section Description Page
Frame
Stabilizer Bar
Steering Link
Steering Arm
Pivot

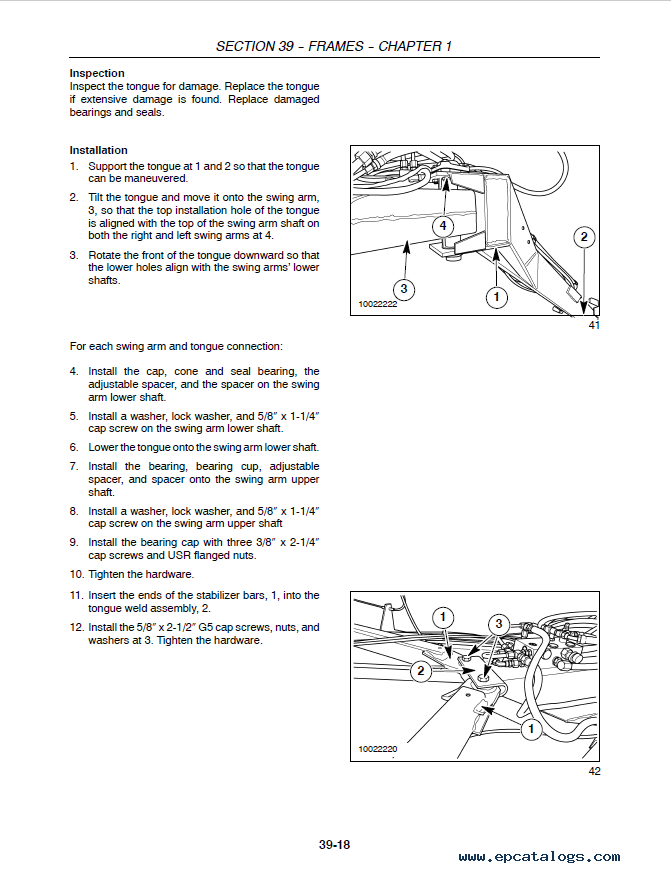

Tongue and Hitch Assembly
Hitch Replacement
Tongue Replacement
Swing Arms
Main Frame
Tension Flotation Spring Replacement
Upper link
Basket Height Adjustment Assembly Replacement
Lower Arm Assembly Replacement

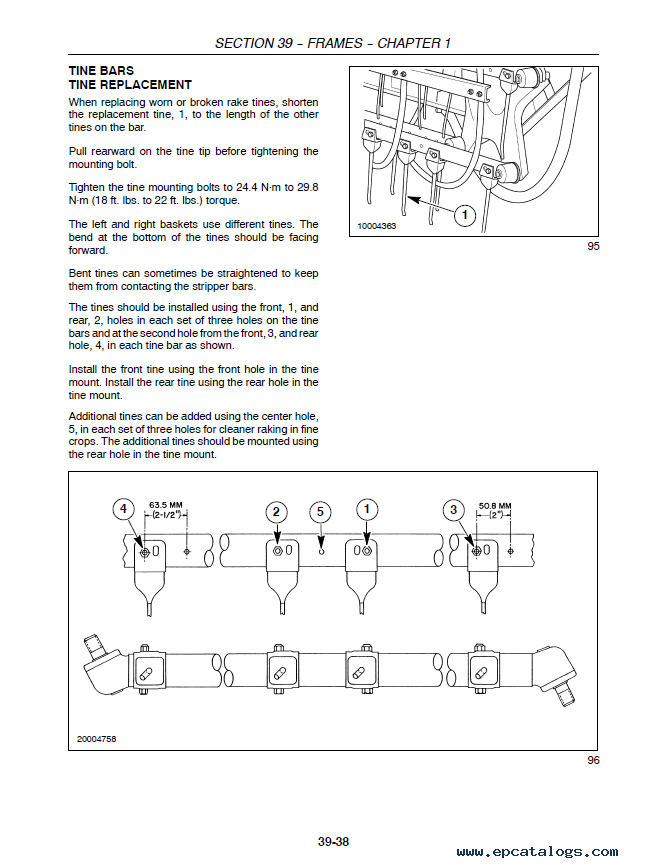

Tine Bars
Tine Replacement
Tine Bar Bearing Replacement
Tine Bar Replacement

SECTION 44 - WHEEL AND AXLE
Chapter 1 - Wheel and Axle
Section Description Page
Wheel and Axle

SECTION 55 - ELECTRICAL SYSTEM
Chapter 1 - Electrical System
Section Description Page
Implement Lights
Installing #9603575 Socket
Lighting Control Box
Trailer Connector Repair

SECTION 90 - DECALS
Chapter 1 - Decals
Section Description Page
Safety Decals
