New Holland 1441, 1442 Repair Manual PDF 86614447

This service manual covers important and useful material with different illustrations for maintaining and repairing the New Holland 1441, 1442 models. It covers:

SECTION 00 - GENERAL INFORMATION
Chapter 1 - General Information
Section Description Page
Special Tools
Specifications (Model 1441)
Specifications (Model 1442)
Lubrication
Recommended Lubricants and Coolants
Minimum Hardware Tightening Torques
Installation of Adjustable Fittings
Standard Torque Data for Hydraulic Tubes and Fittings
Pipe Thread Fitting Torque
Installation of ORFS (O-ring Flat Faced) Fittings

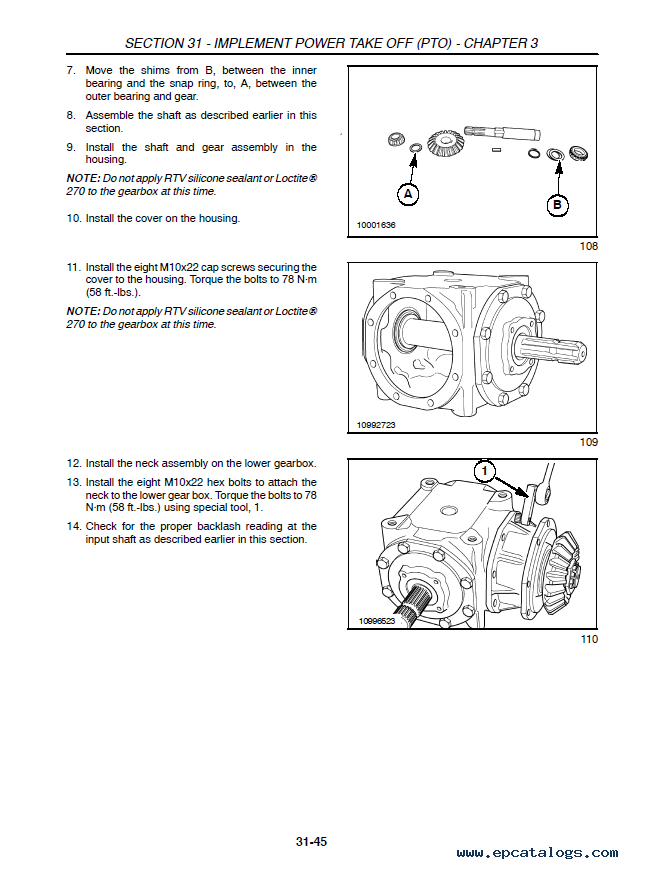

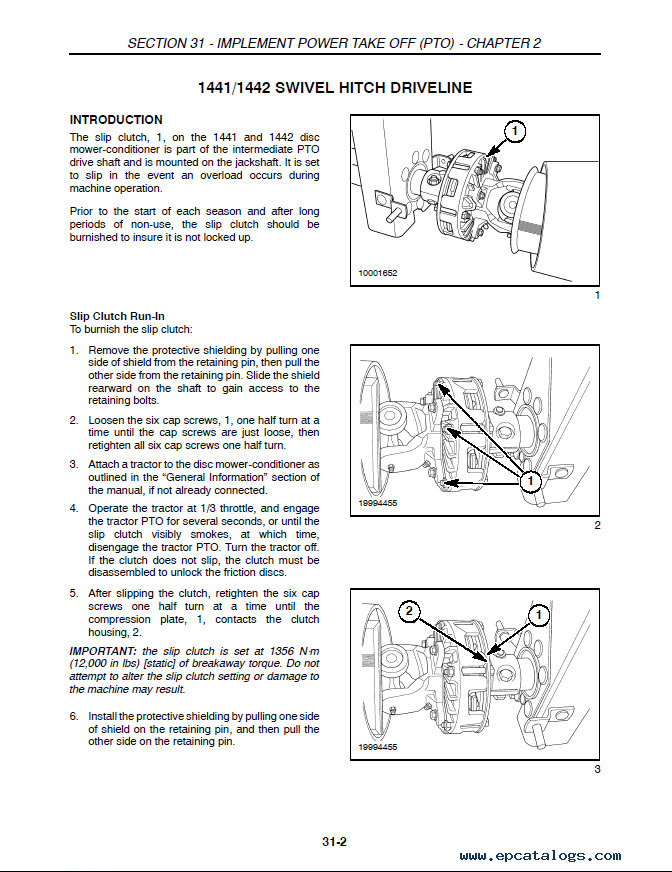

SECTION 31 - IMPLEMENT POWER TAKE OFF (PTO)
Chapter 1 - Drive Lines (Standard Tongue)
Section Description Page
Driveline (Standard Tongue)
Introduction
Primary PTO
Intermediate PTO
Jackshaft
Secondary PTO
Slide Lock
Auto-lok Slide Lock
Standard Driveline Guards
U-joints: Swivel Hitch Units
Labor Guide

SECTION 35 - HYDRAULIC SYSTEM
Chapter 1 - Cylinders
Section Description Page
Introduction
Hydraulic Diagram
Bleeding Air from the Lift Cylinders
Lift Cylinder Removal
Master Cylinder - Disassembly
Master Cylinder - Inspection
Master Cylinder - Assembly
Slave Cylinder - Disassembly
Slave Cylinder - Inspection
Slave Cylinder - Assembly
Header Tilt Cylinder Removal
Header Tilt Cylinder Disassembly
Header Tilt Cylinder Assembly
Header Tilt Cylinder Installation
Tongue Swing Cylinder Removal
Tongue Swing Cylinder Disassembly
Tongue Swing Cylinder Assembly
Tongue Swing Cylinder - Installation
Labor Guide

SECTION 39 - FRAMES/TONGUE AND HITCHES
Chapter 1 - Hood and Hood Liner
Section Description Page
Hood Removal
Hood Installation
Hood Liner Removal
Hood Liner Installation
Labor Guide

SECTION 55 - ELECTRICAL SYSTEM

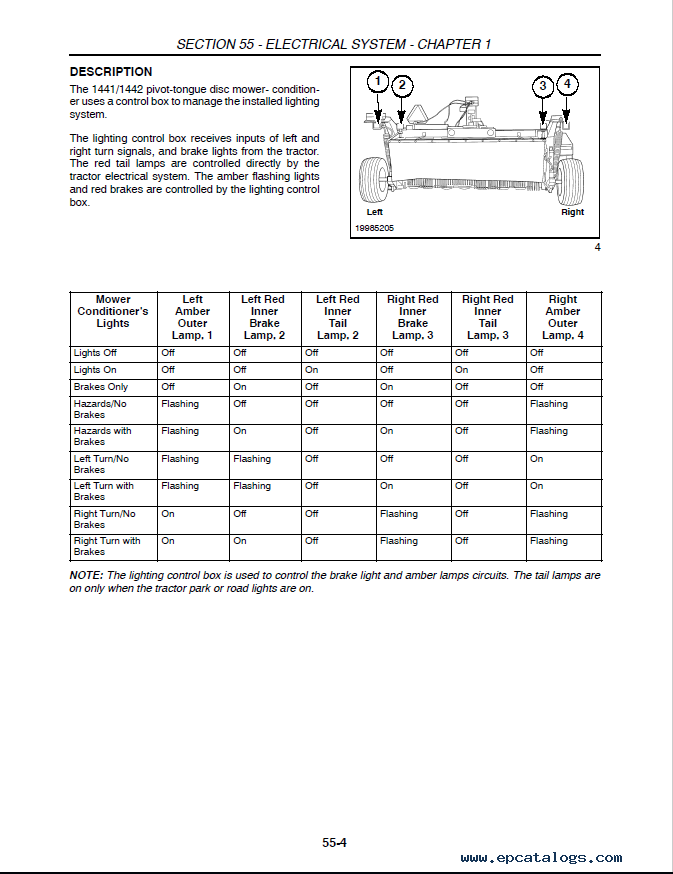

Chapter 1 - Implement Lights
Section Description Page
Introduction
Trailing Lights
Description
Installing #9603575 Socket
Trailer Connector Repair
Lighting Control Box - Removal and Installation
Model 1441/1442 Wiring Schematic

SECTION 58 - ATTACHMENTS/HEADERS
Chapter 1 - Cutter Bar
Section Description Page
Special Tools
Introduction
Discs
Knife And Bolt Inspection
Disc Knives
7 Degree Twist Knives
14 Degree Twist Knives
V Knives
Knife Replacement
Crop Lifter Replacement (Model 1441 Only)
Rock Guards
Skid Shoes
Cutter Bar Inspection/Failure Analysis
Top Cap Removal
Inspection
Top Cap Installation
Cutter Bar Removal
Cutter Bar Installation
Cutter Bar Bayonet Bushing - Replacement
Cutter Bar Disassembly
Cutter Bar Reassembly
Disc Module - Disassembly
Disc Module - Assembly

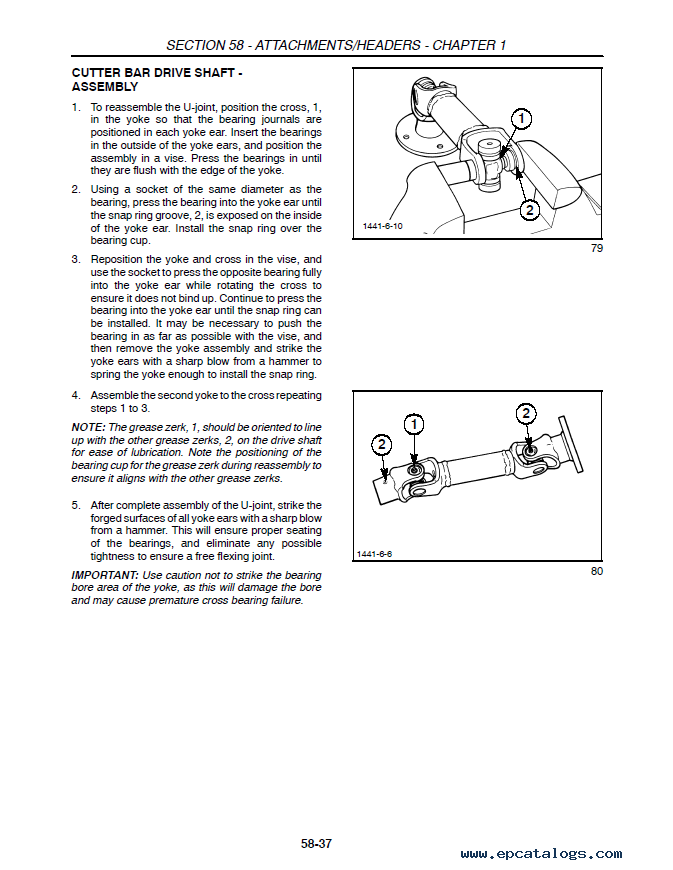

Cutter Bar Drive Shaft - Removal
Cutter Bar Drive Shaft - Disassembly
Cutter Bar Drive Shaft - Assembly
Labor Guide

SECTION 90 - DECALS
Chapter 1 - Decals
Section Description Page
Model 1441 Safety Decals
Model 1442 Safety Decals

Models: 1441, 1442

86614447

With the help of this online text, you can independently perform many procedures yourself. This comprehensive manual is suitable for professional technicians and novice mechanics alike.

Features of the Manual
Format: PDF
Language: English
Pages: 350
Compatible with all versions of Windows, Mac, Linux, iPhone, iPad, and Android
The Electronic guide includes sections about service and maintenance procedures, special repair instructions, operation, troubleshooting, photographs and illustrations, many schematics, and diagrams. Follow the step-by-step recommendations with illustrations during your work and it will be easy for you to understand the unexpected situation.
