New Holland 1411, 1412 Repair Manual PDF

We present the Service Manual with helpful information, repair instructions, troubleshooting, and service recommendations specifically for illustrations, and diagrams for maintaining and repairing the New Holland 1411, 1412 models. It covers:

SECTION 00 -- GENERAL INFORMATION
Chapter 1 -- General Information
Section Description Page
Foreword
Precautionary Statements
Safety
Serial Number
Manual Holder

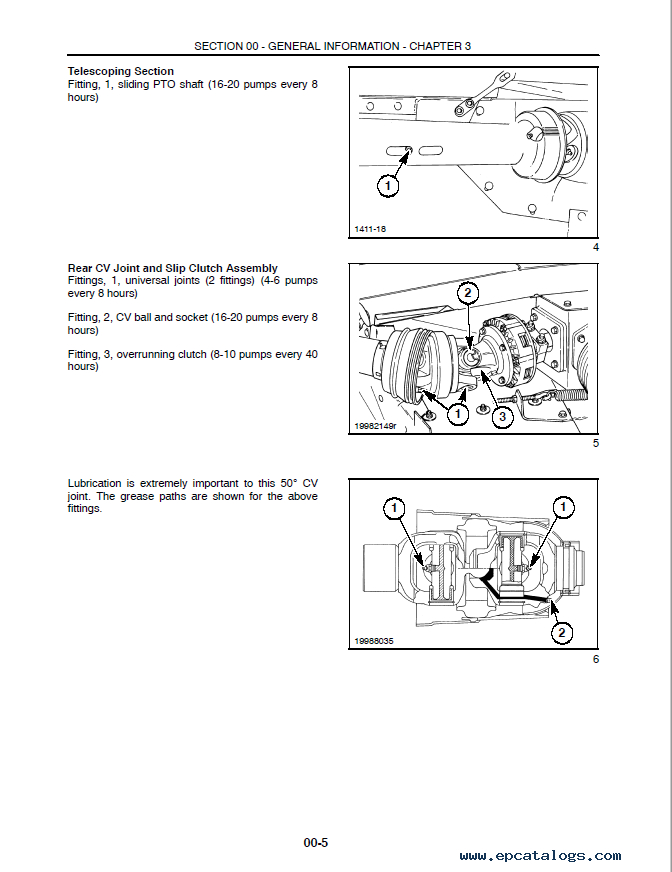

Hardware Torque Values
Installation of Adjustable Fittings
Standard Torque Data For Hydraulic Tubes and Fittings
Pipe Thread Fitting Torque
Installation of ORFS (O Ring Flat Faced) Fittings
Ecology and the Environment
International Symbols
Tractor Requirements
Tractor Drawbar Dimensions
Attaching the Mower-conditioner to the Tractor
Jack Assembly
Hydraulic Hoses
Hydraulic Cylinders
Connecting Hydraulic Hoses to the Tractor
Bleeding Air from the Lift Cylinders
Transporting the Mower-conditioner
Slow-moving Vehicle Emblem
Transporting On Highways
Safety Chain
Trailing Lights
Towing with a Tractor
Towing with a Truck
Parking the Machine
Storing the Mower-conditioner
Specifications

SECTION 31 -- IMPLEMENT POWER TAKE-OFF (PTO)
Chapter 1 -- PTO
Section Description Page

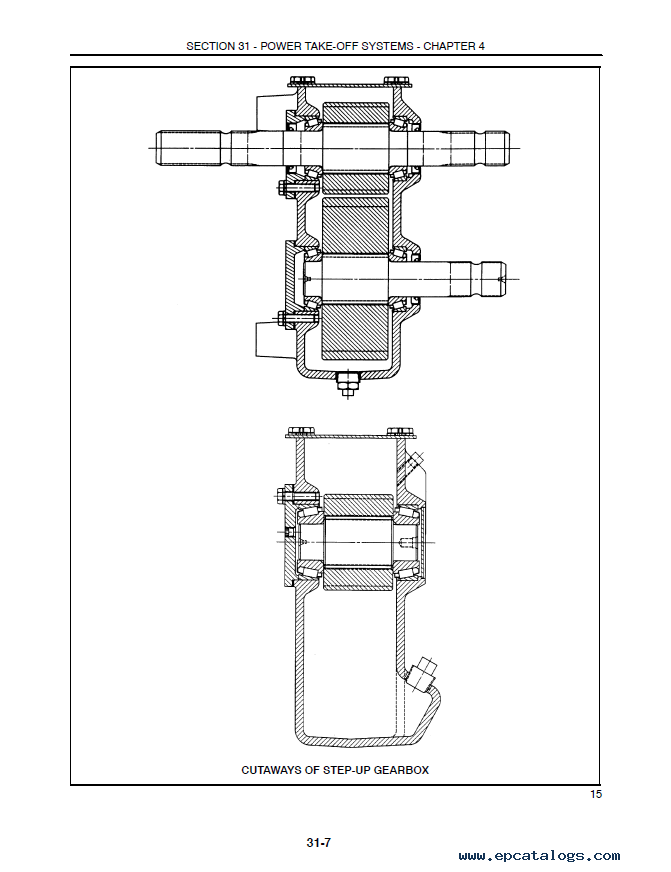

Drive Shaft Removal/Installation
U-Joints
Repair Time Schedule

SECTION 35 -- HYDRAULIC SYSTEMS
Chapter 1 -- Hydraulic Cylinders
Section Description Page
Hydraulic Diagram
Bleeding Air from the Lift Cylinders
Lift Cylinder Removal
Master Cylinder
Slave Cylinder
Header Tilt Cylinder
Swing Cylinder
Repair Time Schedule

SECTION 39 -- FRAMES
Chapter 1 -- Hood Liner
Section Description Page
Hood Liner Removal
Hood Liner Installation
Conditioning Hood Removal
Conditioning Hood Installation
Repair Time Schedule

SECTION 55 -- ELECTRICAL SYSTEM
Chapter 1 -- Implement Lights
Section Description Page
Trailing Lights
Installing The Socket
Repair Time Schedule

SECTION 58 -- ATTACHMENTS / HEADERS

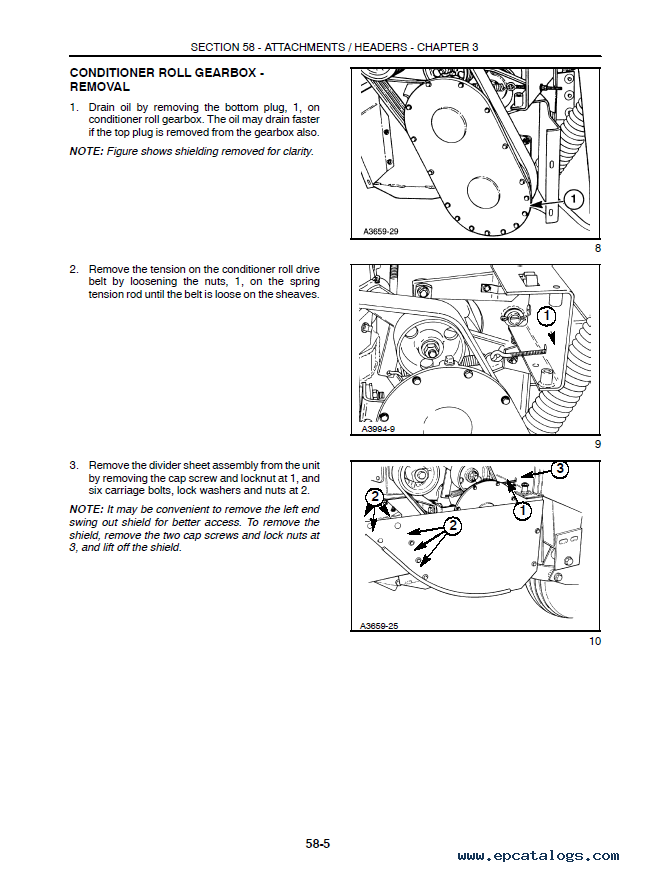

Chapter 1 -- Cutter Bar
Section Description Page
Introduction

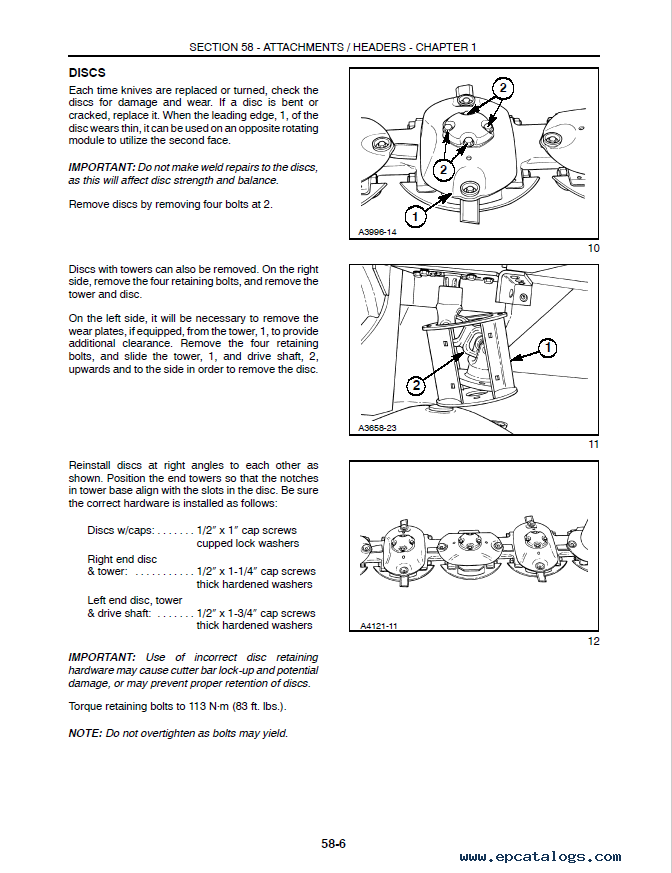

Discs
Knife and Bolt Inspection
Knife Replacement
Crop Lifter Replacement
Rock Guards
Skid Shoes
Cutter Bar Inspection/Failure Analysis
Top Cap Removal
Inspection
Top Cap Installation
Cutter Bar Removal
Cutter Bar Installation
Cutter Bar Bayonet Bushing - Replacement
Cutter Bar Disassembly
Cutter Bar Reassembly
Disc Module - Disassembly
Disc Module - Assembly
Cutter Bar Drive Shaft - Disassembly
Cutter Bar Drive Shaft - Assembly
Repair Time Schedule

SECTION 88 -- ACCESSORIES
Chapter 1 -- Optional Equipment
Section Description Page
Safety Chain
High Stubble Kit
Viney Crop Guide
Anti-Rotation Guard Kit
High Speed Rotor (Model 1412 Only)
Dimpled Hood Liner (Model 1412 Only)

SECTION 90 -- SAFETY DECALS
Chapter 1 - Safety Decals
Section Description Page
Safety Decals

Models: 1411, 1412
Part number 86630282

Please read this factory file and you learn about the rules, and notes, advice, and other recommendations to avoid any problems with the New Holland 1411, 1412 models. This guide helps beginners and experienced professionals.
