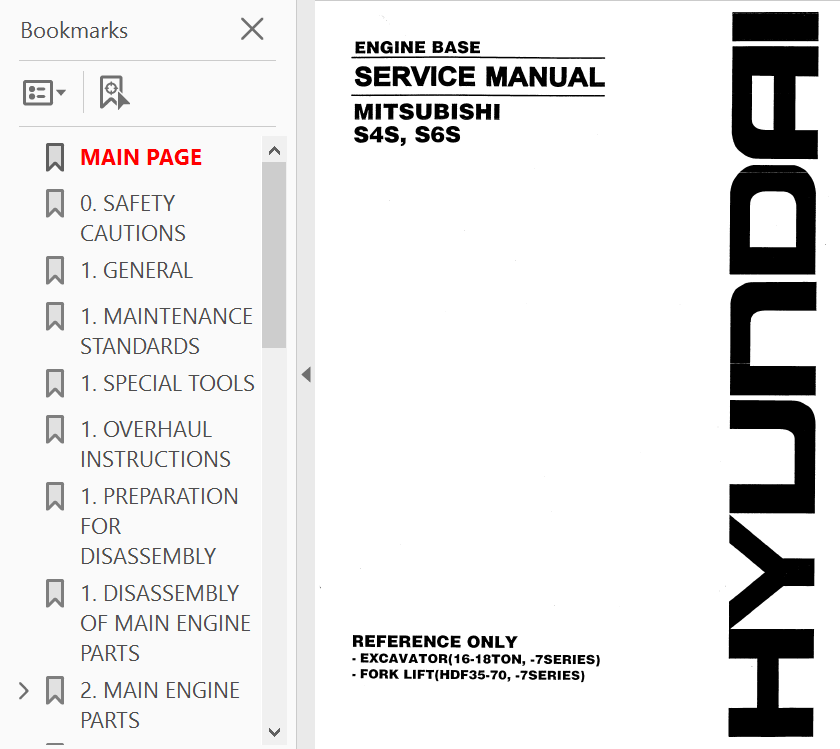

Mitsubishi Engine Base S4S, S6S Service Manual for Hyundai Equipment

This service manual describes the specifications of the Mitsubishi Diesel Engine and the maintenance and adjustment procedures.
To maintain the performance of the engine for many years and to ensure safe operation, it is important to use the engine correctly and conduct regular inspection and maintenance, and also to take necessary measures which involve the disassembly, inspection, repair, and reassembly of the engine and engine parts.
This service guide is presented in PDF format, includes 241 pages, which are printable and readable. We recommend using Adobe PDF Reader, to be sure all images/graphics will display correctly.

Publication Number:
99616-10180

Engine models covered:
S4S,
S6S.

Reference only:
- Excavator (16-18 Ton, -7 Series)
- Fork Lift (HDF35-70, -7 Series)

Contents:

• Group 0 - Safety Cautions
• Group 1 - General
  •     General
  •     Maintenance Standards
  •     Special Tools
  •     Overhaul Instructions
  •     Preparation for Disassembly
• Group 2 - Main Engine Parts
  •     Disassembly
  •     Inspection and Repair
  •     Reassembly

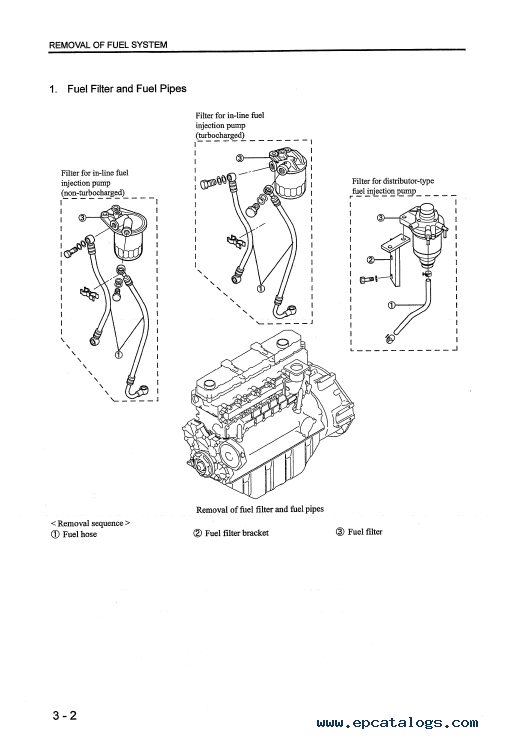

• Group 3 - Fuel System
  •     Removal
  •     Disassembly, Inspection, and Reassembly
  •     Installation
• Group 4 - Lubrication System
  •     Removal
  •     Disassembly, Inspection, and Reassembly
  •     Installation
• Group 5 - Cooling System
  •     Removal
  •     Disassembly, Inspection, and Reassembly
  •     Installation
• Group 6 - Inlet and Exhaust Systems
  •     Removal
  •     Disassembly, Inspection, and Reassembly
  •     Installation
• Group 7 - Electrical System
  •     Removal
  •     Disassembly, Inspection, and Reassembly
  •     Installation
• Group 8 - Inspection, Adjustment, Break-In Operation And Performance Tests
  •     Adjustment of Engine
  •     Break-In Operation
  •     Performance Tests
• Group 9 - Others
  •     Disassembly and Reassembly of General Parts
