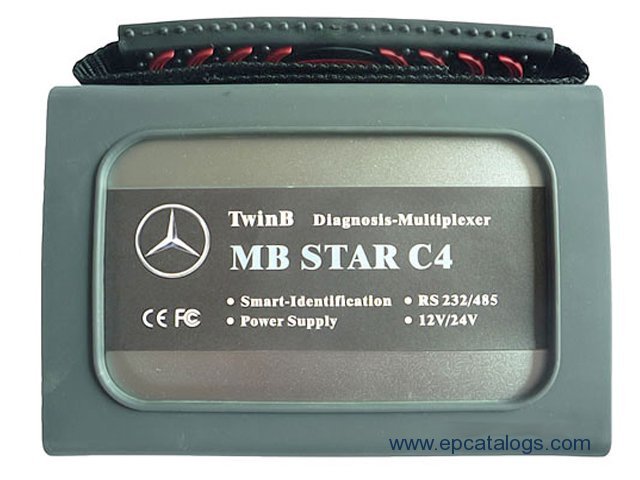

Mercedes Benz STAR compact C4 Diagnostic interface

This is a big difference in the shape of Compact3 and smaller in size, lighter in weight than Compact3. C4 2008 can do all the things that makes Compact3 is replacing Compact3-Star.

Diagnostic Tool Mercedes Benz STAR compact C4 operates based on the system Windows XP, the program includes workshops information system (WIS system), traffic control systems and automatic diagnostic systems (DAS).

Mercedes Benz STAR compact C4 works with original computer (Compact3) via both of RS232 and 485 protocol. Power can be supplied to original computer (Compact3) through the star cables.

Diagnostic adapter Mercedes Benz STAR compact C4 help diagnose a variety of cars, trucks, buses, the company Mercedes Benz.

MB Star C4 Version: March 2010

Interface Specifications:

1.MB Star C4 has RS232/485 interface, which can connect with touch screen and also common screen.

2.MB Star C4 can work in the voltage of 12V/24V.

3.MB Star C4 can supply power to the computer with the power cable.

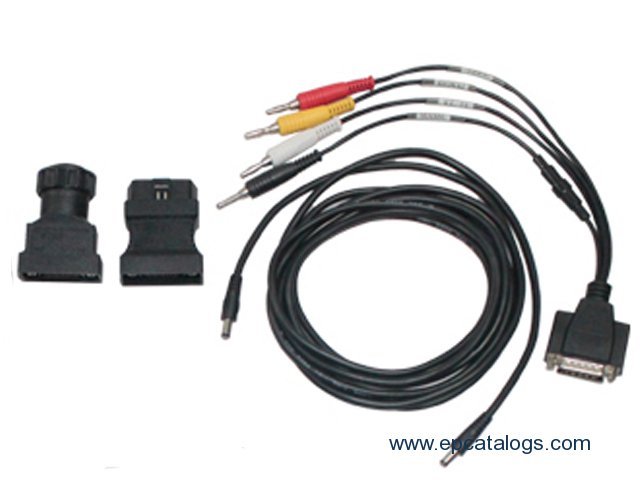

Package List:

  1.1pc x C4 Multiplexer

  2.1pc x 14 pin

  3.1pc x 16-pin connector

  4.1pc x OBD2 cable

  5.1pc x 4 pin cable

  6.1pc x 14 pin cable

  7.1pc x Communication Cable

  8.1pc x 38 pin cable
