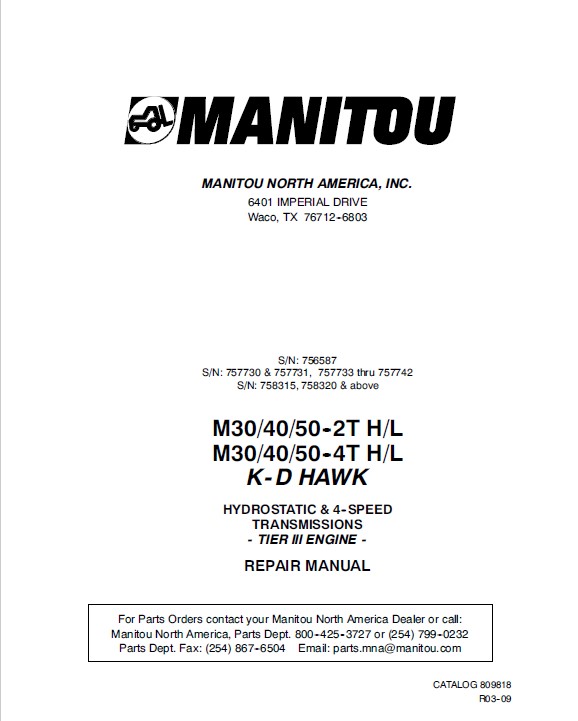

Manitou Forklifts M30/40/50-2T H/L, M30/40/50-4T H/L Repair Manual PDF

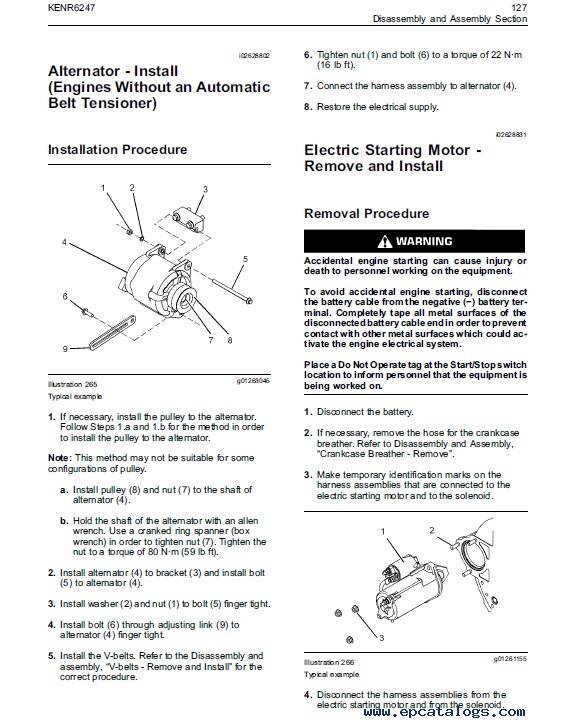

This PDF Repair Manual includes repair materials, setting, recommendations, assembly, disassembly, safety, and care rules, service information, a lot of images with descriptions, different diagrams, schemes for Manitou Forklifts M30/40/50-2T H/L, M30/40/50-4T H/L Models.

This technical publication aims to provide comprehensive support to the timely Manitou Forklifts owner in the study of the structure and functioning of all automotive systems, as well as to give the user important information on servicing the forklifts.

This technical repair manual comes in PDF format. So, it doesn't require any installation (Instant Download). We recommend you use the application Adobe Acrobat Reader for working with PDF instructions. Also, we recommend you print this manual and use it as a handbook when it will be necessary.

For your convenience, we present you with a link 'Manitou pdf manual instant preview' on the top of this page. This link will help you to preview this PDF manual and understand whether this manual contains needed for your service information or not.

To purchase this pdf tutorial, click the 'Buy Now' button. Fill out the proposed form and within a few minutes, a letter with all the recommendations and installation instructions will be sent to your e-mail. If you have any questions or suggestions - write to us.

Models covered:
M30/40/50-2T H/L
M30/40/50-4T H/L
K-D HAWK
HYDROSTATIC & 4-SPEED TRANSMISSIONS
- TIER III ENGINE -

REF: 809818

Serial Numbers:
S/N: 756587
S/N: 757730 & 757731, 757733 thru 757742
S/N: 758315, 758320 & above

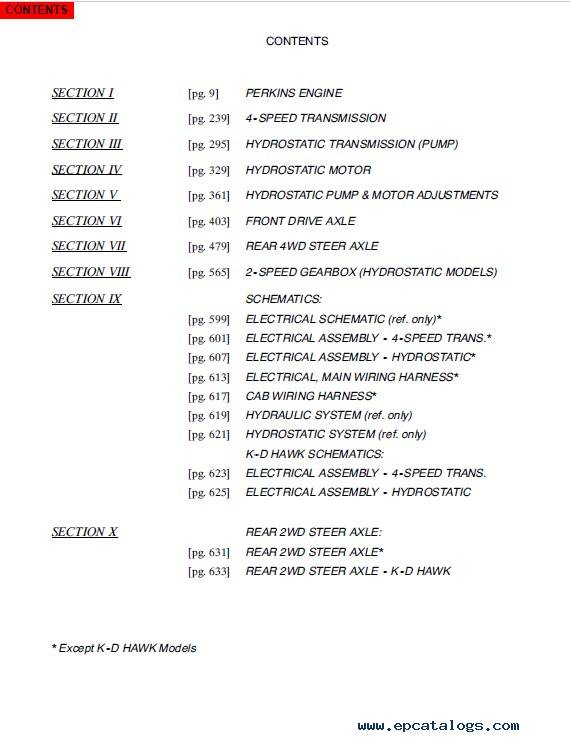

CONTENTS:
SECTION I [pg. 9] PERKINS ENGINE
SECTION II [pg. 239] 4--SPEED TRANSMISSION
SECTION III [pg. 295] HYDROSTATIC TRANSMISSION (PUMP)
SECTION IV [pg. 329] HYDROSTATIC MOTOR
SECTION V [pg. 361] HYDROSTATIC PUMP & MOTOR ADJUSTMENTS
SECTION VI [pg. 403] FRONT DRIVE AXLE
SECTION VII [pg. 479] REAR 4WD STEER AXLE
SECTION VIII [pg. 565] 2--SPEED GEARBOX (HYDROSTATIC MODELS)
SECTION IX SCHEMATICS:
[pg. 599] ELECTRICAL SCHEMATIC (ref. only)*
[pg. 601] ELECTRICAL ASSEMBLY -- 4--SPEED TRANS.*
[pg. 607] ELECTRICAL ASSEMBLY -- HYDROSTATIC*
[pg. 613] ELECTRICAL, MAIN WIRING HARNESS*
[pg. 617] CAB WIRING HARNESS*
[pg. 619] HYDRAULIC SYSTEM (ref. only)
[pg. 621] HYDROSTATIC SYSTEM (ref. only)
K--D HAWK SCHEMATICS:
[pg. 623] ELECTRICAL ASSEMBLY -- 4--SPEED TRANS.
[pg. 625] ELECTRICAL ASSEMBLY -- HYDROSTATIC
SECTION X REAR 2WD STEER AXLE:
[pg. 631] REAR 2WD STEER AXLE*
[pg. 633] REAR 2WD STEER AXLE -- K--D HAWK
