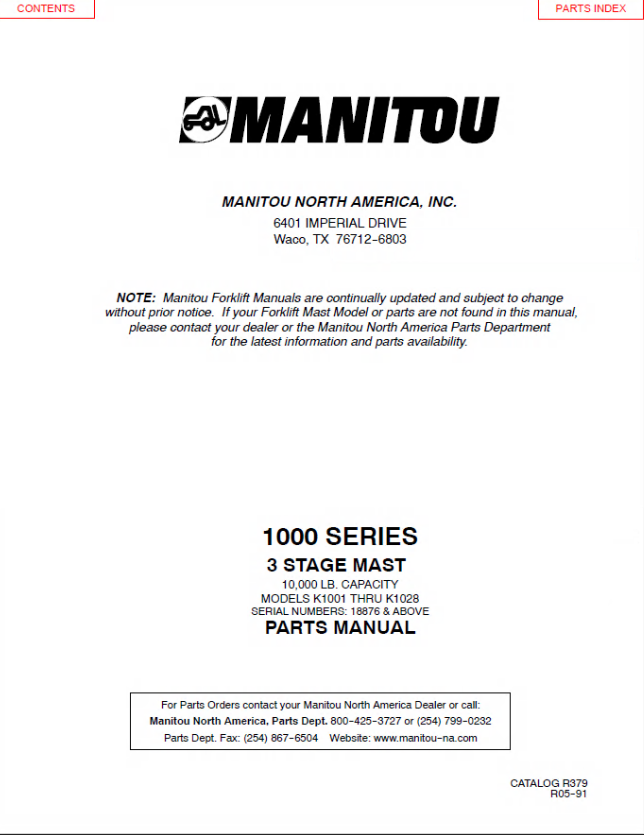

Manitou 1000 Series 3 STAGEMAST Parts Manual PDF

Presented the Parts Manual with illustrations, diagrams, and schemes for Manitou 1000 Series 3 STAGE MAST. In this electronic guide, you can find much important and useful information for good work with this equipment. The factory guide consists of detailed general material, special instructions, descriptions, setting, a lot of screenshots and illustrations, diagrams, tables, schemes, and many others.

It is very important to read the tutorial carefully before using your device to avoid various unforeseen breakdowns, damage, or injuries. The electronic guide is presented in the English language in PDF format and has 46 pages for reading. In case you will be something that is not clear and you will not know what to do. Write to us and we will help you answer all your questions.

CONTENTS:

RAIL ASSEMBLY

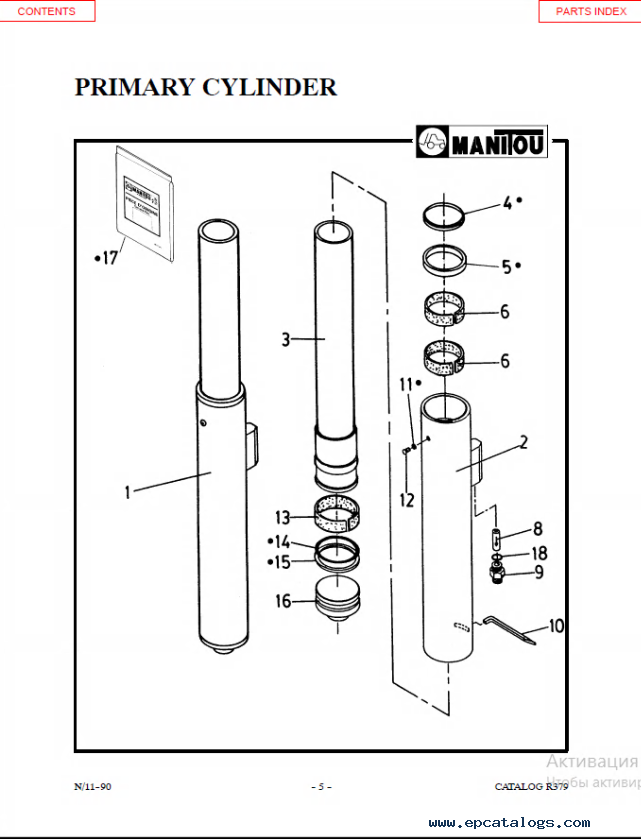

PRIMARY CYLINDER

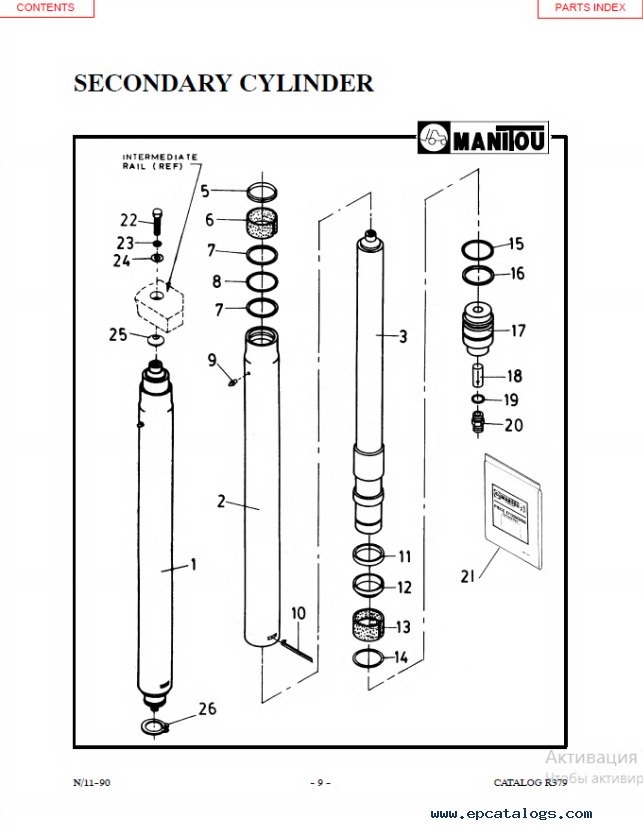

SECONDARY CYLINDER
CHAIN ASSEMBLY
HYDRAULIC SYSTEM
HOSE KIT ASSEMBLY

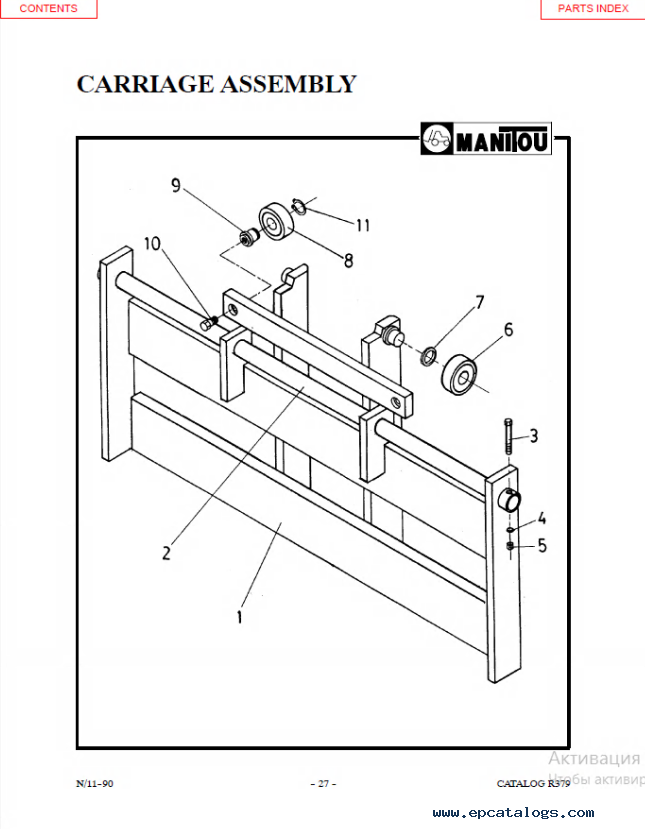

CARRIAGE ASSEMBLY (HOOK TYPE)
CARRIAGE ASSEMBLY (HOOK TYPE)
CARRIAGE ASSEMBLY (SHAFT NOTCH)
SIDE SHIFT ASSEMBLY, CLASS III
SIDE SHIFT ASSEMBLY, CLASS IV
CARRIAGE ASSEMBLY
CYLINDER ASSEMBLY
SIDE SHIFT HYDRAULICS
PARTS INDEX

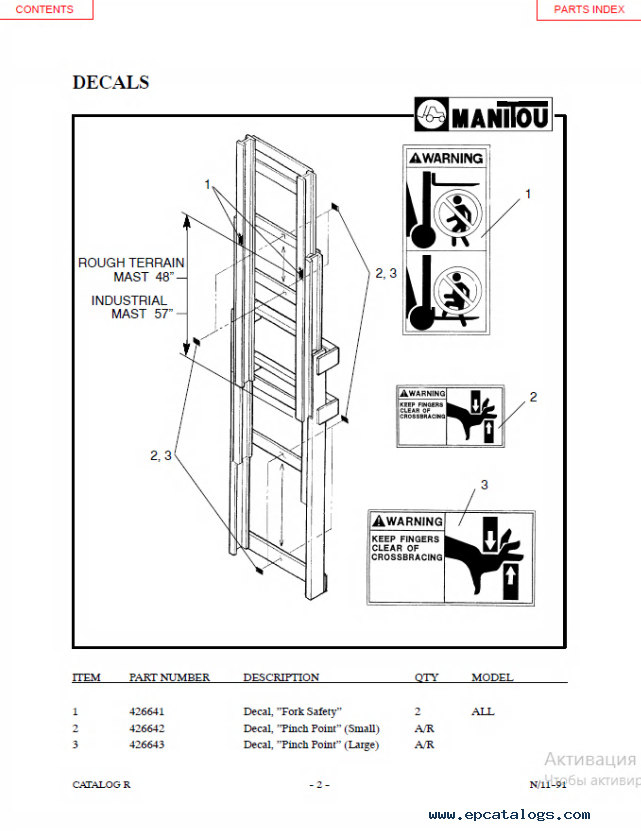

DECALS SUPPLEMENT
SERVICE MANUAL
