Man Monitoring Diagnose System (MMDS) D 0836 LE 401 EDC PDF

This PDF Manual was created especially for the operation and repair of the Man Monitoring Diagnose System (MMDS) D 0836 LE 401 EDC.

This manual is intended to help you:
- Familiarize yourself with the components of the MAN Monitoring Diagnostic System (MMDS for short);
- Recognize the interaction of the individual MMDS components;
- Install the system correctly in the ship;
- Rectify faults and malfunctions.

This PDF guide was devised under the assumption that its readers will have the necessary basic knowledge of handling and working with marine engines and their electrical systems.

You can study this pdf manual using screenshots and a list of content, which is presented in the manual description. You can also follow the link 'Man pdf manual instant preview', and preview the pages of this manual.

This manual comes in PDF format. So, it doesn't require any installation (Instant Download). We recommend you use the application Adobe Acrobat Reader for working with PDF instruction. The Acrobat Reader allows anyone to view, navigate, and print documents in the Adobe Portable Document Format (PDF) with the click of your mouse.

Note: The Manual is available in several languages ​​- English, German, French, Spanish, Italian.

Models covered:
D 0836 LE 401 EDC
12 Volt - 24 Volt

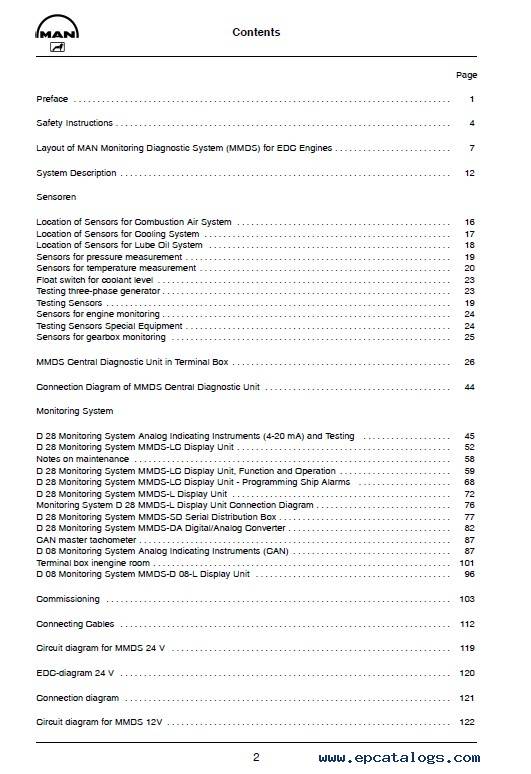

Contents:
Preface
Safety Instructions

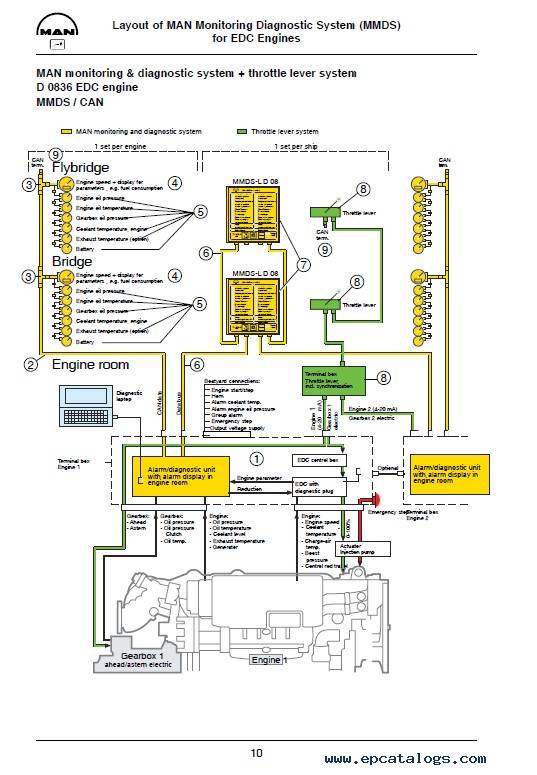

The layout of MAN Monitoring Diagnostic System (MMDS) for EDC Engines
System Description
Sensoren
MMDS Central Diagnostic Unit in Terminal Box
Connection Diagram of MMDS Central Diagnostic Unit
Monitoring System
Commissioning
Connecting Cables
Circuit diagram for MMDS 24 V
EDC-diagram 24 V
Connection diagram
Circuit diagram for MMDS 12V
EDC-diagram 12V
Wiring of MMDS individual components MMDS
Index
