Liebherr LTM 1130-5.1 Hyraulics Superstructure General Layout Emergency Operation

The Hydraulic Superstructure General Layout Emergency Operation manual has good material with descriptions that will help you find and get acquainted with the information that you will need in working with this Liebherr LTM 1130-5.1. Factory book contains hydraulic material, colored schemes, different diagrams, and other illustrations with descriptions. Please, take the time to read all the sections especially about safety rules, notes.

This will help you avoid any problems such as breakdowns, damage, or injuries. The online tutorial has a convenient and easy-to-use interface that supports English. To read and print the information you must install the Adobe PDF Reader program. Any questions you may have you can ask us and we will help you. Total: 16 pages.

Table of Contents:

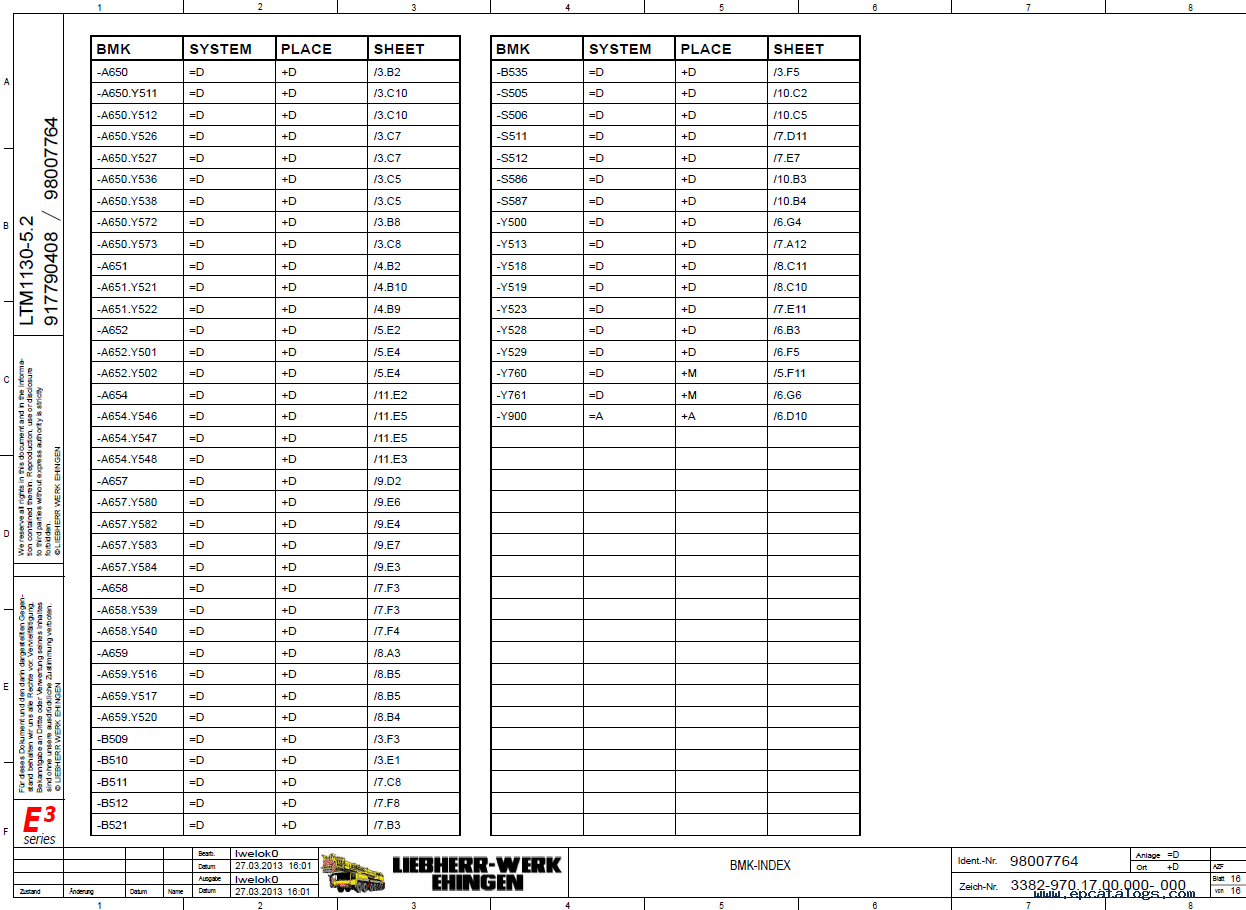

BMK-INDEX

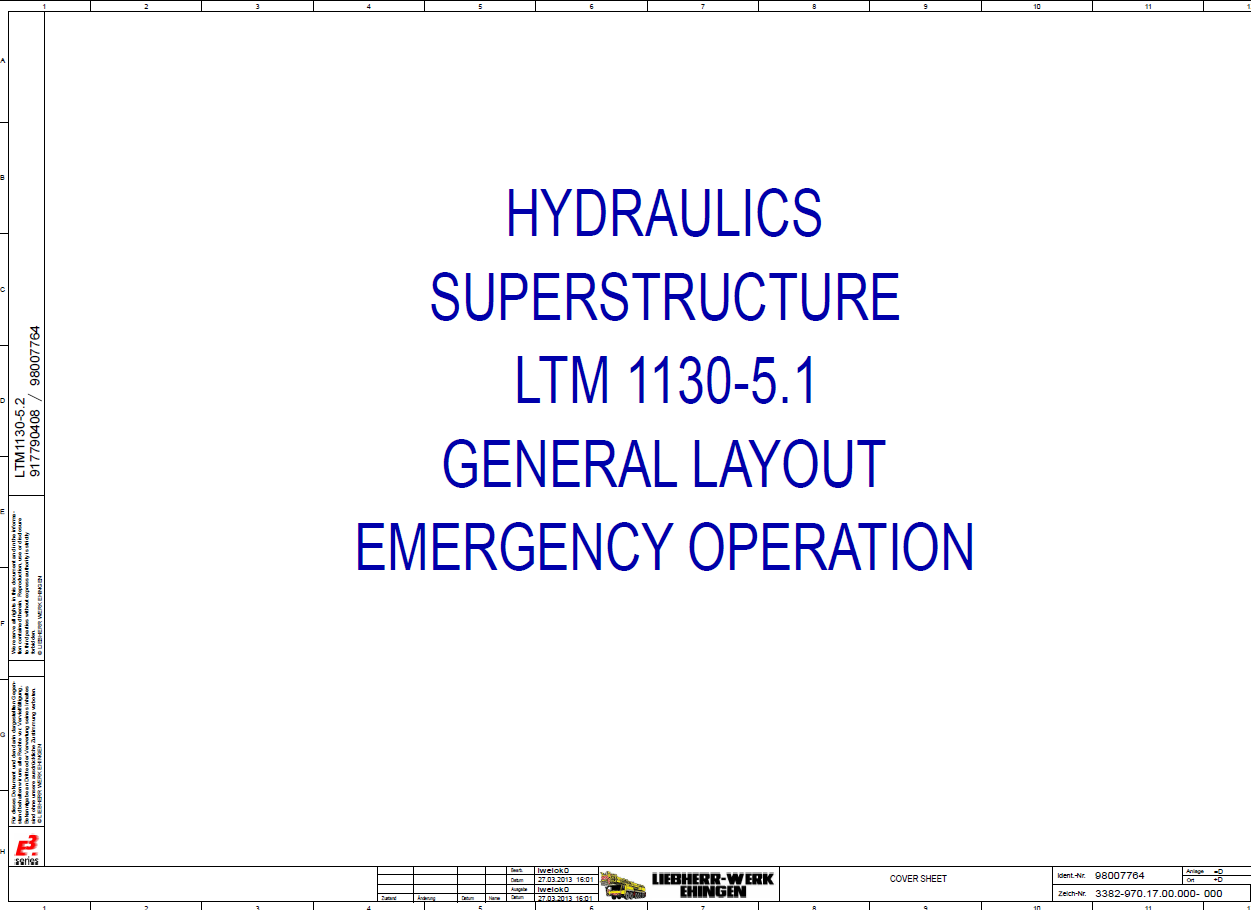

COVER SHEET

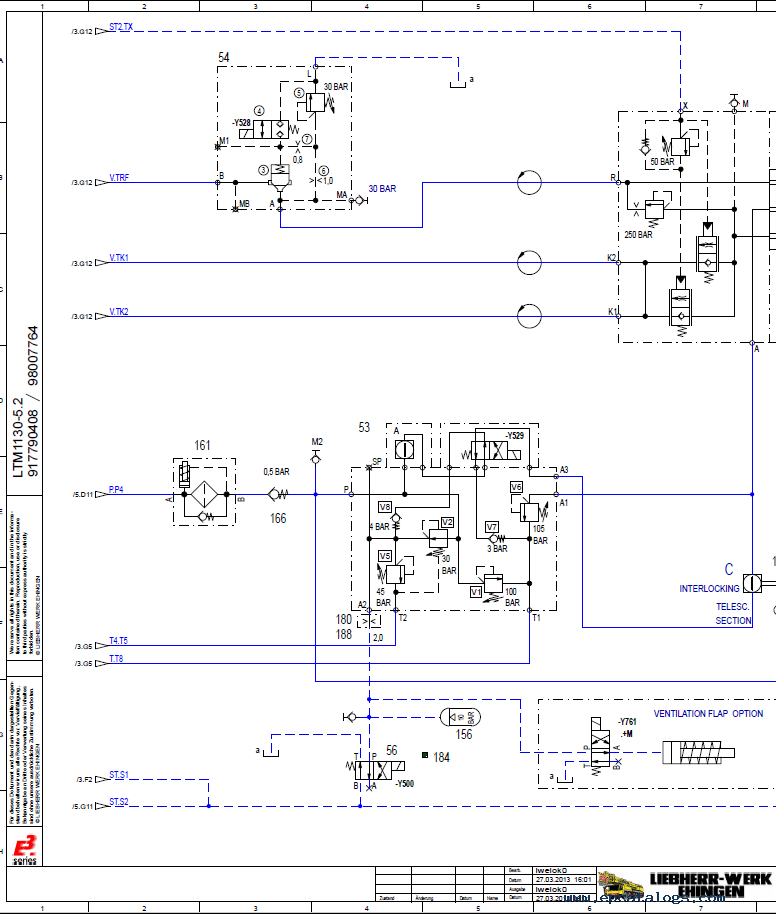

GENERAL LAYOUT TEST POINTS
HYDRAULICS BALLASTING SLEWING PLATFORM LOCK FOLDING JIB
HYDRAULICS ADJUSTMENT VALUES
HYDRAULICS AUXILIARY CONSUMERS INCLINING CAB
HYDRAULICS EMERGENCY LOWERING
HYDRAULICS EMERGENCY LOWERING
HYDRAULICS FORDING JIB
HYDRAULICS HOIST GEAR II
HYDRAULICS HOIST GEAR LUFFING
HYDRAULICS PRESSURE SUPPLY
HYDRAULICS SLEWING GEAR
HYDRAULICS TELESC. SECTION TELESC. SECT. INTERLOCK
HYDRAULICS VALVE BLOCK
