Liebherr LTM 1060/2 Training Documentation Manual PDF

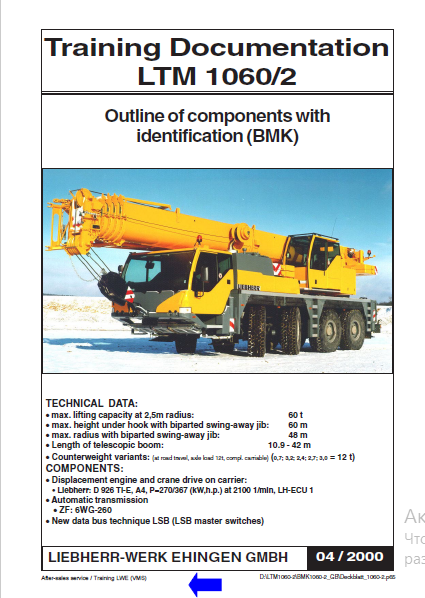

This Training Documentation was written for proper use andstep by step repair, technical maintenance, and troubleshooting procedures of Liebherr LTM 1060/2. Electronic material contains sections about outline of components, transmission, detailed descriptions, operation instructions, technical data, engine section, equipment characteristics, safety rules, and more.

Also, the factory file covers many screenshots, different schemes, and diagrams for more understanding of your Liebherr product. If you read all notes and rules in this tutorial you can avoid any problems such as breakdowns, or injuries. An online text comes in PDF format with 68 pages in the English, language. This manual works after installing Adobe PDF Reader, which allows you to find the necessary service information, as well as to print out individual pages or the entire text as a whole.

Table of Contents:

BMK-Tabelle (-A bis -E3):
BMK-Tabelle (-E3U bis -E76):
BMK-Tabelle (-E77 bis -MSP10):
BMK-Tabelle (-MSP11 bis -S146):
BMK-Tabelle (-S148 bis -X103):
BMK-Tabelle (-X104 bis -X622):
BMK-Tabelle (-X623 bis -XM103):
BMK-Tabelle (-Y bis -Y872):
Outline of components:
Carrier:

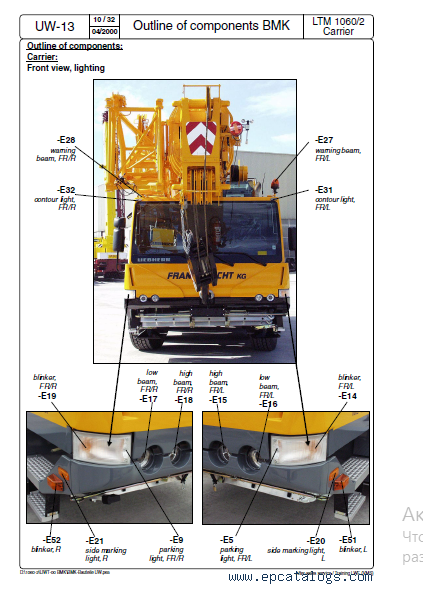

Front view, lighting
Rear view, lighting
View from the right, lighting and outrigger control panels
View from the left, lighting and outrigger control panels
Driver’s cab:
Control elements
Doors and mirrors
Swinging up the instrument board
Centre console, batteries
Wind-screen washing device, heater
Centre console, components and modules
Centre console, fuses, diagnostic connector
Bottom, additional heater
Pneumatic system
Drive:
Diesel engine D 926 TI-E A4
Intake air-flow
Cooling system:
Rotary slip-ring unit:

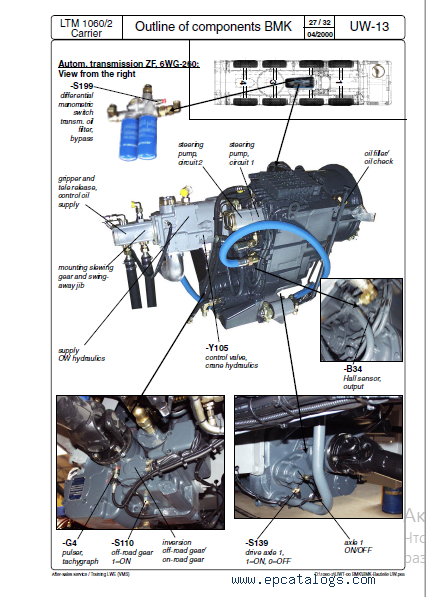

Autom. transmission ZF, 6WG-260:
View from the left
View from the right
Cardan shafts, transv. differential locks, Telma:
Suspension:
Outriggers and supporting rams, rear axle steering:
Pneumatic valves, main control block:
Index
