Komatsu Wheel Loader WA500-7 Field Assembly Instruction PDF

The Field Assembly Instruction is designed specifically for the Komatsu Wheel Loader WA500-7 model. It is divided into several sections that complete each other important instruction about installation, adjustment, disassembly, field assembly, the information necessary tools, etc Also, you can see many illustrations, diagrams, and schemes for the Komatsu Wheel Loader WA500-7 model.

This tutorial can help not only experienced professionals, but also beginners, but important to read all text especially the safety rules of this device. Electronic guide comes in PDF format with 108 pages for reading. For convenience, we recommend using Adobe PDF Reader to ensure the correct display of all graphics. All information in this factory file in English. Any questions you can ask us and we will help you immediately.

SERIAL NUMBERS 10001 and up

Table of Contents:

0000 Transportation posture table

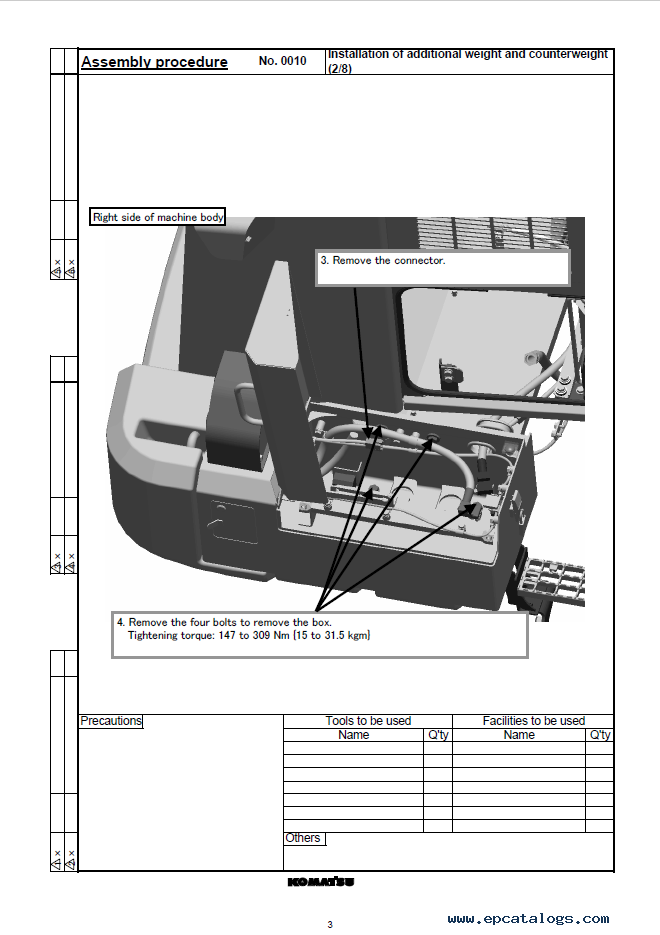

0010 Installation of additional weight and counterweight (1/8) to (8/8)
0020 Installation of muffler stack
0030 Installation of work equipment (Installation of work equipment (1/6) to (6/6))
0040 Installation of work equipment (Installation of bucket (1/3) to (3/3))
0050 Installation of work equipment (Greasing after installation of work equipment (1/2) to (2/2))
0060 Installation of work equipment (Installation of boom potentiometer (1/2) to (2/2))
0070 Installation of work equipment (Installation of bucket potentiometer wiring harness)
0080 Adjustment work after installation (Adjusting machine monitor (1/11) to (11/11))

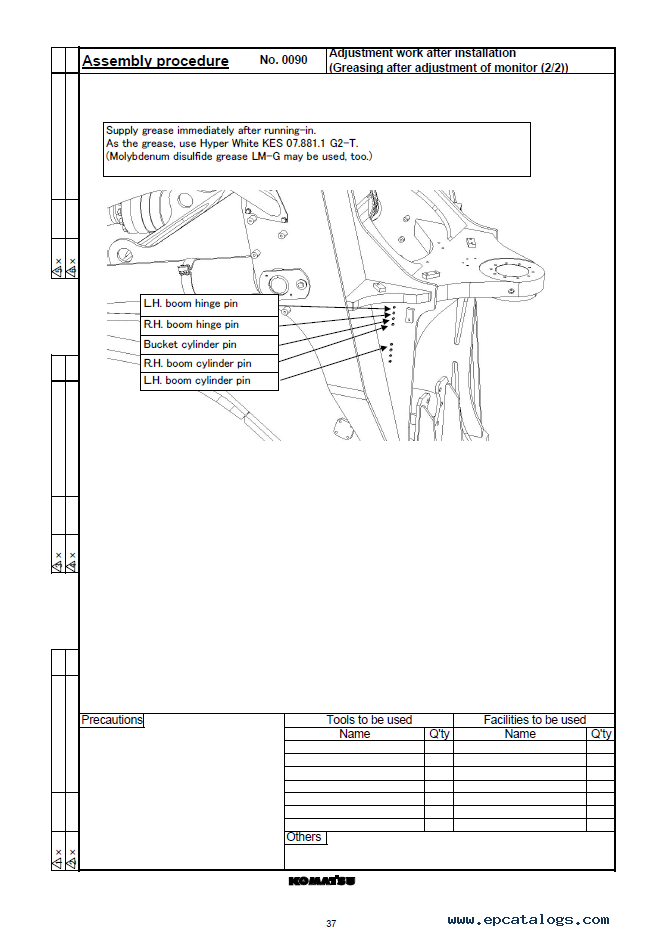

0090 Adjustment work after installation (Greasing after adjustment of monitor (1/2) to (2/2))
0100 Installation of air cleaner cap
0110 Installation of R.H. platform and handrail (1/8) to (8/8)
0120 Installation of cab (Necessary tools and General tightening torque list)
0130 Installation of cab (Split cab parts list)
0140 Disassembly of cab (Preparation for transportation) 1
0150 Disassembly of cab (Preparation for transportation) 2
0160 Disassembly of cab (Preparation for transportation) 3
0170 Disassembly of cab (Preparation for transportation) 4 (1/4) to (4/4)

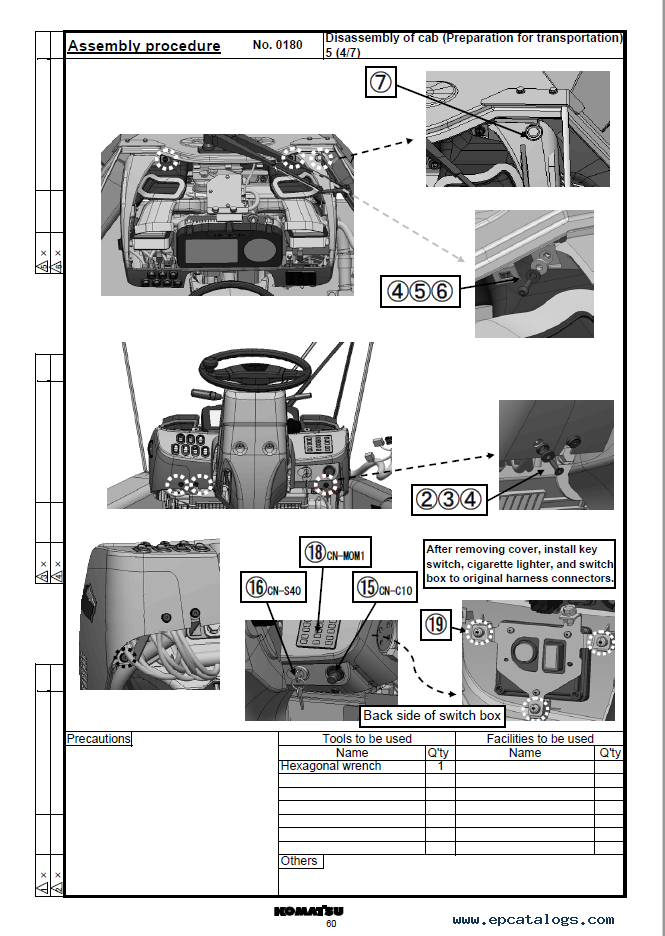

0180 Disassembly of cab (Preparation for transportation) 5 (1/7) to (7/7)
0190 Disassembly of cab (Preparation for transportation) 6 (1/5) to (5/5)
0200 Disassembly of cab (Preparation for transportation) 7 (1/2) to (2/2)
0210 Field assembly (Assembly of cab) 1 (1/2) to (2/2)
0220 Field assembly (Assembly of cab) 2 (1/2) to (2/2)

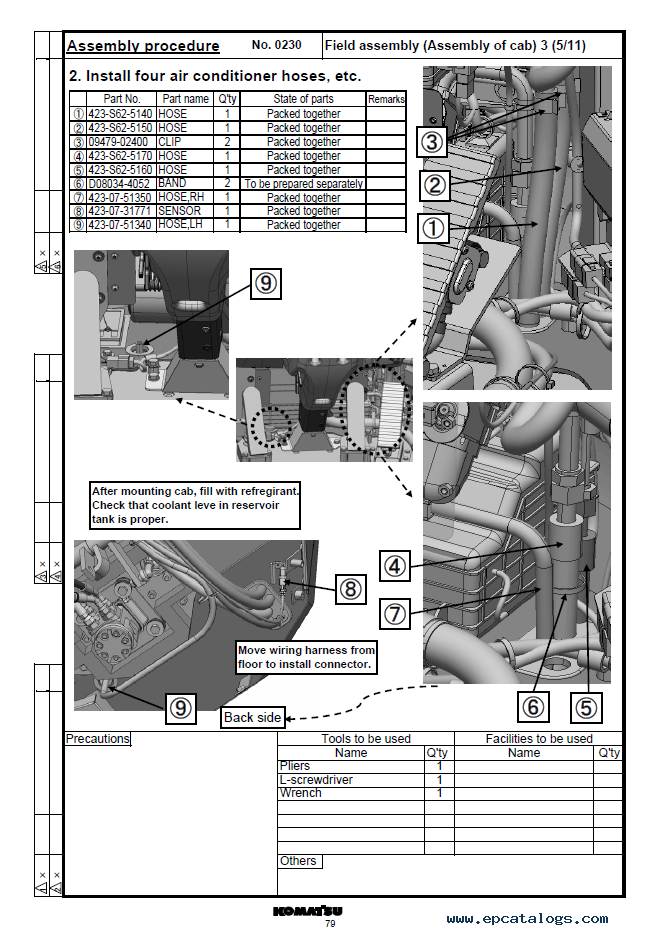

0230 Field assembly (Assembly of cab) 3 (1/11) to (11/11)
0240 Field assembly (Assembly of cab) 4 (1/4) to (4/4)
0250 Field assembly (Assembly of cab) 5
0260 Field assembly (Assembly of cab) 6 (1/2) to (2/2)
0270 Charging refrigerant
0280 Final check (Operation check of accelerator, brake,and work equipment)
Appendix Field assembly inspection report
