Komatsu Wheel Loader WA1200-6 Field Assembly Instruction PDF

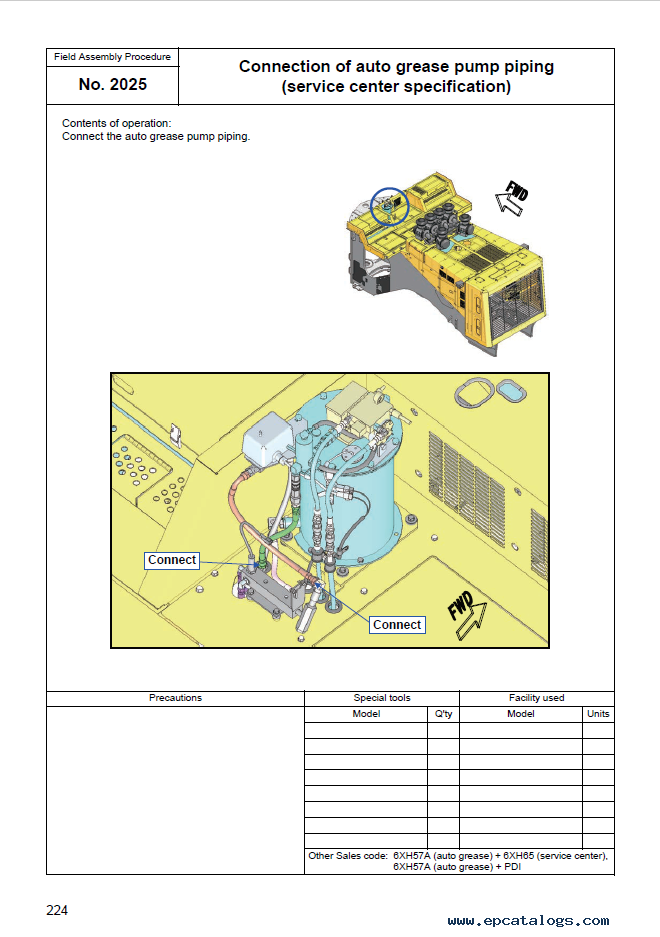

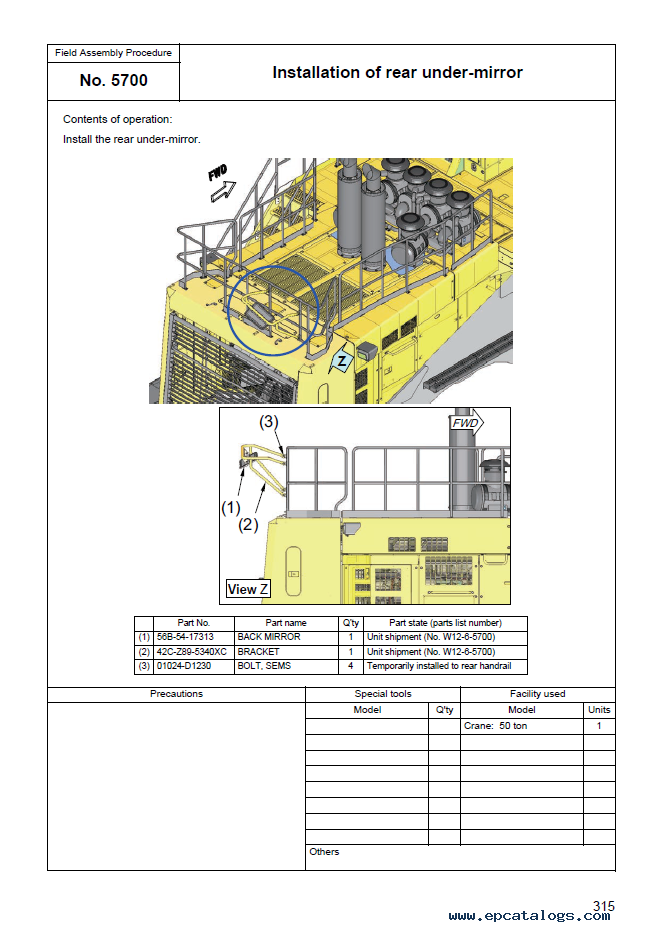

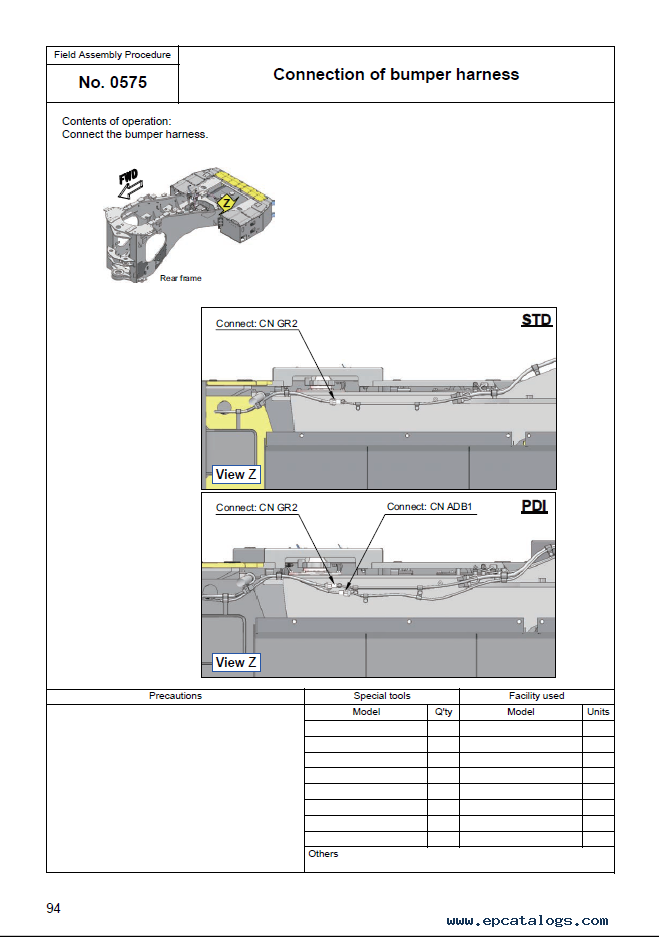

We invite you to familiarize the full description of this Field Assembly Instruction was written for the Komatsu Wheel Loader WA1200-6 model. In this factory file includes information about dimensions of main components, workspace layout, assembly procedure, list of secondary materials, specifications for your technic. Also, you can see many screenshots and diagrams, colored tables, and schemes which will help to visually get acquainted with each part of your equipment and understand the text.

Before using to read and follow all safety instructions in order to protect your device from unforeseen breakdowns and technical failures also heavy injuries. Having a reliable Komatsu material, you will not only save money but also gain experience in repairing your own equipment yourself. An online text comes in PDF format with 407 pages for reading and supports the English language. We recommend using Adobe PDF Reader, to be sure all images/graphics will display correctly. If you have any questions about performing maintenance of the Komatsu Wheel Loader WA1200-6 model, please consult us and we will help you.

SERIAL NUMBERS 60001 and up

Table of Contents:

Division overview
Dimensions of main components
Steel plate curing diagram
Workspace layout
Assembly general schedule
List of facilities and jigs for field assembly
Facility and jig drawings (specifications)
List of secondary materials for field assembly
Assembly procedure
