Komatsu Payload Meter II Set of PDF Manuals

The Operators and Maintenance personnel must read and understand this electronic manual before operating or maintaining this Komatsu Payload Meter II machine. This set of factory files should be kept in or near the machine for reference, and periodically reviewed by all personnel who will come into contact with it. For convenience, we recommend using Adobe PDF Reader to ensure the correct display of all graphics.  Working with this tutorial, you can easily copy, save, and print the information you need. In any case, write to us, do not be shy - we will answer all your questions.

Set includes:
-Komatsu Payload Meter II Operation & Maintenance Manual CEAM006301
-Komatsu Payload Meter II Operation & Maintenance Manual CEAM006803
-Komatsu Payload Meter II Operation & Maintenance Manual SEAT000904

PLM II for models Off-Highway Truck:
- HD325-6
- HD405-6
- HD465-5
- HD605-5
- HD785-3
- HD785-5
- HD985-3
- HD985-5
- HD1200-1

Contents:

Introduction
Precise use
General locations
Content of display
External display lamps

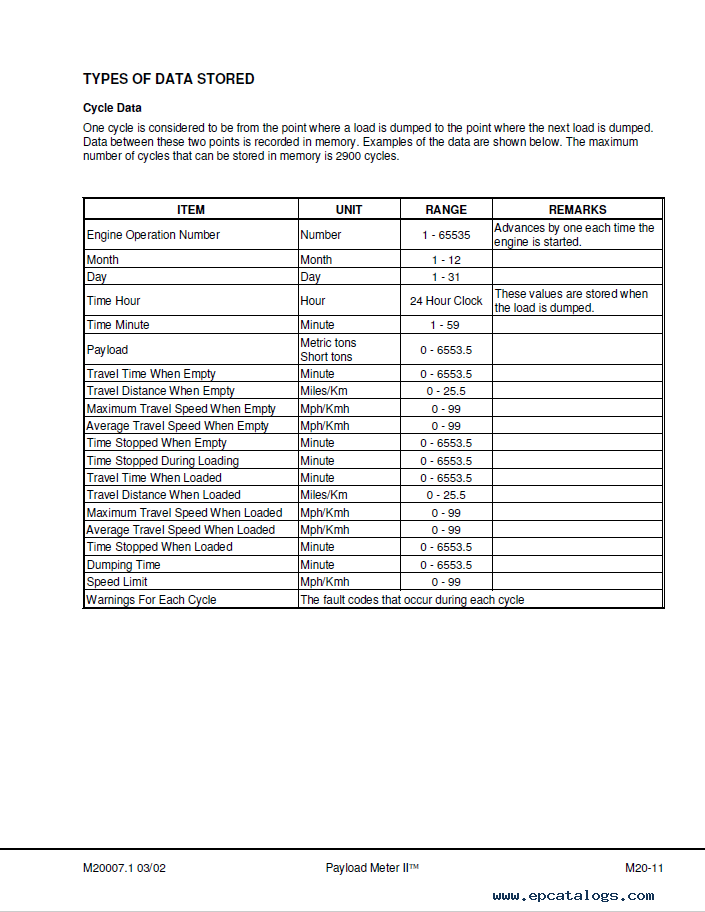

Details of data stored in the memory of the payload meter
Operation of switches
Abnormality and warning display
When F-09 is displayed for the error code

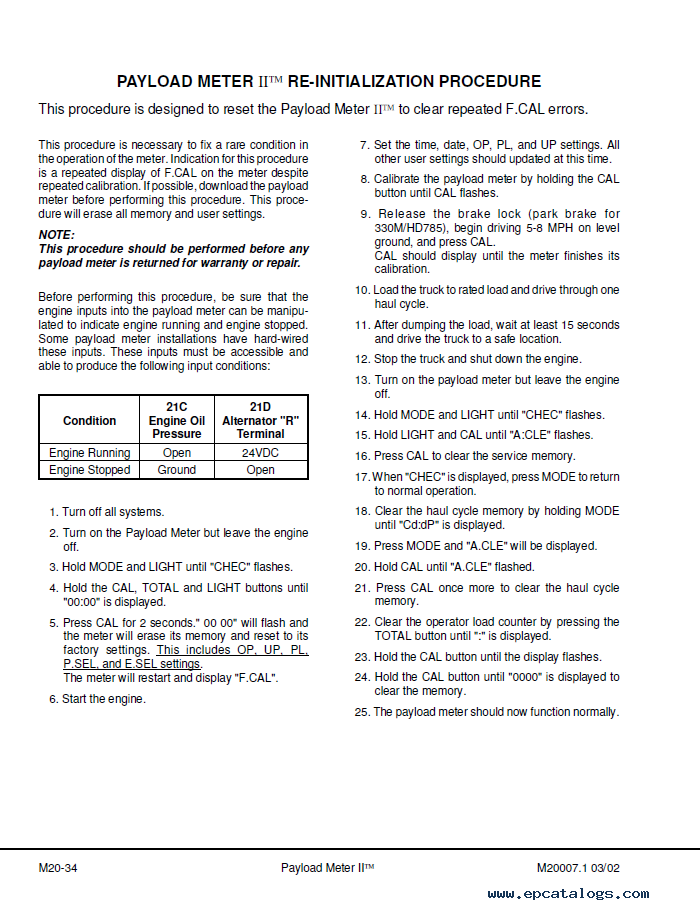

If F_CAL is displayed as an error code, or the controller is replaced

The system consists of a payload meter, pressure sensors, deck-mounted lights, and an inclinometer. The payload meter stores in memory various operating data. This data covers:
· payload, time, distance, and travel speed for each cycle
· date and time that the engine was started and stopped
· date and time of each fault that occurred or was canceled
· total payload and the overall number of cycles for a specific period.

Technical data is retained even when the power is switched off. The stored data is backed up by an internal battery. The data can be downloaded from the payload meter to a personal computer when a communication cable is connected to the port inside the cab.
