Komatsu Hydraulic Excavator PC750/SE/LC-6, PC800/SE-6 Field Assembly Instruction PDF

This Field Assembly Instruction is helpful and important information relating to correct use, technical maintenance, and step by step repair procedures of the Komatsu Hydraulic Excavator PC750/SE/LC-6, PC800/SE-6 models. The electronic guide consists of full instructions about specifications instruction, field assembling section, assembling procedures, transportation information, tool list for field assembly, and so on.

Also, you can see special service instructions, setting, different tables and illustrations, diagrams, schematics for Komatsu Hydraulic Excavator PC750/SE/LC-6, PC800/SE-6 models. A section "safely rules" is very important in order to avoid various injuries and prolong the life of your equipment. Regular, correct maintenance and care are important for long and efficient work hydraulic excavator models.

Online tutorial has a convenient and easy-to-use interface that supports English with 165 pages. To read and print the information you must install the Adobe PDF Reader program.  Any questions you may have you can ask us and we will help you.

Table of Contents:

Specifications
Field Assembling
Assembling procedures, applicable equipment, and schedule

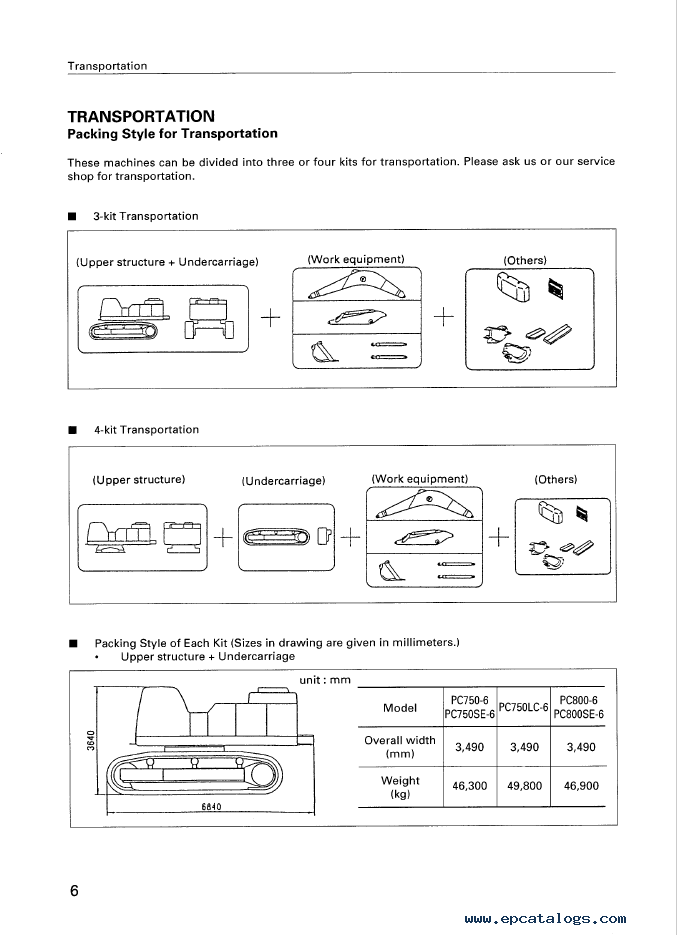

Transportation
Packing Style for Transportation
Tool list for field assembly
Standard Tightening Torque

A. Assembling of the base machine

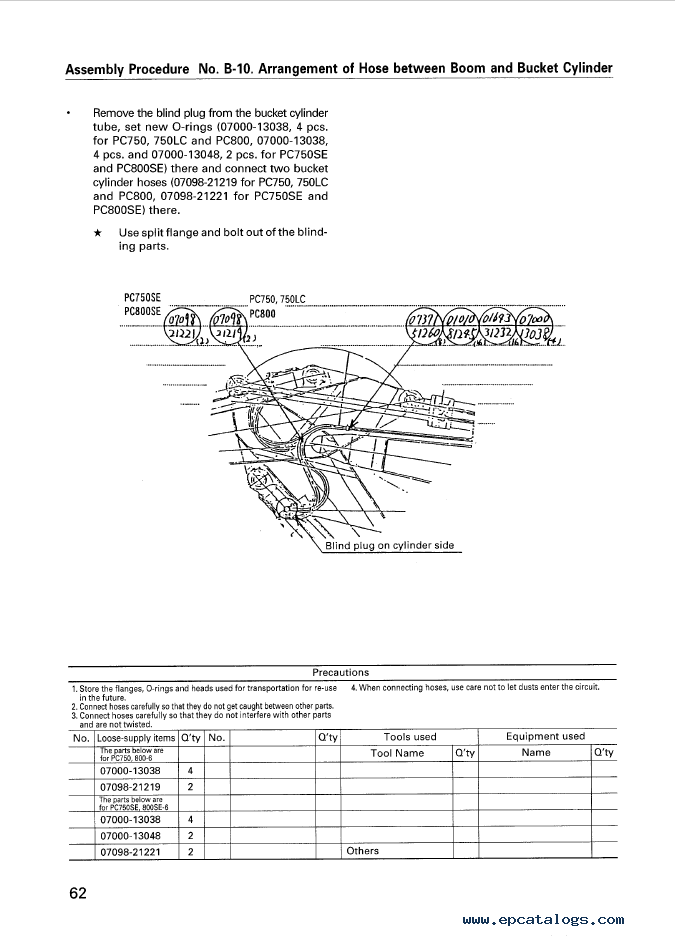

B. Assembling of work equipment

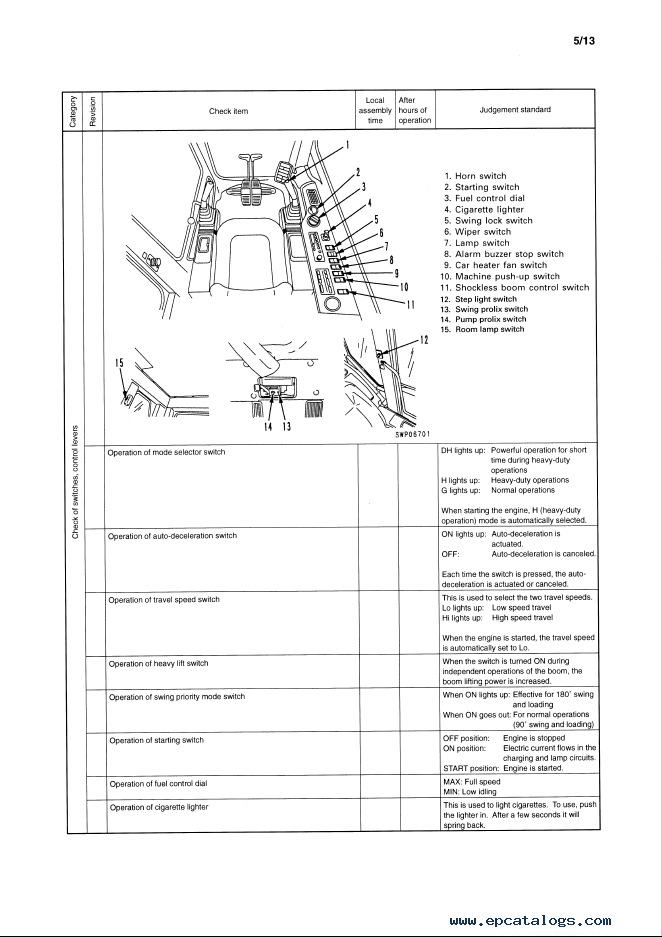

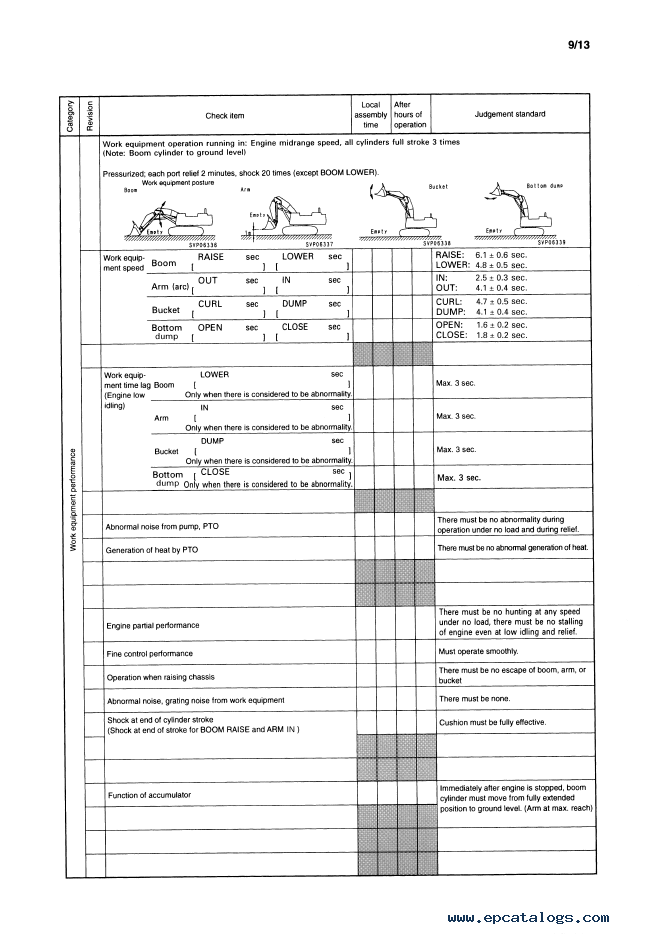

M. Procedure for inspection and maintenance after completion of assembly
C. Assembling of work equipment of Loading Shovel
