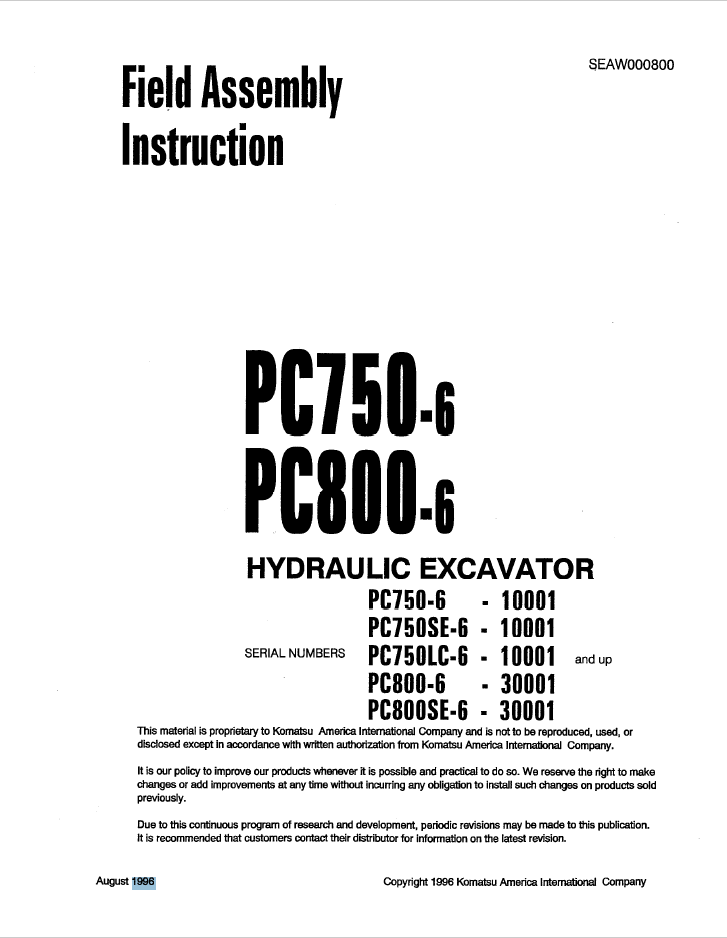

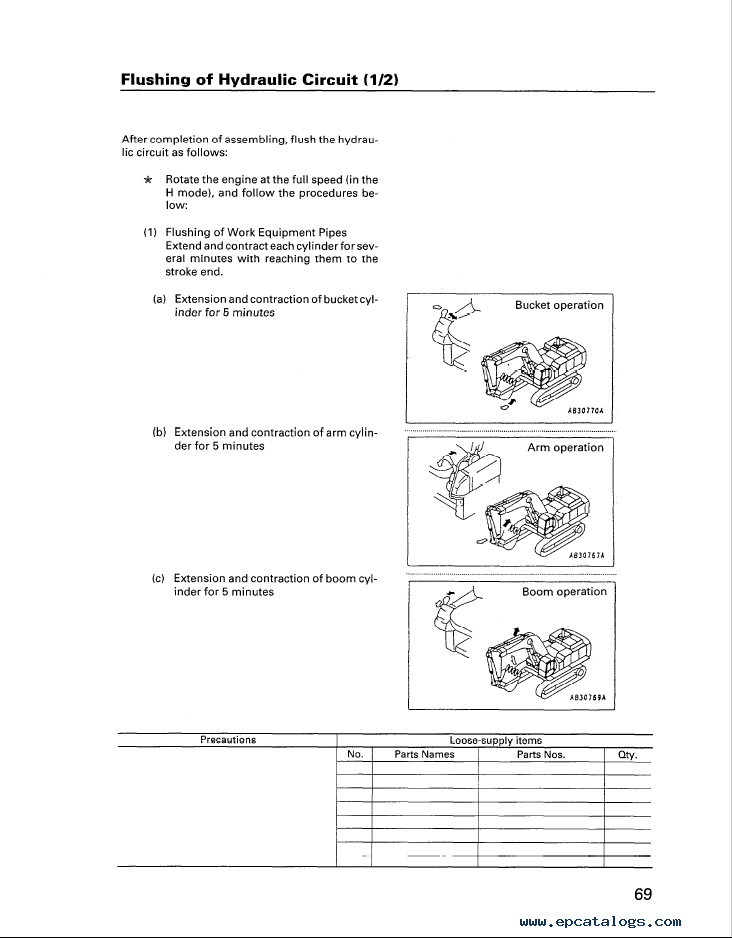

Komatsu Hydraulic Excavator PC750-6, PC800-6 Field Assembly Instruction PDF

Komatsu manual is presented as a field assembly Instruction for the operation, maintenance, repair, and troubleshooting of the Hydraulic Excavator PC750-6, PC800-6 of this brand. The factory file has several sections about the safety section, service information, technical maintenance, assembling procedures, list of tools, many illustrations, tables, different schemes, and diagrams for Komatsu Hydraulic Excavator PC750-6, pc800-6 models.

All pictures in this tutorial, you can help you detailed familiarize and study your equipment parts. It is very important to read this electronic guide before using your machine. Appropriate service methods and correct repair procedures are essential for the safe, reliable operation of all devices, as well as the personal safety of the individual performing the repair. Online text information is in PDF format so it will work with computers. For quality work with this material, we recommend using the application Adobe PDF Reader.

Table of Contents:

Points Regarding Local Assembly
Assembling Procedures, Applicable Equipment and Schedule
Packing Style for Transportation
List of Tools for Field Assembling
Field Assembling
Related Laws and Regulations
Fitting of Left and Right Track Frames
Arrangement of Travel Pipe
Installation of FOPS
Setting of Radiator Cover
Fitting of Rearview Mirror
Installation of Handrail

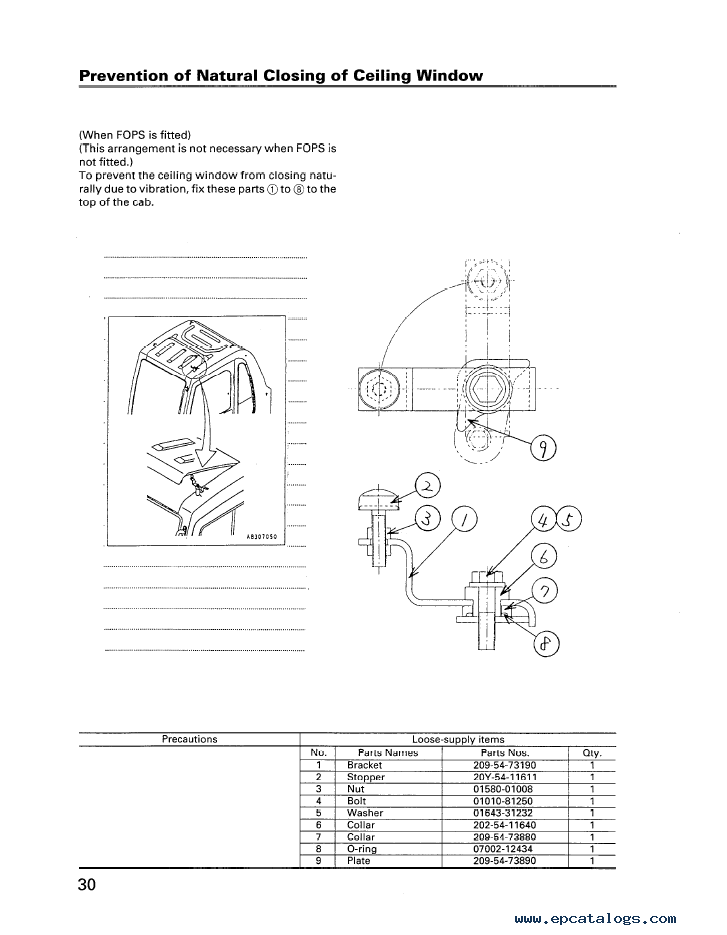

Prevention of Natural Closing of Ceiling Window
Installation of Step
Installation of Left Side Step
Setting of Muffler Tail Tube
Sticking of Sheet (to Counterweight)
Installation of Counterweight
Installation of Radio Antenna
Installation of Cab Top Light
Fitting of Stopper (on Hydraulic Tank)
Extension of Track Frame Gauge (Only when 3-split packages are transported)
Setting of Travel Pipe Cover
Adjustment of Track Tension
Inspection of Oil Amount and Water Amount
Boom Foot Pin and Boom Cylinder Foot Pin
Boom Assembly
Relieving Remaining Pressure from Hydraulic Circuit
Installation of Boom Cylinder Foot

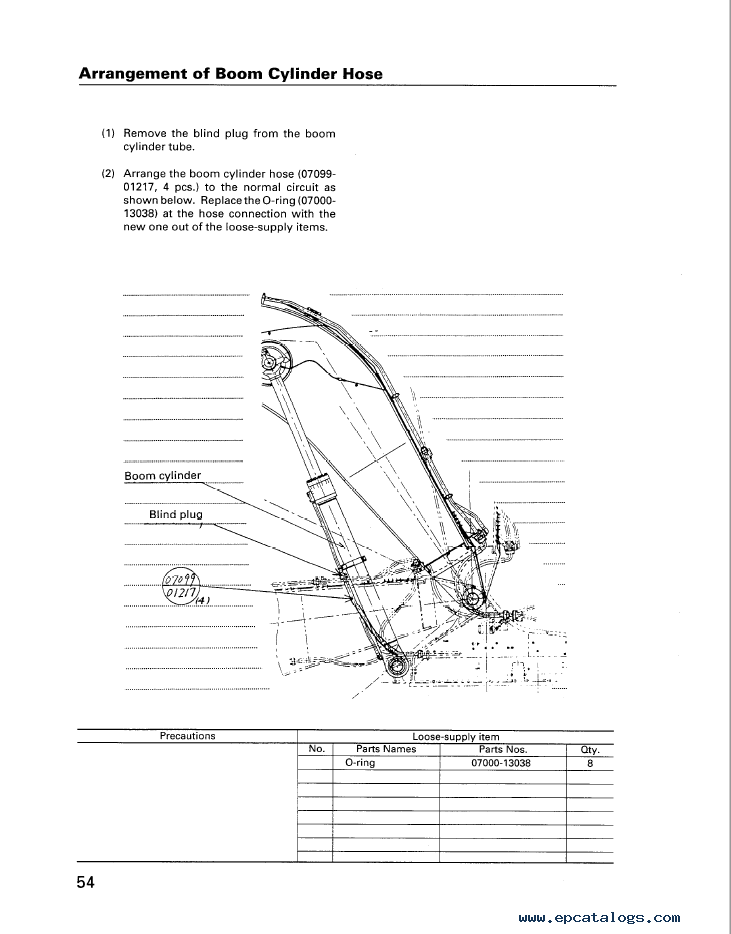

Arrangement of Boom Cylinder Hose
Boom Cylinder
Arm Cylinder
Arrangement of Arm Cylinder Hose
Installation of Arm Assembly
