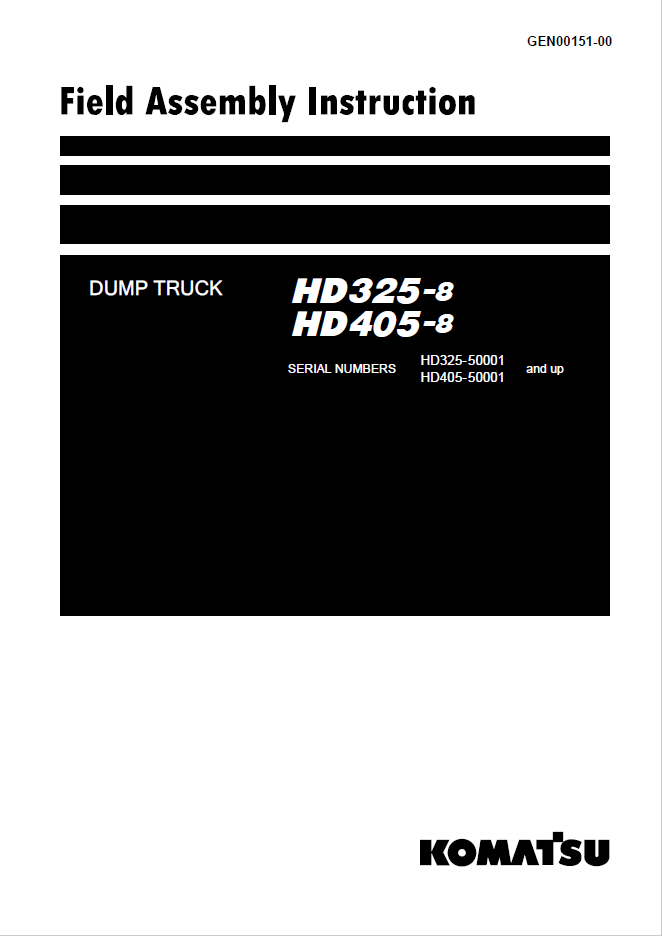

Komatsu Dump Truck HD325-8, HD405-8 Field Assembly Instruction PDF

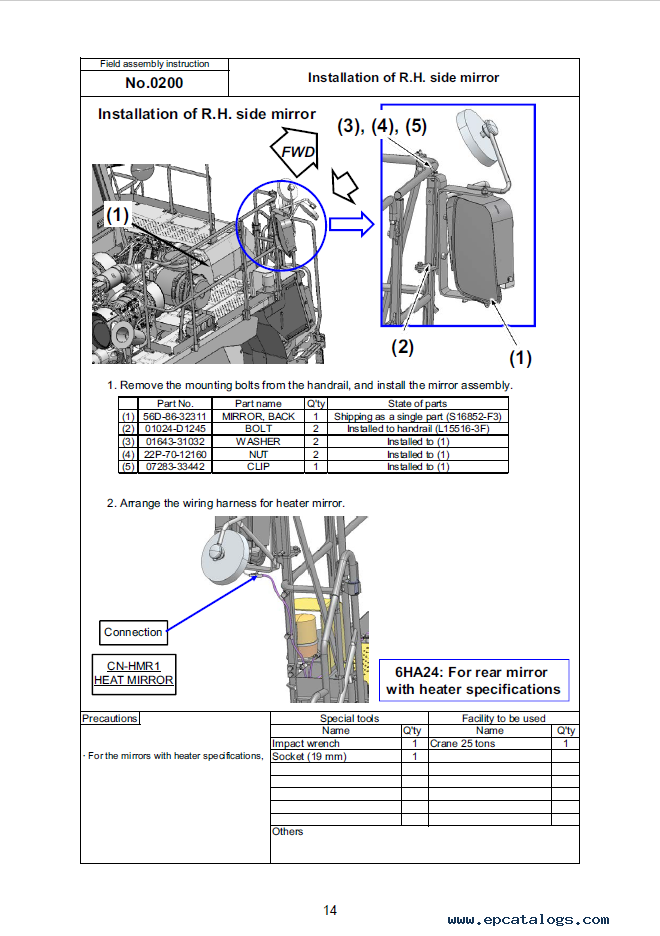

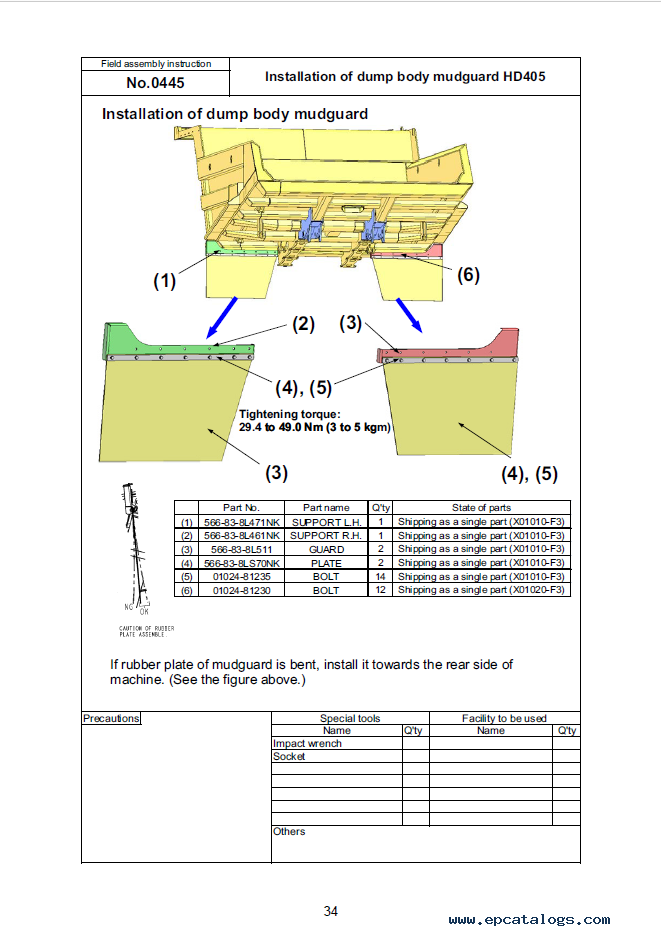

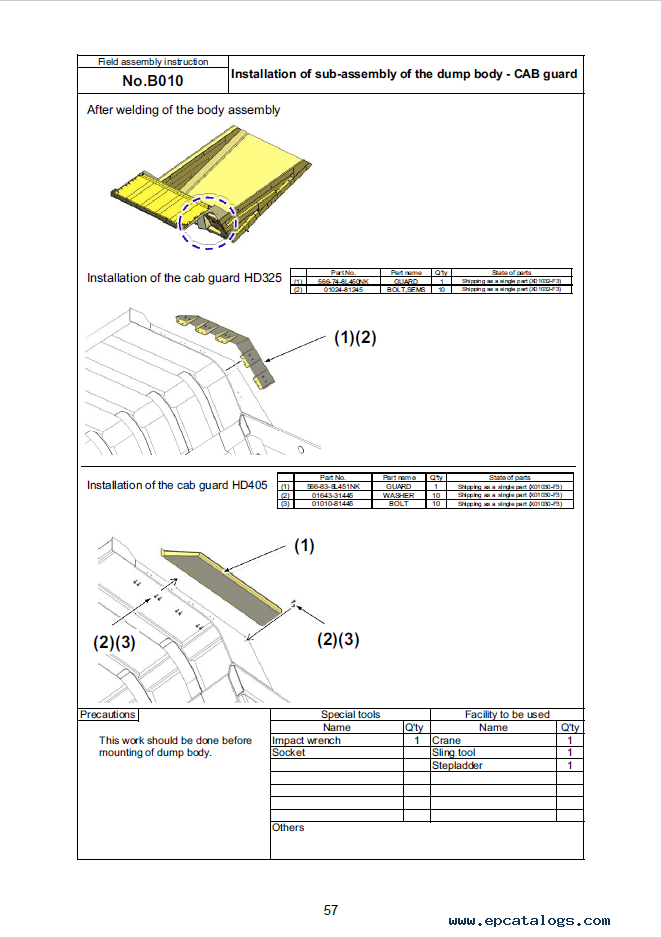

The Field Assembly Instruction in PDF format provides an overall description, proper use, service, and troubleshooting procedure for Komatsu Dump Truck HD325-8, HD405-8 models. Factory guide includes clear information about step by step instructions, setting instruction, technical maintenance, troubleshooting, the outline of separation, assembling and welding, etc. Also, you can see many screenshots, diagrams, and schemes which provided for a detailed familiarization visually with your equipment and understanding the entire text in more detail.

The user is always compelled to observe all general safety, to avoid any breakdowns and injuries, or other problems with your Komatsu Dump Truck HD325-8, HD405-8 models. Electronic guide covers 75 pages for reading in the English language. You can work with this material after installing Adobe PDF Reader. If you have any questions - write to us about them.

Table of Contents:

Outline of separation (only for main components)

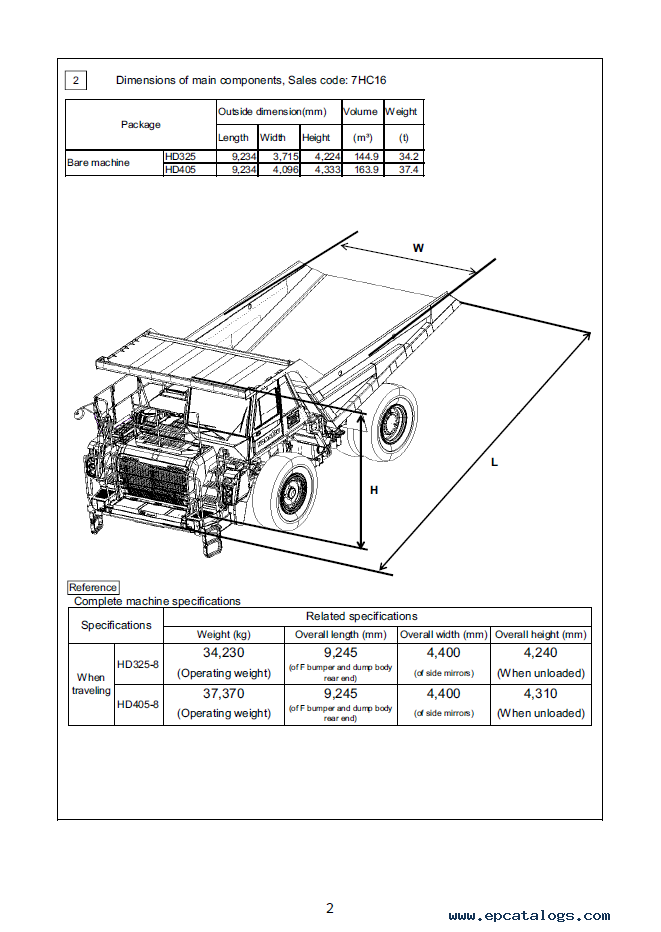

Dimensions of main components, Sales code: 7HC16
Dimensions of main components, Sales code: 7HC61
Dimensions of main components, Sales code: 7HC62
Rough schedule of assembling and welding (for normal disassembly packing)
Layout of workspace
Facility, jig and consumable parts list
Field assembly procedure
